作业3
前言
本次作业有一定难度，真的汗流浃背了。做了好几天，看了各种博客，也不敢保证做得很好，但基本的也搞懂了课上的原理

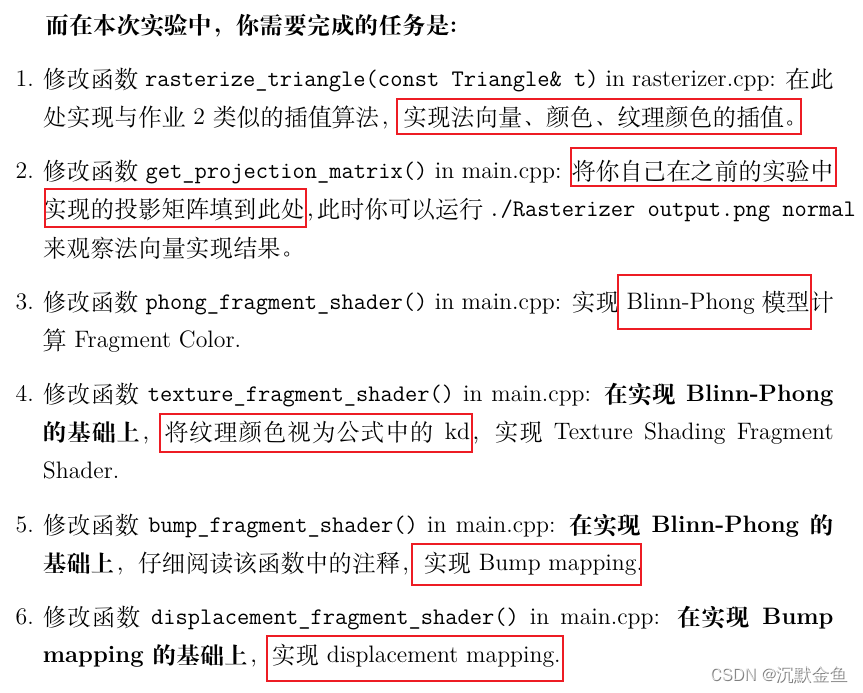

作业要求
pdf文档说的很清楚了，原理基本上课堂都讲过，其他博客都有更好的答案，这里只讲讲原理和注意事项
任务1：实现插值

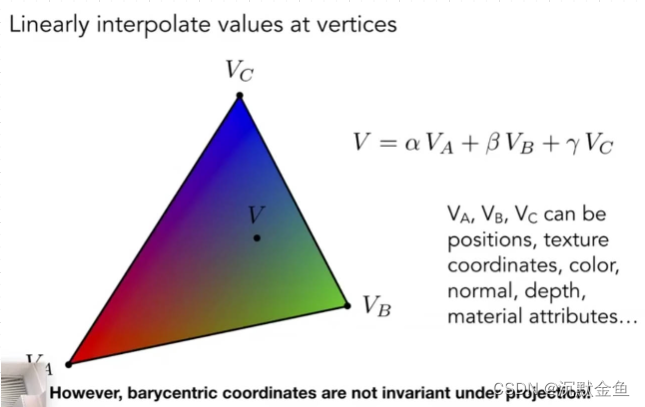

一开始还没有理解插值的真正含义是什么，但学习了P9的课程内容后，我可以用大白话来解释：插值其实就是使用算法对某些值代入计算得到的内部均值
比如三角形的颜色插值，求到的就是一个在三个顶点颜色之间的比较均匀的颜色
作业具体代码
首先你会发现实际上代码模板用的是作业二没有优化锯齿的代码，这其实是因为不需要优化锯齿；然后插值部分直接调用写好的函数就行，对于最后一个参数为1实际是做透视矫正；最后是那个坐标得是2i，不然会有奇怪的错误
参考博客：作业3解题
void rst::rasterizer::rasterize_triangle(const Triangle& t, const array<Vector3f, 3>& view_pos)
{
auto v = t.toVector4();
int minx, maxx, miny, maxy; //定义一个三角形的覆盖面boundingBox
minx = min(v[0].x(), min(v[1].x(), v[2].x()));
maxx = max(v[0].x(), max(v[1].x(), v[2].x()));
miny = min(v[0].y(), min(v[1].y(), v[2].y()));
maxy = max(v[0].y(), max(v[1].y(), v[2].y()));
//循环判断每个点是否在三角形内
for (int y = miny; y <= maxy; y++)
{
for (int x = minx; x <= maxx; x++)
{
if (insideTriangle((float)x + 0.5, (float)y + 0.5, t.v)) //用像素中心点当像素坐标
{
//求深度插值
float alpha, beta, gamma;
tie(alpha, beta, gamma) = computeBarycentric2D(x + 0.5, y + 0.5, t.v); //取tuple值用tie流式比较简单
float w_reciprocal = 1.0 / (alpha / v[0].w() + beta / v[1].w() + gamma / v[2].w());
float z_interpolated = alpha * v[0].z() / v[0].w() + beta * v[1].z() / v[1].w() + gamma * v[2].z() / v[2].w();
z_interpolated *= w_reciprocal;
//光栅化
int index = get_index(x, y);
if (z_interpolated < depth_buf[index]) //判断当前z值是否小于原来z表此位置的z值
{
depth_buf[index] = z_interpolated; //更新z值
// TODO: Interpolate the attributes:
// auto interpolated_color
// auto interpolated_normal
// auto interpolated_texcoords
// auto interpolated_shadingcoords
auto interpolated_color = interpolate(alpha, beta, gamma, t.color[0], t.color[1], t.color[2], 1);
auto interpolated_normal = interpolate(alpha, beta, gamma, t.normal[0], t.normal[1], t.normal[2], 1);
auto interpolated_texcoords = interpolate(alpha, beta, gamma, t.tex_coords[0], t.tex_coords[1], t.tex_coords[2], 1);
auto interpolated_shadingcoords = interpolate(alpha, beta, gamma, view_pos[0], view_pos[1], view_pos[2], 1);
// Use: fragment_shader_payload payload( interpolated_color, interpolated_normal.normalized(), interpolated_texcoords, texture ? &*texture : nullptr);
// Use: payload.view_pos = interpolated_shadingcoords;
// Use: Instead of passing the triangle's color directly to the frame buffer, pass the color to the shaders first to get the final color;
// Use: auto pixel_color = fragment_shader(payload);
fragment_shader_payload payload(interpolated_color, interpolated_normal.normalized(), interpolated_texcoords, texture ? &*texture : nullptr);
payload.view_pos = interpolated_shadingcoords;
auto pixel_color = fragment_shader(payload);
Vector2i pi = {x,y}; //作业二是三维坐标，在本次作业是二维
set_pixel(pi, pixel_color);
}
}
}
}
}
任务2：投影矩阵
实验二做的没问题，这里应该也没啥问题，如果出现奶牛倒立，可能就是实验二的n和f没有设置正确
Matrix4f get_projection_matrix(float eye_fov, float aspect_ratio, float zNear, float zFar)
{
float n = zNear; //右手系，n应该比f大，但传入参数n比f小
float f = zFar;
Matrix4f PerToOr = Matrix4f::Identity(); //这里是距离，n和f不用变
PerToOr <<
n, 0, 0, 0,
0, n, 0, 0,
0, 0, n + f, -1.0 * n * f,
0, 0, 1, 0;
n = -n;
f = f;
float angle = 0.5 * eye_fov * MY_PI / 180;
float t = n * tan(angle);
float b = -t;
float r = t * aspect_ratio;
float l = -r;
//平移
Matrix4f translate;
translate <<
1, 0, 0, -(r + l) / 2,
0, 1, 0, -(t + b) / 2,
0, 0, 1, -(n + f) / 2,
0, 0, 0, 1;
//标准化
Matrix4f nor;
nor <<
2 / (r - l), 0, 0, 0,
0, 2 / (t - b), 0, 0,
0, 0, 2 / (n - f), 0,
0, 0, 0, 1;
Matrix4f projection = Matrix4f::Identity();
//先转换为正交投影变成立方体，再平移到原点，再标准化
return nor * translate * PerToOr * projection;
}
任务3：实现phong_fragment_shader()

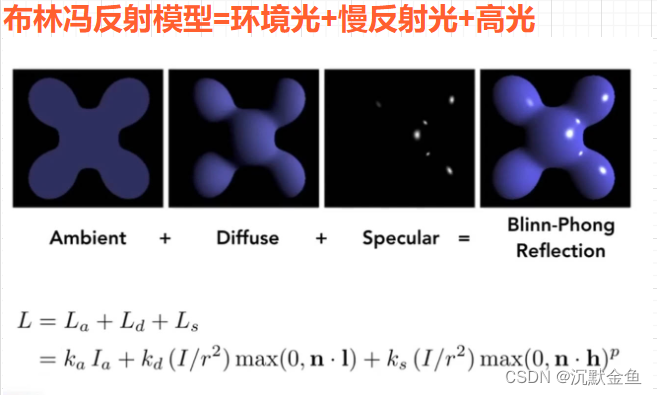

首先需要清楚公式，如下

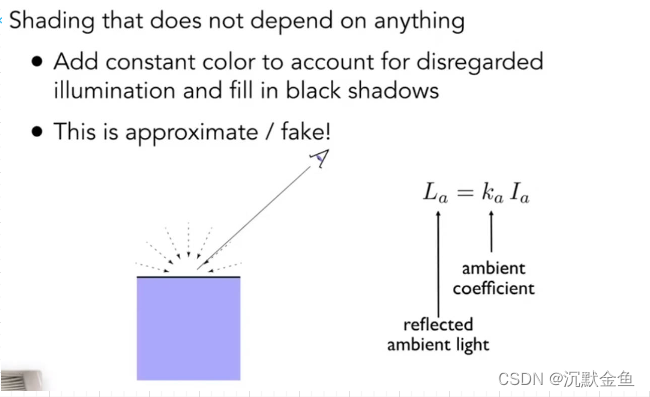

求环境光La
由于环境光来自四面八方不好精确计算，所以代码中老师已经给出了光强和系数ka求大致的值

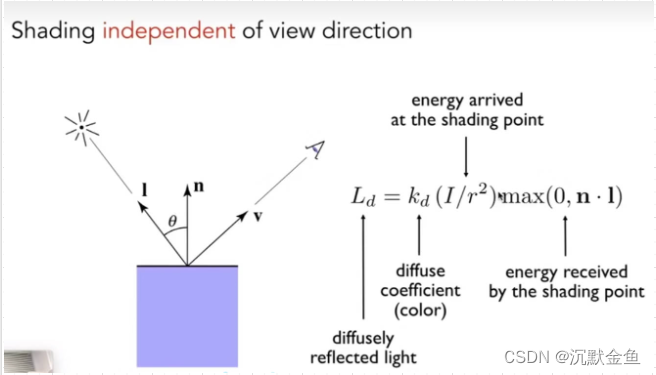

求慢反射光Ld
如图，首先需要求3个法向量（注意方向和归一化），其次要求平面和光源的距离，这个距离需要用未归一化的I向量来求，Eigen中有norm方法可以求
求高光Ls
很明显，相比慢反射光，需要多求一个h向量，之后基本和漫反射差不多
PS：别忘了计算指数P
作业代码
Vector3f phong_fragment_shader(const fragment_shader_payload& payload)
{
Vector3f ka = Vector3f(0.005, 0.005, 0.005);
Vector3f kd = payload.color;
Vector3f ks = Vector3f(0.7937, 0.7937, 0.7937);
auto l1 = light{{20, 20, 20}, {500, 500, 500}};
auto l2 = light{{-20, 20, 0}, {500, 500, 500}};
vector<light> lights = {l1, l2};
Vector3f amb_light_intensity{10, 10, 10};
Vector3f eye_pos{0, 0, 10};
float p = 150;
Vector3f color = payload.color;
Vector3f point = payload.view_pos;
Vector3f normal = payload.normal;
Vector3f result_color = {0, 0, 0};
for (auto& light : lights)
{
// TODO: For each light source in the code, calculate what the *ambient*, *diffuse*, and *specular*
// components are. Then, accumulate that result on the *result_color* object.
Vector3f I = light.intensity;
Vector3f L = (light.position - point).normalized(); //入射光向量
Vector3f V = (- point).normalized();
Vector3f N = normal.normalized();
Vector3f h = (V + L).normalized(); //与老师的公式略有不同，其实确定了方向直接归一化就行
float r = (light.position-point).norm(); //入射光长度
float R = r * r;
Vector3f La = ka.cwiseProduct(amb_light_intensity);
Vector3f Ld = kd.cwiseProduct(I / R) * max(0.f, N.dot(L));
Vector3f Ls = ks.cwiseProduct(I / R) * pow(max(0.f, N.dot(h)), p);
result_color += La + Ld + Ls;
}
return result_color * 255.f;
}
唯一需要注意的就是Vector3f V = (- point).normalized();不需要用eye_pos再减去像素位置了，因为已经经过了MV变换
任务4：实现texture_fragment_shader()

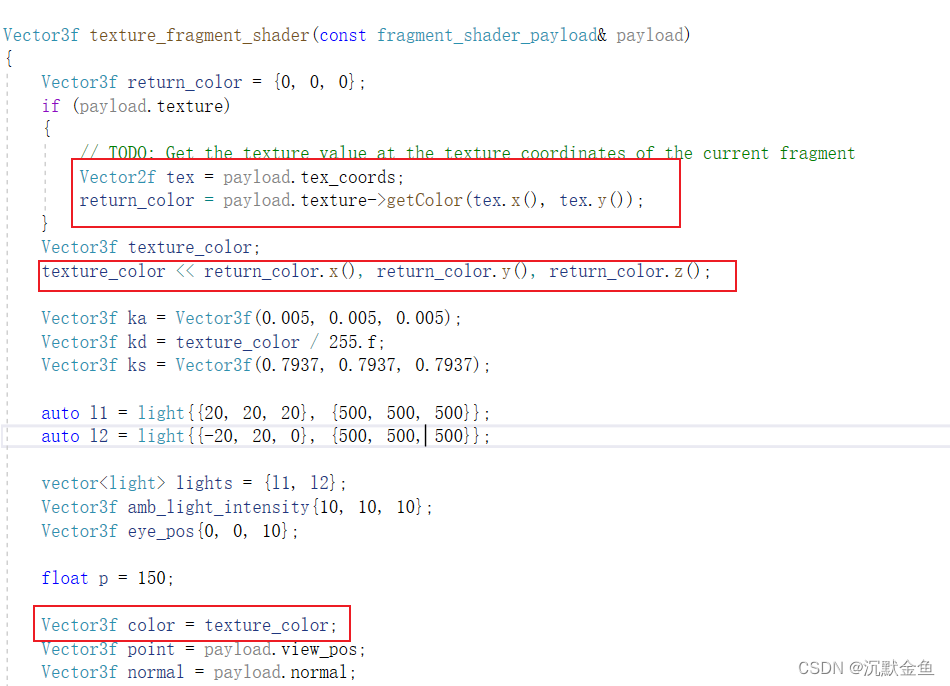

没啥好说的，就是用纹理的坐标更换颜色的坐标
Vector3f texture_fragment_shader(const fragment_shader_payload& payload)
{
Vector3f return_color = {0, 0, 0};
if (payload.texture)
{
// TODO: Get the texture value at the texture coordinates of the current fragment
Vector2f tex = payload.tex_coords;
return_color = payload.texture->getColor(tex.x(), tex.y());
}
Vector3f texture_color;
texture_color << return_color.x(), return_color.y(), return_color.z();
Vector3f ka = Vector3f(0.005, 0.005, 0.005);
Vector3f kd = texture_color / 255.f;
Vector3f ks = Vector3f(0.7937, 0.7937, 0.7937);
auto l1 = light{{20, 20, 20}, {500, 500, 500}};
auto l2 = light{{-20, 20, 0}, {500, 500, 500}};
vector<light> lights = {l1, l2};
Vector3f amb_light_intensity{10, 10, 10};
Vector3f eye_pos{0, 0, 10};
float p = 150;
Vector3f color = texture_color;
Vector3f point = payload.view_pos;
Vector3f normal = payload.normal;
Vector3f result_color = {0, 0, 0};
for (auto& light : lights)
{
// TODO: For each light source in the code, calculate what the *ambient*, *diffuse*, and *specular*
// components are. Then, accumulate that result on the *result_color* object.
Vector3f I = light.intensity;
Vector3f L = (light.position - point).normalized(); //入射光向量
Vector3f V = (- point).normalized();
Vector3f N = normal.normalized();
Vector3f h = (V + L).normalized(); //与老师的公式略有不同，其实确定了方向直接归一化就行
//float r = (light.position - point).norm(); //入射光长度求法1，先求长度但由于根号，导致精度低
//float R = r * r;
float R = (light.position - point).dot(light.position - point); //入射光长度求法2，直接求平方精度高
Vector3f La = ka.cwiseProduct(amb_light_intensity);
Vector3f Ld = kd.cwiseProduct(I / R) * max(0.f, N.dot(L));
Vector3f Ls = ks.cwiseProduct(I / R) * pow(max(0.f, N.dot(h)), p);
result_color += La + Ld + Ls;
}
return result_color * 255.f;
}
任务5：实现bump_fragment_shader()

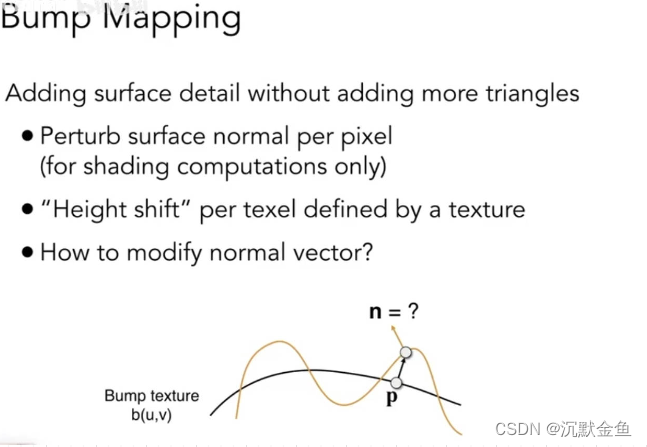

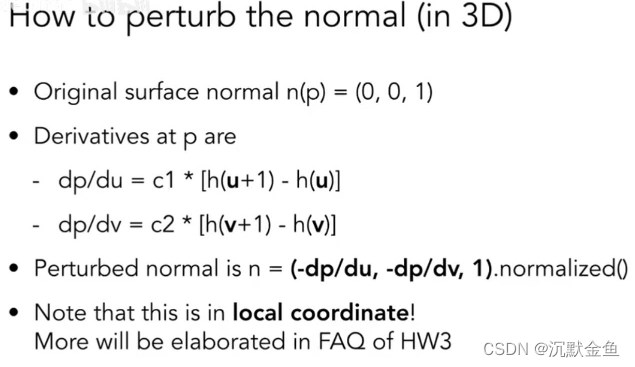

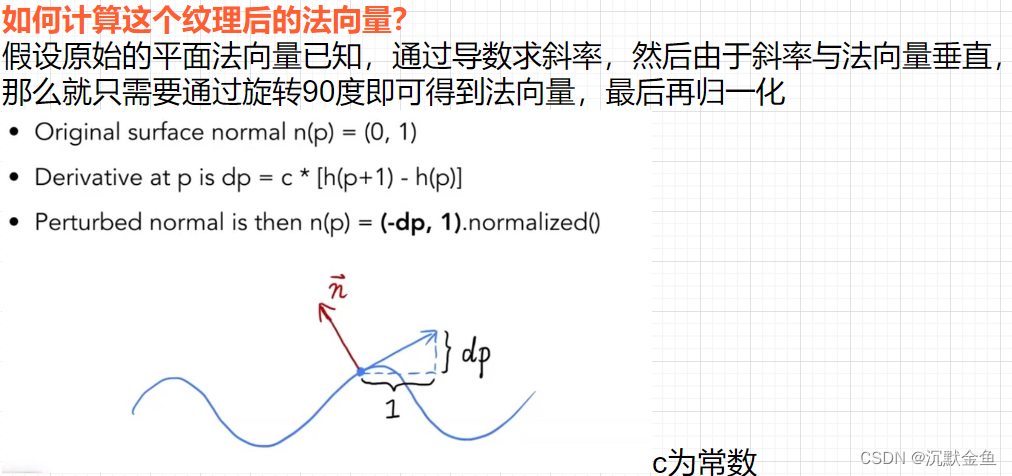

最难的就在这里，老师上课其实说过原理，bump shader实际就只是改变了贴图的高度进而改变法向量的高度，造成了一种凹凸感去欺骗人眼
代码
Vector3f bump_fragment_shader(const fragment_shader_payload& payload)
{
Vector3f ka = Vector3f(0.005, 0.005, 0.005);
Vector3f kd = payload.color;
Vector3f ks = Vector3f(0.7937, 0.7937, 0.7937);
auto l1 = light{ {20, 20, 20}, {500, 500, 500} };
auto l2 = light{ {-20, 20, 0}, {500, 500, 500} };
vector<light> lights = { l1, l2 };
Vector3f amb_light_intensity{ 10, 10, 10 };
Vector3f eye_pos{ 0, 0, 10 };
float p = 150;
Vector3f color = payload.color;
Vector3f point = payload.view_pos;
Vector3f normal = payload.normal;
float kh = 0.2, kn = 0.1;
// TODO: Implement bump mapping here
float x = normal.x(), y = normal.y(), z = normal.z();
Vector3f t = { x * y / sqrt(x * x + z * z),sqrt(x * x + z * z),z * y / sqrt(x * x + z * z) };
Vector3f b = normal.cross(t);
//TBN [t,b,n]
Matrix3f TBN;
TBN <<
t.x(), b.x(), x,
t.y(), b.y(), y,
t.z(), b.z(), z;
float h = payload.texture->height; //整个纹理贴图的高度
float w = payload.texture->width;
float u = payload.tex_coords.x(); //纹理具体的点的u方向值
float v = payload.tex_coords.y();
// dU = kh * kn * (h(u+1/w,v)-h(u,v))
// dV = kh * kn * (h(u,v+1/h)-h(u,v))
float du, dv;
du = kh * kn * (payload.texture->getColorBilinear(u + 1.0f / w, v).norm() - payload.texture->getColorBilinear(u, v).norm());
dv = kh * kn * (payload.texture->getColorBilinear(u, v + 1.0f / h).norm() - payload.texture->getColorBilinear(u, v).norm());
// Vector ln = (-dU, -dV, 1)
// Normal n = normalize(TBN * ln)
Vector3f ln = { -du,-dv,1.0f };
normal = (TBN * ln).normalized();
Vector3f result_color = { 0, 0, 0 };
result_color = normal;
return result_color * 255.f;
}
关键在于理解代码和拆分代码，一个一个解决问题，先求TBN，再求du和dv，最后按照代码提示归一化
任务6：实现 displacement_fragment_shader()
这个没啥好说的，在凹凸贴图的基础上实现Phong Shader
代码
Vector3f displacement_fragment_shader(const fragment_shader_payload& payload)
{
Vector3f ka = Vector3f(0.005, 0.005, 0.005);
Vector3f kd = payload.color;
Vector3f ks = Vector3f(0.7937, 0.7937, 0.7937);
auto l1 = light{{20, 20, 20}, {500, 500, 500}};
auto l2 = light{{-20, 20, 0}, {500, 500, 500}};
vector<light> lights = {l1, l2};
Vector3f amb_light_intensity{10, 10, 10};
Vector3f eye_pos{0, 0, 10};
float p = 150;
Vector3f color = payload.color;
Vector3f point = payload.view_pos;
Vector3f normal = payload.normal;
float kh = 0.2, kn = 0.1;
// TODO: Implement displacement mapping here
// Let n = normal = (x, y, z)
// Vector t = (x*y/sqrt(x*x+z*z),sqrt(x*x+z*z),z*y/sqrt(x*x+z*z))
// Vector b = n cross product t
// Matrix TBN = [t b n]
// dU = kh * kn * (h(u+1/w,v)-h(u,v))
// dV = kh * kn * (h(u,v+1/h)-h(u,v))
// Vector ln = (-dU, -dV, 1)
// Position p = p + kn * n * h(u,v)
// Normal n = normalize(TBN * ln)
float x = normal.x(), y = normal.y(), z = normal.z();
Vector3f t = { x * y / sqrt(x * x + z * z),sqrt(x * x + z * z),z * y / sqrt(x * x + z * z) };
Vector3f b = normal.cross(t);
//TBN [t,b,n]
Matrix3f TBN;
TBN <<
t.x(), b.x(), x,
t.y(), b.y(), y,
t.z(), b.z(), z;
float h = payload.texture->height;
float w = payload.texture->width;
float u = payload.tex_coords.x();
float v = payload.tex_coords.y();
// dU = kh * kn * (h(u+1/w,v)-h(u,v))
// dV = kh * kn * (h(u,v+1/h)-h(u,v))
float du, dv;
du = kh * kn * (payload.texture->getColor(u + 1.0f / w, v).norm() - payload.texture->getColor(u, v).norm()); //u,v坐标限定在[0,1]
dv = kh * kn * (payload.texture->getColor(u, v + 1.0f / h).norm() - payload.texture->getColor(u, v).norm());
// Vector ln = (-dU, -dV, 1)
// Normal n = normalize(TBN * ln)
Vector3f ln = { -du,-dv,1.0f };
// Position p = p + kn * n * h(u,v)
point += (kn * normal * payload.texture->getColor(u, v).norm());
normal = (TBN * ln).normalized();
Vector3f result_color = {0, 0, 0};
for (auto& light : lights)
{
// TODO: For each light source in the code, calculate what the *ambient*, *diffuse*, and *specular*
// components are. Then, accumulate that result on the *result_color* object.
Vector3f I = light.intensity;
Vector3f L = (light.position - point).normalized(); //入射光向量
Vector3f V = (-point).normalized();
Vector3f N = normal.normalized();
Vector3f h = (V + L).normalized(); //与老师的公式略有不同，其实确定了方向直接归一化就行
//float r = (light.position - point).norm(); //入射光长度求法1，先求长度但由于根号，导致精度低
//float R = r * r;
float R = (light.position - point).dot(light.position - point); //入射光长度求法2，直接求平方精度高
Vector3f La = ka.cwiseProduct(amb_light_intensity);
Vector3f Ld = kd.cwiseProduct(I / R) * max(0.f, N.dot(L));
Vector3f Ls = ks.cwiseProduct(I / R) * pow(max(0.f, N.dot(h)), p);
result_color += La + Ld + Ls;
}
return result_color * 255.f;
}
总结
可以这么说，这次作业的难度主要在凹凸贴图的实现，也就是bump shading，其他的只要上课注意听和做笔记，多理解一下代码的提示也还好
