jenkins+kubernetes构建CICD

1.创建sa账号

kubectl create sa jenkins-k8s-sa -n jenkins-k8s

1.clusterrole绑定

kubectl create clusterrolebinding jenkins-k8s-sa-cluster--clusterrole=cluster-admin --serviceaccount=jenkins-k8s:jenkins-k8s-sa

3.使用deployment安装jenkins

kind: Deployment
apiVersion: apps/v1
metadata:
  name: jenkins
spec:
  replicas: 1
  selector:
    matchLabels:
      app: jenkins
  template:
    metadata:
      labels:
        app: jenkins
    spec:
      serviceAccount: jenkins-k8s-sa
      containers:
      - name: jenkins
        image: jenkins:latest
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          name: web
          protocol: TCP
        - containerPort: 50000
          name: agent
          protocol: TCP
        resources:
          limits:
            cpu: 1000m
            memory: 1Gi
          requests:
            cpu: 500m
            memory: 512Mi
        livenessProbe:
          httpGet:
            path: /login
            port: 8080
          initialDelaySeconds: 60
          timeoutSeconds: 5
          failureThreshold: 12
        readinessProbe:
          httpGet:
            path: /login
            port: 8080
          initialDelaySeconds: 60
          timeoutSeconds: 5
          failureThreshold: 12
        volumeMounts:
        - name: jenkins-volume
          subPath: jenkins-home
          mountPath: /var/jenkins_home
      volumes:
      - name: jenkins-volume
        hostPath:
          path: /opt/data/jenkins

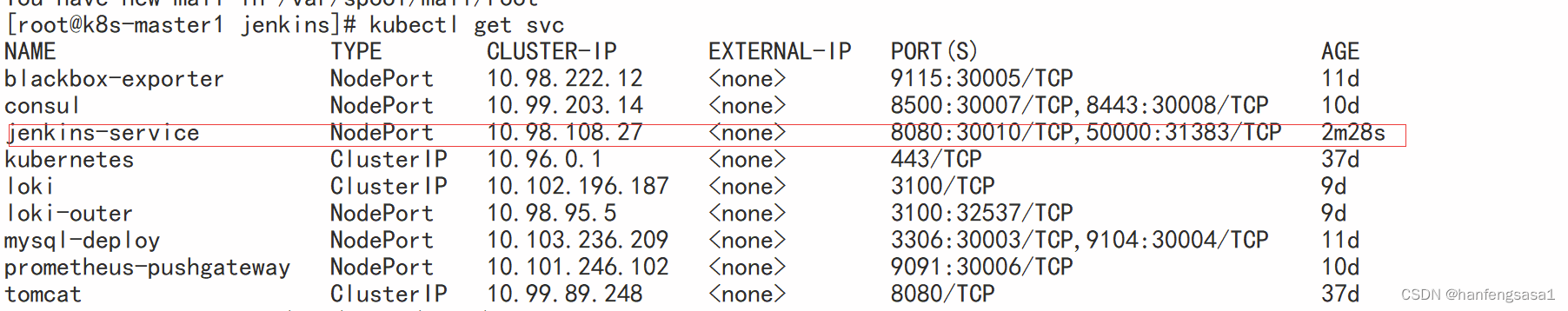

使用service代理jenkins外部访问

apiVersion: v1
kind: Service
metadata:
  name: jenkins-service
  labels:
    app: jenkins
spec:
  selector:
    app: jenkins
  type: NodePort
  ports:
  - name: web
    port: 8080
    targetPort: web
    nodePort: 30010
  - name: agent
    port: 50000
    targetPort: agent

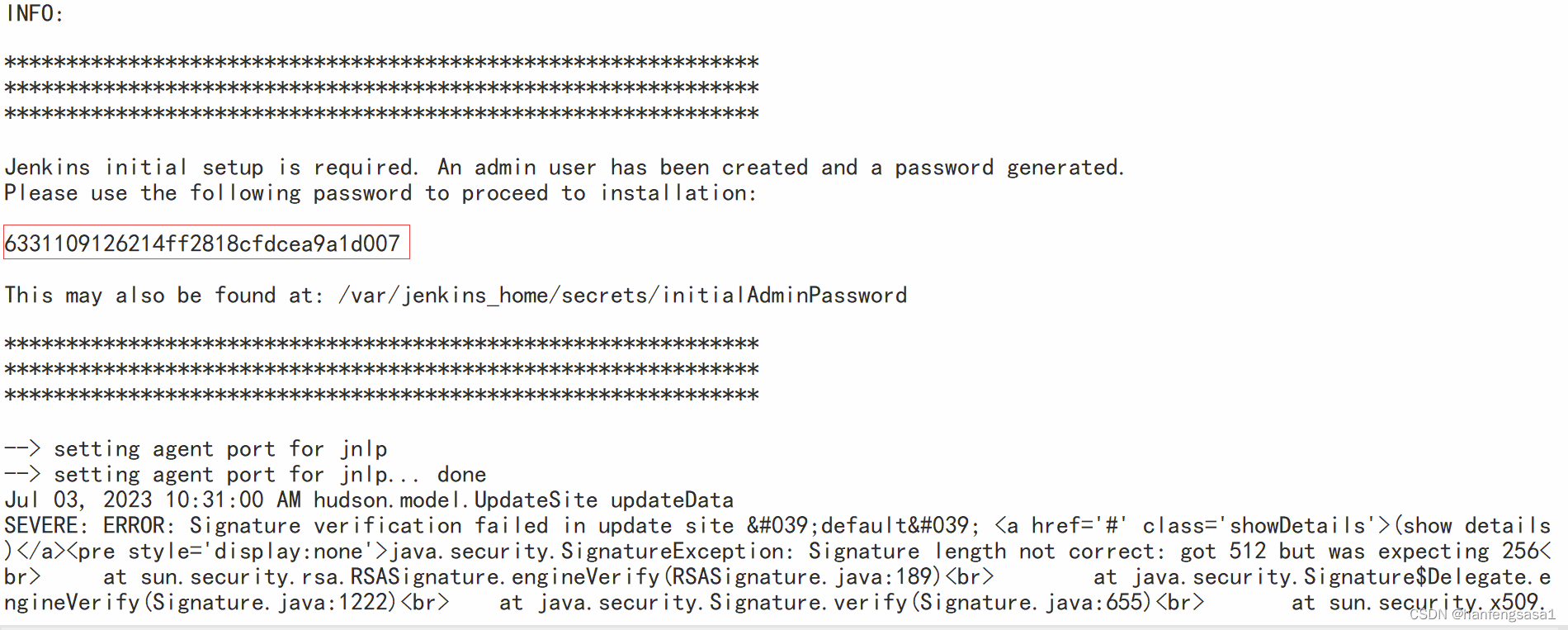

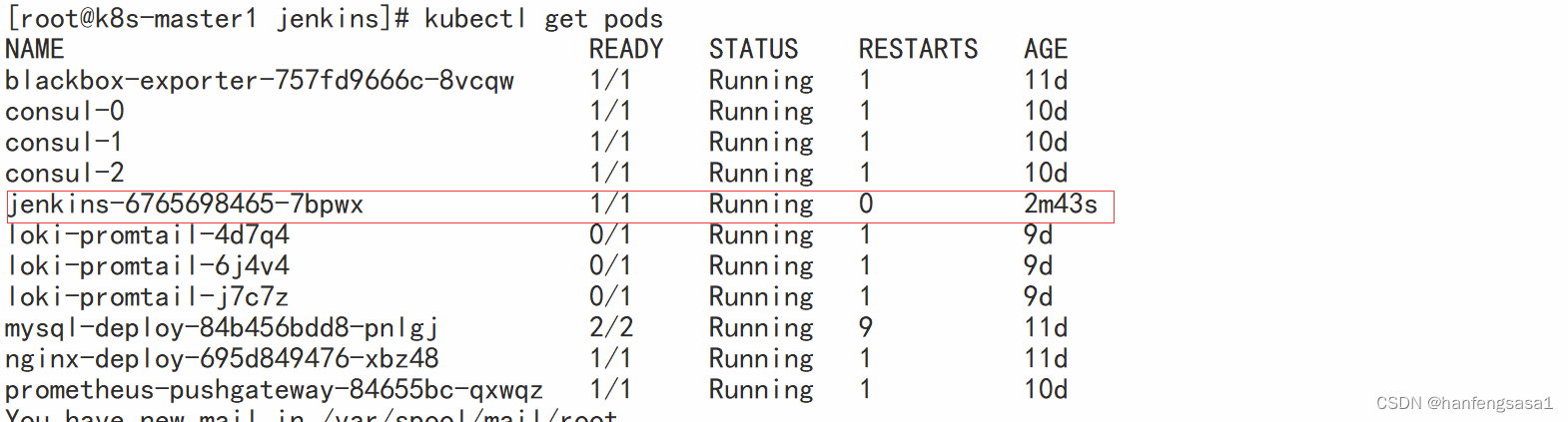

kubectl logs -f jenkins-6765698465-7bpwx

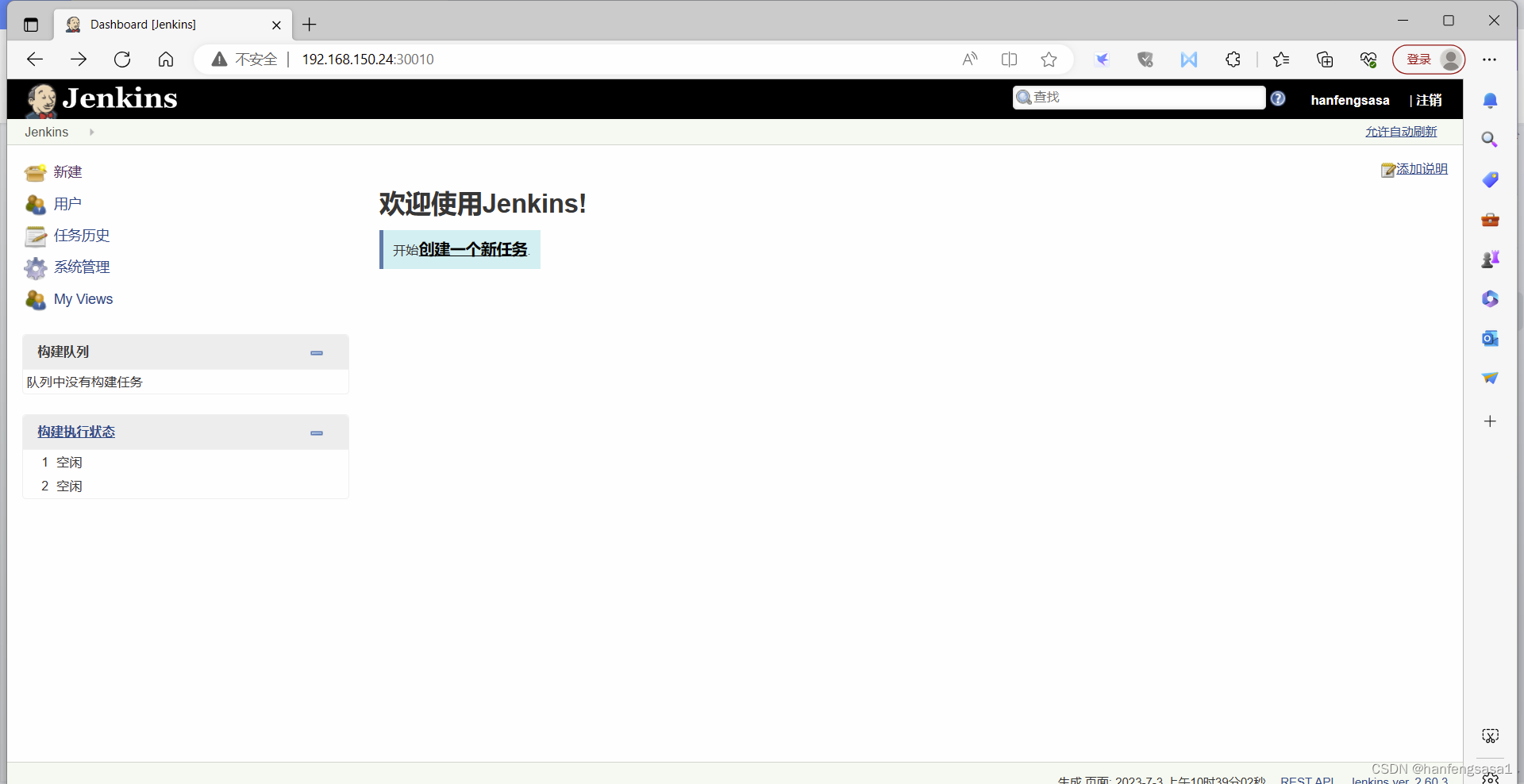

使用上面密钥登陆

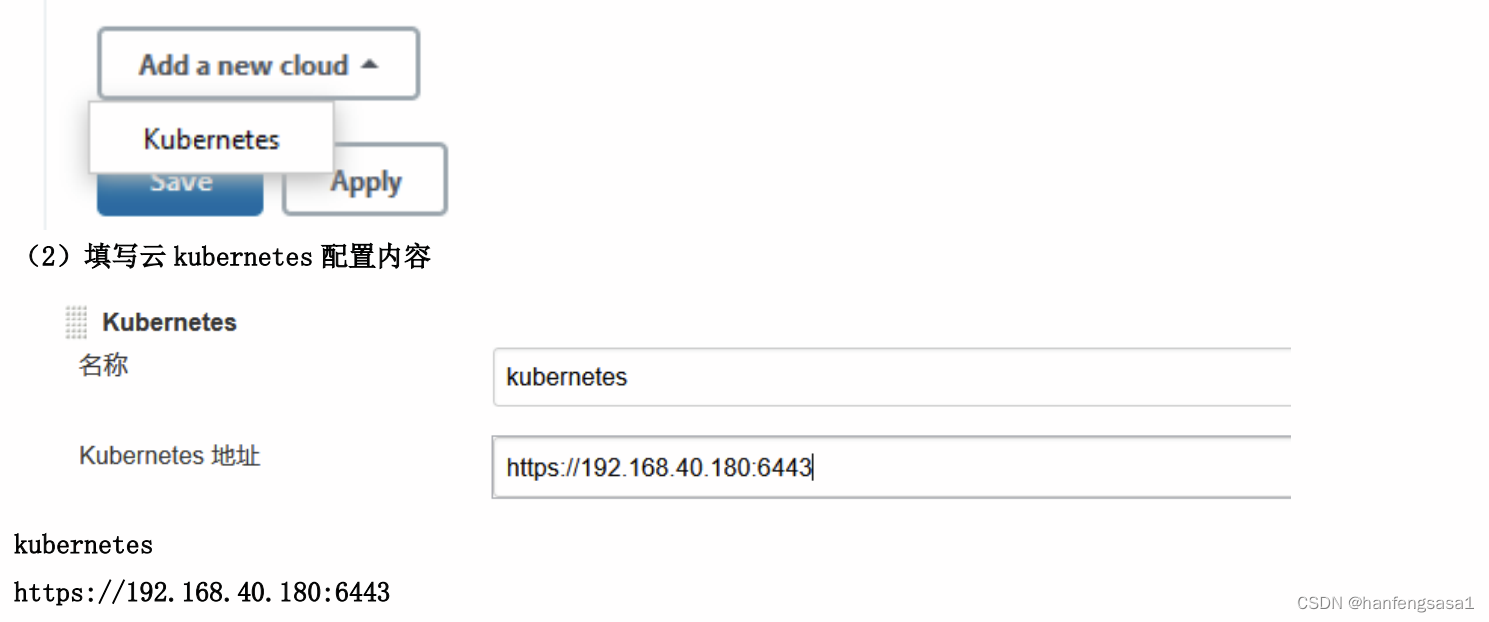

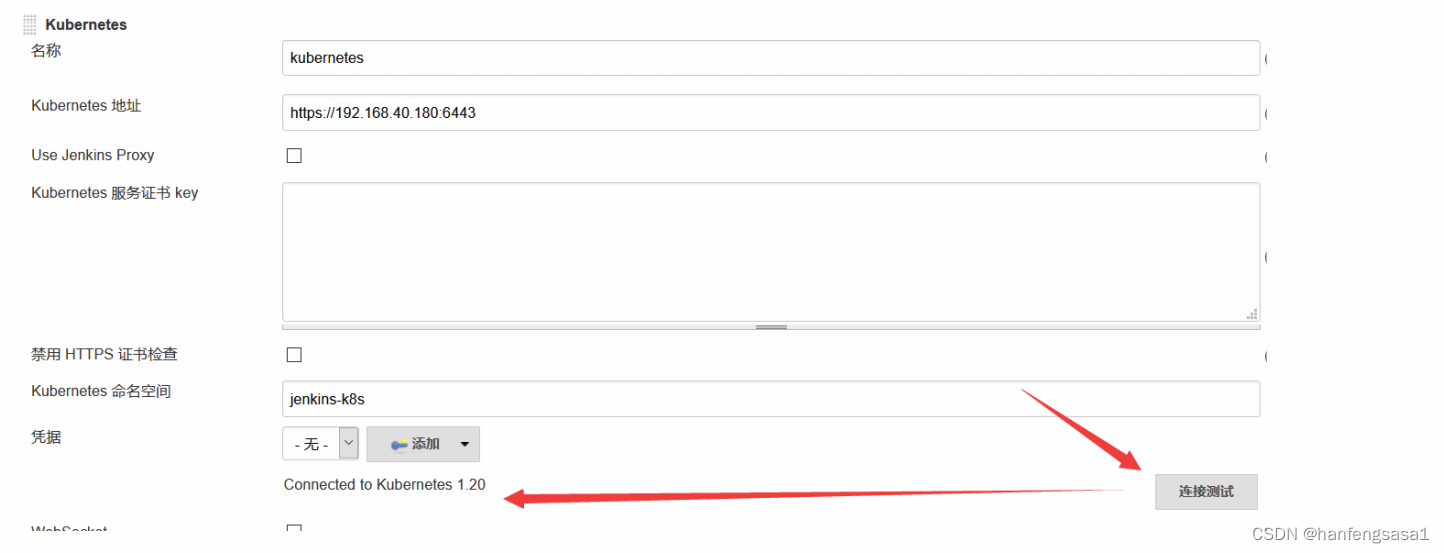

配置jenkins连接kubernetes

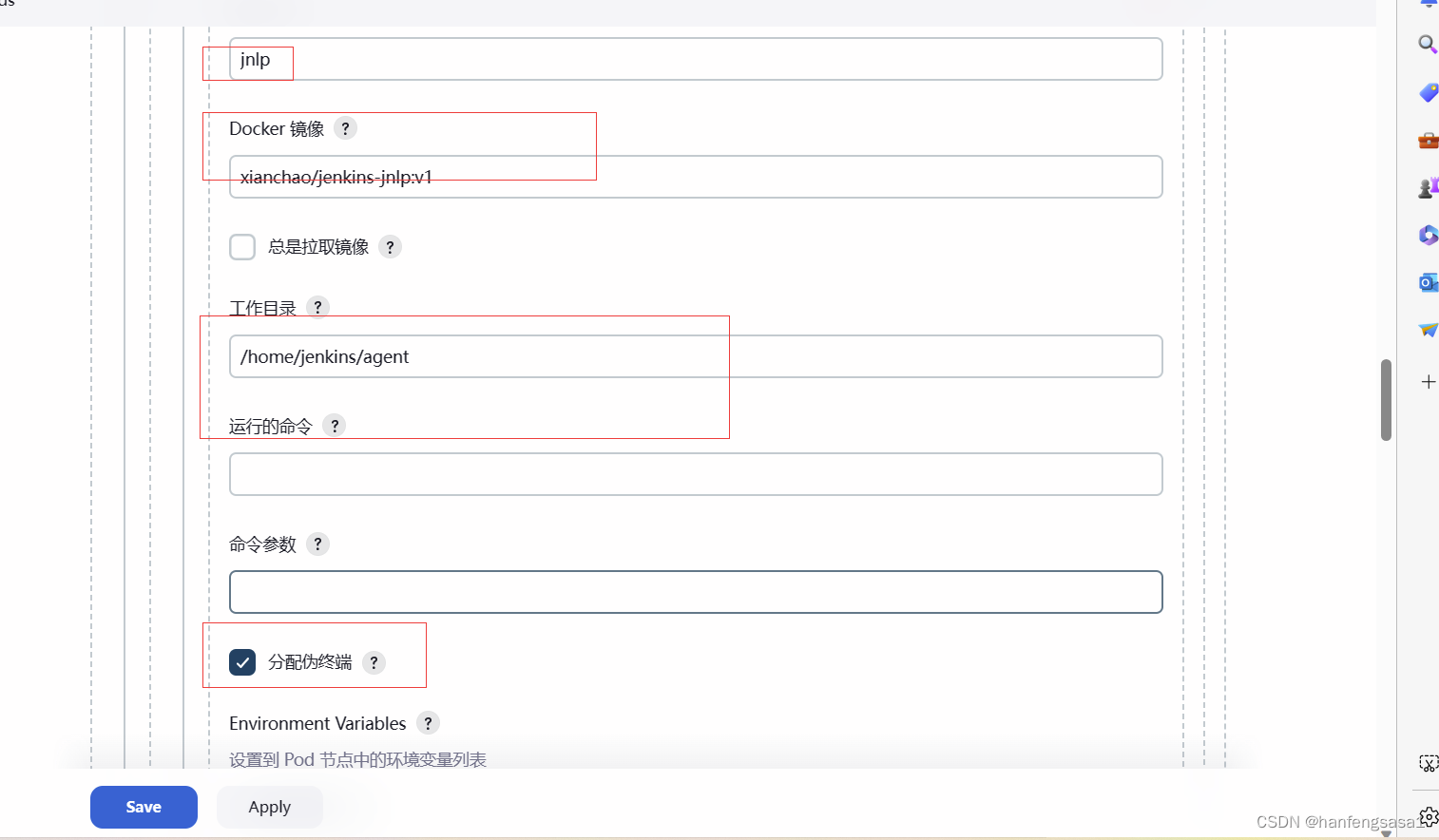

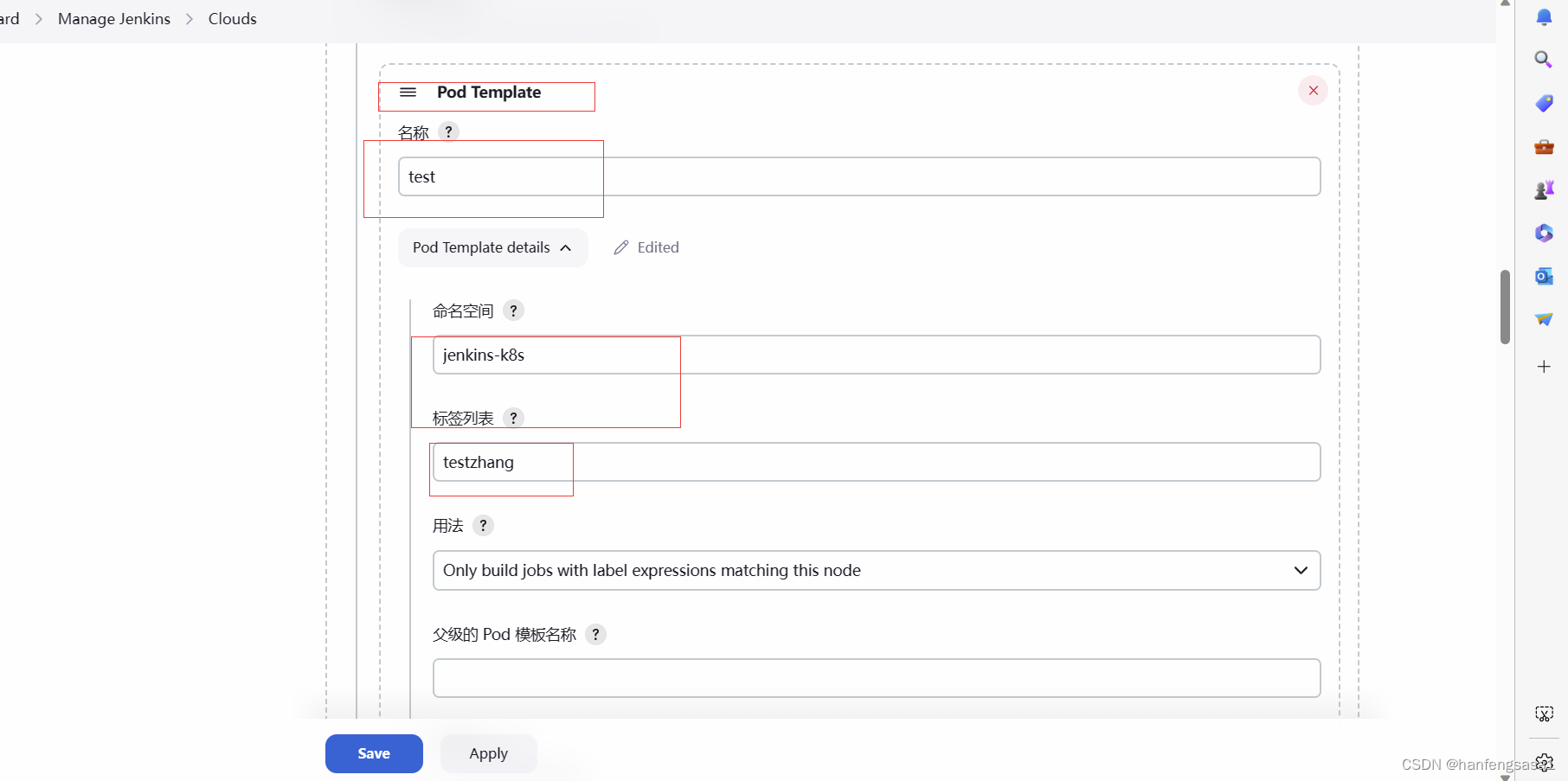

配置pod template

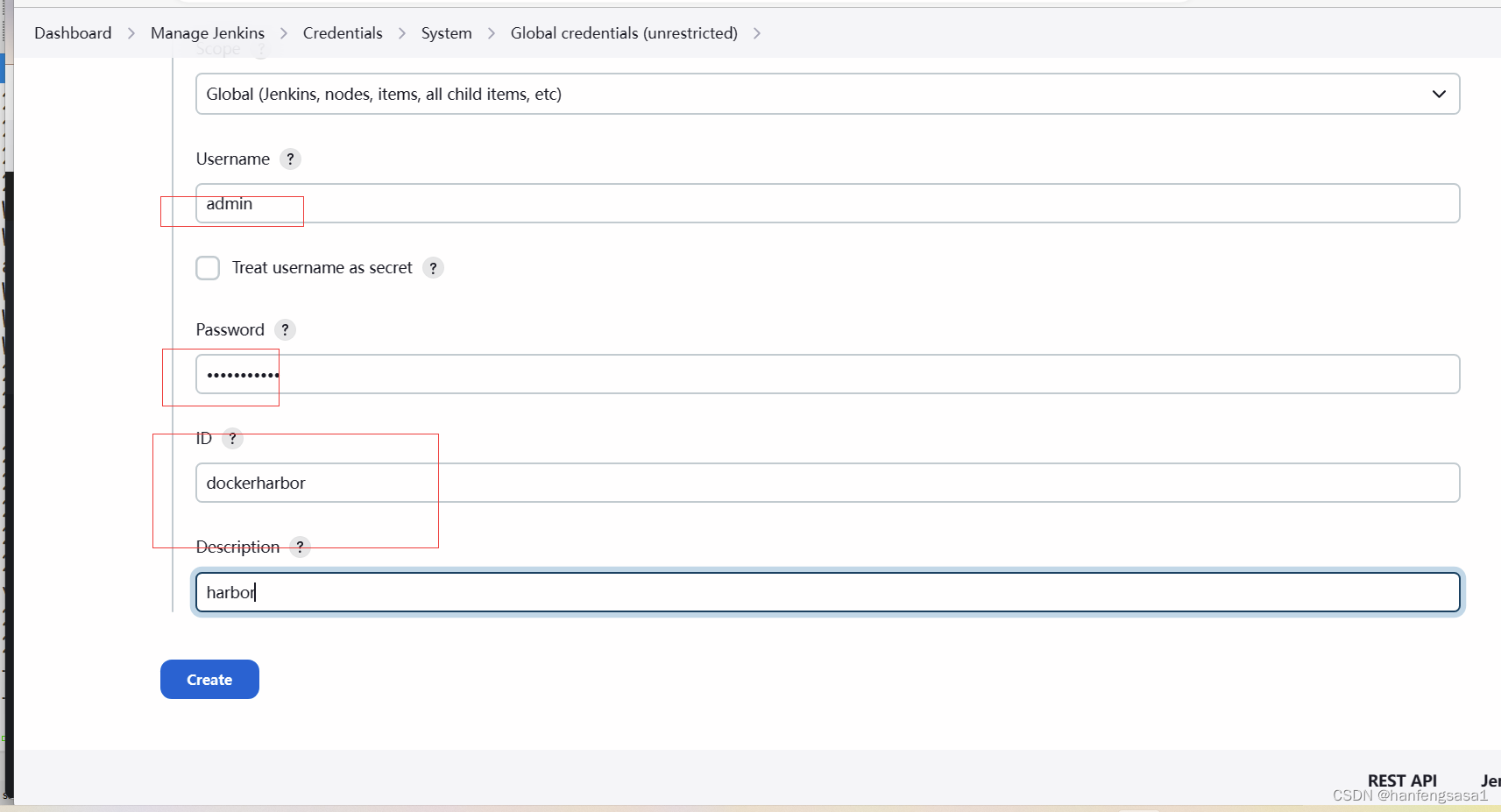

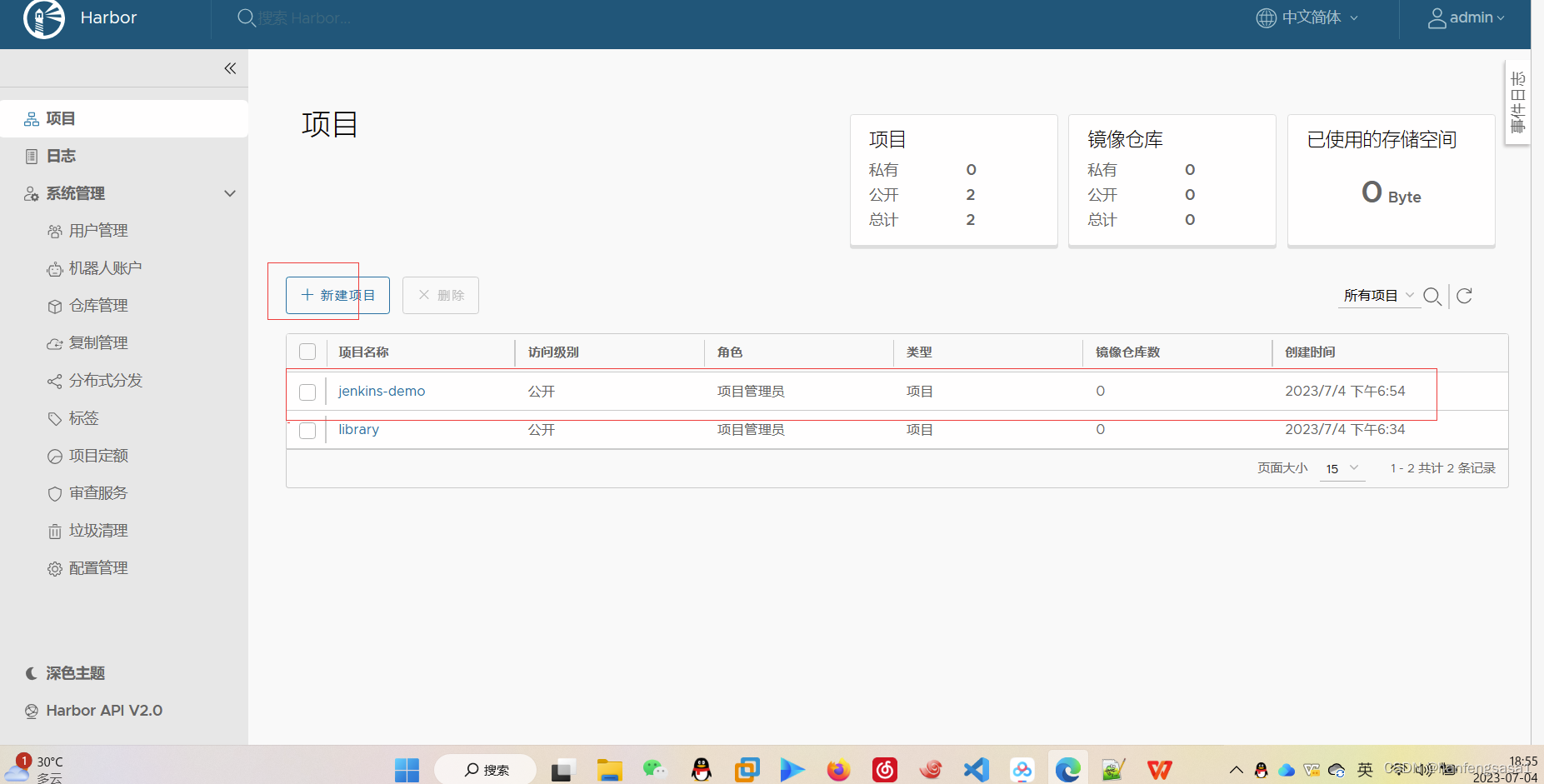

配置连接harbor，我们先安装harbor
配置签发证书

mkdir /data/ssl -p
openssl genrsa -out ca.key 3072
openssl req -new -x509 -days 3650 -key ca.key -out ca.pem
openssl genrsa -out harbor.key 3072
openssl x509 -req -in harbor.csr -CA ca.pem -CAkey ca.key -CAcreateserial -out harbor.pem -days 3650

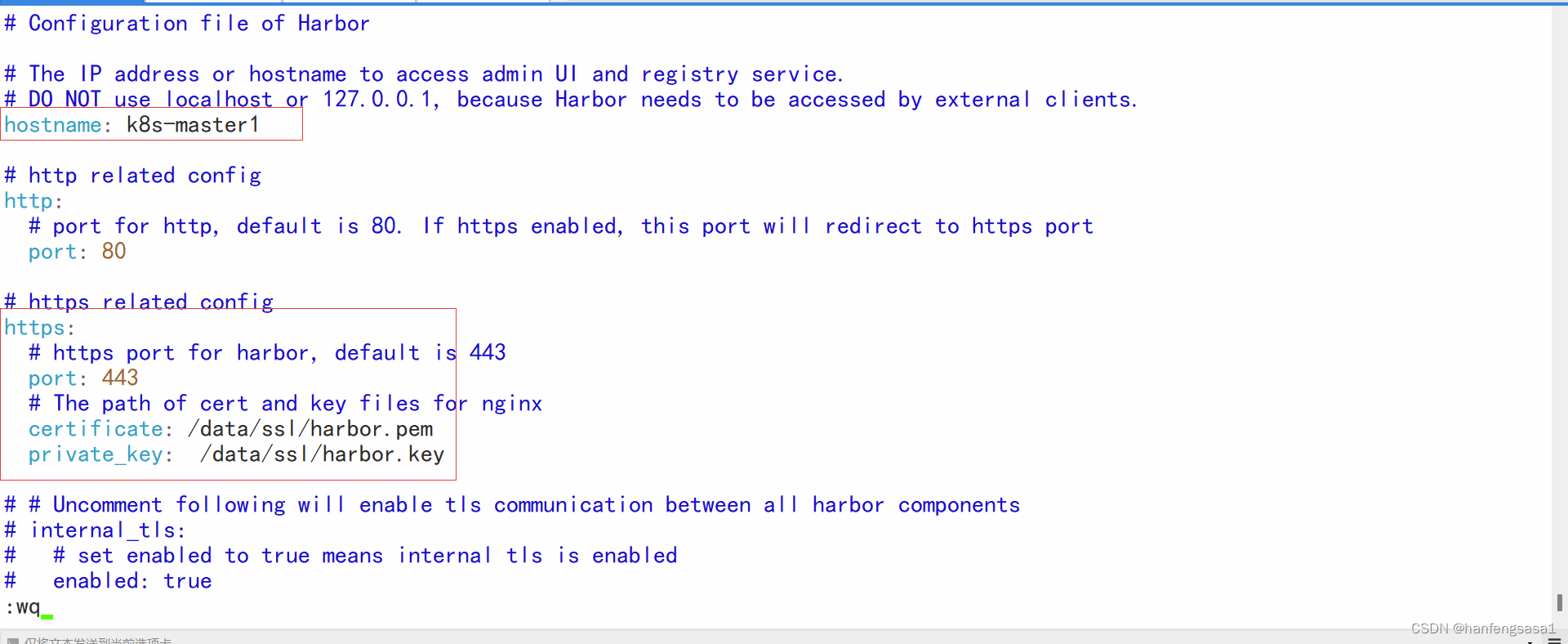

开始安装

mkdir /data/install/

mv docker-compose-Linux-x86_64.64 /usr/bin/docker-compose chmod +x /usr/bin/docker-compose

docker load -i docker-harbor-2-3-0.tar.gz

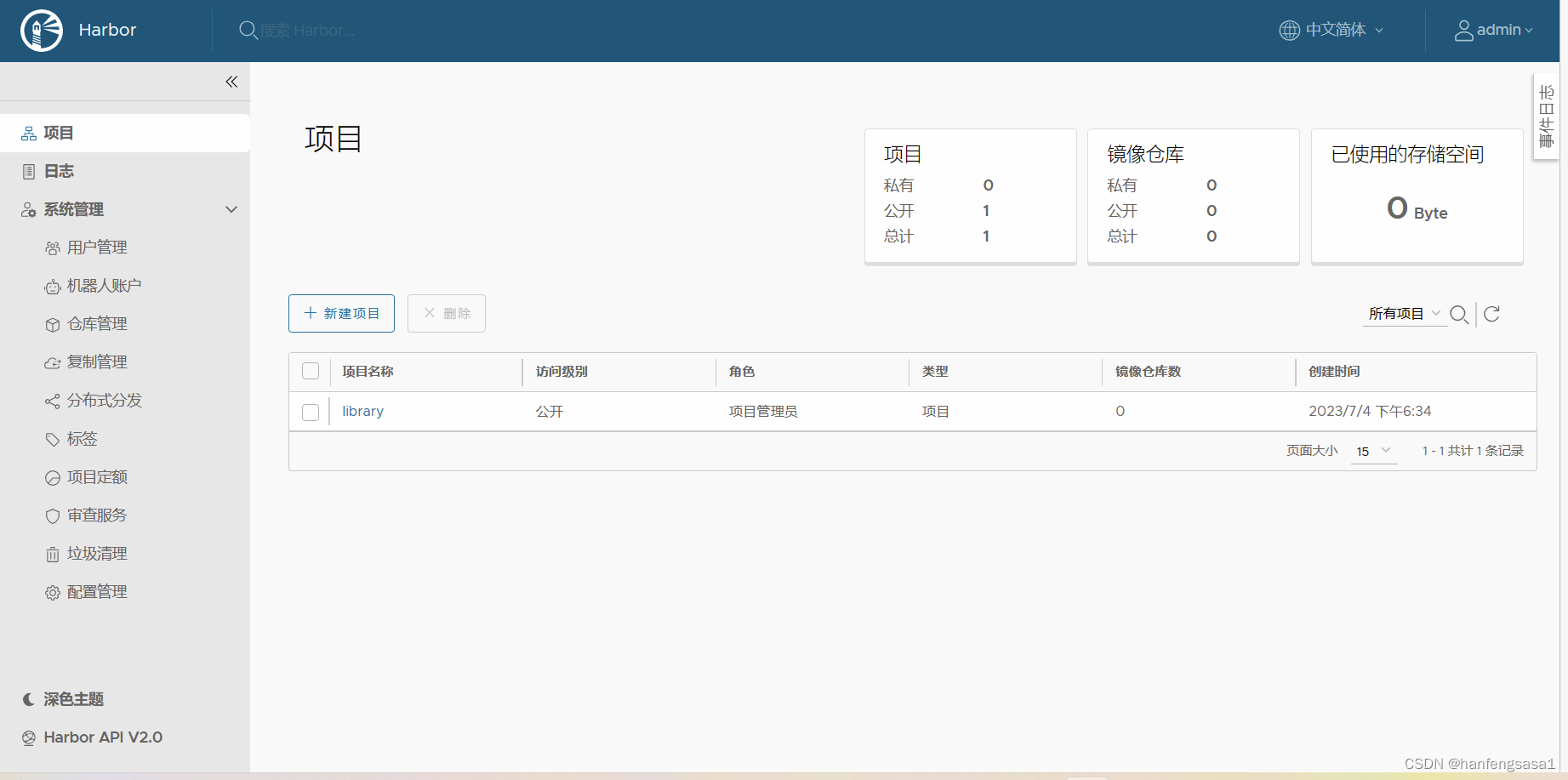

 ./install.sh

编写pipeline

node('testhan') {
    stage('Clone') {
        echo "1.Clone Stage"
        git url: "https://github.com/luckylucky421/jenkins-sample.git"
        script {
            build_tag = sh(returnStdout: true, script: 'git rev-parse --short HEAD').trim()
        }
    }
    stage('Test') {
      echo "2.Test Stage"

    }
    stage('Build') {
        echo "3.Build Docker Image Stage"
        sh "docker build -t 192.168.40.182/jenkins-demo/jenkins-demo:${build_tag} ."
    }
    stage('Push') {
        echo "4.Push Docker Image Stage"
        withCredentials([usernamePassword(credentialsId: 'dockerharbor', passwordVariable: 'dockerHubPassword', usernameVariable: 'dockerHubUser')]) {
            sh "docker login 192.168.40.182 -u ${dockerHubUser} -p ${dockerHubPassword}"
            sh "docker push 192.168.40.182/jenkins-demo/jenkins-demo:${build_tag}"
        }
    }
    stage('Deploy to dev') {
        echo "5. Deploy DEV"
		sh "sed -i 's/<BUILD_TAG>/${build_tag}/' k8s-dev-harbor.yaml"
        sh "sed -i 's/<BRANCH_NAME>/${env.BRANCH_NAME}/' k8s-dev-harbor.yaml"
//        sh "bash running-devlopment.sh"
        sh "kubectl apply -f k8s-dev-harbor.yaml  --validate=false"
	}
	stage('Promote to qa') {
		def userInput = input(
            id: 'userInput',

            message: 'Promote to qa?',
            parameters: [
                [
                    $class: 'ChoiceParameterDefinition',
                    choices: "YES\nNO",
                    name: 'Env'
                ]
            ]
        )
        echo "This is a deploy step to ${userInput}"
        if (userInput == "YES") {
            sh "sed -i 's/<BUILD_TAG>/${build_tag}/' k8s-qa-harbor.yaml"
            sh "sed -i 's/<BRANCH_NAME>/${env.BRANCH_NAME}/' k8s-qa-harbor.yaml"
//            sh "bash running-qa.sh"
            sh "kubectl apply -f k8s-qa-harbor.yaml --validate=false"
            sh "sleep 6"
            sh "kubectl get pods -n qatest"
        } else {
            //exit
        }
    }
	stage('Promote to pro') {
		def userInput = input(

            id: 'userInput',
            message: 'Promote to pro?',
            parameters: [
                [
                    $class: 'ChoiceParameterDefinition',
                    choices: "YES\nNO",
                    name: 'Env'
                ]
            ]
        )
        echo "This is a deploy step to ${userInput}"
        if (userInput == "YES") {
            sh "sed -i 's/<BUILD_TAG>/${build_tag}/' k8s-prod-harbor.yaml"
            sh "sed -i 's/<BRANCH_NAME>/${env.BRANCH_NAME}/' k8s-prod-harbor.yaml"
//            sh "bash running-production.sh"
            sh "cat k8s-prod-harbor.yaml"
            sh "kubectl apply -f k8s-prod-harbor.yaml --record --validate=false"
        }
    }
}

回滚的pipeline

node('testhan') {
  stage('git clone') {
    git url: "https://github.com/luckylucky421/jenkins-rollout"
    sh "ls -al"
    sh "pwd"
}
  stage('select env') {
    def envInput = input(
      id: 'envInput',
      message: 'Choose a deploy environment',
      parameters: [
         [
             $class: 'ChoiceParameterDefinition',
             choices: "devlopment\nqatest\nproduction",
             name: 'Env'
         ]
     ]
)
echo "This is a deploy step to ${envInput}"
sh "sed -i 's/<namespace>/${envInput}/' getVersion.sh"
sh "sed -i 's/<namespace>/${envInput}/' rollout.sh"
sh "bash getVersion.sh"
// env.WORKSPACE = pwd()
// def version = readFile "${env.WORKSPACE}/version.csv"
// println version
}
  stage('select version') {
     env.WORKSPACE = pwd()
  def version = readFile "${env.WORKSPACE}/version.csv"
  println version
      def userInput = input(id: 'userInput',
                                        message: '选择回滚版本',
                                        parameters: [
            [
                 $class: 'ChoiceParameterDefinition',
                 choices: "$version\n",
                 name: 'Version'
       ]
      ]
)
       sh "sed -i 's/<version>/${userInput}/' rollout.sh"
}
  stage('rollout deploy') {
      sh "bash rollout.sh"
}
}

结合Sonarqube

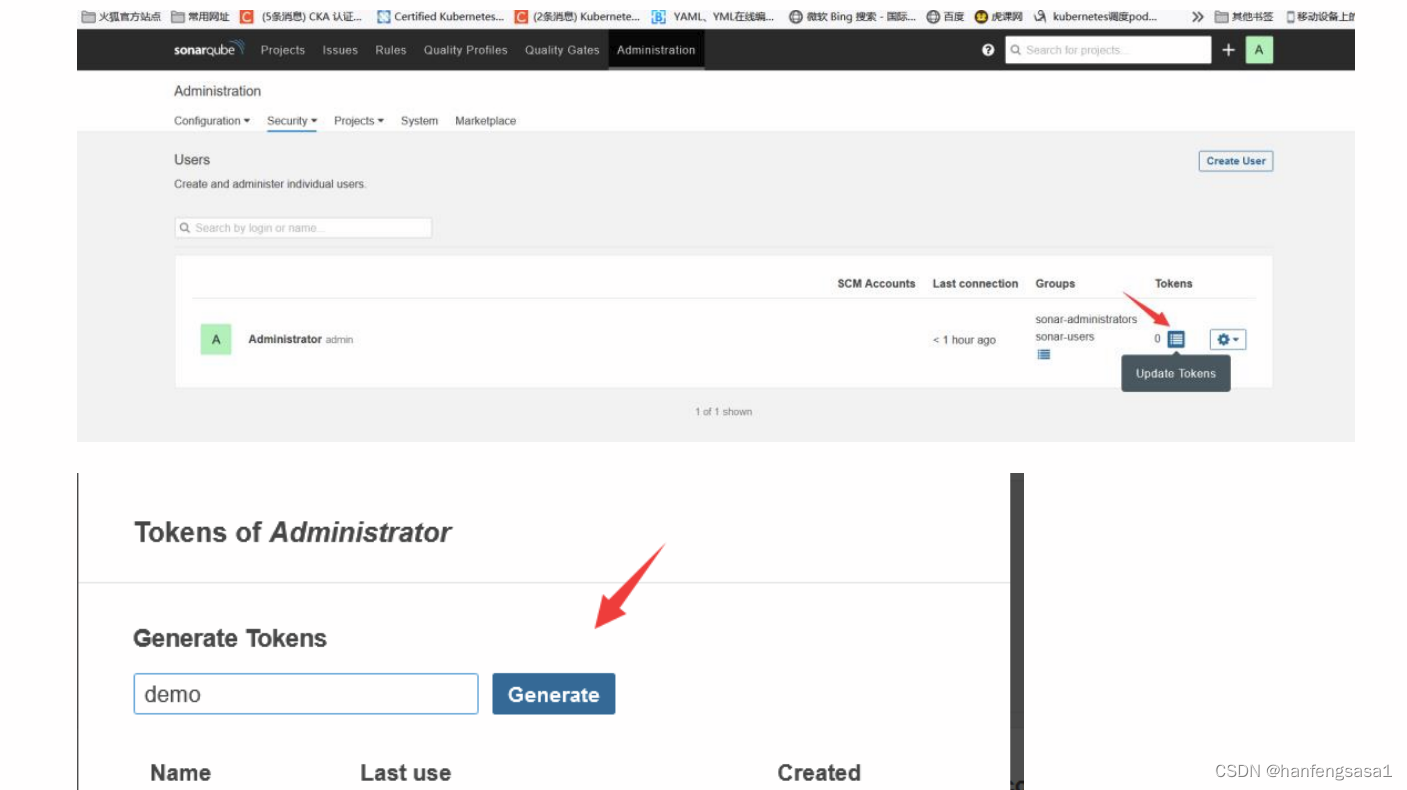

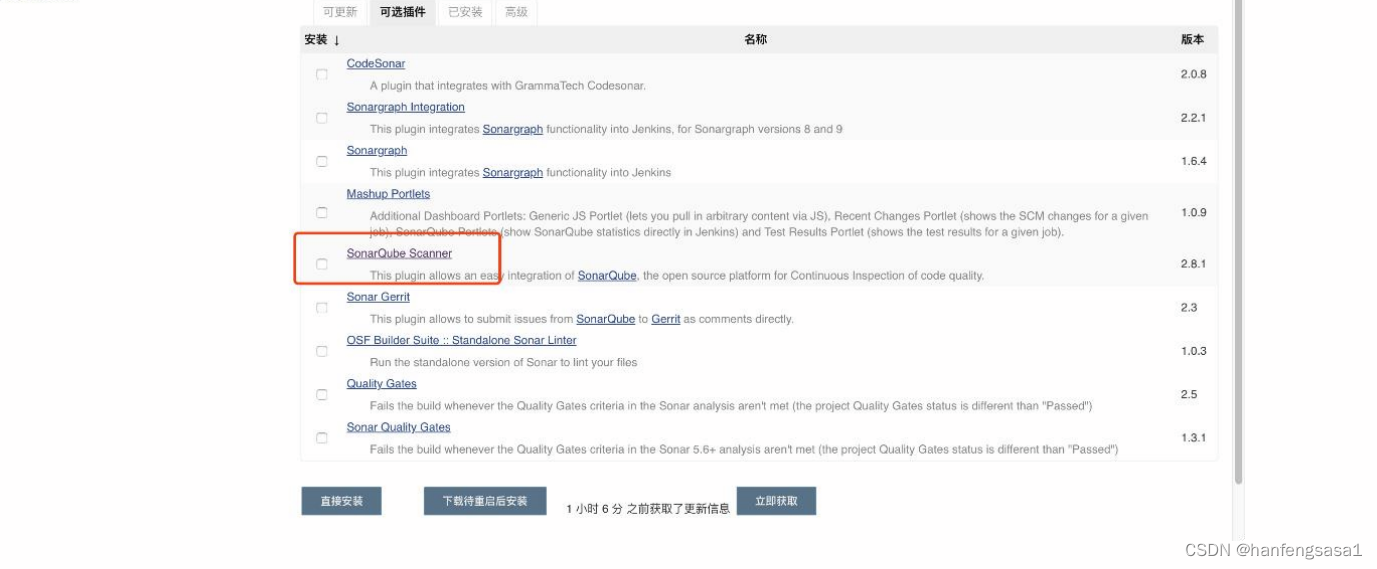

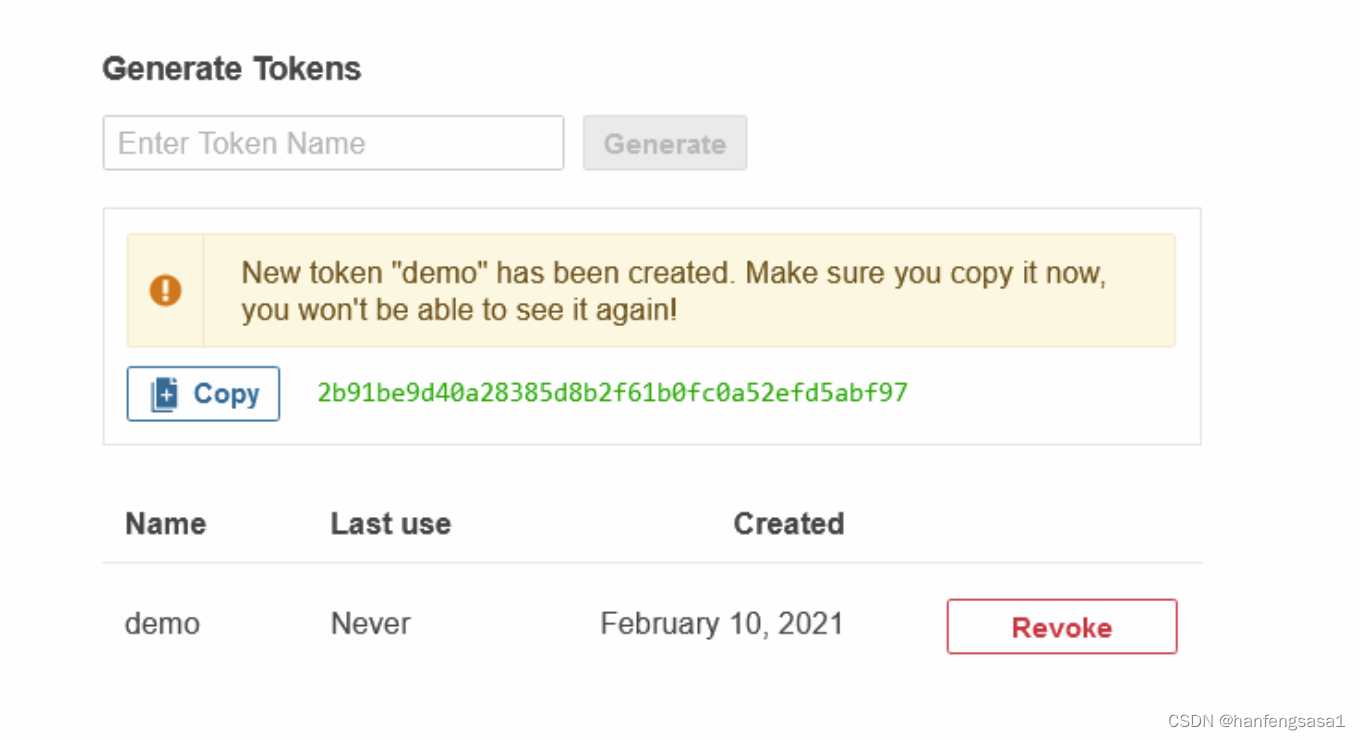

jenkins安装Sonarqube插件

使用docker安装Sonarqube

docker run -d --name postgres10 -p 5432:5432 -e POSTGRES_USER=sonar -e POSTGRES_PASSWORD=123456 postgres
docker run -d --name sonarqube7.9 -p 9000:9000 --link postgres10 -e
SONARQUBE_JDBC_URL=jdbc:postgresql://postgres10:5432/sonar -e
SONARQUBE_JDBC_USERNAME=sonar -e SONARQUBE_JDBC_PASSWORD=123456 -v
sonarqube_conf:/opt/sonarqube/conf -v
sonarqube_extensions:/opt/sonarqube/extensions -v
sonarqube_logs:/opt/sonarqube/logs -v sonarqube_data:/opt/sonarqube/data
sonarqube
