vrrp mstp 配置实验（学习笔记）

VRRP是一种容错协议，当主机的下一跳路由器出现故障时，由另一台路由器来代替出现故障的路由器进行工作，从而保持网络通信的连续性和可靠性。

MSTP：多生成树协议，通过生成多个生成树，来解决以太网环路问题，以及交换机负载

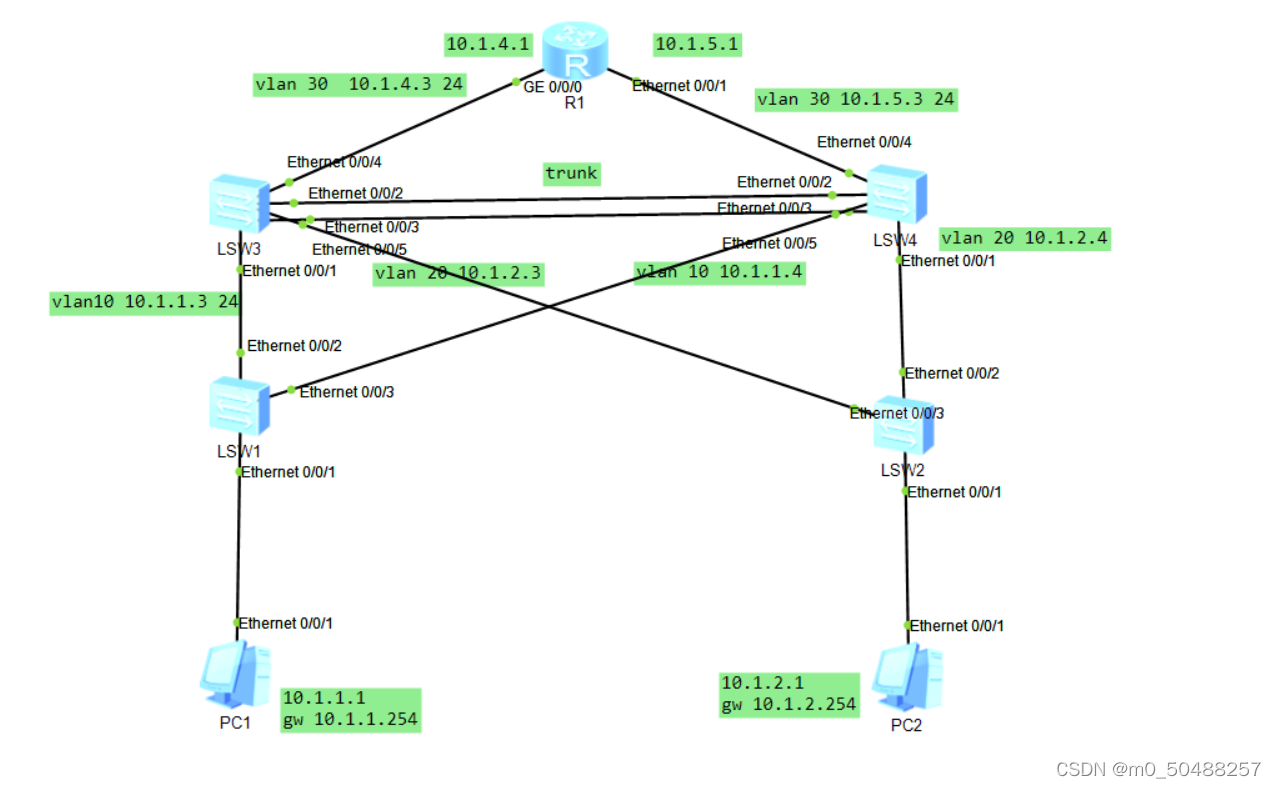

拓扑图：

具体配置步骤

1.在lsw1和lws2上基于接口划分vlan 10 20。

2.lsw3和lsw4交换机之间的链路聚合，并将接口类型配置为trunk，允许所以vlan通过。

3.在lsw3和lsw4上基于端口划分3个vlan，交换机之间接口用trunk，交换机与路由器之间用access，并配置ip地址。

4.在lsw3和lsw4上配置vrrp，配置虚拟地址和优先级。

5.在lsw3和lsw4上配置mstp，并设置实例，设置主根和词根

6.在lsw3，lsw4 ,R1上配置ospf 。

各设备的配置如下：

LSW1

[Huawei]vlan batch 10 20

[Huawei]int e0/0/1

[Huawei-Ethernet0/0/1]port link-type access

[Huawei-Ethernet0/0/1]port default vlan 10

[Huawei-Ethernet0/0/1]int e0/0/3

[Huawei-Ethernet0/0/3]port link-type trunk

[Huawei-Ethernet0/0/3]port trunk allow-pass vlan all

[Huawei-Ethernet0/0/3]int e0/0/2

[Huawei-Ethernet0/0/2]port link-type trunk

[Huawei-Ethernet0/0/2]port trunk allow-pass vlan all

[Huawei]stp region-configuration

[Huawei-mst-region] region-name rg1

[Huawei-mst-region] instance 1 vlan 10

[Huawei-mst-region] instance 2 vlan 20

[Huawei-mst-region] active region-configuration

LSW2

[Huawei]vlan batch 10 20

[Huawei]int e0/0/1

[Huawei-Ethernet0/0/1]port link-type access

[Huawei-Ethernet0/0/1]port default vlan 20

[Huawei-Ethernet0/0/1]int e0/0/2

[Huawei-Ethernet0/0/2]port link-type trunk

[Huawei-Ethernet0/0/2]port trunk allow-pass vlan all

[Huawei-Ethernet0/0/2]int e0/0/3

[Huawei-Ethernet0/0/3]port link-type trunk

[Huawei-Ethernet0/0/3]port trunk allow-pass vlan all

[Huawei]stp region-configuration

[Huawei-mst-region] region-name rg1

[Huawei-mst-region] instance 1 vlan 10

[Huawei-mst-region] instance 2 vlan 20

[Huawei-mst-region] active region-configuration

LSW3

链路聚合

[Huawei]int Eth-Trunk 1

[Huawei-Eth-Trunk1]trunkport e0/0/2

[Huawei-Eth-Trunk1]trunkport e0/0/3

[Huawei-Eth-Trunk1]port link-type trunk

[Huawei-Eth-Trunk1]port trunk allow-pass vlan all

[Huawei]int e0/0/4

[Huawei-Ethernet0/0/4]port link-type access

[Huawei-Ethernet0/0/4]port default vlan 30

[Huawei-Ethernet0/0/4]int e0/0/1

[Huawei-Ethernet0/0/1]port link-type trunk

[Huawei-Ethernet0/0/1]port trunk allow-pass vlan all

[Huawei-Ethernet0/0/1]int e0/0/5

[Huawei-Ethernet0/0/5]port link-type trunk

[Huawei-Ethernet0/0/5]port trunk allow-pass vlan all

[Huawei]int vlan 10

[Huawei-Vlanif10]ip address 10.1.1.3 24

[Huawei-Vlanif10]int vlan 20

[Huawei-Vlanif20]ip address 10.1.2.3 24

[Huawei-Vlanif20]int vlan 30

[Huawei-Vlanif30]ip address 10.1.4.3 24

[Huawei]int vlan 10

[Huawei-Vlanif10]vrrp vrid 1 virtual-ip 10.1.1.254

[Huawei-Vlanif10]vrrp vrid 1 priority 120

[Huawei]int vlan 20

[Huawei-Vlanif20]vrrp vrid 2 virtual-ip 10.1.2.254

[Huawei]stp region-configuration

[Huawei-mst-region]instance 1 vlan 10

[Huawei-mst-region]instance 2 vlan 20

[Huawei-mst-region]region-name rg1

[Huawei-mst-region]active region-configuration

[Huawei]stp instance 1 root primary

[Huawei]stp instance 2 root secondary

[Huawei]ospf

[Huawei-ospf-1]area 0

[Huawei-ospf-1-area-0.0.0.0]ne

[Huawei-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 10.1.4.0 0.0.0.255

LSW4

链路聚合

[Huawei]int Eth-Trunk 1

[Huawei-Eth-Trunk1]trunkport e0/0/2

[Huawei-Eth-Trunk1]trunkport e0/0/3

[Huawei-Eth-Trunk1]port link-type trunk

[Huawei-Eth-Trunk1]port trunk allow-pass vlan all

[Huawei]int e0/0/4

[Huawei-Ethernet0/0/4]port link-type access

[Huawei-Ethernet0/0/4]port default vlan 30

[Huawei-Ethernet0/0/4]int e0/0/1

[Huawei-Ethernet0/0/1]port link-type trunk

[Huawei-Ethernet0/0/1]port trunk allow-pass vlan all

[Huawei-Ethernet0/0/1]int e0/0/5

[Huawei-Ethernet0/0/5]port link-type trunk

[Huawei-Ethernet0/0/5]port trunk allow-pass vlan all

[Huawei]int vlan 30

[Huawei-Vlanif30]ip address 10.1.5.3 24

[Huawei-Vlanif30]int vlan 20

[Huawei-Vlanif20]ip address 10.1.2.4 24

[Huawei-Vlanif20]int vlan 10

[Huawei-Vlanif10]ip address 10.1.1.4 24

[Huawei]int vlan 10

[Huawei-Vlanif10]vrrp vrid 1 virtual-ip 10.1.1.254

[Huawei]int vlan 20

[Huawei-Vlanif20]vrrp vrid 2 virtual-ip 10.1.2.254

[Huawei-Vlanif20]vrrp vrid 2 priority 120

[Huawei]stp instance 1 root secondary

[Huawei]stp instance 2 root primary

[Huawei]ospf

[Huawei-ospf-1]area 0

[Huawei-ospf-1-area-0.0.0.0]netw

[Huawei-ospf-1-area-0.0.0.0]network 10.1.1.0 0.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 10.1.2.0 0.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 10.1.5.0 0.0.0.255

R1

[Huawei]int g0/0/0

[Huawei-GigabitEthernet0/0/0]ip address 10.1.4.1 24

[Huawei-GigabitEthernet0/0/0]int e0/0/1

[Huawei-Ethernet0/0/1]ip address 10.1.5.1 24

[Huawei]int loop 0

[Huawei-LoopBack0]ip address 1.1.1.1 32

[Huawei]ospf

[Huawei-ospf-1]area 0

[Huawei-ospf-1-area-0.0.0.0]network 10.1.4.0 0.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 10.1.5.00.0.0.255

[Huawei-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0

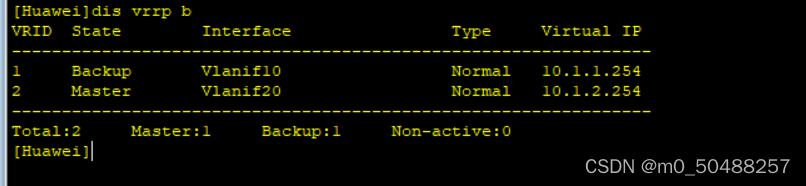

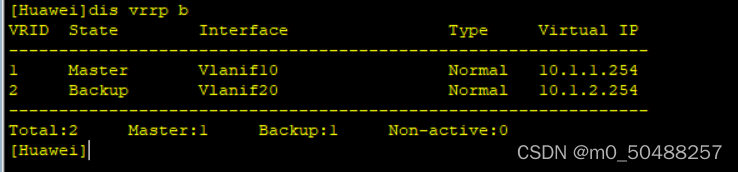

测试

lsw3

 lsw4

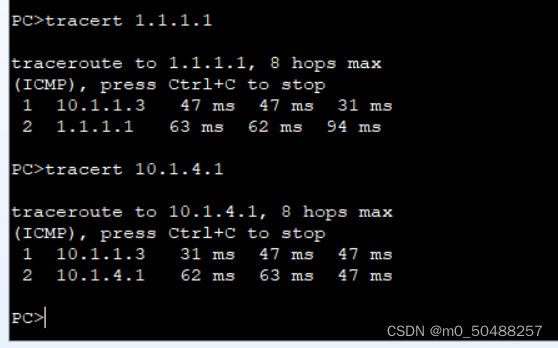

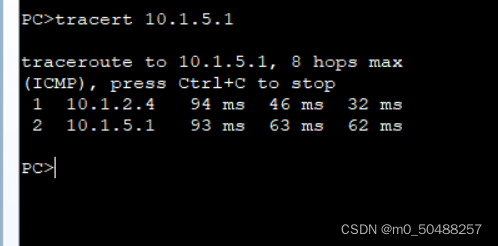

 pc1 ping 10.1.4.1

pc2 ping
