华为策略路由实验配置

目录

AR1配置接口策略路由

AR4上配置本地策略路由

---

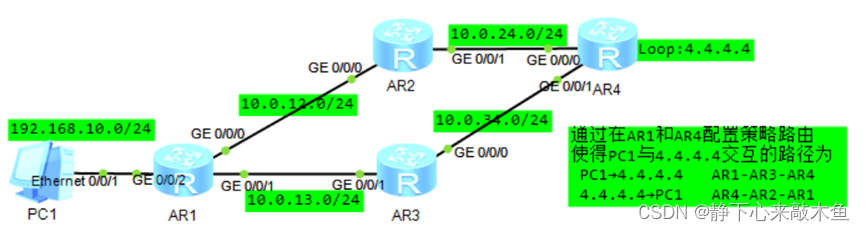

配置接口相关的IP地址，并配置IGP路由协议使得全网互通

AR1配置接口策略路由

对经过本地转发的路由生效，对本地始发的路由不生效

配置nqa检测下一跳状态

nqa test-instance PC1 icmptrace   nqa的管理者为PC1，NQA的测试例名为icmptrace

 test-type icmp

 destination-address ipv4 10.0.13.3

 start now

定义流分类

acl 3000

 rule permit ip source 192.168.10.0 0.0.0.255 destination 4.4.4.4 0.0.0.0

traffic classifier PC1

 if-match acl 3000

定义流行为

traffic behavior PC1

 redirect ip-nexthop 10.0.13.3 track nqa PC1 icmptrace

定义流策略

traffic policy PC1

 classifier PC1 behavior PC1

接口引用流策略

int g0/0/2

  traffic-policy PC1 inbound

AR4上配置本地策略路由

只对本地始发路由生效

定义流分类

acl 3000

 rule permit ip source 4.4.4.4 0.0.0.0 destination 192.168.10.0 0.0.0.255

定义本地流策略

policy-based-route PC1 permit node 10

 if-match acl 3000

 apply ip-address next-hop 10.0.24.2

本地引用流策略

ip local policy-based-route PC1
