构建域名为fy.com，主机名www的域名，构建主从DNS服务器，客户机通过主从DNS服务器可以正常解析域名

一：实验环境的准备：关闭防火墙、关闭核心防护、设置DNS地址

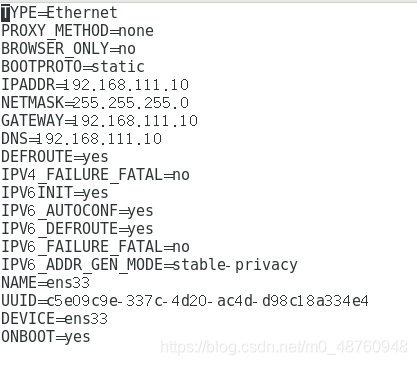

server1：
在这里插入图片描述
在这里插入图片描述

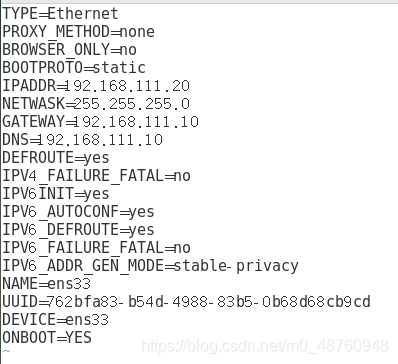

server2：
在这里插入图片描述
在这里插入图片描述

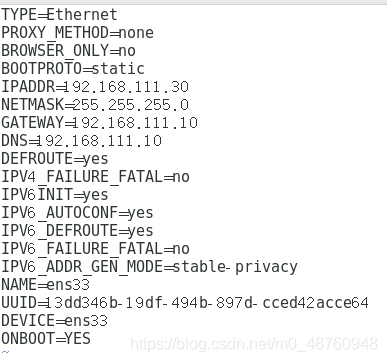

server3：
在这里插入图片描述

在这里插入图片描述

二、安装DNS服务

[root@server1 Packages]# rpm -ivh bind-9.9.4-50.el7.x86_64.rpm
警告：bind-9.9.4-50.el7.x86_64.rpm: 头V3 RSA/SHA256 Signature, 密钥 ID f4a80eb5: NOKEY
准备中...                          ################################# [100%]
	软件包 bind-32:9.9.4-50.el7.x86_64 已经安装
[root@server1 Packages]#
[root@server2 ~]# cd /mnt/Packages
[root@server2 Packages]# rpm -ivh bind-9.9.4-50.el7.x86_64.rpm
警告：bind-9.9.4-50.el7.x86_64.rpm: 头V3 RSA/SHA256 Signature, 密钥 ID f4a80eb5: NOKEY
警告：Failed to open SELinux handle.
准备中...                          ################################# [100%]
	软件包 bind-32:9.9.4-50.el7.x86_64 已经安装
[root@server2 Packages]#

三、修改配置文件

[root@server1 Packages]# vi /etc/named.conf
options {
        listen-on port 53 { 192.168.111.10; }; #改成服务器地址
        listen-on-v6 port 53 { ::1; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
        allow-query     { any; }; #设置为任何人都能访问，也可以设置为IP地址网段


[root@server1 Packages]# vi /etc/named.rfc1912.zones
zone "fy.com" IN {
        type master;
        file "fy.com.zone";
        allow-transfer { 192.168.111.20; };
        also-notify { 192.168.111.20; };
};
zone "0.0.20.in-addr.arpa" IN {
        type master;
        file "fy.com.local";
        allow-transfer { 192.168.111.20; };
};


[root@server1 named]# cp -p named.localhost fy.com.local
[root@server1 named]# cp -p named.loopback fy.com.zone

编辑反向区域文件

[root@server1 named]# vi fy.com.local
$TTL 1D
@       IN SOA fy.com.   rname.invalid. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
        NS      fy.com.
        A       192.168.111.10
19  IN  PTR     www.fy.com.
20  IN  PTR     ftp.fy.com.

编辑正向区域文件

[root@server1 named]# vi fy.com.zone
$TTL 1D
@       IN SOA  @ rname.invalid. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
        NS      @
        A       192.168.111.10
www IN  A       192.168.111.10
ftp IN  A       192.168.111.20
mail IN CNAME   www

启动DNS服务

[root@server1 named]# systemctl start named.service
[root@server1 named]# netstat -anptu | grep named
tcp        0      0 192.168.111.10:53       0.0.0.0:*               LISTEN      3522/named
tcp        0      0 127.0.0.1:953           0.0.0.0:*               LISTEN      3522/named
tcp6       0      0 ::1:53                  :::*                    LISTEN      3522/named
tcp6       0      0 ::1:953                 :::*                    LISTEN      3522/named
udp        0      0 192.168.111.10:53       0.0.0.0:*                           3522/named
udp6       0      0 ::1:53                  :::*                                3522/named

四、本机测试DNS

[root@server1 ~]# nslookup www.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	www.fy.com
Address: 192.168.111.10

[root@server1 ~]# nslookup ftp.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	ftp.fy.com
Address: 192.168.111.20

[root@server1 ~]# nslookup mail.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

mail.fy.com	canonical name = www.fy.com.
Name:	www.fy.com
Address: 192.168.111.10

修改从DNS配置文件

[root@server2 Packages]# vi /etc/named.conf
options {
        listen-on port 53 { 192.168.111.20; };
        listen-on-v6 port 53 { ::1; };
        directory       "/var/named";
        dump-file       "/var/named/data/cache_dump.db";
        statistics-file "/var/named/data/named_stats.txt";
        memstatistics-file "/var/named/data/named_mem_stats.txt";
        allow-query     { any; };
[root@server2 Packages]# vi /etc/named.rfc1912.zones
zone "fy.com" IN {
        type slave;
        masters { 192.168.111.10; };
        allow-notify { 192.168.111.10; };
        file "slaves/fy.com.zone";
};
zone "111.168.192.in-addr.arpa" IN {
        type slave;
        masters { 192.168.111.10; };
        allow-notify { 192.168.111.10; };
        file "slaves/fy.com.local";
};

[root@server2 Packages]# systemctl restart named.service
[root@server2 Packages]# netstat -anptu | grep named
tcp        0      0 192.168.111.20:53       0.0.0.0:*               LISTEN      55309/named
tcp        0      0 127.0.0.1:953           0.0.0.0:*               LISTEN      55309/named
tcp6       0      0 ::1:53                  :::*                    LISTEN      55309/named
tcp6       0      0 ::1:953                 :::*                    LISTEN      55309/named
udp        0      0 192.168.111.20:53       0.0.0.0:*                           55309/named
udp6       0      0 ::1:53                  :::*                                55309/named

五、本机测试DNS

[root@server2 ~]# nslookup www.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	www.fy.com
Address: 192.168.111.10

[root@server2 ~]# nslookup ftp.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	ftp.fy.com
Address: 192.168.111.20

[root@server2 ~]# nslookup mail.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

mail.fy.com	canonical name = www.fy.com.
Name:	www.fy.com
Address: 192.168.111.10

六、客户机测试DNS服务器

[root@server3 ~]# nslookup www.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	www.fy.com
Address: 192.168.111.10

[root@server3 ~]# nslookup ftp.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

Name:	ftp.fy.com
Address: 192.168.111.20

[root@server3 ~]# nslookup mail.fy.com
Server:		192.168.111.10
Address:	192.168.111.10#53

mail.fy.com	canonical name = www.fy.com.
Name:	www.fy.com
Address: 192.168.111.10

七、关闭主DNS服务器再用客户机测试DNS

[root@server3 ~]# nslookup www.fy.com
Server:		192.168.111.20
Address:	192.168.111.20#53

Name:	www.fy.com
Address: 192.168.111.10

[root@server3 ~]# nslookup ftp.fy.com
Server:		192.168.111.20
Address:	192.168.111.20#53

Name:	ftp.fy.com
Address: 192.168.111.20

[root@server3 ~]# nslookup mail.fy.com
Server:		192.168.111.20
Address:	192.168.111.20#53

mail.fy.com	canonical name = www.fy.com.
Name:	www.fy.com
Address: 192.168.111.10
