本文档详细介绍了防火墙的基本配置，包括不同接口的IP地址设置及区域划分。接着，为满足特定需求，配置了多个策略：1) 允许Client1访问Client2的ICMP服务；2) 允许PC1访问PC2的HTTP和FTP服务；3) 只允许Client2访问HTTP服务；4) 客户端通过DNS服务访问100.1.1.1。这些配置确保了网络间的安全通信和访问控制。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

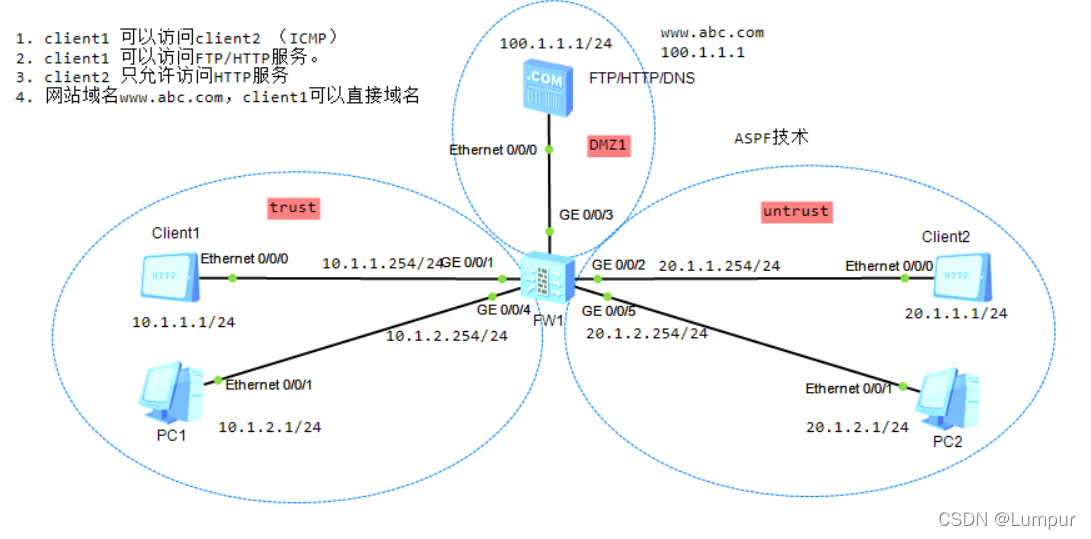

拓扑如下：
在这里插入图片描述

【1】防火墙的基本配置：

[SRG]int g0/0/1
[SRG-GigabitEthernet0/0/1]ip add 10.1.1.254 24
[SRG-GigabitEthernet0/0/1]int g0/0/4
[SRG-GigabitEthernet0/0/4]ip add 10.1.2.254 24
[SRG-GigabitEthernet0/0/4]int g0/0/3
[SRG-GigabitEthernet0/0/3]ip add 100.1.1.254 24
[SRG-GigabitEthernet0/0/3]int g0/0/2
[SRG-GigabitEthernet0/0/2]ip add 20.1.1.254 24
[SRG-GigabitEthernet0/0/2]int g0/0/5
[SRG-GigabitEthernet0/0/5]ip add 20.1.2.254 24
[SRG-GigabitEthernet0/0/5]quit
[SRG]firewall zone trust
[SRG-zone-trust]add int g0/0/4
[SRG-zone-trust]add int g0/0/1
[SRG-zone-trust]quit
[SRG]firewall zone name dmz1
[SRG-zone-dmz1]set priority 59
[SRG-zone-dmz1]add int g0/0/3
[SRG-zone-dmz1]quit
[SRG]firewall zone untrust
[SRG-zone-untrust]add int g0/0/2
[SRG-zone-untrust]add int g0/0/5

【2】要求1（ client1 可以访问client2 ICMP服务）的配置：

[SRG]policy interzone trust untrust outbound
[SRG-policy-interzone-trust-untrust-outbound]policy 1
[SRG-policy-interzone-trust-untrust-outbound-1]policy source 10.1.1.1 0
[SRG-policy-interzone-trust-untrust-outbound-1]policy destination 20.1.1.1 0
[SRG-policy-interzone-trust-untrust-outbound-1]policy service service-set icmp
[SRG-policy-interzone-trust-untrust-outbound-1]action permit

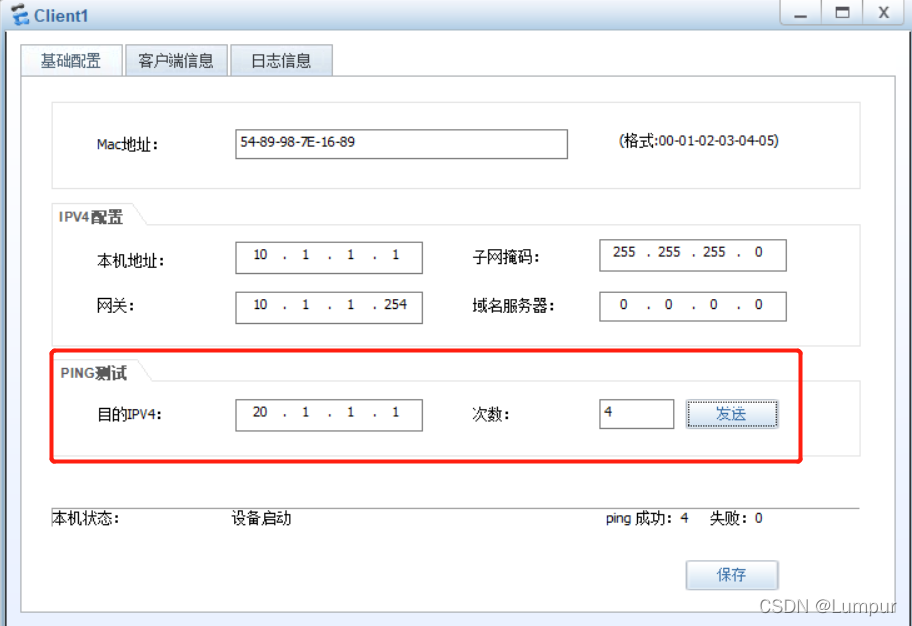

在这里插入图片描述

【3】要求2（PC1 可以访问PC2 ICMP服务）的配置：

[SRG]policy interzone trust dmz1 outbound
[SRG-policy-interzone-trust-dmz1-outbound]policy 1
[SRG-policy-interzone-trust-dmz1-outbound-1]policy source 10.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-1]policy destination 100.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-1]policy service service-set http
[SRG-policy-interzone-trust-dmz1-outbound-1]action permit
[SRG-policy-interzone-trust-dmz1-outbound-1]quit
[SRG-policy-interzone-trust-dmz1-outbound]policy 2
[SRG-policy-interzone-trust-dmz1-outbound-2]policy source 10.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-2]policy destination 100.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-2]policy service service-set ftp
[SRG-policy-interzone-trust-dmz1-outbound-2]action permit
[SRG-policy-interzone-trust-dmz1-outbound-2]quit
[SRG-policy-interzone-trust-dmz1-outbound]quit
[SRG]firewall interzone trust dmz1
[SRG-interzone-trust-dmz1]detect ftp

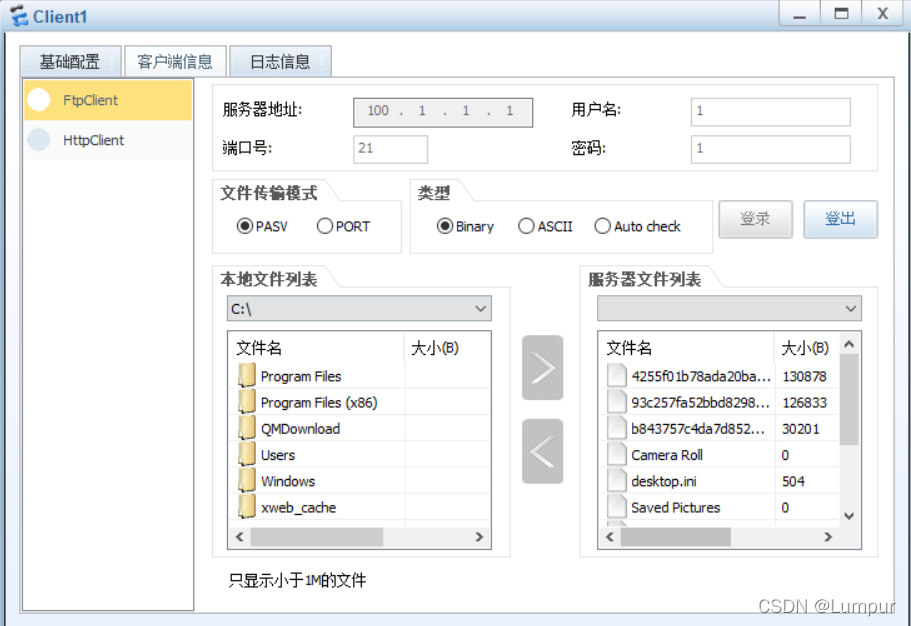

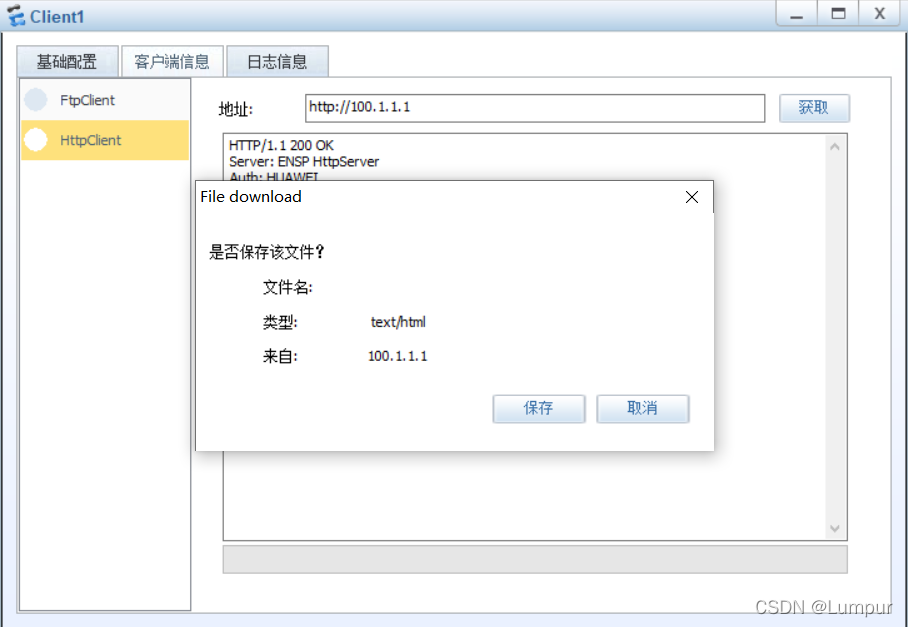

在这里插入图片描述

4、要求3（client2只允许访问HTTP服务）的配置：

[SRG]policy interzone untrust dmz1 inbound
[SRG-policy-interzone-dmz1-untrust-inbound]policy 1
[SRG-policy-interzone-dmz1-untrust-inbound-1]policy source 20.1.1.1 0
[SRG-policy-interzone-dmz1-untrust-inbound-1]policy destination 100.1.1.1 0
[SRG-policy-interzone-dmz1-untrust-inbound-1]policy service service-set http
[SRG-policy-interzone-dmz1-untrust-inbound-1]action permit

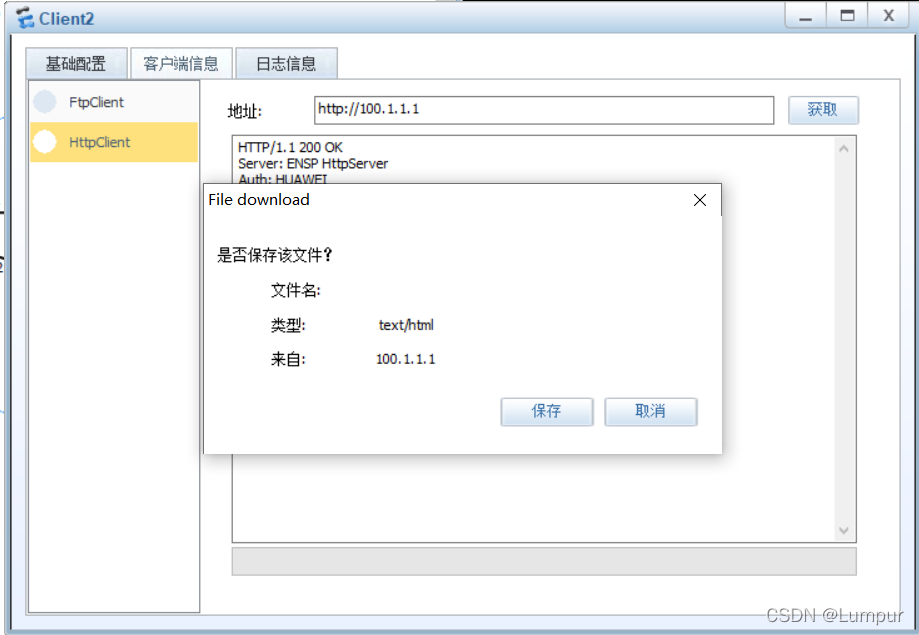

在这里插入图片描述

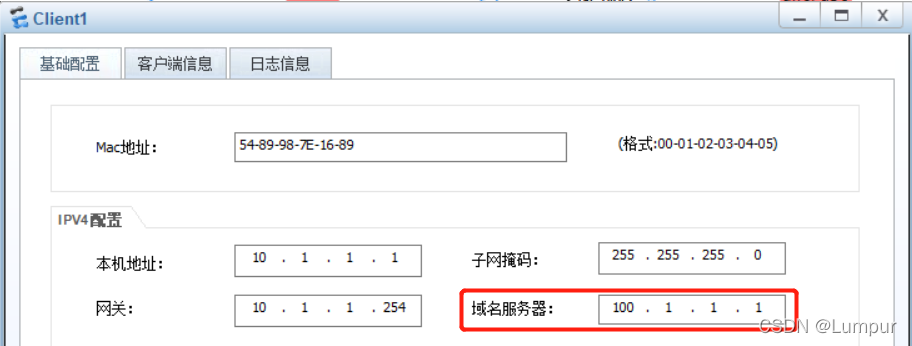

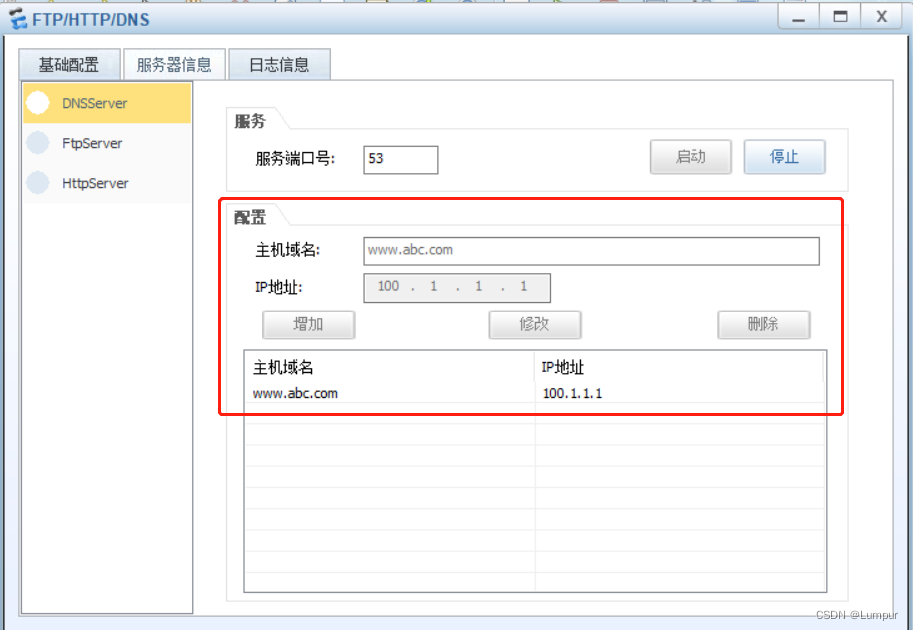

5、要求4（client1可以通过域名来访问100.1.1.1）的配置：

[SRG-policy-interzone-trust-dmz1-outbound]policy 3
[SRG-policy-interzone-trust-dmz1-outbound-3]policy source 10.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-3]policy destination 100.1.1.1 0
[SRG-policy-interzone-trust-dmz1-outbound-3]policy service service-set dns
[SRG-policy-interzone-trust-dmz1-outbound-3]action permit

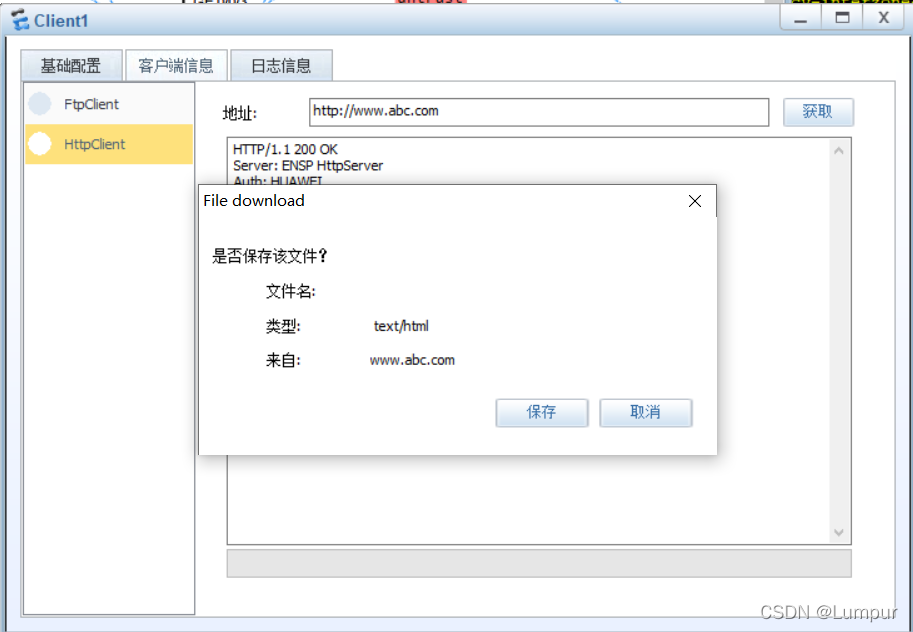

在这里插入图片描述
