47DR工程 - 48DR工程

47DR工程 -> 48DR改变工程芯片型号

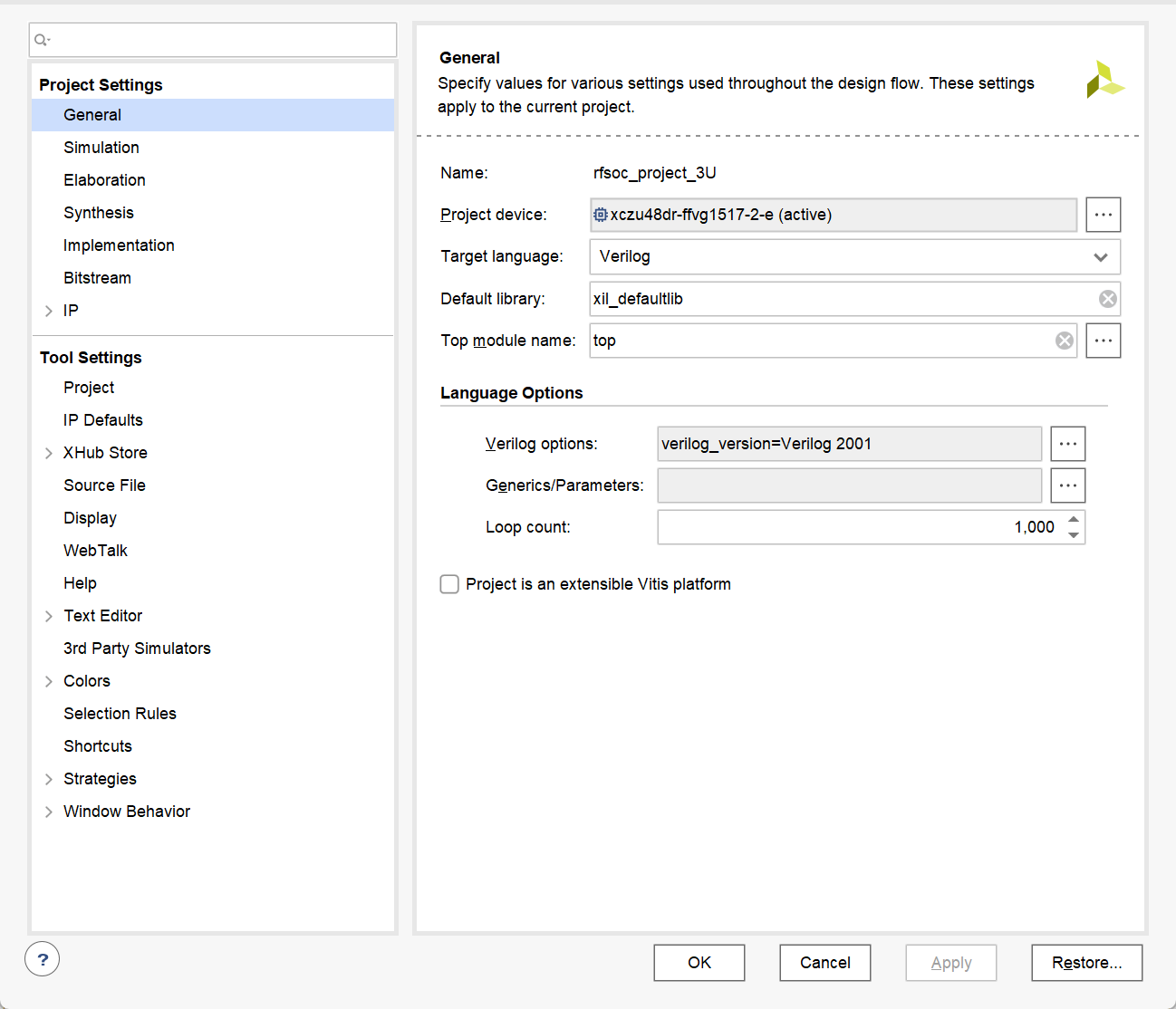

工程设置

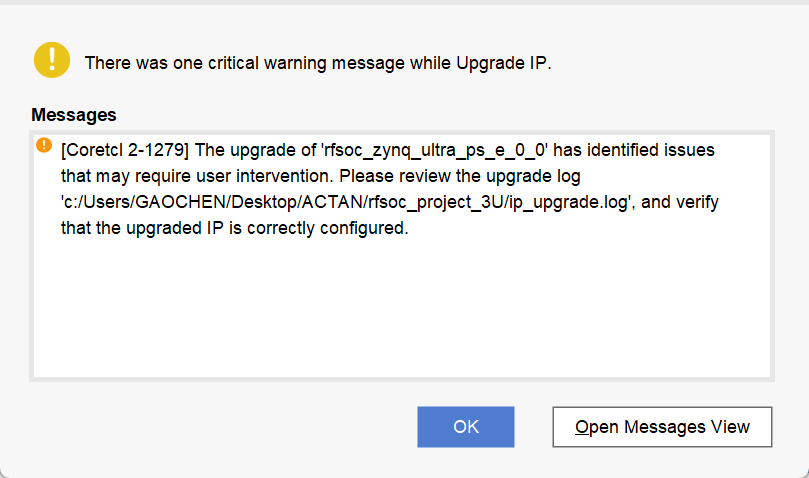

更新所有IP

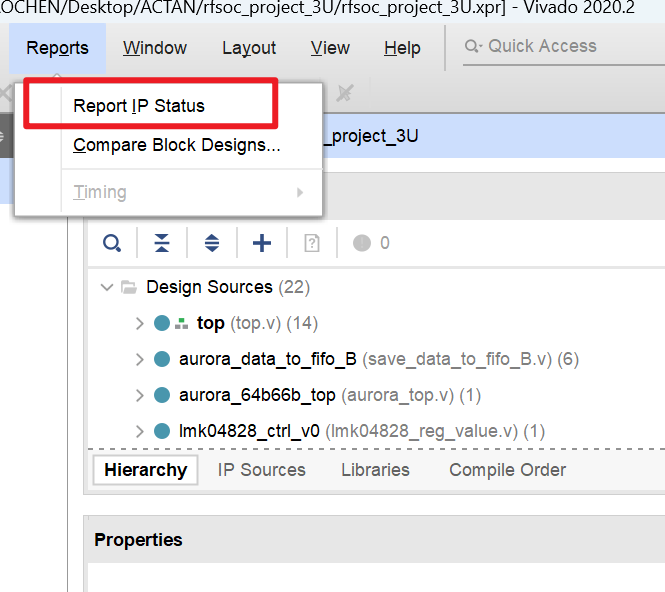

使用Report IP更新

用TCL命令更新所有IP

upgrade_ip [get_ips]

报警告，不影响正常功能：

WARNING: [IP_Flow 19-2248] Failed to load user IP repository 'c:/Users/GAOCHEN/Desktop/ACTAN/rfsoc_project_6U/ip_repo/pl_bram_rd_1.0'; Can't find the specified path.
If this directory should no longer be in your list of user repositories, go to the IP Settings dialog and remove it.

WARNING: [BD 41-237] Bus Interface property AWUSER_WIDTH does not match between /IQ_PD_BRAM/axi_bram_ctrl_0/S_AXI(0) and /smartconnect_0/M00_AXI(16)

BD重新编译

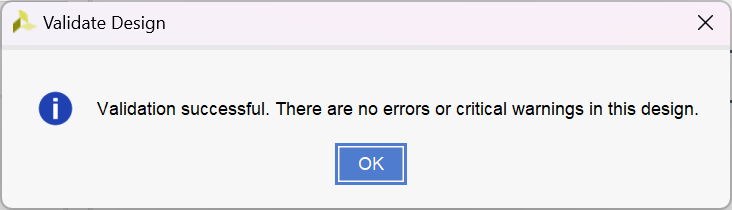

1. BD重新校验


2. BD重新编译顶层


重新生成Bit流

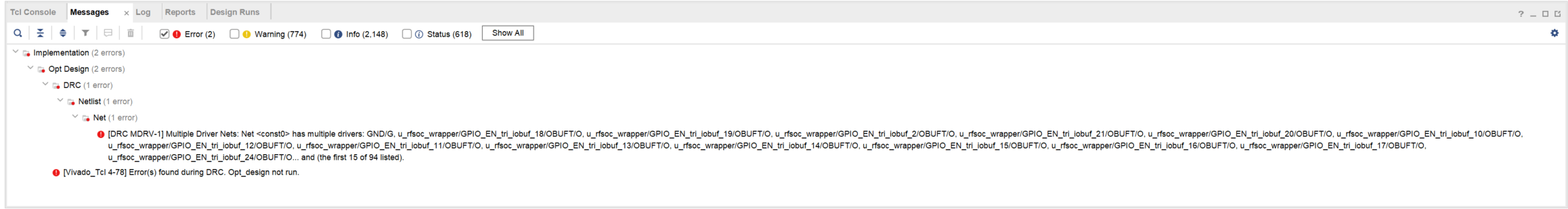

报错

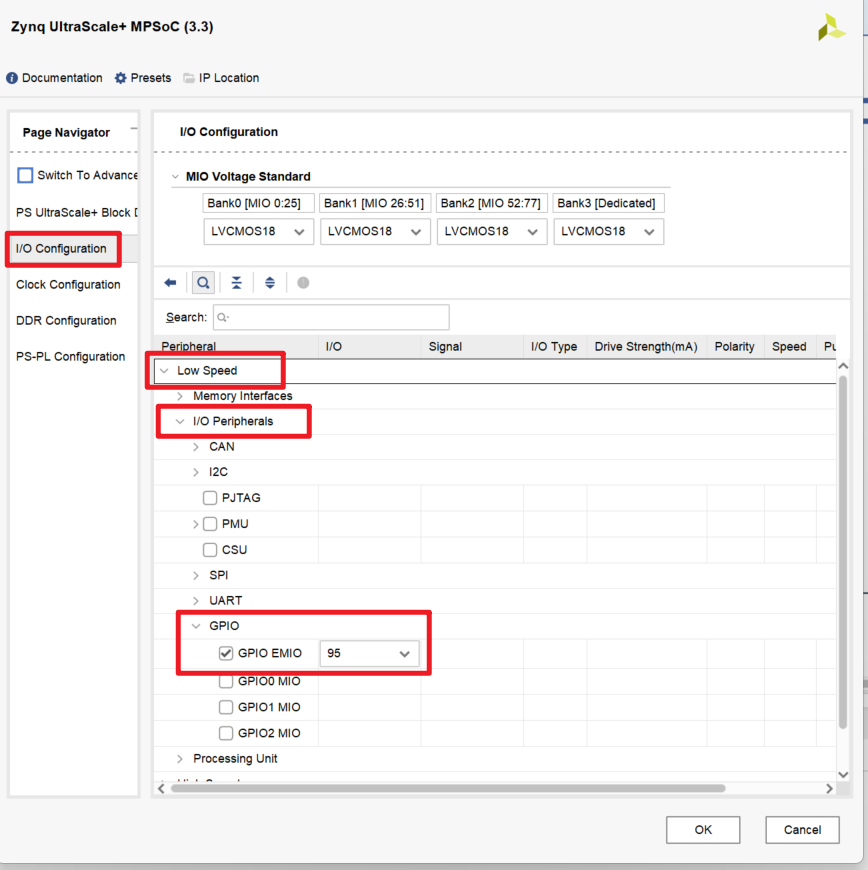

定位问题为自动更新IP核时，EMIO自动变成了95，改回来即可。
