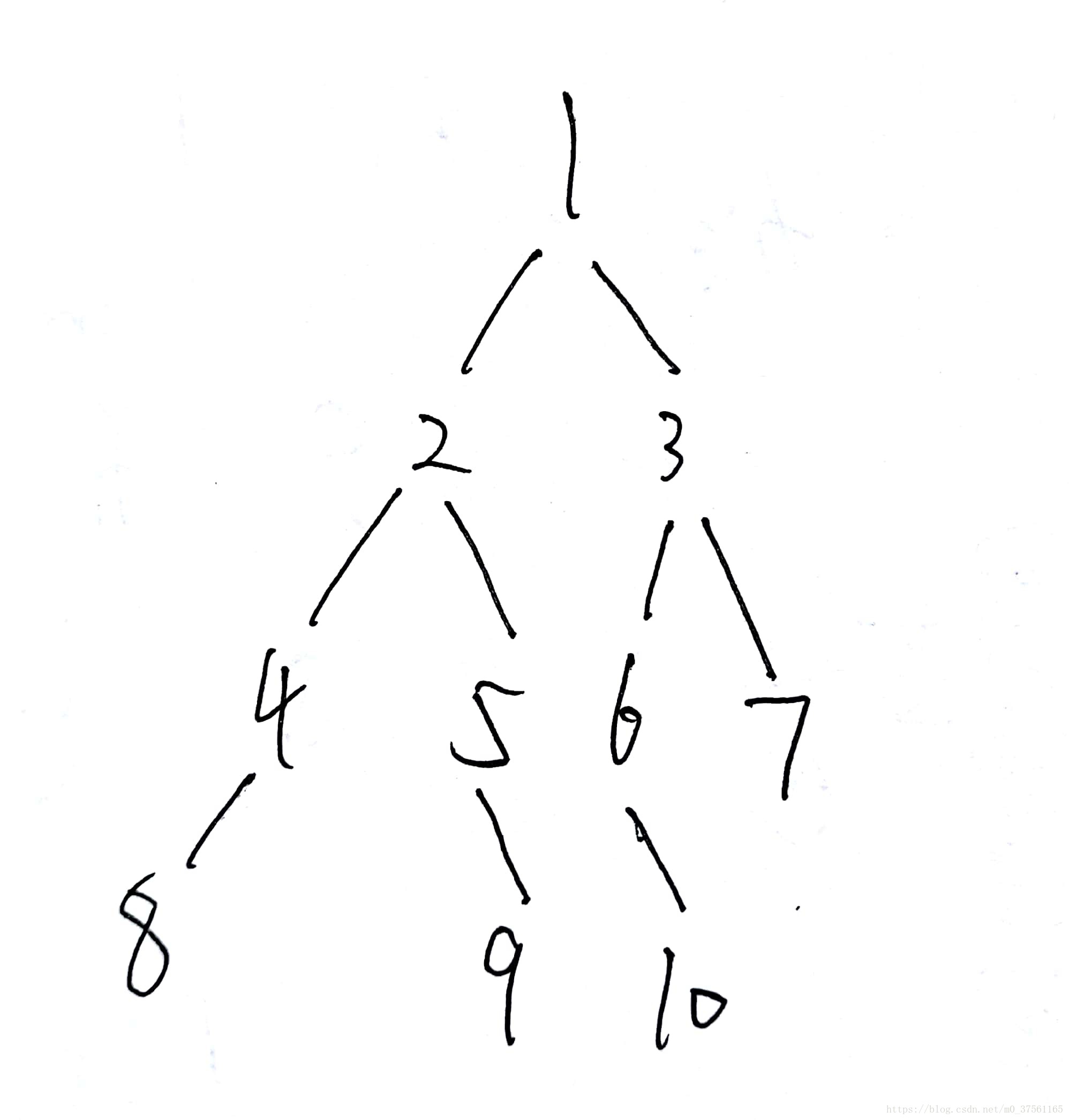

二叉树：

前序： 1-2-4-8-5-9-3-6-10-7 根左右

中序： 8-4-2-5-9-1-6-10-3-7 左根右

后序列： 8-4-9-5-2-10-6-7-3-1 左右根

递归实现

#include <iostream>
#include <stack>
#include <list>
#include <vector>

using namespace std;
struct TreeNode {
	int val;
	TreeNode *left;
	TreeNode *right;
	TreeNode(int x) : val(x), left(NULL), right(NULL) {}
};

TreeNode *inorder(TreeNode* root,vector<int>& res)
{
	if(root!=NULL)
	{
		res.push_back(root->val);
		inorder(root->left,res);
		inorder(root->right,res);
	}
	else
		return NULL;
	return root;
}
int main()
{
	TreeNode *root=&TreeNode(1);
	root->left=&TreeNode(2);
	root->right=&TreeNode(3);
	root->left->left=&TreeNode(4);
	root->left->right=&TreeNode(5);
	root->right->left=&TreeNode(6);
	root->right->right=&TreeNode(7);
	root->left->left->left=&TreeNode(8);
	root->left->right->right=&TreeNode(9);
	root->right->left->right=&TreeNode(10);
	vector<int> myvec;
	TreeNode *outp=inorder(root,myvec);
	cout<<myvec[0];
	for(int i=1;i<myvec.size();i++)
		cout<<" "<<myvec[i];
	cout<<endl;

	return 0;
}

更改18.19.20三行的顺序，即可得到前中后序

非递归实现

前序

主要思路：

利用堆栈模拟路线，数组存储前序结果。步骤如下：

while(指针不为空||堆栈不为空)

判断当前指针是否为空
如果不为空，将数据放入堆栈s，同时将值放入数组，将指针指向左儿子
如果为空，指针指向栈顶元素的右儿子，同时出栈

#include <iostream>
#include <stack>
#include <list>
#include <vector>

using namespace std;
struct TreeNode {
	int val;
	TreeNode *left;
	TreeNode *right;
	TreeNode(int x) : val(x), left(NULL), right(NULL) {}
};

vector<int> preorderTraversal(TreeNode* root) {
	vector<int> myvec;
	stack<TreeNode*> s;
	TreeNode* tmp=root;

	while (tmp||!s.empty())
	{
		if (tmp){
			s.push(tmp);
			myvec.push_back(tmp->val);
			tmp=tmp->left;
		} else{
			tmp=s.top()->right;
			s.pop();
		}
	}
	return myvec;
}
int main()
{
	TreeNode *root=&TreeNode(1);
	root->left=&TreeNode(2);
	root->right=&TreeNode(3);
	root->left->left=&TreeNode(4);
	root->left->right=&TreeNode(5);
	root->right->left=&TreeNode(6);
	root->right->right=&TreeNode(7);
	root->left->left->left=&TreeNode(8);
	root->left->right->right=&TreeNode(9);
	root->right->left->right=&TreeNode(10);
	vector<int> myvec;
	myvec=preorderTraversal(root);
	cout<<myvec[0];
	for(int i=1;i<myvec.size();i++)
		cout<<" "<<myvec[i];
	cout<<endl;

	return 0;
}

中序：

while条件：输入节点不为空，堆栈不为空

如果有左儿子，就一直循环往堆栈放左儿子

如果没有左儿子了，并且堆栈不为空，指针指向栈顶的元素，出栈，然后元素放入数组，

最后把指针指向栈顶元素的右儿子（左先已经出栈，跟紧接着，现在出栈右边）

vector<int> inorderTraversal(TreeNode* root) {
	vector<int> myvec;
	stack<TreeNode*> s;
	TreeNode* tmp=root;

	while (tmp||!s.empty())
	{
		while (tmp){
			s.push(tmp);
			tmp=tmp->left;
		}
		if (!s.empty()){
			tmp=s.top();
			s.pop();
			myvec.push_back(tmp->val);
			tmp=tmp->right;
		}
	}
	return myvec;
}

后序遍历

二叉树的后序遍历（leetcode 145）

vector<int> postorderTraversal(TreeNode* root) {
	stack<TreeNode*> s;
	vector<int> retVec;
	TreeNode* current = root;
	TreeNode* pre = nullptr;
	while(!s.empty()||current){
		while(current) {
			s.push(current);
			current = current->left;
		}
		auto top = s.top();
		if(top->right==nullptr||top->right==pre) {
			pre = top;
			retVec.push_back(top->val);
			current = nullptr;
			s.pop();
		}
		else {
			current = top->right;
		}
	}
	return retVec;
}

Java实现：

import java.util.ArrayList;
import java.util.List;
import java.util.Stack;

public class BinaryTree {

    int val;
    BinaryTree left;
    BinaryTree right;

    BinaryTree(int val) {
        this.val = val;
    }

    BinaryTree(int val, BinaryTree left, BinaryTree right) {
        this.val = val;
        this.left = left;
        this.right = right;
    }

    private static void outPreOrder(BinaryTree node) {
        if (node != null) {
            System.out.println(node.val);
            outPreOrder(node.left);
            outPreOrder(node.right);
        }
    }

    private static void outMiddleOrder(BinaryTree node) {
        if (node != null) {
            outMiddleOrder(node.left);
            System.out.println(node.val);
            outMiddleOrder(node.right);
        }
    }

    private static void outBackOrder(BinaryTree node) {
        if (node != null) {
            outBackOrder(node.left);
            outBackOrder(node.right);
            System.out.println(node.val);
        }
    }

    public static void main(String[] args) {
        BinaryTree root = new BinaryTree(1, new BinaryTree(2), new BinaryTree(3));
        root.left.left = new BinaryTree(4);
        root.left.left.left = new BinaryTree(8);
        root.left.right = new BinaryTree(5);
        root.left.right.right = new BinaryTree(9);
        root.right.left = new BinaryTree(6);
        root.right.right = new BinaryTree(7);
        root.right.left.right = new BinaryTree(10);
//        BinaryTree root = null;
        System.out.println("前序递归遍历");
        outPreOrder(root);
        System.out.println("前序非递归遍历");
        System.out.println(outPreOrderNotRec(root));
        System.out.println("中序递归遍历");
        outMiddleOrder(root);
        System.out.println("中序非递归遍历");
        System.out.println(outMiddleOrderNotRec(root));
        System.out.println("后序递归遍历");
        outBackOrder(root);
        System.out.println("后序非递归遍历");
        System.out.println(outBackOrderNotRec(root));
    }

    private static List<Integer> outBackOrderNotRec(BinaryTree node) {
        Stack<BinaryTree> stack = new Stack<>();
        List<Integer> vals = new ArrayList<>();
        BinaryTree pre = null;
        while (node != null || !stack.empty()) {
            while (node != null) {
                stack.add(node);
                node = node.left;
            }
            BinaryTree top = stack.peek();
            if (top.right == null || top.right == pre) {
                vals.add(top.val);
                pre = stack.pop();
            } else {
                node = top.right;
            }
        }

        return vals;
    }

    private static List<Integer> outMiddleOrderNotRec(BinaryTree node) {
        List<Integer> vals = new ArrayList<>();
        Stack<BinaryTree> stack = new Stack<>();
        while (node != null || !stack.empty()) {
            while (node != null) {
                stack.add(node);
                node = node.left;
            }
            if (!stack.empty()) {
                vals.add(stack.peek().val);
                node = stack.pop().right;
            }
        }
        return vals;
    }

    private static List<Integer> outPreOrderNotRec(BinaryTree node) {
        List<Integer> vals = new ArrayList<>();
        Stack<BinaryTree> stack = new Stack<>();
        while (node != null || !stack.empty()) {
            if (node != null) {
                stack.add(node);
                vals.add(node.val);
                node = node.left;
            } else {
                node = stack.pop().right;
            }
        }
        return vals;
    }
}
