Zabbix监控平台的搭建

主机环境: rhel6.5 selinux and iptables disabled

            ip:172.25.88.2

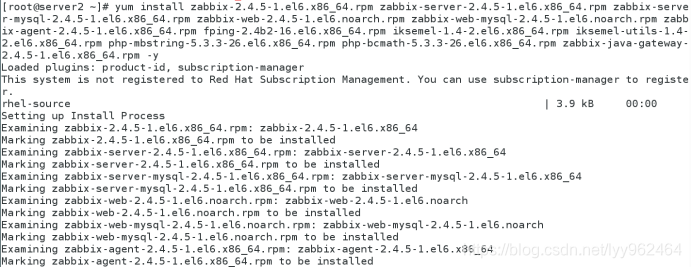

1、安装zabbix监控所需软件

yum install -y

zabbix-2.4.5-1.el6.x86_64.rpm

zabbix-server-2.4.5-1.el6.x86_64.rpm zabbix-server-mysql-2.4.5-1.el6.x86_64.rpm  #zabbix服务器

zabbix-web-2.4.5-1.el6.noarch.rpm       #zabbix前端界面

zabbix-web-mysql-2.4.5-1.el6.noarch.rpm  #zabbix数据库

zabbix-agent-2.4.5-1.el6.x86_64.rpm

fping-2.4b2-16.el6.x86_64.rpm

iksemel-1.4-2.el6.x86_64.rpm

iksemel-utils-1.4-2.el6.x86_64.rpm

php-mbstring-5.3.3-26.el6.x86_64.rpm

php-bcmath-5.3.3-26.el6.x86_64.rpm zabbix-java-gateway-2.4.5-1.el6.x86_64.rpm

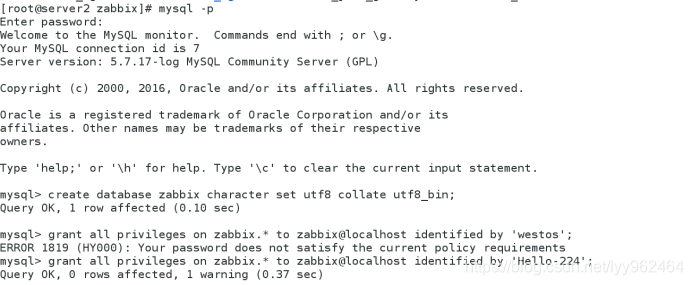

2、配置 mysql 数据库

/etc/init.d/mysqld   start         #启动mysql服务

Mysql  -p

#创建zabbix数据库，给zabbix用户授权

mysql> create database zabbix character set utf8 collate utf8_bin;

grant all privileges on zabbix.* to zabbix@localhost identified by 'Hello-224';

cd /usr/share/doc/zabbix-server-mysql-2.4.5/create

#导入数据库信息

mysql -uzabbix -p zabbix < images.sql

mysql -uzabbix -p zabbix < data.sql

mysql -uzabbix -p zabbix < schema.sql

3、配置 zabbix server

cd /etc/zabbix/

vim zabbix_server.conf

DBHost=localhost

DBName=zabbix

DBUser=zabbix

DBPassword=Hello-224

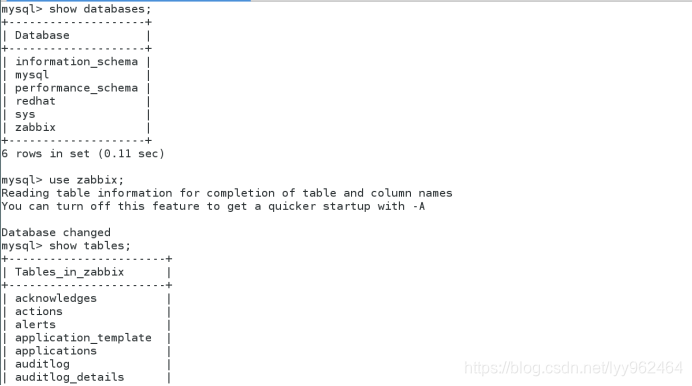

4、登陆查看导入的zabbix数据库信息

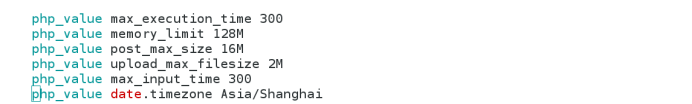

5、配置 php

cd /etc/httpd/conf.d/

vim zabbix.conf

php_value date.timezone Asia/Shanghai   #更改时区

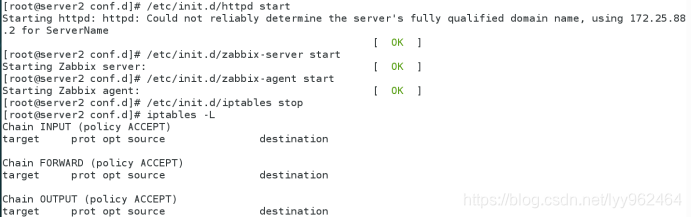

6、启动 zabbix-server、zabbix-agent、httpd，关闭火墙

/etc/init.d/httpd start

/etc/init.d/zabbix-server start

/etc/init.d/zabbix-agent start

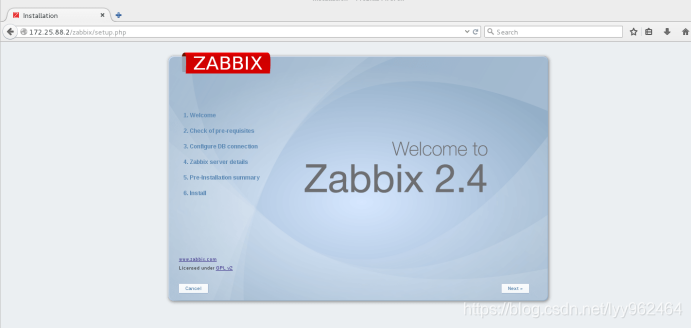

7、登陆 zabbix web

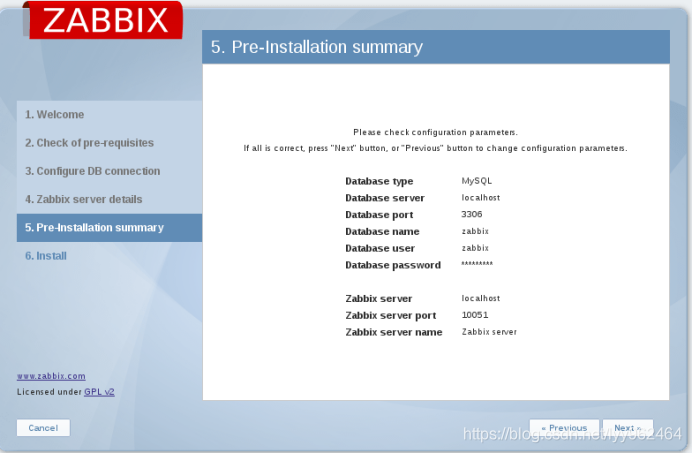

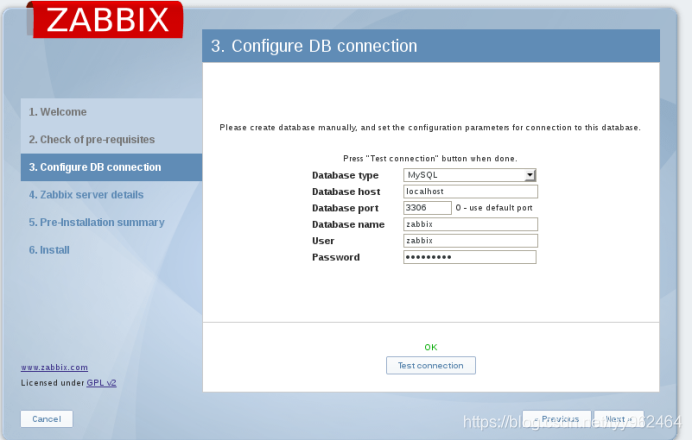

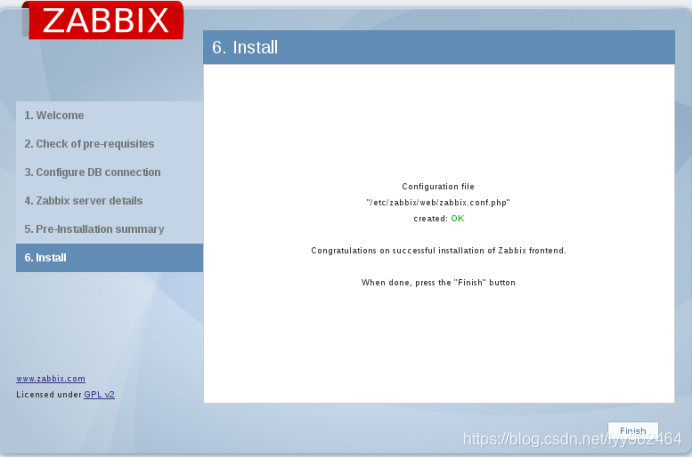

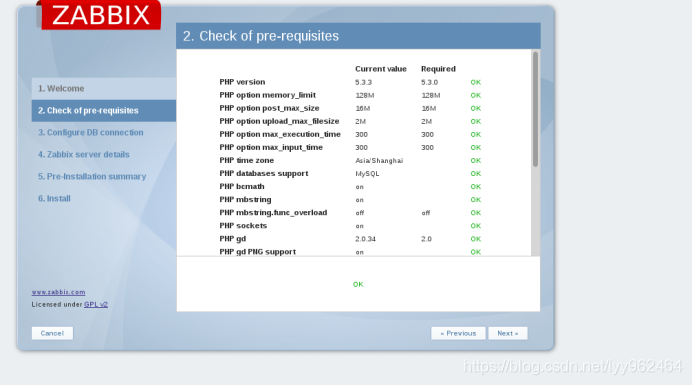

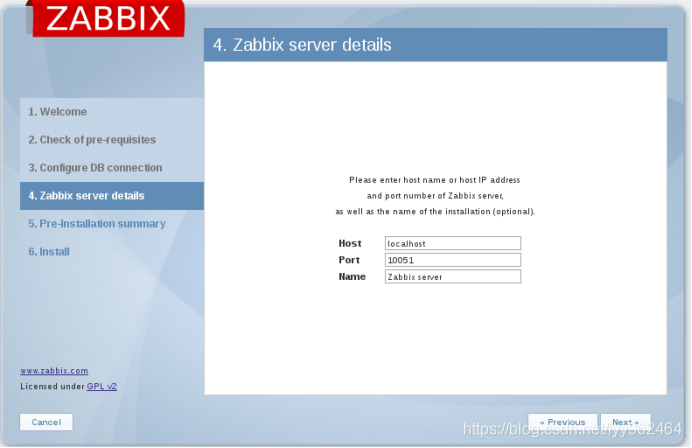

http://172.25.88./zabbix 按照提示完成安装并登陆:
