SGISTL源码阅读二十 map关联式容器
前言
map
是一种关联式容器,底层同样是红黑树实现的,所有的元素都会根据元素的键值自动被排序。map
中所有的元素pair
,pair
将两个数据合成一个,将pair
的第一个值视为键值,第二个值视为实值,非常符合key``````value
的要求。
我们知道set
保证了数据的唯一性,map
也一样,在map
中不允许两个元素拥有相同的键值。
深入源码
map
的定义部分
#ifndef __STL_LIMITED_DEFAULT_TEMPLATES
template <class Key, class T, class Compare = less<Key>, class Alloc = alloc>
#else
template <class Key, class T, class Compare, class Alloc = alloc>
#endif
class map {
public:
typedef Key key_type;
typedef T data_type;
typedef T mapped_type;
typedef pair<const Key, T> value_type;
typedef Compare key_compare;
//仿函数,它的作用是调用元素比较大小标准函数
class value_compare
: public binary_function<value_type, value_type, bool> {
friend class map<Key, T, Compare, Alloc>;
protected :
Compare comp;
value_compare(Compare c) : comp(c) {}
public:
bool operator()(const value_type& x, const value_type& y) const {
return comp(x.first, y.first);
}
};
private:
typedef rb_tree<key_type, value_type,
select1st<value_type>, key_compare, Alloc> rep_type;
//底层以红黑树实现
rep_type t; // red-black tree representing map
public:
//声明别名
typedef typename rep_type::pointer pointer;
typedef typename rep_type::const_pointer const_pointer;
typedef typename rep_type::reference reference;
typedef typename rep_type::const_reference const_reference;
typedef typename rep_type::iterator iterator;
typedef typename rep_type::const_iterator const_iterator;
typedef typename rep_type::reverse_iterator reverse_iterator;
typedef typename rep_type::const_reverse_iterator const_reverse_iterator;
typedef typename rep_type::size_type size_type;
typedef typename rep_type::difference_type difference_type;
//...
map
的构造函数
//默认构造函数或者自己传入的大小比较标准
map() : t(Compare()) {}
explicit map(const Compare& comp) : t(comp) {}
#ifdef __STL_MEMBER_TEMPLATES
//迭代器范围构造
template <class InputIterator>
map(InputIterator first, InputIterator last)
: t(Compare()) { t.insert_unique(first, last); }
template <class InputIterator>
map(InputIterator first, InputIterator last, const Compare& comp)
: t(comp) { t.insert_unique(first, last); }
#else
map(const value_type* first, const value_type* last)
: t(Compare()) { t.insert_unique(first, last); }
map(const value_type* first, const value_type* last, const Compare& comp)
: t(comp) { t.insert_unique(first, last); }
map(const_iterator first, const_iterator last)
: t(Compare()) { t.insert_unique(first, last); }
//拷贝构造函数
//直接对红黑树进行复制就行了
map(const_iterator first, const_iterator last, const Compare& comp)
: t(comp) { t.insert_unique(first, last); }
#endif /* __STL_MEMBER_TEMPLATES */
操作符重载
template <class Key, class T, class Compare, class Alloc>
inline bool operator==(const map<Key, T, Compare, Alloc>& x,
const map<Key, T, Compare, Alloc>& y) {
return x.t == y.t;
}
template <class Key, class T, class Compare, class Alloc>
inline bool operator<(const map<Key, T, Compare, Alloc>& x,
const map<Key, T, Compare, Alloc>& y) {
return x.t < y.t;
}
map
的相关操作
这些相关操作都是直接调用底层红黑树提供的方法
key_compare key_comp() const { return t.key_comp(); }
value_compare value_comp() const { return value_compare(t.key_comp()); }
iterator begin() { return t.begin(); }
const_iterator begin() const { return t.begin(); }
iterator end() { return t.end(); }
const_iterator end() const { return t.end(); }
reverse_iterator rbegin() { return t.rbegin(); }
const_reverse_iterator rbegin() const { return t.rbegin(); }
reverse_iterator rend() { return t.rend(); }
const_reverse_iterator rend() const { return t.rend(); }
bool empty() const { return t.empty(); }
size_type size() const { return t.size(); }
size_type max_size() const { return t.max_size(); }
T& operator[](const key_type& k) {
return (*((insert(value_type(k, T()))).first)).second;
}
void swap(map<Key, T, Compare, Alloc>& x) { t.swap(x.t); }
//...
iterator find(const key_type& x) { return t.find(x); }
const_iterator find(const key_type& x) const { return t.find(x); }
size_type count(const key_type& x) const { return t.count(x); }
iterator lower_bound(const key_type& x) {return t.lower_bound(x); }
const_iterator lower_bound(const key_type& x) const {
return t.lower_bound(x);
}
iterator upper_bound(const key_type& x) {return t.upper_bound(x); }
const_iterator upper_bound(const key_type& x) const {
return t.upper_bound(x);
}
pair<iterator,iterator> equal_range(const key_type& x) {
return t.equal_range(x);
}
pair<const_iterator,const_iterator> equal_range(const key_type& x) const {
return t.equal_range(x);
}
插入删除操作
// insert/erase
pair<iterator,bool> insert(const value_type& x) { return t.insert_unique(x); }
iterator insert(iterator position, const value_type& x) {
return t.insert_unique(position, x);
}
#ifdef __STL_MEMBER_TEMPLATES
template <class InputIterator>
void insert(InputIterator first, InputIterator last) {
t.insert_unique(first, last);
}
#else
void insert(const value_type* first, const value_type* last) {
t.insert_unique(first, last);
}
void insert(const_iterator first, const_iterator last) {
t.insert_unique(first, last);
}
#endif /* __STL_MEMBER_TEMPLATES */
void erase(iterator position) { t.erase(position); }
size_type erase(const key_type& x) { return t.erase(x); }
void erase(iterator first, iterator last) { t.erase(first, last); }
void clear() { t.clear(); }
map
的基本方法总结
begin() 返回指向map头部的迭代器
clear() 删除所有元素
count() 返回指定元素出现的次数
empty() 如果map为空则返回true
end() 返回指向map末尾的迭代器
equal_range() 返回特殊条目的迭代器对
erase() 删除一个元素
find() 查找一个元素
get_allocator() 返回map的配置器
insert() 插入元素
key_comp() 返回比较元素key的函数
lower_bound() 返回键值>=给定元素的第一个位置
max_size() 返回可以容纳的最大元素个数
rbegin() 返回一个指向map尾部的逆向迭代器
rend() 返回一个指向map头部的逆向迭代器
size() 返回map中元素的个数
swap() 交换两个map
upper_bound() 返回键值>给定元素的第一个位置
value_comp() 返回比较元素value的函数
map

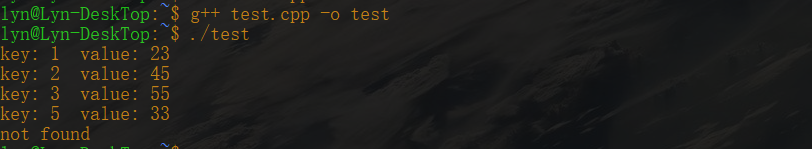

的简单使用示例
#include <iostream>
#include <map>
using namespace std;
int main()
{
map<int, string> mymap;
//字定义pair
pair<int, string> val(2, "45");
mymap.insert(make_pair(1, "23"));
mymap.insert(val);
// 使用下标操作符插入
mymap[3] = "55";
mymap[5] = "33";
map<int, string>::iterator ite1 = mymap.begin();
map<int, string>::iterator ite2 = mymap.end();
//遍历,注意迭代器指向的是pair,要访问key或者value不能直接取值
while(ite1 != ite2)
{
cout << "key: " << ite1->first << " value: " << ite1->second << endl;
ite1++;
}
/* 最好使用map自带的find函数,因为底层是红黑树实现的,查找操作很快
* 而STL算法中的find函数,后面我们会见识到
*/
ite1 = mymap.find(4);
if(ite1 == mymap.end())
{
cout << "not found" << endl;
}
else
{
cout << "i found it, the value is:" << ite1->second << endl;
}
return 0;
}
关于multimap
前面提到了,map
不允许出现重复键值,而multimap
则可以,这是它们之间的唯一差别,这是因为调用红黑树的插入操作函数不同造成而造成的区别。map
调用的是insert_unique
函数而multimap
调用的是insert_equal
函数
深入源码
以下仅贴出部分multimap
和map
的不同之处
iterator insert(const value_type& x) { return t.insert_equal(x); }
iterator insert(iterator position, const value_type& x) {
//调用了insert_equal
return t.insert_equal(position, x);
}
#ifdef __STL_MEMBER_TEMPLATES
template <class InputIterator>
void insert(InputIterator first, InputIterator last) {
t.insert_equal(first, last);
}
#else
void insert(const value_type* first, const value_type* last) {
t.insert_equal(first, last);
}
void insert(const_iterator first, const_iterator last) {
t.insert_equal(first, last);
}
