本文详述了在整合Skywalking与MySQL过程中遇到的问题及解决方案，包括修改`application.yml`配置文件，将数据源从h2切换到mysql，调整数据库URL、用户名和密码，解决驱动兼容性问题，以及添加数据库驱动 jar 包到oap-libs目录，确保Skywalking能成功连接并创建数据库表。
网上关于Skywalking整合MySQL的教程较少，并且不够详细，在我整合的过程中，遇到了一些坑，在此记录一下详细步骤。
1.修改config文件夹中的application.yml文件，指定数据源
首先将application.yml中的第121行，storage下的selector进行修改。
storage:
selector: ${SW_STORAGE:h2}
将这里的h2表示使用h2数据库，引用下方h2开始的配置。
h2:
driver: ${SW_STORAGE_H2_DRIVER:org.h2.jdbcx.JdbcDataSource}
url: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db;DB_CLOSE_DELAY=-1}
user: ${SW_STORAGE_H2_USER:sa}
metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root@1234}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
· 因此我们应该将第121行的h2改为mysql，引用mysql下的配置。
storage:
selector: ${SW_STORAGE:mysql}
然后修改mysql下的配置。首先是jdbrUrl，将jdbcUrl修改为将要整合的数据库地址和数据库，如果是MySQL8.0，需要在后面加上时区。然后修改dataSource.user和dataSource.password，修改为正确的用户名和密码。这里需要注意的是，原本的dataSource.password是用户名@密码格式。会一直连接不上。查看日志会以下错误，此事需要将用户名@密码格式直接修改为密码：
java.sql.SQLException: Access denied for user 'root'@'localhost' (using password: YES)
at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:129) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:97) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.exceptions.SQLExceptionsMapping.translateException(SQLExceptionsMapping.java:122) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:836) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:456) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:246) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:198) ~[mysql-connector-java-8.0.22.jar:8.0.22]
at com.zaxxer.hikari.util.DriverDataSource.getConnection(DriverDataSource.java:117) ~[HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.pool.PoolBase.newConnection(PoolBase.java:367) ~[HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.pool.PoolBase.newPoolEntry(PoolBase.java:196) ~[HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.pool.HikariPool.createPoolEntry(HikariPool.java:467) [HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.pool.HikariPool.checkFailFast(HikariPool.java:541) [HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.pool.HikariPool.<init>(HikariPool.java:115) [HikariCP-3.1.0.jar:?]
at com.zaxxer.hikari.HikariDataSource.<init>(HikariDataSource.java:81) [HikariCP-3.1.0.jar:?]
at org.apache.skywalking.oap.server.library.client.jdbc.hikaricp.JDBCHikariCPClient.connect(JDBCHikariCPClient.java:54) [library-client-8.7.0.jar:8.7.0]
at org.apache.skywalking.oap.server.storage.plugin.jdbc.mysql.MySQLStorageProvider.start(MySQLStorageProvider.java:185) [storage-jdbc-hikaricp-plugin-8.7.0.jar:8.7.0]
at org.apache.skywalking.oap.server.library.module.BootstrapFlow.start(BootstrapFlow.java:49) [library-module-8.7.0.jar:8.7.0]
at org.apache.skywalking.oap.server.library.module.ModuleManager.init(ModuleManager.java:60) [library-module-8.7.0.jar:8.7.0]
at org.apache.skywalking.oap.server.starter.OAPServerBootstrap.start(OAPServerBootstrap.java:43) [server-bootstrap-8.7.0.jar:8.7.0]
at org.apache.skywalking.oap.server.starter.OAPServerStartUp.main(OAPServerStartUp.java:27) [server-starter-es7-8.7.0.jar:8.7.0]
原本的配置没有数据库驱动的配置，此时需要按照数据库版本加上驱动设置，8.0及以后是com.mysql.cj.jdbc.Driver，8.0之前是com.mysql.jdbc.Driver。
修改前的mysql配置如下：
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root@1234}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
修改后的mysql配置如下：
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest?useUnicode=true&characterEncoding=utf-8&serverTimezone=Asia/Shanghai"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:yourPassword}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfArrayColumn: ${SW_STORAGE_MAX_SIZE_OF_ARRAY_COLUMN:20}
numOfSearchableValuesPerTag: ${SW_STORAGE_NUM_OF_SEARCHABLE_VALUES_PER_TAG:2}
driver: com.mysql.cj.jdbc.Driver

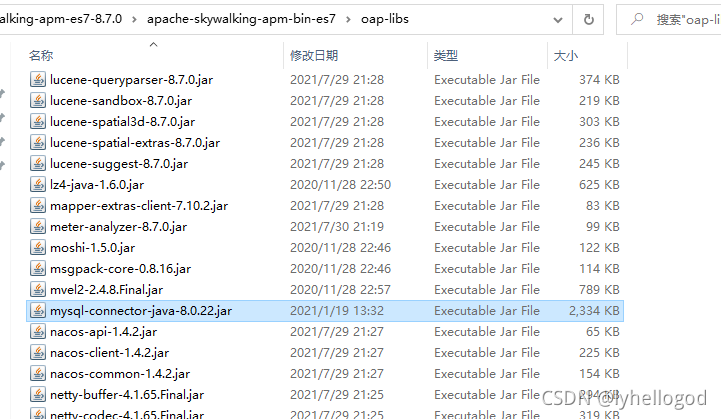

此时如果直接重启skywalking，会发现数据库还是没有数据，查看Log，会发现报了一个no suitable driver的错。此时需要将MySQL的jar包放入oap-libs下。如图：

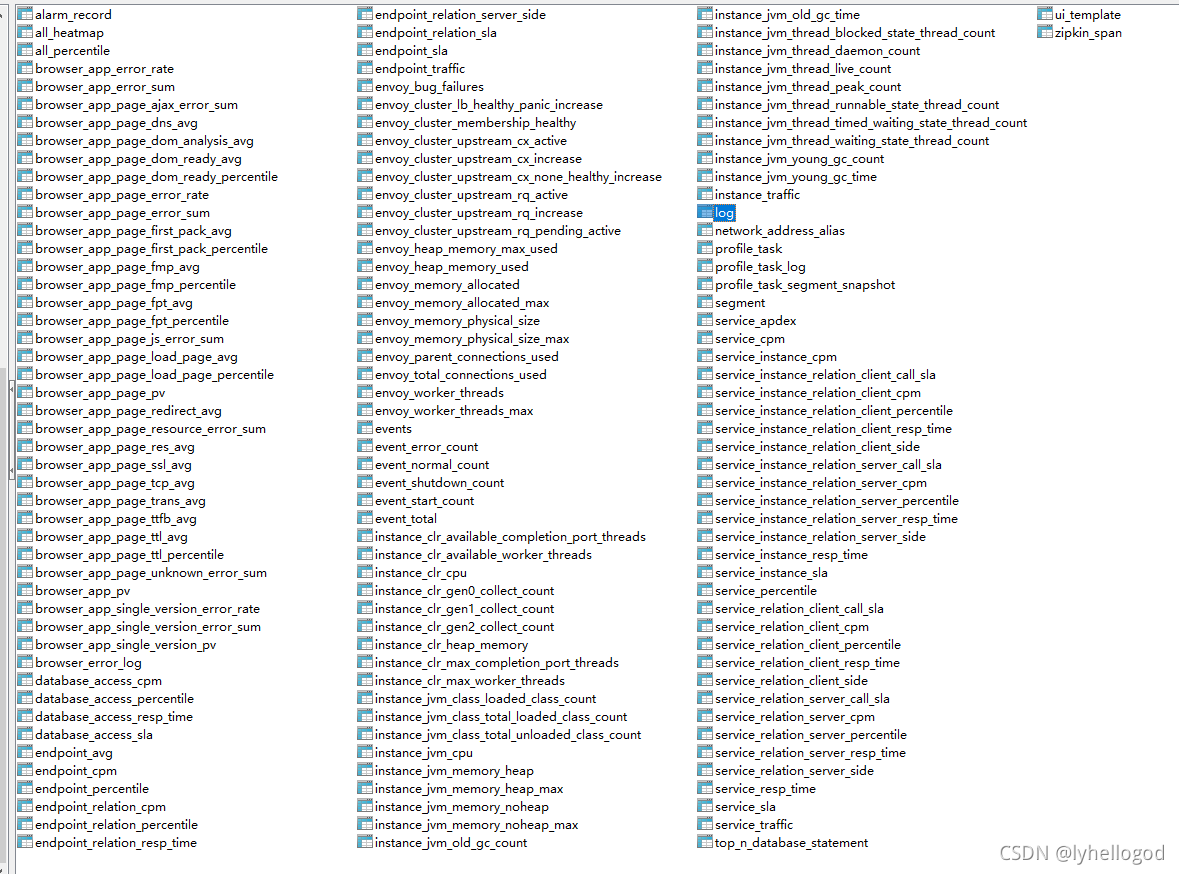

然后再次重启skywalking，会发现对应的MySQL数据库下出现了表。并且日志没有报错。
如果这篇文章有帮到您，请您点个赞吧，如果您有任何问题，欢迎在下方留言。
