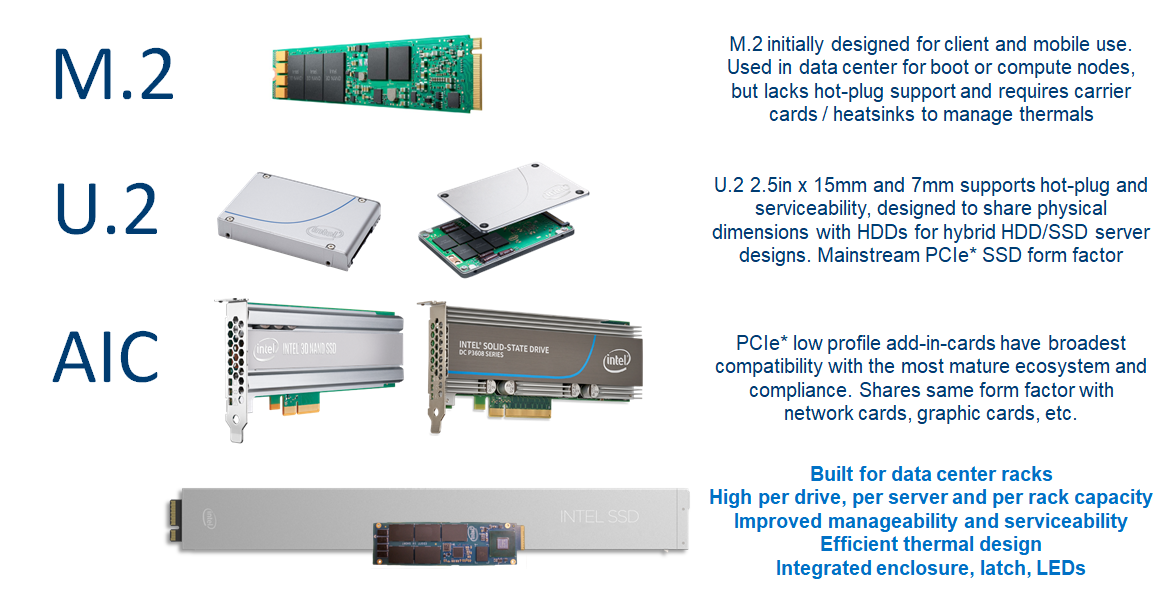

EDSFF-Enterprise&Datacenter SSD Form Factor

EDSFF is the form factor for the next decade for SSDs

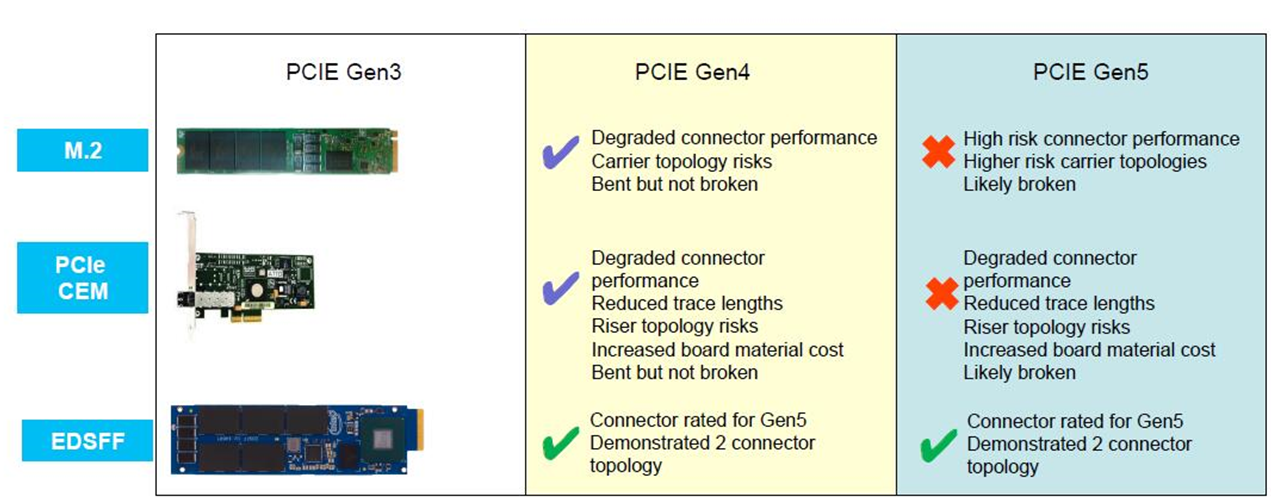

Higher power, highter bandwidth, better thermals and better denisity

Future proof you next design with the common connector

SSD, NICs, FPGAs, Storage Class Memory, Accelerators

For more information: http://www.snia.org/sff/specifications

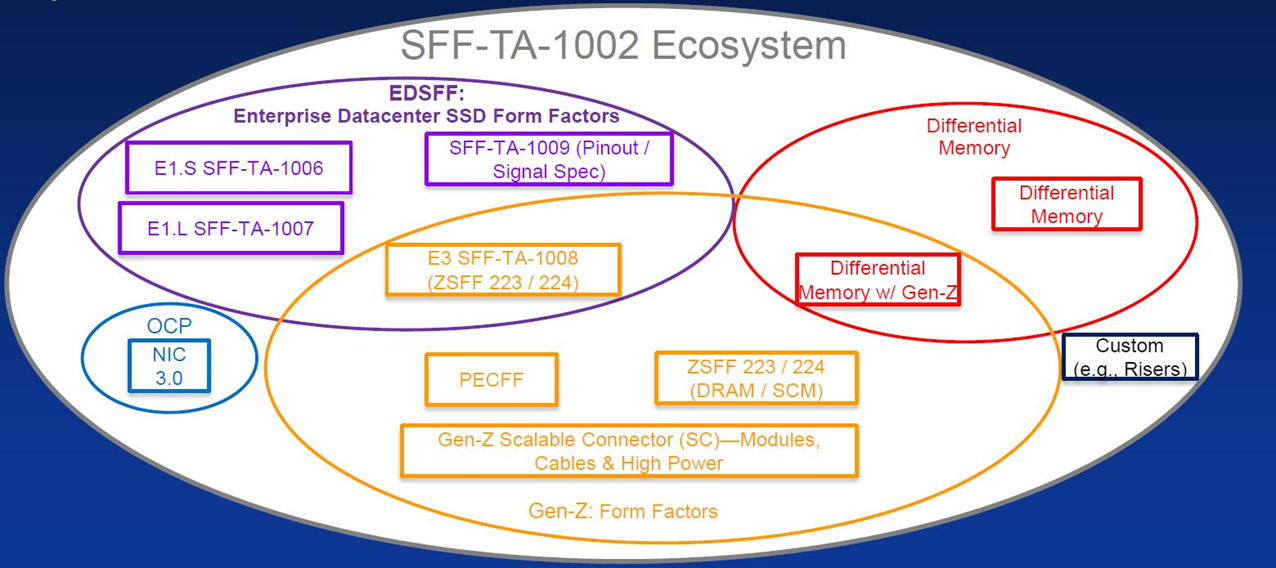

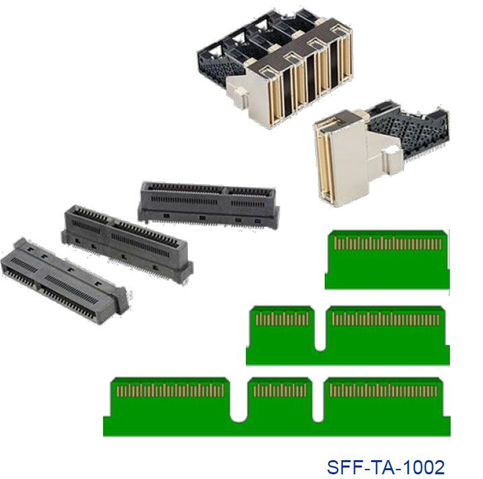

Connector: SFF-TA-1002: Card Edge multilane protocol agnostic connector

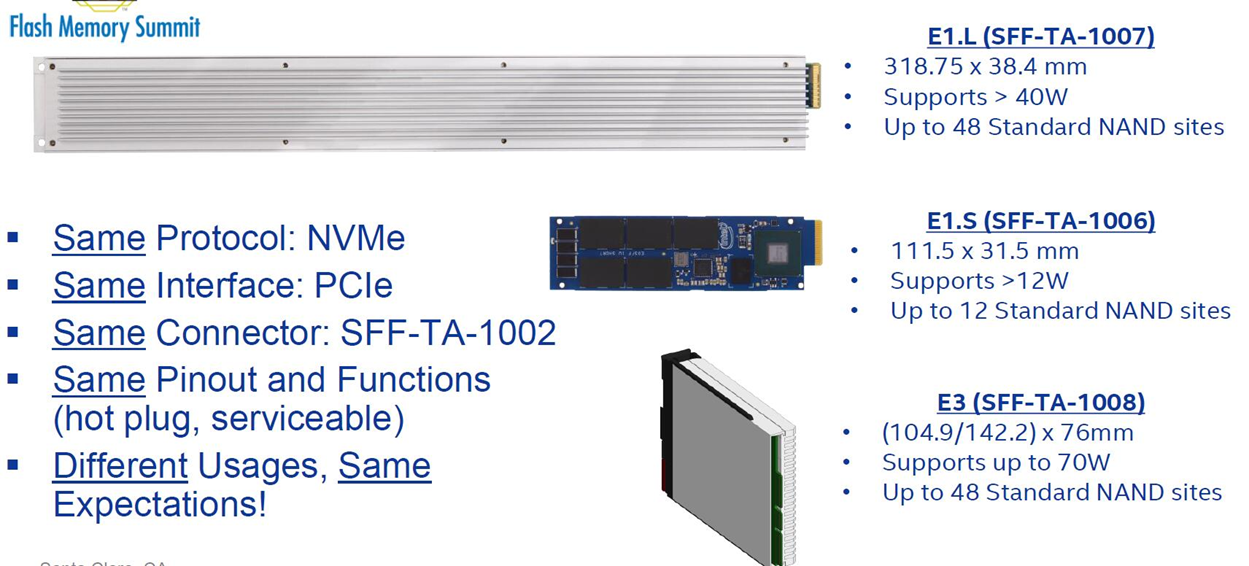

E1.S form factor: SFF-TA-1006: Enterprise and Datacenter 1U Short SSD Form Factor

E1.L form factor: SFF-TA-1007: Enterprise and Datacenter 1U Long SSD Form Factor

E3 form factor: SFF-TA-1008: Enterprise and Datacenter 3” Media Device Form Factor

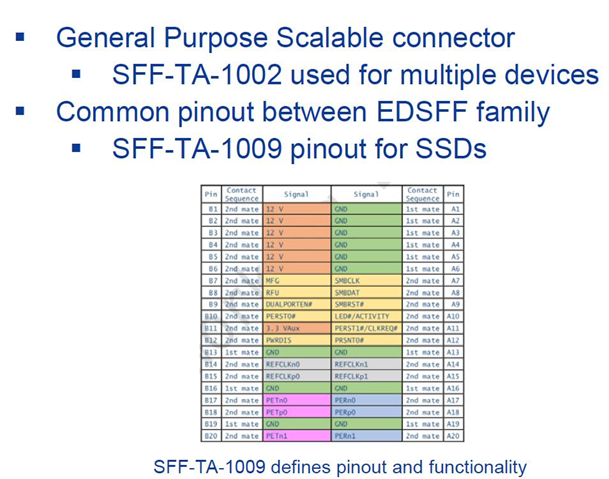

Pin list/other: SFF-TA-1009: Enterprise and Datacenter SSD Pin and Signal Specification
