Android Compose 控件十五（NavigationRail）

1.导入库

    implementation("androidx.navigation:navigation-common:2.8.9")
    implementation("androidx.navigation:navigation-compose:2.8.9")
    implementation("androidx.compose.material3:material3:1.3.2")
    implementation("androidx.compose.material3.adaptive:adaptive:1.1.0")
    implementation("androidx.compose.material3.adaptive:adaptive-layout-android:1.1.0")
    implementation("androidx.compose.material3.adaptive:adaptive-navigation-android:1.1.0")
    implementation("androidx.compose.material3.adaptive:adaptive-navigation:1.1.0")
    implementation("androidx.compose.material3:material3-adaptive-navigation-suite:1.3.2")
    implementation("androidx.compose.material:material:1.8.0")
    implementation("androidx.compose.material:material-icons-extended:1.7.8")
    implementation("androidx.compose.material:material-icons-core:1.7.8")
    implementation("androidx.compose.material3:material3-window-size-class:1.3.2")

2.示例代码

@Composable
fun SongsScreen(modifier: Modifier = Modifier) {
    Box(
        modifier = Modifier.fillMaxSize(),
        contentAlignment = Alignment.Center
    ) {
        Text("Songs Screen")
    }
}

@Composable
fun AlbumScreen(modifier: Modifier = Modifier) {
    Box(
        modifier = Modifier.fillMaxSize(),
        contentAlignment = Alignment.Center
    ) {
        Text("Album Screen")
    }
}

@Composable
fun PlaylistScreen(modifier: Modifier = Modifier) {
    Box(
        modifier = Modifier.fillMaxSize(),
        contentAlignment = Alignment.Center
    ) {
        Text("Playlist Screen")
    }
}

enum class Destination_Nav(
    val route: String,
    val label: String,
    val icon: ImageVector,
    val contentDescription: String
) {
    SONGS("songs", "Songs", Icons.Default.MusicNote, "Songs"),
    ALBUM("album", "Album", Icons.Default.Album, "Album"),
    PLAYLISTS("playlist", "Playlist", Icons.Default.PlaylistAddCircle, "Playlist")
}

@Composable
fun AppNavHost(
    navController: NavHostController,
    startDestination: Destination_Nav,
    modifier: Modifier = Modifier
) {
    NavHost(
        navController,
        startDestination = startDestination.route
    ) {
        Destination_Nav.entries.forEach { destination ->
            composable(destination.route) {
                when (destination) {
                    Destination_Nav.SONGS -> SongsScreen()
                    Destination_Nav.ALBUM -> AlbumScreen()
                    Destination_Nav.PLAYLISTS -> PlaylistScreen()
                }
            }
        }
    }
}

@Composable
fun NavigationRailExample(modifier: Modifier = Modifier) {
    val navController = rememberNavController()
    val startDestination = Destination_Nav.SONGS
    var selectedDestination by rememberSaveable { mutableIntStateOf(startDestination.ordinal) }

    Scaffold(modifier = modifier) { contentPadding ->
        NavigationRail(modifier = Modifier.padding(contentPadding)) {
            Destination_Nav.entries.forEachIndexed { index, destination ->
                NavigationRailItem(
                    selected = selectedDestination == index,
                    onClick = {
                        navController.navigate(route = destination.route)
                        selectedDestination = index
                    },
                    icon = {
                        Icon(
                            destination.icon,
                            contentDescription = destination.contentDescription
                        )
                    },
                    label = { Text(destination.label) }
                )
            }
        }
        AppNavHost(navController, startDestination)
    }
}

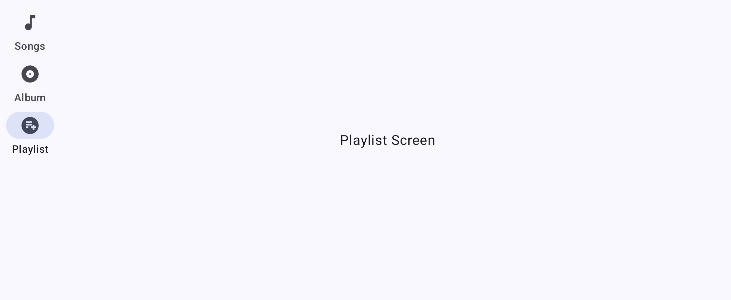

3.效果
