参考博客：rk3568-OTG模式切换_rk3568 打开usb共享网络功能-优快云博客

原来的设计有缺陷，没有保存效果，每次开机重新恢复

1.添加环境变量persist.sys.usb=1

diff --git a/device/rockchip/rk356x/rk3568_r/rk3568_r.mk b/device/rockchip/rk356x/rk3568_r/rk3568_r.mk
index 0fad1e23d8..4edb005f87 100644
--- a/device/rockchip/rk356x/rk3568_r/rk3568_r.mk
+++ b/device/rockchip/rk356x/rk3568_r/rk3568_r.mk
@@ -45,3 +45,4 @@ PRODUCT_PROPERTY_OVERRIDES += persist.wifi.sleep.delay.ms=0
 PRODUCT_PROPERTY_OVERRIDES += persist.bt.power.down=true
 PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.primary=DSI
 PRODUCT_PROPERTY_OVERRIDES += vendor.hwc.device.extend=eDP,LVDS
+PRODUCT_PROPERTY_OVERRIDES += persist.sys.usb=1

可以进系统后通过getprop看到值

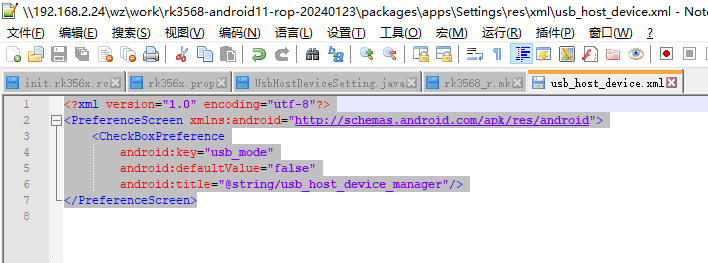

2.修改

<?xml version="1.0" encoding="utf-8"?>
<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
    <CheckBoxPreference
        android:key="usb_mode"
		android:defaultValue="false"
        android:title="@string/usb_host_device_manager"/>
</PreferenceScreen>

diff --git a/packages/apps/Settings/res/xml/usb_host_device.xml b/packages/apps/Settings/res/xml/usb_host_device.xml
index 23e78005f9..11fbaddcd9 100755
--- a/packages/apps/Settings/res/xml/usb_host_device.xml
+++ b/packages/apps/Settings/res/xml/usb_host_device.xml
@@ -1,9 +1,7 @@
 <?xml version="1.0" encoding="utf-8"?>
 <PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
-    <ListPreference
-        android:entries="@array/usb_function_location"
-        android:entryValues="@array/usb_function_location_values"
+    <CheckBoxPreference
         android:key="usb_mode"
-        android:persistent="true"
+               android:defaultValue="false"
         android:title="@string/usb_host_device_manager"/>

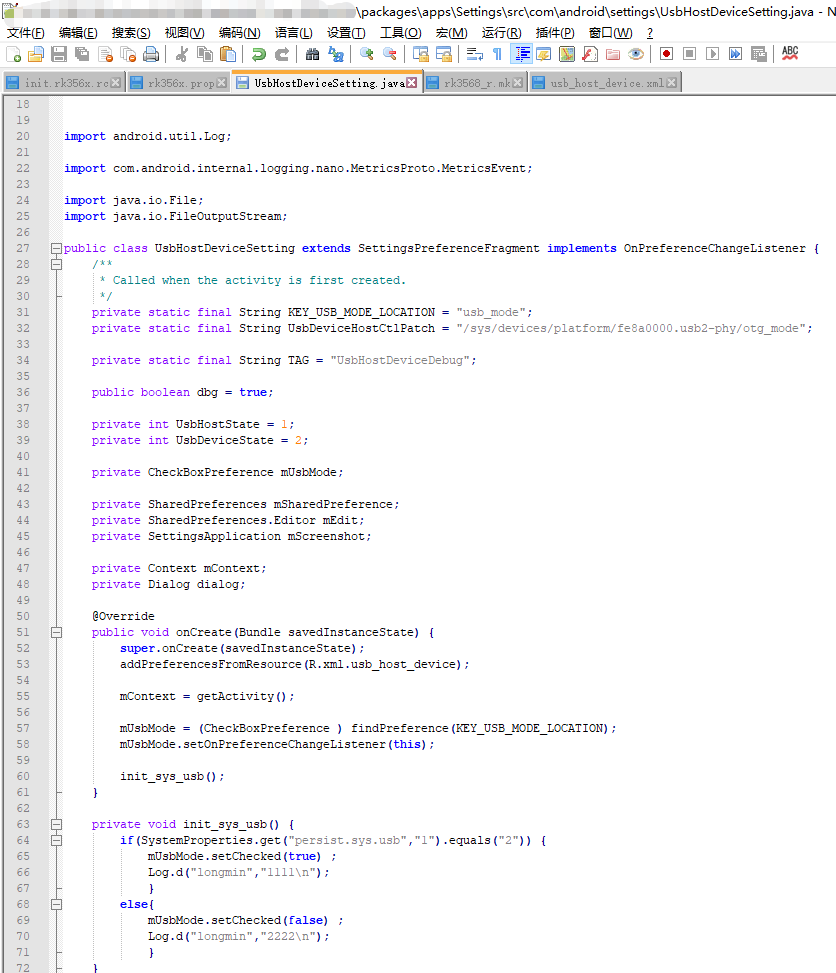

3.修改

package com.android.settings;

import android.app.Dialog;
import android.content.Context;
import android.content.SharedPreferences;
import android.os.Bundle;
import androidx.preference.SwitchPreference;
import androidx.preference.ListPreference;
import androidx.preference.Preference;
import androidx.preference.PreferenceScreen;
import androidx.preference.Preference.OnPreferenceChangeListener;
import android.provider.Settings;
import android.content.res.Resources;
import android.os.SystemProperties;
import androidx.preference.CheckBoxPreference;
import java.io.FileNotFoundException;
import java.io.IOException;


import android.util.Log;

import com.android.internal.logging.nano.MetricsProto.MetricsEvent;

import java.io.File;
import java.io.FileOutputStream;

public class UsbHostDeviceSetting extends SettingsPreferenceFragment implements OnPreferenceChangeListener {
    /**
     * Called when the activity is first created.
     */
    private static final String KEY_USB_MODE_LOCATION = "usb_mode";
    private static final String UsbDeviceHostCtlPatch = "/sys/devices/platform/fe8a0000.usb2-phy/otg_mode";

    private static final String TAG = "UsbHostDeviceDebug";

    public boolean dbg = true;

    private int UsbHostState = 1;
    private int UsbDeviceState = 2;

    private CheckBoxPreference mUsbMode;

    private SharedPreferences mSharedPreference;
    private SharedPreferences.Editor mEdit;
    private SettingsApplication mScreenshot;

    private Context mContext;
    private Dialog dialog;

    @Override
    public void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        addPreferencesFromResource(R.xml.usb_host_device);

        mContext = getActivity();

        mUsbMode = (CheckBoxPreference ) findPreference(KEY_USB_MODE_LOCATION);
        mUsbMode.setOnPreferenceChangeListener(this);

		init_sys_usb();
    }

	private void init_sys_usb() {
		if(SystemProperties.get("persist.sys.usb","1").equals("2")) {
			mUsbMode.setChecked(true) ;
			Log.d("longmin","1111\n");
			}
		else{
			mUsbMode.setChecked(false) ;
			Log.d("longmin","2222\n");
			}
	}


       private static void delayMs(int ms){

		exe_normal_cmd("sync");
					 try
			{
				Thread.sleep(ms);
			}
			catch (InterruptedException e)
			{
				e.printStackTrace();
			}


      	}

    @Override
    public boolean onPreferenceChange(Preference preference, Object newValue) {
        return true;
    }

    @Override
    public boolean onPreferenceTreeClick(Preference preference) {
        // TODO Auto-generated method stub
             // TODO Auto-generated method stub
        if(preference==mUsbMode){

		 boolean show = mUsbMode.isChecked();

		 Log.d("liz","show====="+show);
		 if(!show) { // host
			SystemProperties.set("persist.sys.usb","1");
			set_usb( UsbDeviceHostCtlPatch,"1");
		 	}
		 else{
		 	//device
			SystemProperties.set("persist.sys.usb","2");
			set_usb( UsbDeviceHostCtlPatch,"2");
		 	}
		 exe_normal_cmd("sync");
		 try
				{
					Thread.sleep(250);
				}
				catch (InterruptedException e)
				{
					e.printStackTrace();
				}
		}
        return super.onPreferenceTreeClick(preference);
    }


    public  void set_usb(String proc,String val){

				try {
				FileOutputStream fops = new FileOutputStream(proc);
				fops.write(val.getBytes());
				fops.flush();
				fops.close();

				} catch (FileNotFoundException e) {
					Log.d("err", "found error");
				} catch (IOException e) {
						Log.d("err", "IO error");
			}

			}


	private static  void exe_normal_cmd(String cmd){

			try {
					Runtime rt = Runtime.getRuntime();
					Process proc = rt.exec(cmd);
					   }
					catch (Exception e) {

							   e.printStackTrace();
					}
			}

    @Override
    public int getMetricsCategory() {
        // TODO Auto-generated method stub
        return 5;
    }
}

4.修改/packages/apps/Settings/AndroidManifest.xml

index 479d4bb17f..9f0c939b58 100644
--- a/packages/apps/Settings/AndroidManifest.xml
+++ b/packages/apps/Settings/AndroidManifest.xml
@@ -3442,7 +3442,14 @@
             android:icon="@drawable/ic_settings_usb"
             android:parentActivityName="Settings">

-            <intent-filter android:priority="-2">
+            <intent-filter>
+                <action android:name="android.intent.action.MAIN" />
+                               <action android:name="android.intent.action.BOOT_COMPLETED"/>
+                <category android:name="android.intent.category.DEFAULT" />
+                <category android:name="android.intent.category.VOICE_LAUNCH" />
+                <category android:name="com.android.settings.SHORTCUT" />
+            </intent-filter>
+            <intent-filter android:priority="6">
                 <action android:name="com.android.settings.action.SETTINGS" />
             </intent-filter>

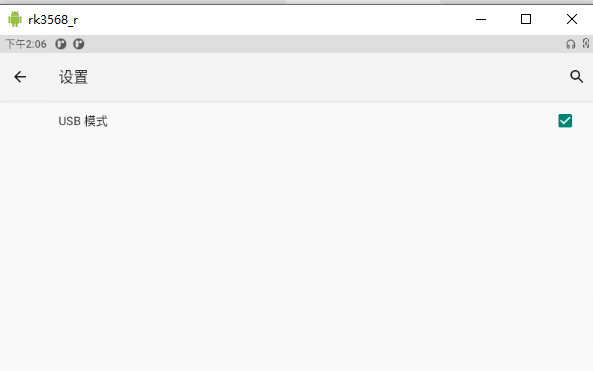

最后效果如图

=================================================================

由于重启不会切换模式，所以加入了一个开机广播

修改AndroidManifest.xml

index 479d4bb17f..9f0c939b58 100644
--- a/packages/apps/Settings/AndroidManifest.xml
+++ b/packages/apps/Settings/AndroidManifest.xml
d.settings.category"
@@ -3508,6 +3515,15 @@
             </intent-filter>/>
         </receiver>

+        <receiver
+            android:name="com.android.settings.display.BootReceiver"
+            android:enabled="true"
+            android:exported="true">
+            <intent-filter>
+                <action android:name="android.intent.action.BOOT_COMPLETED"/>
+            </intent-filter>/>
+        </receiver>
+

添加BootReceiver.java

/*
 * Copyright (C) 2024 The Android Open Source Project
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.android.settings.display;

import android.content.BroadcastReceiver;
import android.content.Context;
import android.content.Intent;
import android.content.pm.PackageManager;
import android.os.SystemProperties;
import android.util.Log;
import android.os.Build;
import java.io.IOException;
import java.io.FileNotFoundException;
import java.io.FileOutputStream;

/**
 * RK3568 Android 11 开机广播接收器
 */


public class BootReceiver extends BroadcastReceiver {

    // 声明需要监听的广播 Action
    private static final String ACTION_BOOT_COMPLETED = "android.intent.action.BOOT_COMPLETED";
	private static final String UsbDeviceHostCtlPatch = "/sys/devices/platform/fe8a0000.usb2-phy/otg_mode";

    @Override
    public void onReceive(Context context, Intent intent) {
        if (intent == null) return;

        String action = intent.getAction();
        // 校验是否是目标广播（适配 RK 平台可能发送的多种开机相关广播）
        if (ACTION_BOOT_COMPLETED.equals(action)) {
			//todo
			Log.i("BootReceiver","接收到开机广播");
			init_sys_usb();
        }
    }

	private void init_sys_usb() {
		if(SystemProperties.get("persist.sys.usb","1").equals("2")) {
			Log.d("longmin","2222111\n");
			set_usb( UsbDeviceHostCtlPatch,"2");
			}
		else{
			Log.d("longmin","1111222\n");
			set_usb( UsbDeviceHostCtlPatch,"1");
			}
	}

    public  void set_usb(String proc,String val){

			try {
			FileOutputStream fops = new FileOutputStream(proc);
			fops.write(val.getBytes());
			fops.flush();
			fops.close();

			} catch (FileNotFoundException e) {
				Log.d("err", "found error");
			} catch (IOException e) {
					Log.d("err", "IO error");
		}

	}
}

然后开机后可以看到logcat打印接收到开机广播

======================================================================

由于不喜欢那个控件，换了一个控件

commit f86986dac69c026c4fc2d48ea9fc6f29f942c519 (HEAD -> master)
Author: longmin <longmin@xxxxx.cn>
Date:   Mon Nov 24 15:15:44 2025 +0800

    update adb mode for SwitchPreference

diff --git a/packages/apps/Settings/res/values-zh-rCN/strings.xml b/packages/apps/Settings/res/values-zh-rCN/strings.xml
index ad9f061234..d3f6750857 100644
--- a/packages/apps/Settings/res/values-zh-rCN/strings.xml
+++ b/packages/apps/Settings/res/values-zh-rCN/strings.xml
@@ -4967,6 +4967,10 @@

 <!-- add by longmin for config usb host or device mode -->
     <string name="usb_host_device_manager">USB 模式</string>
+    <string name="usb_otg_mode_switch_summary">打开：Host模式；关闭：Device模式</string>
+ <!-- end, add by haha -->
+
+ </resources>
 <!-- end -->

     <!--screen shot-->
diff --git a/packages/apps/Settings/res/values/strings.xml b/packages/apps/Settings/res/values/strings.xml
index 954857f2be..1f23422fde 100644
--- a/packages/apps/Settings/res/values/strings.xml
+++ b/packages/apps/Settings/res/values/strings.xml
@@ -12244,6 +12244,7 @@
     <string name="later">s later capture</string>
 <!-- add by longmin for config usb host or device mode -->
     <string name="usb_host_device_manager">Usb Mode</string>
+    <string name="usb_otg_mode_switch_summary">Open：Host mode；Close：Device mode</string>
 <!-- end -->

     <!--hdmi settings-->
diff --git a/packages/apps/Settings/res/xml/usb_host_device.xml b/packages/apps/Settings/res/xml/usb_host_device.xml
index 11fbaddcd9..f99a05ab60 100755
--- a/packages/apps/Settings/res/xml/usb_host_device.xml
+++ b/packages/apps/Settings/res/xml/usb_host_device.xml
@@ -1,7 +1,8 @@
 <?xml version="1.0" encoding="utf-8"?>
 <PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
-    <CheckBoxPreference
+    <SwitchPreference
         android:key="usb_mode"
-               android:defaultValue="false"
+        android:defaultValue="false"
+        android:summary="@string/usb_otg_mode_switch_summary"
         android:title="@string/usb_host_device_manager"/>
 </PreferenceScreen>
diff --git a/packages/apps/Settings/src/com/android/settings/UsbHostDeviceSetting.java b/packages/apps/Settings/src/com/android/settings/UsbHostDeviceSetting.java
index 4a03c0abae..da992bf45e 100755
--- a/packages/apps/Settings/src/com/android/settings/UsbHostDeviceSetting.java
+++ b/packages/apps/Settings/src/com/android/settings/UsbHostDeviceSetting.java
@@ -38,7 +38,7 @@ public class UsbHostDeviceSetting extends SettingsPreferenceFragment implements
     private int UsbHostState = 1;
     private int UsbDeviceState = 2;

-    private CheckBoxPreference mUsbMode;
+    private SwitchPreference mUsbMode;

     private SharedPreferences mSharedPreference;
     private SharedPreferences.Editor mEdit;
@@ -54,7 +54,7 @@ public class UsbHostDeviceSetting extends SettingsPreferenceFragment implements

         mContext = getActivity();

-        mUsbMode = (CheckBoxPreference ) findPreference(KEY_USB_MODE_LOCATION);
+        mUsbMode = (SwitchPreference ) findPreference(KEY_USB_MODE_LOCATION);
         mUsbMode.setOnPreferenceChangeListener(this);

                init_sys_usb();
