代理模式

本文介绍了代理模式的概念及其在软件设计中的应用。代理模式是一种结构型设计模式,通过在客户端与目标对象间引入代理对象来实现对目标对象的访问控制。本文还提供了一个具体的Java代码示例,展示了如何使用代理模式来延迟加载图片。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

在代理模式(ProxyPattern)中,一个类代表另一个类的功能。这种类型的设计模式属于结构型模式。

在代理模式中,我们创建具有现有对象的对象,以便向外界提供功能接口。



优点:

1、职责清晰。

2、高扩展性。

3、智能化。

缺点:

1、由于在客户端和真实主题之间增加了代理对象,因此有些类型的代理模式可能会造成请求的处理速度变慢。2、实现代理模式需要额外的工作,有些代理模式的实现非常复杂。

应用:

要访问的对象在远程的机器上。在面向对象系统中,有些对象由于某些原因,直接访问会给使用者或者系统结构带来很多麻烦,我们可以在访问此对象时加上一个对此对象的访问层。

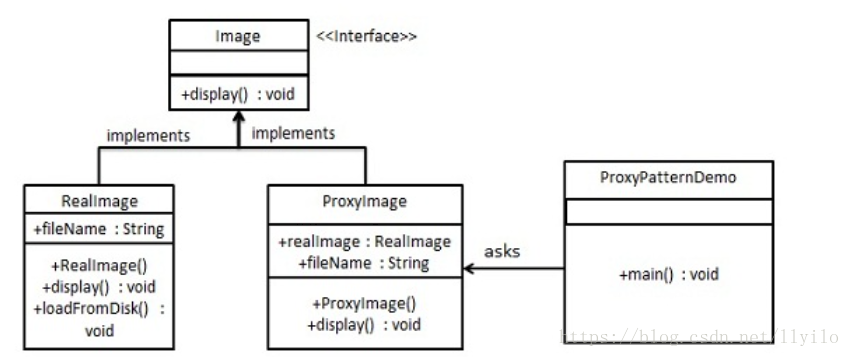

实现代码

public interface Image {
	void display();
}

public class RealImage implements Image {

	private String fileName;

	public RealImage(String fileName) {
		this.fileName = fileName;
		loadFromDisk(fileName);
	}

	@Override
	public void display() {
		System.out.println("Displaying " + fileName);

	}

	private void loadFromDisk(String fileName) {
		System.out.println("Loading " + fileName);
	}
}

public class ProxyImage implements Image {

	private RealImage realImage;
	private String fileName;

	public ProxyImage(String fileName) {
		this.fileName = fileName;
	}

	@Override
	public void display() {
		if (realImage == null) {
			realImage = new RealImage(fileName);
		}
		realImage.display();
	}
}

public class Test {

	public static void main(String[] args) {
		Image image = new ProxyImage("test_10mb.jpg");

		// 图像将从磁盘加载
		image.display();
		System.out.println("");
		// 图像将无法从磁盘加载
		image.display();
	}
}
