这里简单演示springboot vue项目后端的分模块是怎么分的

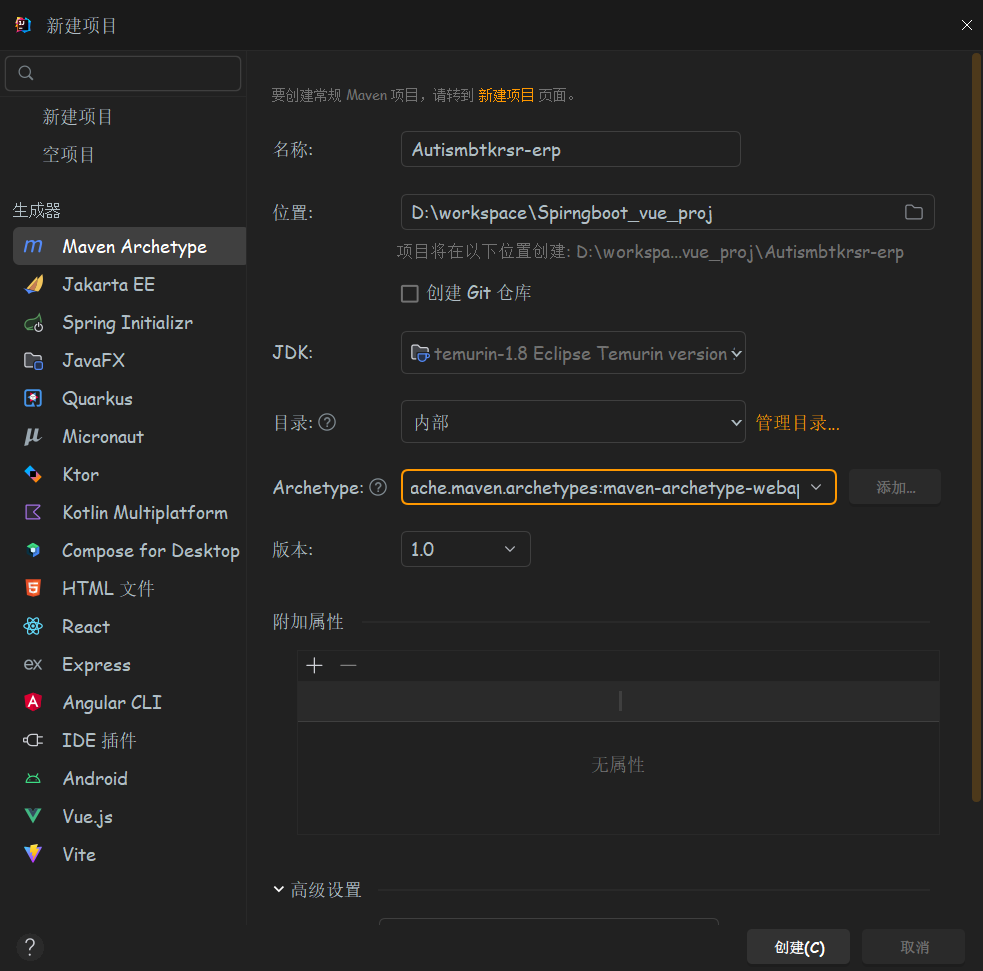

创建父工程

‘

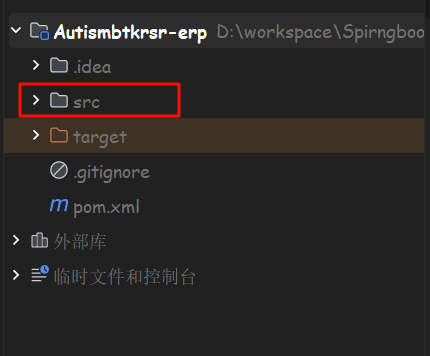

删除无用目录文件

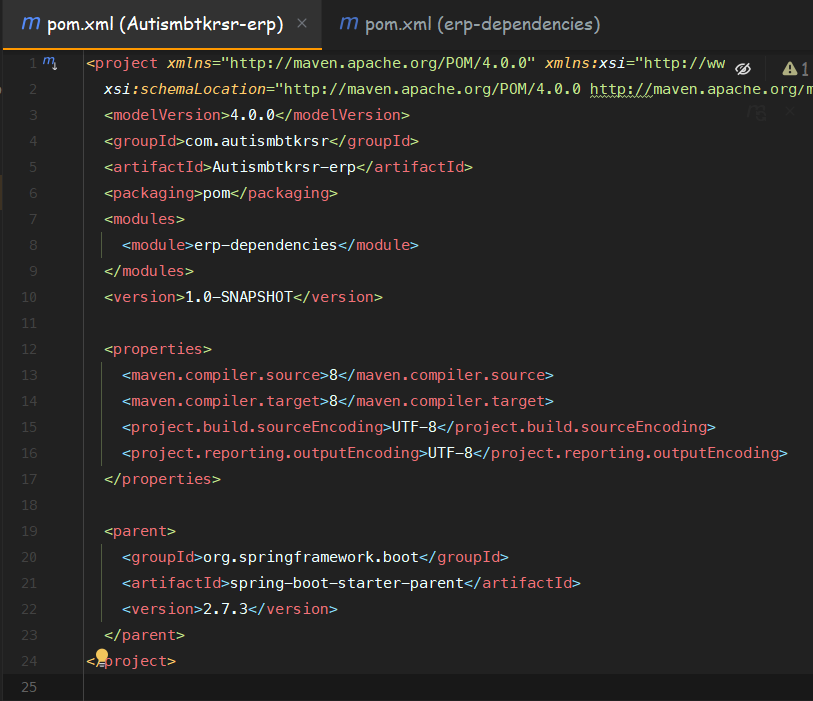

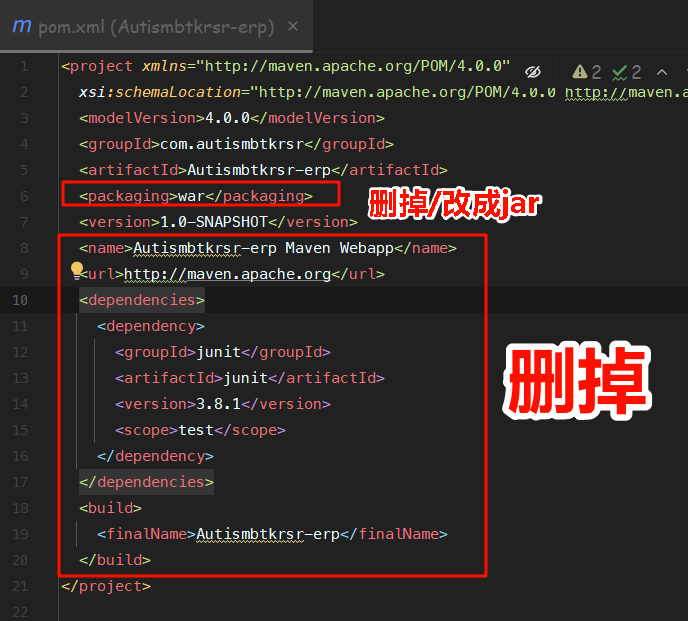

修改父pom

添加如下

  <properties>
    <maven.compiler.source>8</maven.compiler.source>
    <maven.compiler.target>8</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
  </properties>

  <parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.7.3</version>
  </parent>

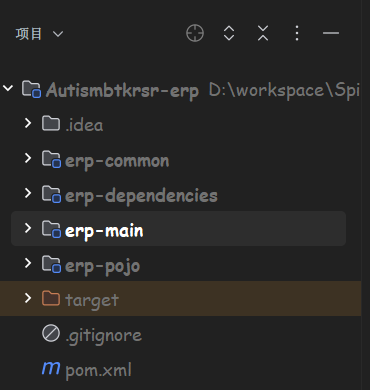

创建子模块

创建子模块的具体用途还要看自己情况，不用完全跟我一样

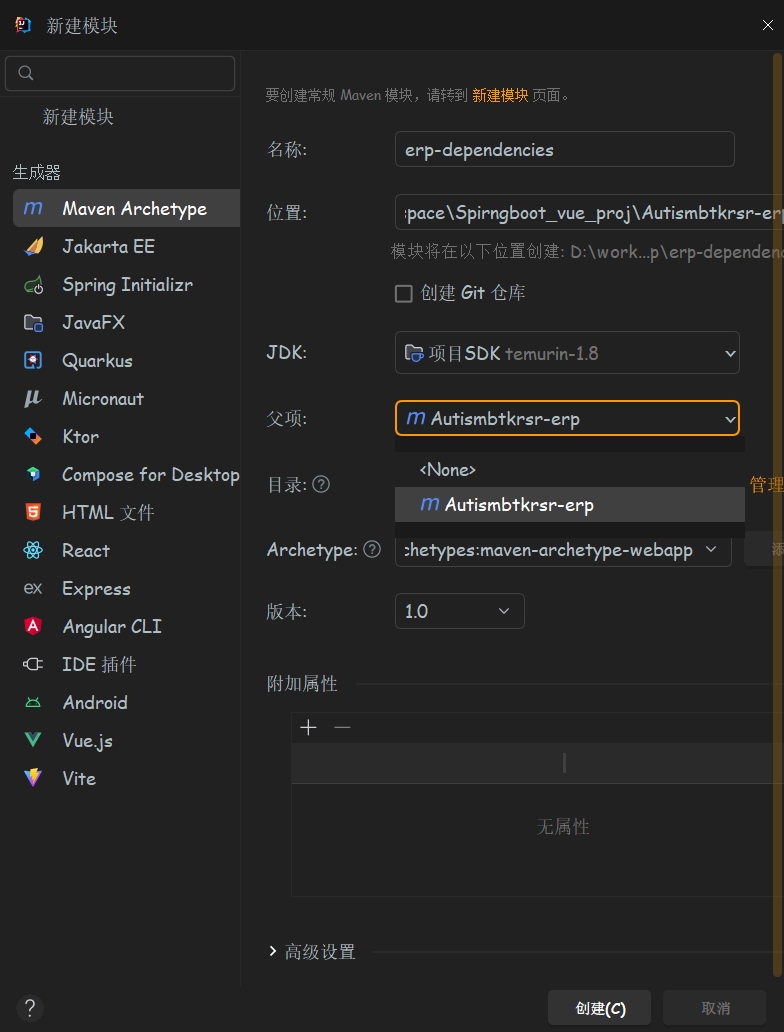

依赖模块

仅用于定义 Maven 项目的结构和依赖关系。
不包含任何 Java 代码，也不产生任何可执行文件。
主要用于聚合其他模块，管理依赖和配置。
适用于作为其他模块的父模块或者聚合模块。

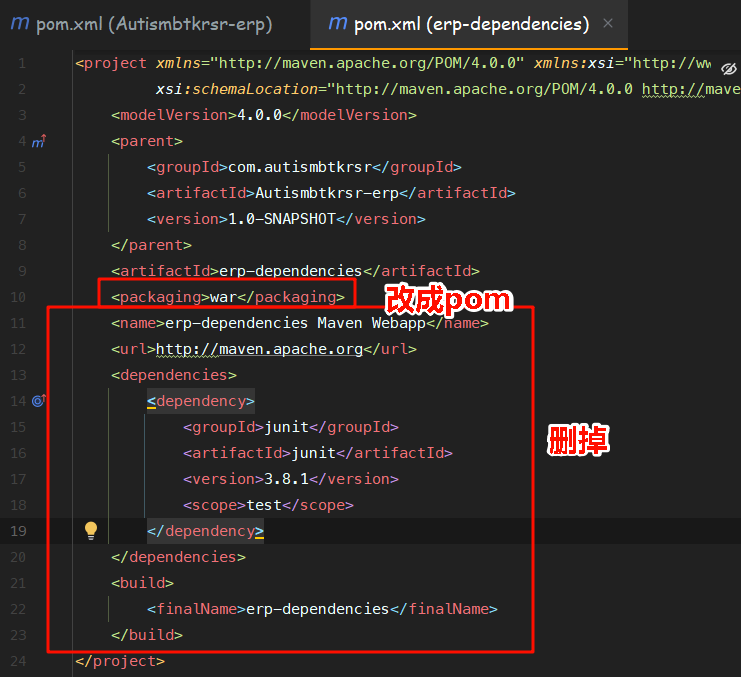

这个pom文件的关键在于<dependencyManager>
dependencyManagement只是声明依赖，并不实现引入，因此子项目需要显示的声明需要用的依赖。

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.autismbtkrsr</groupId>
        <artifactId>Autismbtkrsr-erp</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>erp-dependencies</artifactId>
    <packaging>pom</packaging>

    <properties>
        <spring-boot>2.7.3</spring-boot>
        <mysql-connector-java>5.7.44</mysql-connector-java>
        <mybatis.spring>2.2.0</mybatis.spring>
        <lombok>1.18.20</lombok>
        <fastjson>1.2.76</fastjson>
        <commons.lang>2.6</commons.lang>
        <druid>1.2.1</druid>
        <pagehelper>1.3.0</pagehelper>
        <aliyun.sdk.oss>3.10.2</aliyun.sdk.oss>
        <knife4j>3.0.2</knife4j>
        <aspectj>1.9.4</aspectj>
        <jjwt>0.9.1</jjwt>
        <jaxb-api>2.3.1</jaxb-api>
        <poi>3.16</poi>
        <weixin-pay>0.4.8</weixin-pay>
        <jackson.databind>2.9.2</jackson.databind>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter</artifactId>
                <version>${spring-boot}</version>
            </dependency>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-web</artifactId>
                <version>${spring-boot}</version>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>${mysql-connector-java}</version>
            </dependency>
            <dependency>
                <groupId>org.mybatis.spring.boot</groupId>
                <artifactId>mybatis-spring-boot-starter</artifactId>
                <version>${mybatis.spring}</version>
            </dependency>
            <dependency>
                <groupId>org.projectlombok</groupId>
                <artifactId>lombok</artifactId>
                <version>${lombok}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>fastjson</artifactId>
                <version>${fastjson}</version>
            </dependency>
            <dependency>
                <groupId>commons-lang</groupId>
                <artifactId>commons-lang</artifactId>
                <version>${commons.lang}</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid-spring-boot-starter</artifactId>
                <version>${druid}</version>
            </dependency>
            <dependency>
                <groupId>com.github.pagehelper</groupId>
                <artifactId>pagehelper-spring-boot-starter</artifactId>
                <version>${pagehelper}</version>
            </dependency>
            <dependency>
                <groupId>com.github.xiaoymin</groupId>
                <artifactId>knife4j-spring-boot-starter</artifactId>
                <version>${knife4j}</version>
            </dependency>
            <dependency>
                <groupId>org.aspectj</groupId>
                <artifactId>aspectjrt</artifactId>
                <version>${aspectj}</version>
            </dependency>
            <dependency>
                <groupId>org.aspectj</groupId>
                <artifactId>aspectjweaver</artifactId>
                <version>${aspectj}</version>
            </dependency>
            <dependency>
                <groupId>io.jsonwebtoken</groupId>
                <artifactId>jjwt</artifactId>
                <version>${jjwt}</version>
            </dependency>
            <dependency>
                <groupId>com.aliyun.oss</groupId>
                <artifactId>aliyun-sdk-oss</artifactId>
                <version>${aliyun.sdk.oss}</version>
            </dependency>
            <dependency>
                <groupId>javax.xml.bind</groupId>
                <artifactId>jaxb-api</artifactId>
                <version>${jaxb-api}</version>
            </dependency>
            <!-- poi -->
            <dependency>
                <groupId>org.apache.poi</groupId>
                <artifactId>poi</artifactId>
                <version>${poi}</version>
            </dependency>
            <dependency>
                <groupId>org.apache.poi</groupId>
                <artifactId>poi-ooxml</artifactId>
                <version>${poi}</version>
            </dependency>
            <!--微信支付-->
            <dependency>
                <groupId>com.github.wechatpay-apiv3</groupId>
                <artifactId>wechatpay-apache-httpclient</artifactId>
                <version>${weixin-pay}</version>
            </dependency>
            <dependency>
                <groupId>com.fasterxml.jackson.core</groupId>
                <artifactId>jackson-databind</artifactId>
                <version>${jackson.databind}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

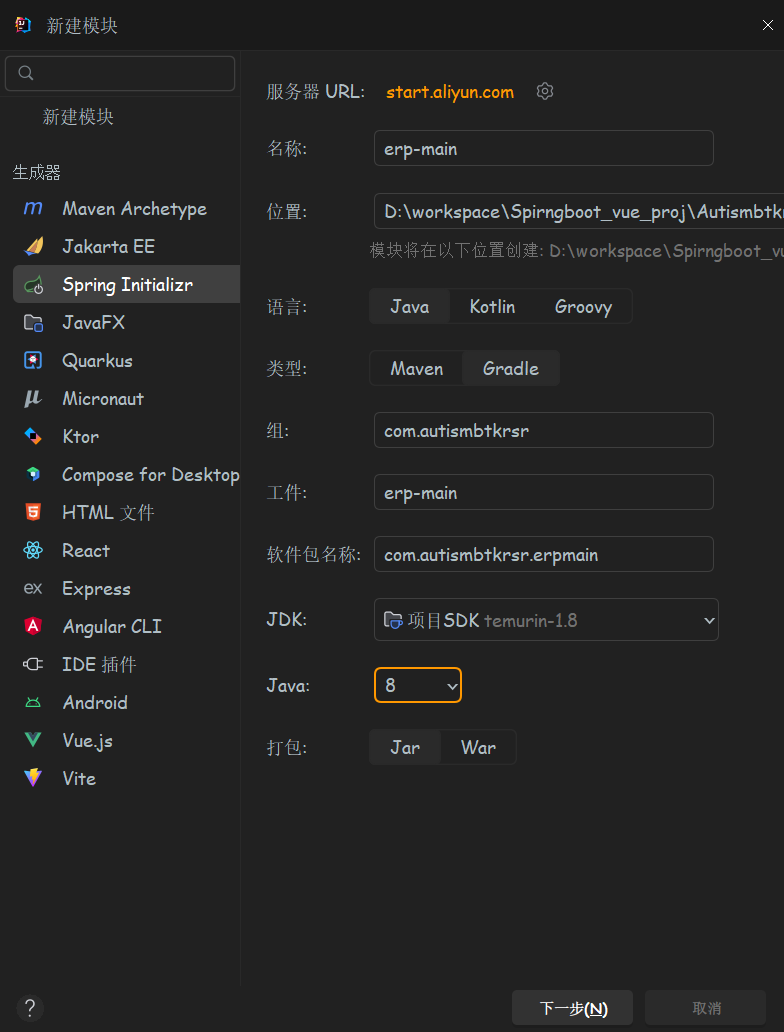

主模块

项目启动入口的模块

图中要选Maven的，不是Gradle

继承依赖标签，并引入必要依赖

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.autismbtkrsr</groupId>
        <artifactId>Autismbtkrsr-erp</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>erp-main</artifactId>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.autismbtkrsr</groupId>
                <artifactId>erp-dependencies</artifactId>
                <version>1.0-SNAPSHOT</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.autismbtkrsr.ErpMainApplication</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

写个Controller测试

@RestController
@RequestMapping("/test")
public class TestController {
    @GetMapping
    public String test(){
        return "hello world";
    }
}

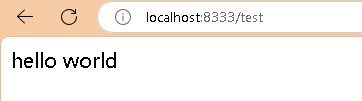

测试

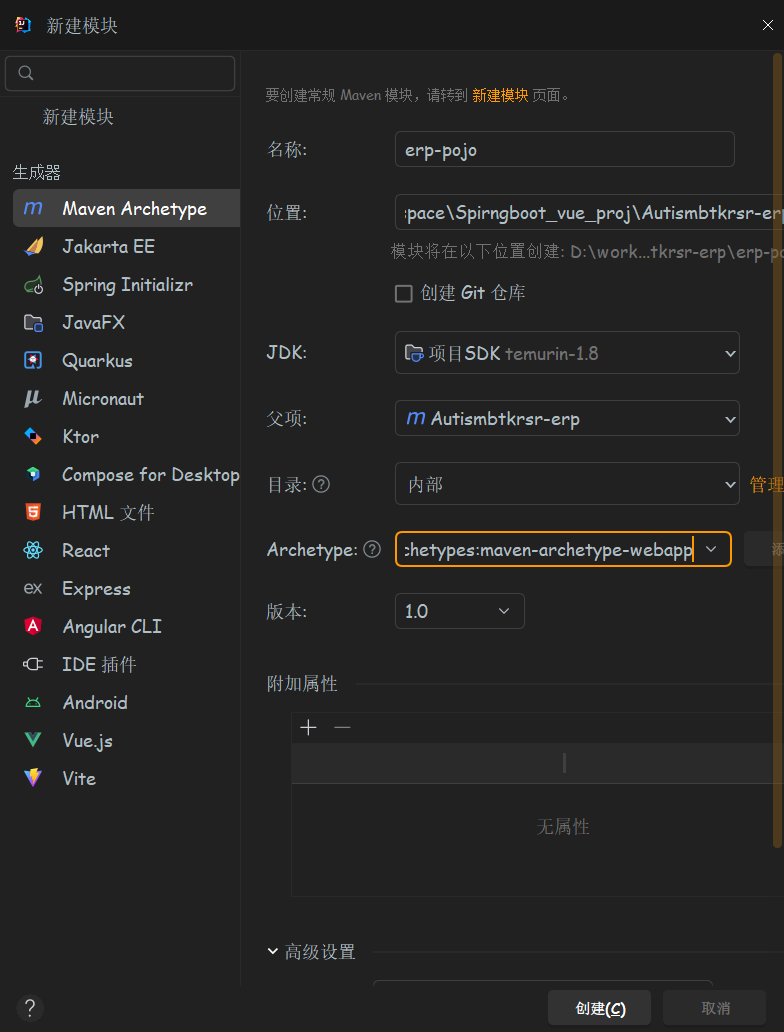

实体类模块

这些模块都是跟依赖模块一样的方式创建，根据自己的需要

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <parent>
    <groupId>com.autismbtkrsr</groupId>
    <artifactId>Autismbtkrsr-erp</artifactId>
    <version>1.0-SNAPSHOT</version>
  </parent>
  <artifactId>erp-pojo</artifactId>
  <packaging>jar</packaging>
  <dependencyManagement>
    <dependencies>
      <dependency>
        <groupId>com.autismbtkrsr</groupId>
        <artifactId>erp-dependencies</artifactId>
        <version>1.0-SNAPSHOT</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <dependencies>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
    </dependency>
    <dependency>
      <groupId>com.github.xiaoymin</groupId>
      <artifactId>knife4j-spring-boot-starter</artifactId>
    </dependency>
  </dependencies>
</project>

常用类模块

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.autismbtkrsr</groupId>
        <artifactId>Autismbtkrsr-erp</artifactId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <artifactId>erp-common</artifactId>
    <packaging>jar</packaging>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.autismbtkrsr</groupId>
                <artifactId>erp-dependencies</artifactId>
                <version>1.0-SNAPSHOT</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-json</artifactId>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
        </dependency>
        <!--支持配置属性类，yml文件中可以提示配置项-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>com.aliyun.oss</groupId>
            <artifactId>aliyun-sdk-oss</artifactId>
        </dependency>
        <dependency>
            <groupId>javax.xml.bind</groupId>
            <artifactId>jaxb-api</artifactId>
        </dependency>
        <!--微信支付-->
        <dependency>
            <groupId>com.github.wechatpay-apiv3</groupId>
            <artifactId>wechatpay-apache-httpclient</artifactId>
        </dependency>
    </dependencies>
</project>
