CVX实现逻辑回归,并测试鸢尾花分类

CVX是凸优化的一个工具库,本文利用CVX实现一个逻辑回归,用作CVX入门.其中CVX安装可以参考CVX安装,另外强烈推荐去Github获取所有源代码.

鸢尾花数据集（Iris）是机器学习中一个常见的数据集，其用于鸢尾花卉分类，数据集共包含150个样本，共具有3种花卉类别，分别为山鸢尾（Iris Setosa）、杂色鸢尾（Iris Versicolour）以及弗吉尼亚鸢尾（Iris Virginica），每种鸢尾花有50个样本。每个样本包括花萼长度（sepal length）、花萼宽度（sepal width）、花瓣长度（petal length）、花瓣宽度（petal width）4种特征，每种特征都是正实数，单位为厘米，原始数据如图1-1所示。

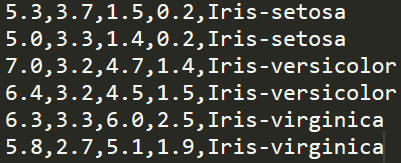

图1-1 Iris原始数据示例

数据预处理

Iris原始数据包含逗号和字符串，不能直接处理，需要进行数据预处理。处理程序如下，处理后特征矩阵变为样本数*特征数的矩阵，三类鸢尾花变为1、2、3，存于长度样本数的向量中，便于之后处理。

% raw data in bezdekIris.data

% read raw data, separate by ','
[sepal_length, sepal_width, petal_length, petal_width, class] = textread('bezdekIris.data', '%f%f%f%f%s', 'delimiter', ',');

% put features into matrix
attributes = [sepal_length sepal_width petal_length petal_width];

% replace class characters with numbers
labels = zeros(150, 1);
labels(strcmp(class, 'Iris-setosa')) = 1;
labels(strcmp(class, 'Iris-versicolor')) = 2;
labels(strcmp(class, 'Iris-virginica')) = 3;

clear sepal_length
clear sepal_width
clear petal_length
clear petal_width
clear class

之后将所有150个样本随机分为100个训练集和50个测试集，其中规定了随机数种子，保证每次分类效果一致，可完全复现，程序如下。

% test set number
num_test = size(labels, 1)/3;

% random sort
rand('seed', 0);
R = randperm(size(labels, 1));

% test set
attributes_test = attributes(R(1:num_test), :);
labels_test = labels(R(1:num_test), :);

% train set
R(1:num_test) = [];
attributes_train = attributes(R, :);
labels_train = labels(R, :);

clear num_test
clear R

将训练集的三种样本可视化如图1-2，以sepal length和sepal width为横纵坐标，程序如下所示，可见这两种特征对样本可区分性不强，因为杂色鸢尾和弗吉尼亚鸢尾完全混合在一起。

Iris_Setosa = (labels_train == 1);
Iris_Versicolor = (labels_train == 2);
Iris_Virginica = (labels_train == 3);

scatter(attributes_train(Iris_Setosa, 1), attributes_train(Iris_Setosa, 2), 'red');
hold on
scatter(attributes_train(Iris_Versicolor, 1),attributes_train(Iris_Versicolor, 2), 'g', '+');
hold on
scatter(attributes_train(Iris_Virginica, 1),attributes_train(Iris_Virginica, 2), 'b', '*');
legend('Iris Setosa', 'Iris Versicolor', 'Iris Virginica', 'location', 'northeastoutside')
xlabel('sepal length')
ylabel('sepal width')

clear Iris_Setosa
clear Iris_Versicolor
clear Iris_Virginica

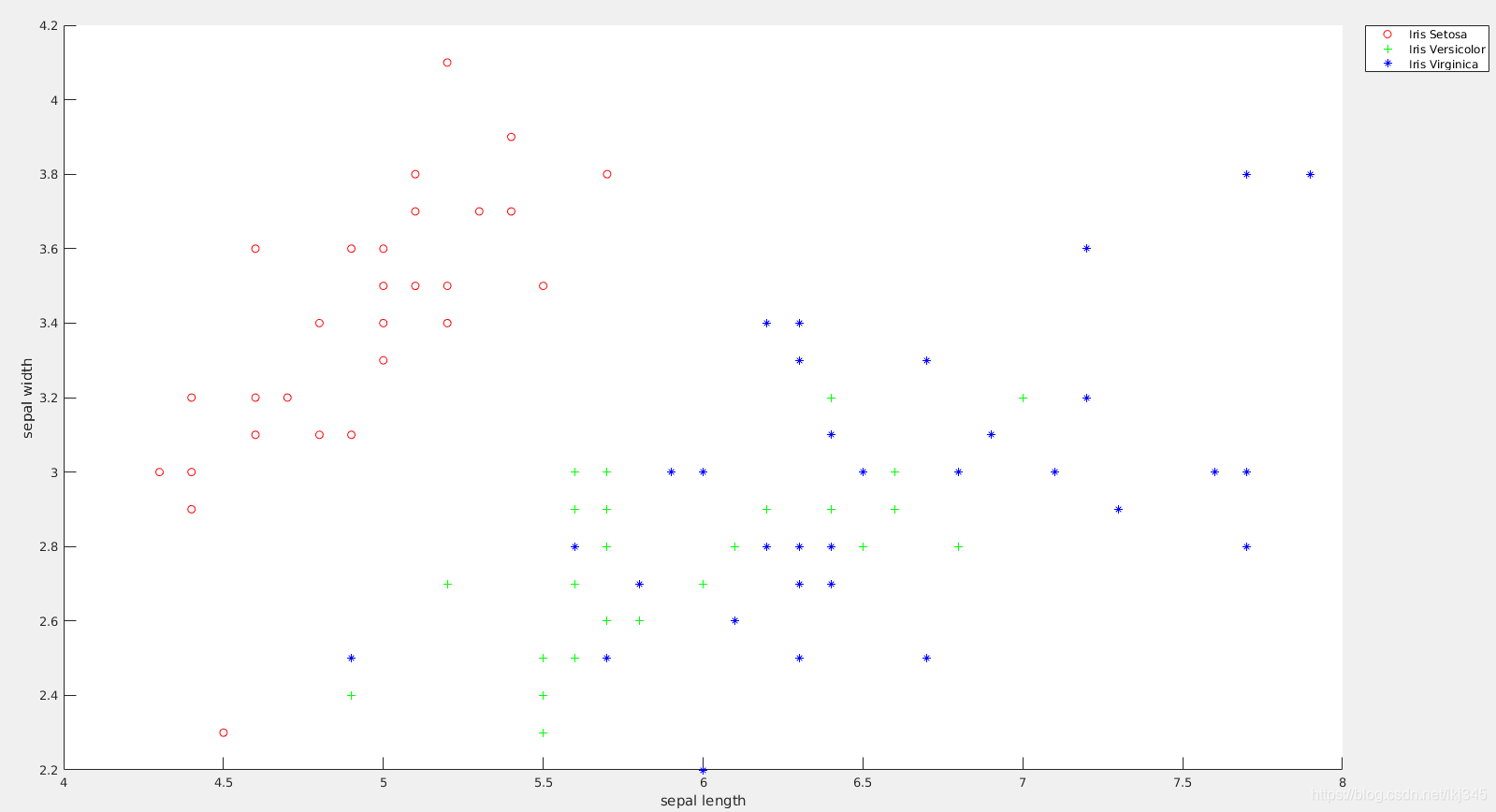

图1-2 训练集可视化

PCA降维

进一步对训练集进行PCA降维，选取最具代表性的2维特征，程序如下。先对训练集做减均值除方差操作，之后进行矩阵特征值分解，选取特征值占比大于95%的维度，经测试前两维特征即可达到96.331%，对测试集减去训练集的均值，除以训练集的方差，然后乘以训练集得到的系数矩阵，得到测试集特征。降维后的训练集和测试集2维特征可视化如图1-3，相比图1-2中特征更具区分性.

% pre-process
% mu: mean of each feature, sigma: std of each feature
[Z, mu, sigma] = zscore(attributes_train);

% PCA
[coeff, score, latent] = pca(Z);

% select top features according to threshold
latent = 100 * latent / sum(latent);
A = length(latent);
percent_threshold = 95;
percents = 0;
for n=1:A
    percents = percents + latent(n);
    if percents > percent_threshold
        break;
    end
end
coeff = coeff(:, 1:n);
score_train = score(:, 1:n);

% same for test set
num_test = size(labels_test, 1);

% (X - mu)/sigma
score_test = (attributes_test - repmat(mu, num_test, 1)) ./ repmat(sigma, num_test, 1);

% PCA features
score_test = score_test * coeff;

clear A
clear coeff
clear latent
clear mu
clear n
clear num_test
clear percent_threshold
clear percents
clear score
clear sigma
clear Z

% visualization
Iris_Setosa = (labels_train == 1);
Iris_Versicolor = (labels_train == 2);
Iris_Virginica = (labels_train == 3);

subplot(1, 2, 1)
scatter(score_train(Iris_Setosa, 1), score_train(Iris_Setosa, 2), 'red');
hold on
scatter(score_train(Iris_Versicolor, 1),score_train(Iris_Versicolor, 2), 'g', '+');
hold on
scatter(score_train(Iris_Virginica, 1),score_train(Iris_Virginica, 2), 'b', '*');
legend('Iris Setosa', 'Iris Versicolor', 'Iris Virginica', 'location', 'northeastoutside')
xlabel('train set')

Iris_Setosa = (labels_test == 1);
Iris_Versicolor = (labels_test == 2);
Iris_Virginica = (labels_test == 3);

subplot(1, 2, 2)
scatter(score_test(Iris_Setosa, 1), score_test(Iris_Setosa, 2), 'red');
hold on
scatter(score_test(Iris_Versicolor, 1),score_test(Iris_Versicolor, 2), 'g', '+');
hold on
scatter(score_test(Iris_Virginica, 1),score_test(Iris_Virginica, 2), 'b', '*');
legend('Iris Setosa', 'Iris Versicolor', 'Iris Virginica', 'location', 'northeastoutside')
xlabel('test set')

clear Iris_Setosa
clear Iris_Versicolor
clear Iris_Virginica

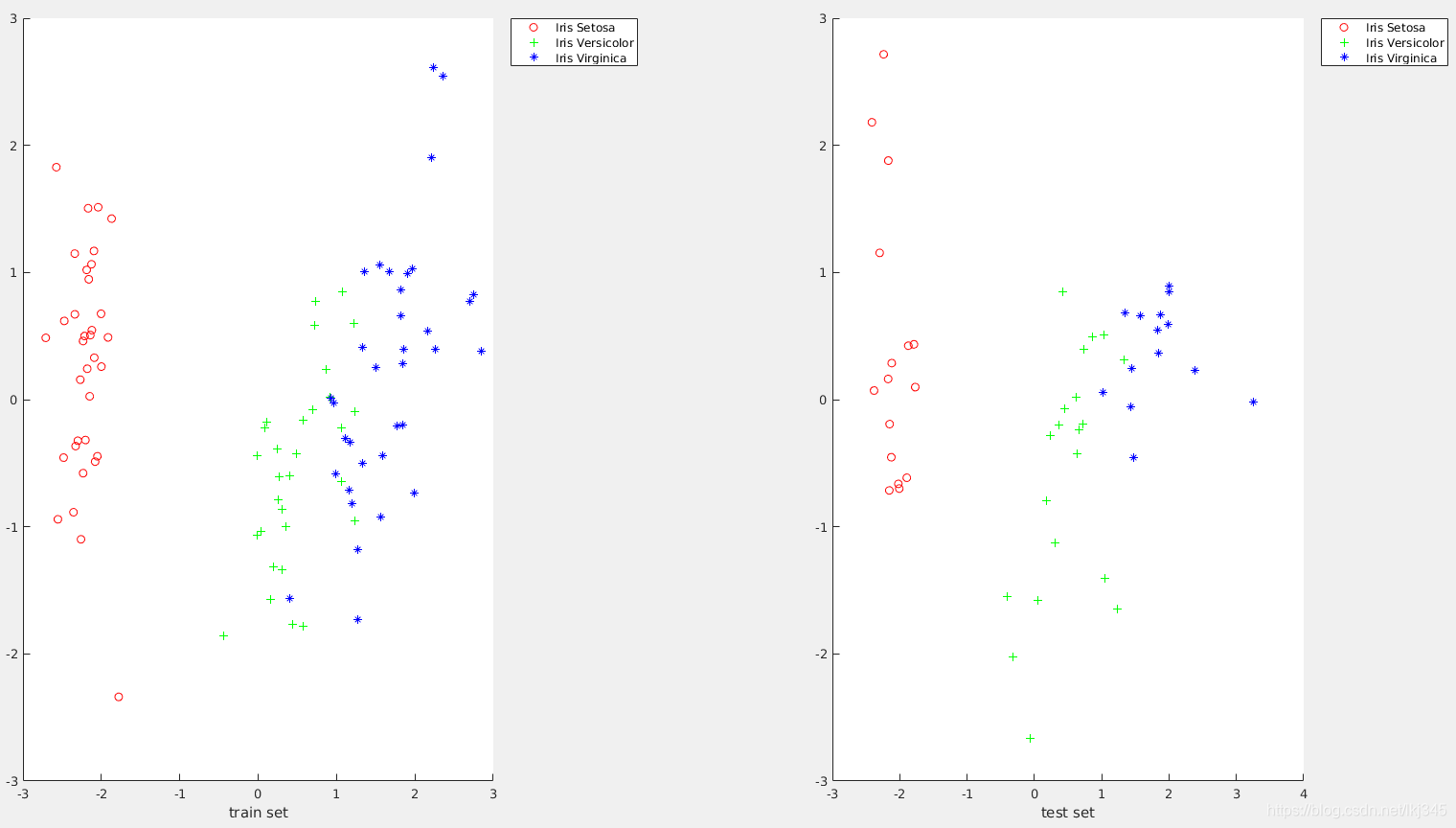

图1-3 PCA降维后可视化

优化目标

经过图1-3可以看出，三类鸢尾花可以通过线性分类面进行分类，本文通过逻辑回归进行分类。
设特征为$(x_1,x_2)$，由图中可以看出山鸢尾较其他两种鸢尾容易区分，可以直接根据特征$x_1=-1$进行区分，为了方便，本文仅讨论弗吉尼亚鸢尾的二分类问题，设山鸢尾和杂色鸢尾的类别$y=0$，弗吉尼亚鸢尾的类别$y=1$。此外可知Sigmoid函数为$g(x)=\frac{1}{1+e^{-x}}$，图像如图1-4，函数的值域为$(0,1)$，在$x=0$处值为0.5。

图1-4 Sigmoid函数

设参数为$w$和$b$,对以上问题来说,最终希望求得一条直线$w_1{x}_1+w_2{x}_2+b=0$分类弗吉尼亚鸢尾,也就是正类对于假设函数$h(x)=g(w^{T}x+b)$尽可能接近1,负类对于假设函数$h(x)=g(w^{T}x+b)$尽可能接近0.假设函数预测的结果为$\hat{h}$,似然函数为${\hat{h}}^y(1-\hat{h}{)}^{1-y}$,希望似然函数越大越好.取对数函数不影响其单调性,变为$y\log (\hat{h})+(1-y)\log (1-\hat{h})$,取反变为损失函数$L(\hat{h},y)-y\log (\hat{h})-(1-y)\log (1-\hat{h})$,对该损失函数求二阶导得到$\hat{h}(1-\hat{h})>0,\hat{h}\in (0,1)$,可证其是凸函数.

由于样本独立同分布,所以最终希望最小化训练中所有样本的损失,假设样本数为m,优化目标变为

$minimize-\frac{1}{m}{\sum }_{i=1}^m{y}^{(i)}\log (\widehat{h^{(i)}})+(1-y^{(i)})\log (1-\widehat{h^{(i)}})$

根据优化目标可以写出如下CVX程序，最终求得如图1-5的分类面。

% train set size
m = size(labels_train, 1);

% positive samples
y = (labels_train == 3);

cvx_begin
    variables w1
    variables w2
    variables b
    minimize(-1/m * sum(y .* log(sigmoid(w1*score_train(:, 1) + w2*score_train(:, 2) + b)) + ...
        + (1 - y) .* (-w1*score_train(:, 1) - w2*score_train(:, 2) - b) - ...
        (1 - y) .* log(1 + exp(-w1*score_train(:, 1) - w2*score_train(:, 2) - b))))
cvx_end

% visualization
Iris_Setosa = (labels_train == 1);
Iris_Versicolor = (labels_train == 2);
Iris_Virginica = (labels_train == 3);

subplot(1, 2, 1)
scatter(score_train(Iris_Setosa, 1), score_train(Iris_Setosa, 2), 'red');
hold on
scatter(score_train(Iris_Versicolor, 1),score_train(Iris_Versicolor, 2), 'g', '+');
hold on
scatter(score_train(Iris_Virginica, 1),score_train(Iris_Virginica, 2), 'b', '*');
hold on
x1 = linspace(0.8, 1.5, 100);
x2 = (w1*x1 + b)/(-w2);
plot(x1, x2)
legend('Iris Setosa', 'Iris Versicolor', 'Iris Virginica', 'location', 'northeastoutside')
xlabel('train set')

Iris_Setosa = (labels_test == 1);
Iris_Versicolor = (labels_test == 2);
Iris_Virginica = (labels_test == 3);

subplot(1, 2, 2)
scatter(score_test(Iris_Setosa, 1), score_test(Iris_Setosa, 2), 'red');
hold on
scatter(score_test(Iris_Versicolor, 1),score_test(Iris_Versicolor, 2), 'g', '+');
hold on
scatter(score_test(Iris_Virginica, 1),score_test(Iris_Virginica, 2), 'b', '*');
hold on
x1 = linspace(0.8, 1.5, 100);
x2 = (w1*x1 + b)/(-w2);
plot(x1, x2)
legend('Iris Setosa', 'Iris Versicolor', 'Iris Virginica', 'location', 'northeastoutside')
xlabel('test set')

clear m
clear y
clear Iris_Setosa
clear Iris_Versicolor
clear Iris_Virginica

其中的sigmoid函数为，

function y = sigmoid(x)
y = 1 ./ (1 + exp(-x));

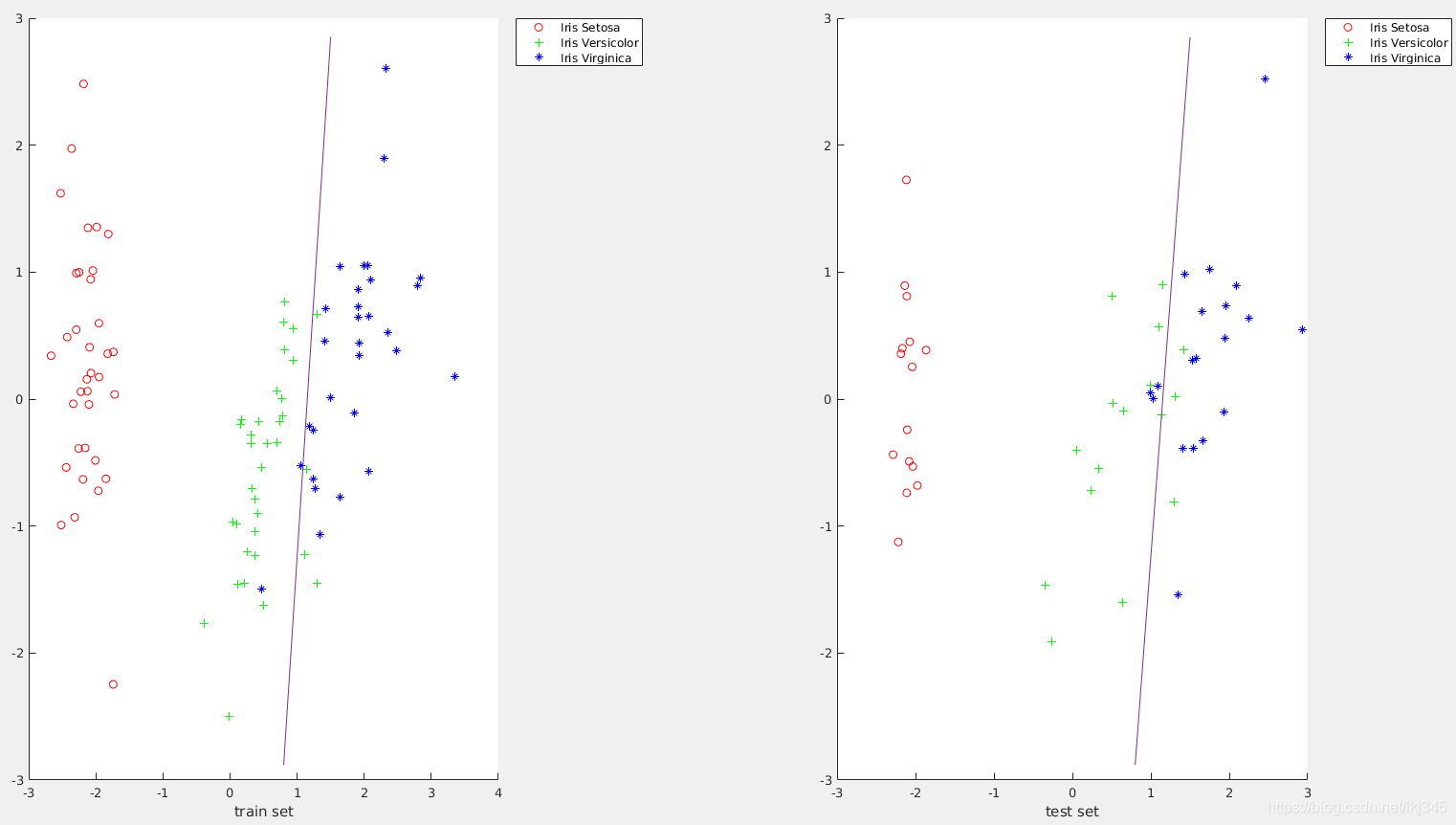

图1-5 收敛结果

参考
http://archive.ics.uci.edu/ml/index.php
http://archive.ics.uci.edu/ml/datasets/Iris
