本文深入探讨NumPy库中的数组(array)和矩阵(matrix)，包括它们的创建、访问、广播机制、基本运算如加法、减法、数乘、转置、乘法，以及高级功能如单位矩阵和逆矩阵的生成。同时，文章提供了丰富的代码示例，帮助读者理解和应用这些概念。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

文章目录

NumPy 中的数组和矩阵

NumPy 是一个关于矩阵运算的库，包含两种基本的数据类型：数组（array ）和矩阵（matrix）。

matrix 是 array 的一个小的分支，所以 matrix 拥有 array 的所有特性。
matrix 必须是 2 维的，但是 array 可以是多维的。
matrix 主要优势是：相对简单的乘法运算符号。例如，a 和 b 是两个matrix，那么 $a * b$ ，就是矩阵乘法。

import numpy as np

a=np.mat([[4,3], [2,1]])
b=np.mat([[1,2], [3,4]])
print(a*b)
# [[13 20]
#  [ 5  8]]

相反的是，array 遵从逐个元素的运算，所以 array 对象的 $c * d$ 代表点乘运算。而矩阵乘法，则需要 np.dot(c,d) 命令。

c=np.array([[4, 3], [2, 1]])
d=np.array([[1, 2], [3, 4]])
print(c*d)
# [[4 6]
#  [6 4]]
print(np.dot(c,d))
# [[13 20]
#  [ 5  8]]

matrix 和 array 都可以通过在对象后面加 .T 得到其转置。但是 matrix 对象还可以在后面加 .H 得到 共轭矩阵，加 .I 得到 逆矩阵。

问题就出来了，如果一个程序里面既有 matrix 又有 array，会让人脑袋大。实际上只用 array，就可以实现 matrix 的大多数功能。当然还可以通过 np.asmatrix 和 np.asarray 轻松的实现两者之间的转换。

创建数组

import numpy as np

a = np.zeros((2,2))  # Create an array of all zeros
print a              # Prints "[[ 0.  0.]
                     #          [ 0.  0.]]"

b = np.ones((1,2))   # Create an array of all ones
print b              # Prints "[[ 1.  1.]]"

c = np.full((2,2), 7) # Create a constant array
print c               # Prints "[[ 7.  7.]
                      #          [ 7.  7.]]"

d = np.eye(2)        # Create a 2x2 identity matrix
print d              # Prints "[[ 1.  0.]
                     #          [ 0.  1.]]"

e = np.random.random((2,2)) # Create an array filled with random values
print e                     # Might print "[[ 0.91940167  0.08143941]
                            #               [ 0.68744134  0.87236687]]"

访问数组

切片访问：因为数组可以是多维的，所以必须为每个维度指定好切片。

import numpy as np

# Create the following rank 2 array with shape (3, 4)
# [[ 1  2  3  4]
#  [ 5  6  7  8]
#  [ 9 10 11 12]]
a = np.array([[1,2,3,4],
              [5,6,7,8],
              [9,10,11,12]])

# Use slicing to pull out the subarray consisting of the first 2 rows
# and columns 1 and 2; b is the following array of shape (2, 2):
# [[2 3]
#  [6 7]]
b = a[:2, 1:3]

# A slice of an array is a view into the same data, so modifying it
# will modify the original array.
print a[0, 1]   # Prints "2"
b[0, 0] = 77    # b[0, 0] is the same piece of data as a[0, 1]
print a[0, 1]   # Prints "77"

# Two ways of accessing the data in the middle row of the array.
# Mixing integer indexing with slices yields an array of lower rank,
# while using only slices yields an array of the same rank as the
# original array:
row_r1 = a[1, :]    # Rank 1 view of the second row of a
row_r2 = a[1:2, :]  # Rank 2 view of the second row of a
print row_r1, row_r1.shape  # Prints "[5 6 7 8] (4,)"
print row_r2, row_r2.shape  # Prints "[[5 6 7 8]] (1, 4)"

# We can make the same distinction when accessing columns of an array:
col_r1 = a[:, 1]
col_r2 = a[:, 1:2]
print col_r1, col_r1.shape  # Prints "[ 2  6 10] (3,)"
print col_r2, col_r2.shape  # Prints "[[ 2]
                            #          [ 6]
                            #          [10]] (3, 1)"

索引访问

import numpy as np

# Create a new array from which we will select elements
a = np.array([[1,2,3], [4,5,6], [7,8,9], [10, 11, 12]])

print a  # prints "array([[ 1,  2,  3],
         #                [ 4,  5,  6],
         #                [ 7,  8,  9],
         #                [10, 11, 12]])"

# Create an array of indices
b = np.array([0, 2, 0, 1])

# Select one element from each row of a using the indices in b
print a[np.arange(4), b]  # Prints "[ 1  6  7 11]"

# Mutate one element from each row of a using the indices in b
a[np.arange(4), b] += 10

print a  # prints "array([[11,  2,  3],
         #                [ 4,  5, 16],
         #                [17,  8,  9],
         #                [10, 21, 12]])

布尔型数组访问：用于选取数组中满足某些条件的元素。

import numpy as np

a = np.array([[1,2], [3, 4], [5, 6]])

bool_idx = (a > 2)  # Find the elements of a that are bigger than 2;
                    # this returns a numpy array of Booleans of the same
                    # shape as a, where each slot of bool_idx tells
                    # whether that element of a is > 2.

print bool_idx      # Prints "[[False False]
                    #          [ True  True]
                    #          [ True  True]]"

# We use boolean array indexing to construct a rank 1 array
# consisting of the elements of a corresponding to the True values
# of bool_idx
print a[bool_idx]  # Prints "[3 4 5 6]"

# We can do all of the above in a single concise statement:
print a[a > 2]     # Prints "[3 4 5 6]"

Numpy 的广播机制 Broadcasting

广播是一种强有力的机制，它让 Numpy 可以让不同大小的矩阵在一起进行数学计算。我们常常会有一个小的矩阵和一个大的矩阵，然后我们会需要用小的矩阵对大的矩阵做一些计算。

举个例子，如果我们想要把一个向量加到矩阵的每一行，我们可以这样做：

import numpy as np

# We will add the vector v to each row of the matrix x,
# storing the result in the matrix y
x = np.array([[1,2,3], [4,5,6], [7,8,9], [10, 11, 12]])
v = np.array([1, 0, 1])
y = np.empty_like(x)   # Create an empty matrix with the same shape as x

# Add the vector v to each row of the matrix x with an explicit loop
for i in range(4):
    y[i, :] = x[i, :] + v

# Now y is the following
# [[ 2  2  4]
#  [ 5  5  7]
#  [ 8  8 10]
#  [11 11 13]]
print y

这样是行得通的，但是当x矩阵非常大，利用循环来计算就会变得很慢。我们可以换一种思路：

import numpy as np

# We will add the vector v to each row of the matrix x,
# storing the result in the matrix y
x = np.array([[1,2,3], [4,5,6], [7,8,9], [10, 11, 12]])
v = np.array([1, 0, 1])
vv = np.tile(v, (4, 1))  # Stack 4 copies of v on top of each other
print vv                 # Prints "[[1 0 1]
                         #          [1 0 1]
                         #          [1 0 1]
                         #          [1 0 1]]"
y = x + vv  # Add x and vv elementwise
print y  # Prints "[[ 2  2  4
         #          [ 5  5  7]
         #          [ 8  8 10]
         #          [11 11 13]]"

Numpy广播机制可以让我们不用创建vv，就能直接运算，看看下面例子：

import numpy as np

# We will add the vector v to each row of the matrix x,
# storing the result in the matrix y
x = np.array([[1,2,3], [4,5,6], [7,8,9], [10, 11, 12]])
v = np.array([1, 0, 1])
y = x + v  # Add v to each row of x using broadcasting
print y  # Prints "[[ 2  2  4]
         #          [ 5  5  7]
         #          [ 8  8 10]
         #          [11 11 13]]"

一些广播机制的使用：

import numpy as np

# Compute outer product of vectors
v = np.array([1,2,3])  # v has shape (3,)
w = np.array([4,5])    # w has shape (2,)
# To compute an outer product, we first reshape v to be a column
# vector of shape (3, 1); we can then broadcast it against w to yield
# an output of shape (3, 2), which is the outer product of v and w:
# [[ 4  5]
#  [ 8 10]
#  [12 15]]
print np.reshape(v, (3, 1)) * w

# Add a vector to each row of a matrix
x = np.array([[1,2,3], [4,5,6]])
# x has shape (2, 3) and v has shape (3,) so they broadcast to (2, 3),
# giving the following matrix:
# [[2 4 6]
#  [5 7 9]]
print x + v

# Add a vector to each column of a matrix
# x has shape (2, 3) and w has shape (2,).
# If we transpose x then it has shape (3, 2) and can be broadcast
# against w to yield a result of shape (3, 2); transposing this result
# yields the final result of shape (2, 3) which is the matrix x with
# the vector w added to each column. Gives the following matrix:
# [[ 5  6  7]
#  [ 9 10 11]]
print (x.T + w).T

# Another solution is to reshape w to be a row vector of shape (2, 1);
# we can then broadcast it directly against x to produce the same
# output.
print x + np.reshape(w, (2, 1))

# Multiply a matrix by a constant:
# x has shape (2, 3). Numpy treats scalars as arrays of shape ();
# these can be broadcast together to shape (2, 3), producing the
# following array:
# [[ 2  4  6]
#  [ 8 10 12]]
print x * 2

矩阵加法 / 减法

$\begin{bmatrix} 1 & 3 & 1 \\ 1 & 0 & 0 \end{bmatrix} + \begin{bmatrix} 0 & 0 & 5 \\ 7 & 5 & 0 \end{bmatrix} =\begin{bmatrix} 1+0 & 3+0 & 1+5 \\ 1+7 & 0+5 & 0+0 \end{bmatrix} =\begin{bmatrix} 1 & 3 & 6 \\ 8 & 5 & 0 \end{bmatrix}$

import numpy as np

x = np.array([[1,2],[3,4]], dtype=np.float64)
y = np.array([[5,6],[7,8]], dtype=np.float64)

# Elementwise sum; both produce the array
# [[ 6.0  8.0]
#  [10.0 12.0]]
print x + y
print np.add(x, y)

# Elementwise difference; both produce the array
# [[-4.0 -4.0]
#  [-4.0 -4.0]]
print x - y
print np.subtract(x, y)

矩阵数乘

$\cdot \begin{bmatrix} 1 & 8 & -3 \\ 4 & -2 & 5 \end{bmatrix} =\begin{bmatrix} 2 \cdot 1 & 2\cdot 8 & 2\cdot (-3) \\ 2\cdot 4 & 2\cdot (-2) & 2\cdot 5 \end{bmatrix} =\begin{bmatrix} 2 & 16 & -6 \\ 8 & -4 & 10 \end{bmatrix}$

>>> from numpy import *
>>> a1=array([1,1,1])    #定义一个数组
>>> a1*2                 #乘一个数
array([2, 2, 2])

矩阵转置

$m\times n矩阵A的转置是一个 n\times m 的矩阵，记为 A^T$

$\begin{bmatrix} 1 & 2 & 3 \\ 0 & -6 & 7 \end{bmatrix}^T = \begin{bmatrix} 1 & 0 \\ 2 & -6 \\ 3 & 7 \end{bmatrix}$

>>> from numpy import *
>>> m1=mat([1,2,3])     # 1行3列
>>> m1
matrix([[1,2,3]])
>>> m1.T                # m1.T为转置操作
matrix([[1],
        [2],
        [3]])

矩阵乘法

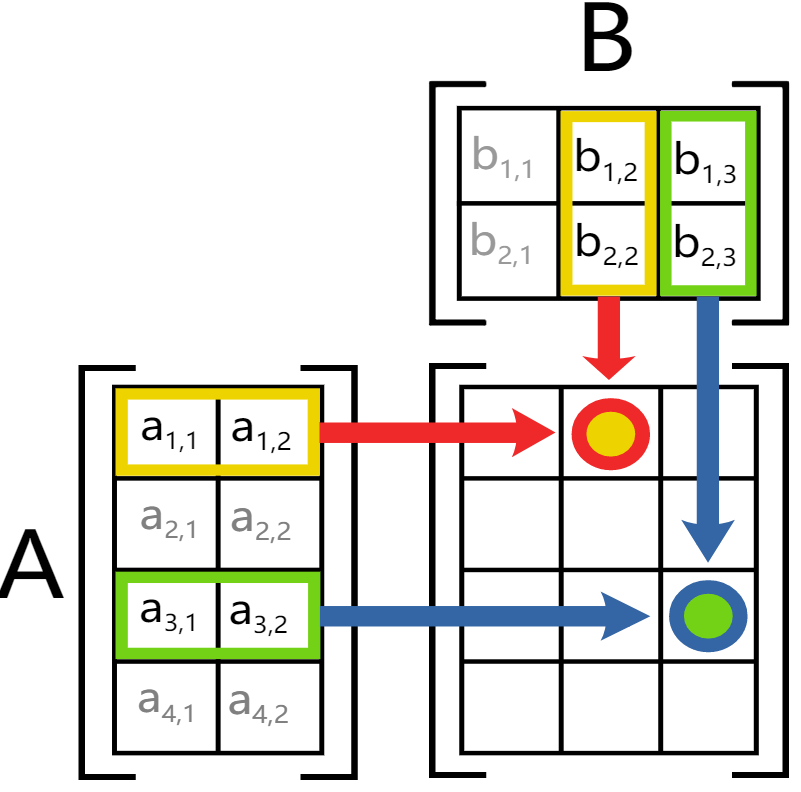

两个矩阵的乘法仅当第一个矩阵 A 的列数(column)和另一个矩阵B的行数(row)相等时才能定义。当 A 是 $m \times n$ 矩阵和 B 是 $n \times p$ 矩阵，它们的乘积AB是一个 $m \times p$ 矩阵，例如：

$\begin{bmatrix} 1 & 0 & 2 \\ -1 & 3 & 1 \\ \end{bmatrix} \times \begin{bmatrix} 3 & 1 \\ 2 & 1 \\ 1 & 0 \end{bmatrix} =\begin{bmatrix} (1 \times 3 + 0 \times 2 + 2 \times 1) & (1 \times 1 + 0 \times 1 + 2 \times 0) \\ (-1 \times 3 + 3 \times 2 + 1 \times 1) & (-1 \times 1 + 3 \times 1 + 1 \times 0) \\ \end{bmatrix} = \begin{bmatrix} 5 & 1 \\ 4 & 2 \\ \end{bmatrix}$

矩阵乘法不满足交换律，一般来说，矩阵A及B的乘积AB存在，但BA不一定存在。即使存在，大多数时候AB ≠ BA。

矩阵的乘法满足结合律和对矩阵加法的分配律（左分配律和右分配律）：

结合律：(AB)C = A(BC),
左分配律：(A + B)C = AC + BC,
右分配律：C(A + B) = CA + CB.

>>> from numpy import *
>>> m1=mat([1,2,3])     #1行3列
>>> m2=mat([4,5,6])
>>> m1*m2.T             #执行矩阵相乘，注意左列与右行相等 m2.T为转置操作
matrix([[32]])
>>> multiply(m1,m2)     #执行点乘操作，要使用函数，特别注意
matrix([[ 4, 10, 18]])

单位矩阵（Identity matrix）

n 阶单位矩阵，是一个 $n \times n$ 的方形矩阵，其主对角线元素为 1，其余元素为0

单位矩阵以 $I_n$ 表示：

$I_{1}={\begin{bmatrix}1\end{bmatrix}},\ I_{2}={\begin{bmatrix}1&0\\0&1\end{bmatrix}},\ I_{3}={\begin{bmatrix}1&0&0\\0&1&0\\0&0&1\end{bmatrix}},\ \cdots ,\ I_{n}={\begin{bmatrix}1&0&\cdots &0\\0&1&\cdots &0\\\vdots &\vdots &\ddots &\vdots \\0&0&\cdots &1\end{bmatrix}}$
