君方智能设计平台-对象捕捉技术设计

1.背景介绍

1.1 什么是捕捉

通过捕捉输入信息(视图信息、 输入点、捕捉设置等),自动计算得到一组捕捉结果(捕捉到的点、相关的几何元素、捕捉类型等)

1.2 对象捕捉分类:

  • 按捕捉目标分类

     (1)对象捕捉:

       端点、中点、最近点、网格点、交点、圆心、垂足、切点等。

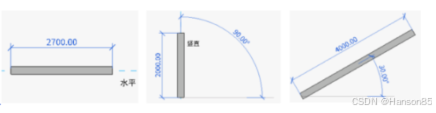

    (2)非对象捕捉:

      水平、竖直、角度增量、长度增量和网格等捕捉



  • 按捕捉对象位置分类

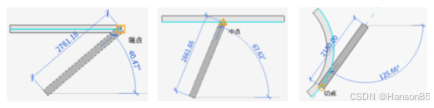

    (1)近程捕捉:

       端点、中点、最近点、交点、圆心、垂足、切点、象限
