Android消息机制(Handler、MessageQueue和Looper三者的工作原理)

本文详细解析Android中Handler、MessageQueue和Looper的工作原理。Handler用于发送和处理消息,MessageQueue作为FIFO消息队列,Looper则不断轮询并处理消息。线程中的Looper通过ThreadLocal保存,确保数据线程安全。此外,文章还介绍了MessageQueue的插入和读取消息,以及Looper如何启动和退出消息循环。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

Android的消息机制中有三个重要的类:Handler、MessageQueue和Looper。其中MessageQueue是先进先出的消息队列,它存储一组消息,有插入和删除的功能;Looper是循环的意思,主要功能是轮询MessageQueue里面的消息,然后交由Handler处理,如果暂时没有消息,则会等待;Handler主要统筹Looper和MessageQueue的功能,实现消息的发送和处理。

在Handler中,一个线程最多只有一个Looper,但线程默认是没有Looper的,需要自己创建,在Android的UI线程中可以直接使用Handler是因为在创建主线程的时候已经初始化了Looper;在Handler机制中有一个叫ThreadLocal的类,ThreadLocal不是一个线程,它的作用是可以为每个不同的线程存储数据,并且这些不同线程的数据互不干扰,而Looper就是通过它来保存在线程中的,通过调用ThreadLocal的get方法,可以获取当前线程的Looper对象。

ThreadLocl的工作原理

先来看一个例子:

    private java.lang.ThreadLocal<String> threadLocal = new ThreadLocal<>();

    public void test() {

        threadLocal.set("主线程");

        LogUtils.d(Thread.currentThread().getName() + "的值=" + threadLocal.get());

        new Thread("线程01") {
            @Override
            public void run() {
                super.run();
                threadLocal.set("线程01");
                Log.d("tag", Thread.currentThread().getName() + "的值=" + threadLocal.get());
            }
        }.start();

        new Thread("线程02") {
            @Override
            public void run() {
                super.run();
                //threadLocal.set("线程02");
                Log.d("tag", Thread.currentThread().getName() + "的值=" + threadLocal.get());
            }
        }.start();

    }

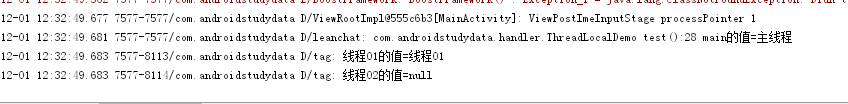

执行test方法结果如下:

从执行结果来看,threadlocal确实可以为不同的线程保存各自的数据,来看看源码是怎么实现的:

    public void set(T value) {
        //获取当前线程
        Thread t = Thread.currentThread();
        //获取当前线程的threadlocalmap
        ThreadLocalMap map = getMap(t);
        //如果threadlocalmap不为null,那么将value值保存,其中key值为当前threadlocal
        if (map != null)
            map.set(this, value);
        else
            createMap(t, value);
    }

   //返回线程的threadlocalmap对象
   ThreadLocalMap getMap(Thread t) {
        return t.threadLocals;
    }

  //创建对应线程的threadlocalmap实例,并且保存对应的值
  void createMap(Thread t, T firstValue) {
        t.threadLocals = new ThreadLocalMap(this, firstValue);
    }

其实这里的关键是将value值保存到当前线程的threadlocalmap中去,而且对应的key是threadlocal本身,来看看threadlocal的get方法:

   public T get() {
        //获取对应的线程
        Thread t = Thread.currentThread();
        //获取对应线程的threadlocalmap
        ThreadLocalMap map = getMap(t);
        //如果不为null,将取出key为当前threadlocal对应的value
        if (map != null) {
            ThreadLocalMap.Entry e = map.getEntry(this);
            if (e != null) {
                @SuppressWarnings("unchecked")
                T result = (T)e.value;
                return result;
            }
        }
        //threadlocalmap为null的时候,返回setInitialValue的值,其实就是null
        return setInitialValue();
    }

    private T setInitialValue() {
        T value = initialValue();
        Thread t = Thread.currentThread();
        ThreadLocalMap map = getMap(t);
        if (map != null)
            map.set(this, value);
        else
            createMap(t, value);
        return value;
    }

    protected T initialValue() {
        return null;
    }

代码都不复杂,当我们调用threadlocal的set方法保存某个value的时候,其实在set方法内部会获取当前线程的threadlocalmap,然后将value保存到threadlocalmap中,当我们调用threadlocal的get方法的时候,同样也是首先获取到当前线程的threadlocalmap,将保存在其中的value取出来

大概就是每个Thread都有自己的ThreadLocalMap,在ThreadLocal保存数据的时候,会根据当前线程对象拿到对应的ThreadLocalMap并将数据保存到里面,然后取数据的时候,也是先拿到对应Thread的ThreadLocalMap对象, 再取其中的数据,说白了线程能独立保存数据而不受其他线程的干扰,就是因为保存数据的时候首先获取当前线程对象,然后将数据保存到对应线程的ThreadLocalMap中

MessageQueue的工作原理

messagequeue的插入和读取操作内部是由先进先出的单链表结构来实现的,可能是因为单链表结构在插入和删除上效率比较高吧,插入用enqueueMessage方法,读取用next方法来实现,下面我们来看看他们的源码:

 boolean enqueueMessage(Message msg, long when) {
        if (msg.target == null) {
            throw new IllegalArgumentException("Message must have a target.");
        }
        if (msg.isInUse()) {
            throw new IllegalStateException(msg + " This message is already in use.");
        }

        synchronized (this) {
            if (mQuitting) {
                IllegalStateException e = new IllegalStateException(
                        msg.target + " sending message to a Handler on a dead thread");
                Log.w(TAG, e.getMessage(), e);
                msg.recycle();
                return false;
            }

            msg.markInUse();
            msg.when = when;
            Message p = mMessages;
            boolean needWake;
            if (p == null || when == 0 || when < p.when) {
                // New head, wake up the event queue if blocked.
                msg.next = p;
                mMessages = msg;
                needWake = mBlocked;
            } else {
                // Inserted within the middle of the queue.  Usually we don't have to wake
                // up the event queue unless there is a barrier at the head of the queue
                // and the message is the earliest asynchronous message in the queue.
                needWake = mBlocked && p.target == null && msg.isAsynchronous();
                Message prev;
                for (;;) {
                    prev = p;
                    p = p.next;
                    if (p == null || when < p.when) {
                        break;
                    }
                    if (needWake && p.isAsynchronous()) {
                        needWake = false;
                    }
                }
                msg.next = p; // invariant: p == prev.next
                prev.next = msg;
            }

            // We can assume mPtr != 0 because mQuitting is false.
            if (needWake) {
                nativeWake(mPtr);
            }
        }
        return true;
    }

上面是消息的插入操作,注意参数when代表这个消息何时取出来处理。下面我们看看,next方法源码:

Message next() {
        // Return here if the message loop has already quit and been disposed.
        // This can happen if the application tries to restart a looper after quit
        // which is not supported.
        final long ptr = mPtr;
        if (ptr == 0) {
            return null;
        }

        int pendingIdleHandlerCount = -1; // -1 only during first iteration
        int nextPollTimeoutMillis = 0;
        for (;;) {
            if (nextPollTimeoutMillis != 0) {
                Binder.flushPendingCommands();
            }

            nativePollOnce(ptr, nextPollTimeoutMillis);

            synchronized (this) {
                // Try to retrieve the next message.  Return if found.
                final long now = SystemClock.uptimeMillis();
                Message prevMsg = null;
                Message msg = mMessages;
                if (msg != null && msg.target == null) {
                    // Stalled by a barrier.  Find the next asynchronous message in the queue.
                    do {
                        prevMsg = msg;
                        msg = msg.next;
                    } while (msg != null && !msg.isAsynchronous());
                }
                if (msg != null) {
                    if (now < msg.when) {
                        // Next message is not ready.  Set a timeout to wake up when it is ready.
                        nextPollTimeoutMillis = (int) Math.min(msg.when - now, Integer.MAX_VALUE);
                    } else {
                        // Got a message.
                        mBlocked = false;
                        if (prevMsg != null) {
                            prevMsg.next = msg.next;
                        } else {
                            mMessages = msg.next;
                        }
                        msg.next = null;
                        if (DEBUG) Log.v(TAG, "Returning message: " + msg);
                        msg.markInUse();
                        return msg;
                    }
                } else {
                    // No more messages.
                    nextPollTimeoutMillis = -1;
                }

                // Process the quit message now that all pending messages have been handled.
                if (mQuitting) {
                    dispose();
                    return null;
                }

                // If first time idle, then get the number of idlers to run.
                // Idle handles only run if the queue is empty or if the first message
                // in the queue (possibly a barrier) is due to be handled in the future.
                if (pendingIdleHandlerCount < 0
                        && (mMessages == null || now < mMessages.when)) {
                    pendingIdleHandlerCount = mIdleHandlers.size();
                }
                if (pendingIdleHandlerCount <= 0) {
                    // No idle handlers to run.  Loop and wait some more.
                    mBlocked = true;
                    continue;
                }

                if (mPendingIdleHandlers == null) {
                    mPendingIdleHandlers = new IdleHandler[Math.max(pendingIdleHandlerCount, 4)];
                }
                mPendingIdleHandlers = mIdleHandlers.toArray(mPendingIdleHandlers);
            }

            // Run the idle handlers.
            // We only ever reach this code block during the first iteration.
            for (int i = 0; i < pendingIdleHandlerCount; i++) {
                final IdleHandler idler = mPendingIdleHandlers[i];
                mPendingIdleHandlers[i] = null; // release the reference to the handler

                boolean keep = false;
                try {
                    keep = idler.queueIdle();
                } catch (Throwable t) {
                    Log.wtf(TAG, "IdleHandler threw exception", t);
                }

                if (!keep) {
                    synchronized (this) {
                        mIdleHandlers.remove(idler);
                    }
                }
            }

            // Reset the idle handler count to 0 so we do not run them again.
            pendingIdleHandlerCount = 0;

            // While calling an idle handler, a new message could have been delivered
            // so go back and look again for a pending message without waiting.
            nextPollTimeoutMillis = 0;
        }
    }

可以看到,next是一个无限循环的方法,当取到消息的时候返回msg,没有消息的时候,会一直阻塞直到有消息。注意上面的一个判断,如果now<msg.when,就先不取msg,其实就是说这个消息还没到执行时间,所以暂时不会取出来,这个就是Handler消息可以延时执行的原因了。当looper执行退出的时候,即上面的mQuitting为true的时候,此时next方法返回null,然后loop方法就会跳出循环。

Looper的工作原理

looper在消息机制中扮演者消息循环的角色,就是说它会不停地从消息队列中查看有没有新消息,如果取出了新消息就会马上处理,否则就阻塞在那里。我们知道,开启looper的工作,需要首先在对应的线程中通过Looper.prepare()创建一个looper,然后通过loop方法来开启消息的循环,

我们来看看这个两个方法的源码:

    public static void prepare() {
        prepare(true);
    }

    private static void prepare(boolean quitAllowed) {
        //一个线程只能创建一个looper
        if (sThreadLocal.get() != null) {
            throw new RuntimeException("Only one Looper may be created per thread");
        }
        //创建一个looper实例,通过threadlocal保存起来
        sThreadLocal.set(new Looper(quitAllowed));
    }

来看看looper的构造方法:

    private Looper(boolean quitAllowed) {
        mQueue = new MessageQueue(quitAllowed);
        mThread = Thread.currentThread();
    }

可以看到,构造方法中会创建一个消息队列和获取当前looper的线程。looper还提供了prepareMainLooper方法,这个方法是用来给主线程ActivityThread创建looper时使用的,当然其本质也是通过prepare方法来实现的。由于主线程的looper比较特殊,所以其提供了getMainLooper方法,用来在任何地方都可以获取主线程的looper对象。

Looper提供了两个退出方法:quit和quitSafely,其中quit是立即退出,quitSafely是等消息队列中的消息处理完毕以后再安全退出。如果我们手动创建了looper,在不需要的是要手动去退出,否则这个子线程会一直处于等待状态。下面我们来看看looper最关键的方法loop,只有调用了loop方法,消息循环系统才会真正起作用,如下:

 public static void loop() {
        //myLooper会从ThreadLocal中返回Looper对象,这个Looper对象就是当前线程创建的Looper对象
        final Looper me = myLooper();
        if (me == null) {
            throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread.");
        }
        final MessageQueue queue = me.mQueue;

        // Make sure the identity of this thread is that of the local process,
        // and keep track of what that identity token actually is.
        Binder.clearCallingIdentity();
        final long ident = Binder.clearCallingIdentity();

        //无限循环
        for (;;) {
            //调用消息队列的next方法取消息
            Message msg = queue.next(); // might block
            //如果消息为null,结束方法
            if (msg == null) {
                // No message indicates that the message queue is quitting.
                return;
            }

            // This must be in a local variable, in case a UI event sets the logger
            final Printer logging = me.mLogging;
            if (logging != null) {
                logging.println(">>>>> Dispatching to " + msg.target + " " +
                        msg.callback + ": " + msg.what);
            }

            final long slowDispatchThresholdMs = me.mSlowDispatchThresholdMs;

            final long traceTag = me.mTraceTag;
            if (traceTag != 0 && Trace.isTagEnabled(traceTag)) {
                Trace.traceBegin(traceTag, msg.target.getTraceName(msg));
            }
            final long start = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis();
            final long end;
            try {
                //msg.target就是处理这个消息的handler,将消息递交给handler处理
                msg.target.dispatchMessage(msg);
                end = (slowDispatchThresholdMs == 0) ? 0 : SystemClock.uptimeMillis();
            } finally {
                if (traceTag != 0) {
                    Trace.traceEnd(traceTag);
                }
            }
            if (slowDispatchThresholdMs > 0) {
                final long time = end - start;
                if (time > slowDispatchThresholdMs) {
                    Slog.w(TAG, "Dispatch took " + time + "ms on "
                            + Thread.currentThread().getName() + ", h=" +
                            msg.target + " cb=" + msg.callback + " msg=" + msg.what);
                }
            }

            if (logging != null) {
                logging.println("<<<<< Finished to " + msg.target + " " + msg.callback);
            }

            // Make sure that during the course of dispatching the
            // identity of the thread wasn't corrupted.
            final long newIdent = Binder.clearCallingIdentity();
            if (ident != newIdent) {
                Log.wtf(TAG, "Thread identity changed from 0x"
                        + Long.toHexString(ident) + " to 0x"
                        + Long.toHexString(newIdent) + " while dispatching to "
                        + msg.target.getClass().getName() + " "
                        + msg.callback + " what=" + msg.what);
            }

            msg.recycleUnchecked();
        }
    }

loop方法还是比较好理解的,首先这是一个循环,唯一跳出循环的条件是取到的消息为null,就是当我们调用了looper的退出方法的时候,同时也会去调用messagequeue的退出方法,此时next方法才会返回一个null值。当我们取出了新消息,后面就调用msg.target.dispatchMessage(msg),这里的target是发送消息的handler对象,这样消息又交给了handler来处理了。

值得注意的是,我们取出消息调用handler的dispatchMessage方法的过程是在looper的loop方法中执行的,而loop方法是创建handler对象的线程中被调用的,所以不管handler在哪个线程发送消息,最终处理消息都是在loop方法中执行,这也就实现了线程的切换。

Handler的工作原理

handler的工作主要包括消息的发送和接收,消息的发送主要用post和send系列方法,接收一般是通过重写对应的handleMessage方法。下面我们先来看看一个例子:

public class HandlerDemo {

    //重写handler的handleMessage方法
    Handler handler = new Handler() {
        @Override
        public void handleMessage(Message msg) {
            LogUtils.d("handler接收到消息,what内容=" + msg.what+",当前线程为:"+Thread.currentThread().getName());
        }
    };


    public void sendMsg() {
        //在一个子线程中通过主线程的handler发送消息给主线程处理
        new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    //延时两秒
                    TimeUnit.SECONDS.sleep(2);
                    //发送一个消息给handler处理
                    Message msg = new Message();
                    msg.what = 01;
                    handler.sendMessage(msg);

                } catch (InterruptedException e) {

                }
            }
        }).start();

    }

}

执行结果:

可以看到,例子中创建了主线程的handler对象,演示了在子线程中通过sendMessage方法发送消息,然后在handleMessage方法中处理消息,并且处理消息的线程的为主线程,这样就实现了从子线程切换到主线程;

下面来看看对应的源码:

    public final boolean sendMessage(Message msg)
    {
        return sendMessageDelayed(msg, 0);
    }

    public final boolean sendMessageDelayed(Message msg, long delayMillis)
    {
        if (delayMillis < 0) {
            delayMillis = 0;
        }
        return sendMessageAtTime(msg, SystemClock.uptimeMillis() + delayMillis);
    }


   public boolean sendMessageAtTime(Message msg, long uptimeMillis) {
        //mQueue为当前handler的消息队列
        MessageQueue queue = mQueue;
        if (queue == null) {
            RuntimeException e = new RuntimeException(
                    this + " sendMessageAtTime() called with no mQueue");
            Log.w("Looper", e.getMessage(), e);
            return false;
        }
        return enqueueMessage(queue, msg, uptimeMillis);
    }

   private boolean enqueueMessage(MessageQueue queue, Message msg, long uptimeMillis) {
        msg.target = this;
        if (mAsynchronous) {
            msg.setAsynchronous(true);
        }
        //将消息保存到消息队列中
        return queue.enqueueMessage(msg, uptimeMillis);
    }

上面的关键作用是把消息保存到handler对象的messagequeue中去,值得注意的地方,msg.target=this,这里给消息的target赋值为当前的handler对象;

    public Handler(Callback callback, boolean async) {
        if (FIND_POTENTIAL_LEAKS) {
            final Class<? extends Handler> klass = getClass();
            if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) &&
                    (klass.getModifiers() & Modifier.STATIC) == 0) {
                Log.w(TAG, "The following Handler class should be static or leaks might occur: " +
                    klass.getCanonicalName());
            }
        }
        //获取对应的looper实例
        mLooper = Looper.myLooper();
        if (mLooper == null) {
            throw new RuntimeException(
                "Can't create handler inside thread that has not called Looper.prepare()");
        }
        //获取消息队列
        mQueue = mLooper.mQueue;
        mCallback = callback;
        mAsynchronous = async;
    }

在handler的构造方法中,会初始化Looper对象和消息队列mQueue,在子线程中创建handler对象的时候,也是需要调用Looper对象的loop方法的,执行了loop方法以后,就开始轮询消息队列的消息了,取到消息以后就会调用handler的dispatchMessage方法

dispatchMessage方法源码:

    public void dispatchMessage(Message msg) {
        if (msg.callback != null) {
            handleCallback(msg);
        } else {
            if (mCallback != null) {
                if (mCallback.handleMessage(msg)) {
                    return;
                }
            }
            handleMessage(msg);
        }
    }

if的判断,如果msg.callback!=null,则调用handleCallback,其实msg.callback是post方法中的runnable对象,我们来看看:

    public final boolean post(Runnable r)
    {
       return  sendMessageDelayed(getPostMessage(r), 0);
    }

  private static Message getPostMessage(Runnable r) {
        Message m = Message.obtain();
        m.callback = r;
        return m;
    }

再来看看handleCallback(msg),就是调用runnable的run方法,这就是handler的post方法的原理。

   private static void handleCallback(Message message) {
        message.callback.run();
    }



如果mCallback不为努力,则执行它的handleMessage方法,那mCallback 又是什么?

    public Handler(Callback callback) {
        this(callback, false);
    }

    public Handler(Callback callback, boolean async) {
        if (FIND_POTENTIAL_LEAKS) {
            final Class<? extends Handler> klass = getClass();
            if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) &&
                    (klass.getModifiers() & Modifier.STATIC) == 0) {
                Log.w(TAG, "The following Handler class should be static or leaks might occur: " +
                    klass.getCanonicalName());
            }
        }

        mLooper = Looper.myLooper();
        if (mLooper == null) {
            throw new RuntimeException(
                "Can't create handler inside thread that has not called Looper.prepare()");
        }
        mQueue = mLooper.mQueue;
        //给mCallback赋值
        mCallback = callback;
        mAsynchronous = async;
    }

    //Callback接口
    public interface Callback {
        /**
         * @param msg A {@link android.os.Message Message} object
         * @return True if no further handling is desired
         */
        public boolean handleMessage(Message msg);
    }

可以看到,其实这个mCallback就是我们在例子中创建handler的时候传递的回调参数。

如果这个回调方法也为null,我们就调用handleMessage(msg)方法处理,这就是通常我们在创建handler的时候重写的那个方法了

好了,关于android消息机制的工作原理,通过上面的讲解我们大概也清楚是怎么一回事了。







评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
