本文介绍了如何运用DeLong测试评估两个模型的AUC是否有显著性差异。通过计算AUC差值、方差、协方差以及Z值，得出P值以判断差异。文中提到GitHub上找到的代码并进行了修正，实验证明修正后的代码与medcalc软件得到的结果一致。
最近需要做AUC的显著性检验，delong test是比较常见的AUC显著性检验的方法。我大体研究了一下。
原理：
1.以两个不同的模型对肿瘤良恶性进行分类，其中vgg的AUC为
A
1
A_1
A1,svm结果得到的AUC为
A
2
A_2
A2，delong test就是首先计算两者AUC差值
θ
=
A
1
−
A
2
\theta = A_1-A_2
θ=A1−A2
2.然后根据计算出
A
1
A_1
A1和
A
2
A_2
A2的方差
v
a
r
(
A
1
)
var(A_1)
var(A1),
v
a
r
(
A
2
)
var(A_2)
var(A2)，以及两者的协方差
c
o
v
(
A
1
,
A
2
)
cov(A_1,A_2)
cov(A1,A2)，关于AUC方差和协方差的计算方法我理解不深就不解释了。
3.然后算出
z
z
z值
z
=
(
A
1
−
A
2
)
v
a
r
(
A
1
)
+
v
a
r
(
A
2
)
−
2
c
o
v
(
A
1
,
A
2
)
z = \frac{(A_1-A_2)} {var(A_1)+var(A_2)-2cov(A_1,A_2)}
z=var(A1)+var(A2)−2cov(A1,A2)(A1−A2)
4。然后将Z值分布作为正太分布，做显著性检验，得到P值，如果p值＜0.05说明两个AUC之间存在显著性差异。
在github上找到的代码链接
delong test.
delong test相关参考文章
《Comparing the Areas Under Two or More Correlated Receiver Operating Characteristic Curves: A Nonparametric Approach》
《Fast Implementation of DeLong’s Algorithm for Comparing the Areas Under Correlated Receiver Operating Characteristic Curves》
github上的代码有一些问题，我简单做了一些修改，并用自己的数据分别用medclac和文中的代码做了实验，两者计算的AUC，以及CI，pvalue都是一样的。

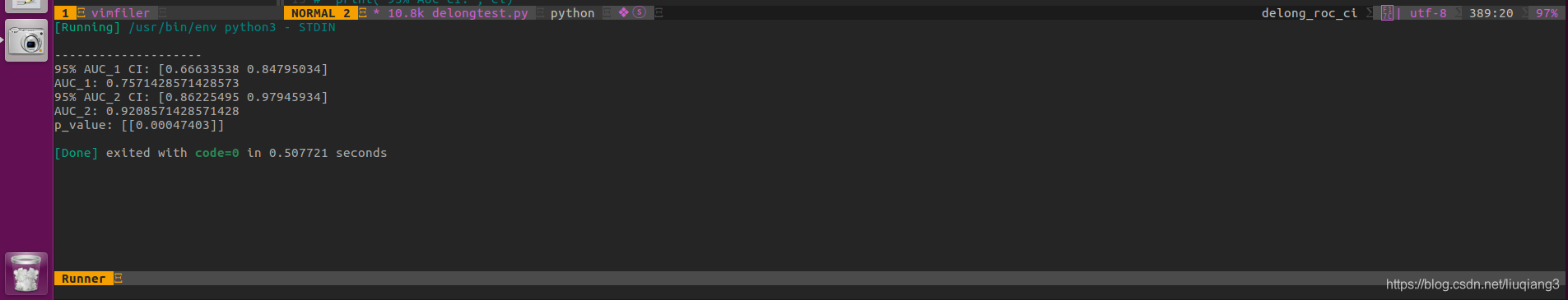

python代码结果图

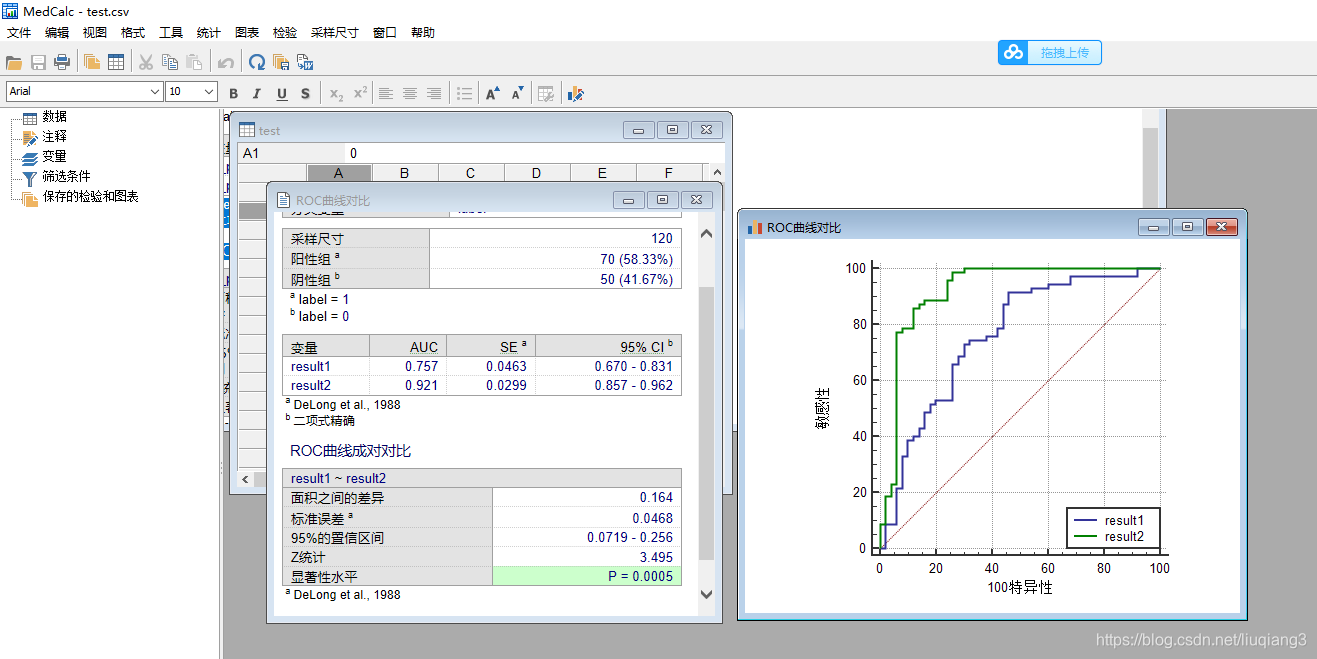

medcalc结果图
以下是代码块。
#!/usr/bin/env python3
# -*- coding: utf-8 -*-
import pandas as pd
import numpy as np
import scipy.stats
from scipy import stats
# AUC comparison adapted from
# https://github.com/Netflix/vmaf/
def compute_midrank(x):
"""Computes midranks.
Args:
x - a 1D numpy array
Returns:
array of midranks
"""
J = np.argsort(x)
Z = x[J]
N = len(x)
T = np.zeros(N, dtype=np.float)
i = 0
while i < N:
j = i
while j < N and Z[j] == Z[i]:
j += 1
T[i:j] = 0.5*(i + j - 1)
i = j
T2 = np.empty(N, dtype=np.float)
# Note(kazeevn) +1 is due to Python using 0-based indexing
# instead of 1-based in the AUC formula in the paper
T2[J] = T + 1
return T2
def compute_midrank_weight(x, sample_weight):
"""Computes midranks.
Args:
x - a 1D numpy array
Returns:
array of midranks
"""
J = np.argsort(x)
Z = x[J]
cumulative_weight = np.cumsum(sample_weight[J])
N = len(x)
T = np.zeros(N, dtype=np.float)
i = 0
while i < N:
j = i
while j < N and Z[j] == Z[i]:
j += 1
T[i:j] = cumulative_weight[i:j].mean()
i = j
T2 = np.empty(N, dtype=np.float)
T2[J] = T
return T2
def fastDeLong(predictions_sorted_transposed, label_1_count, sample_weight=None):
if sample_weight is None:
return fastDeLong_no_weights(predictions_sorted_transposed, label_1_count)
else:
return fastDeLong_weights(predictions_sorted_transposed, label_1_count, sample_weight)
def fastDeLong_weights(predictions_sorted_transposed, label_1_count, sample_weight):
"""
The fast version of DeLong's method for computing the covariance of
unadjusted AUC.
Args:
predictions_sorted_transposed: a 2D numpy.array[n_classifiers, n_examples]
sorted such as the examples with label "1" are first
Returns:
(AUC value, DeLong covariance)
Reference:
@article{sun2014fast,
title={Fast Implementation of DeLong's Algorithm for
Comparing the Areas Under Correlated Receiver Oerating Characteristic Curves},
author={Xu Sun and Weichao Xu},
journal={IEEE Signal Processing Letters},
volume={21},
number={11},
pages={1389--1393},
year={2014},
publisher={IEEE}
}
"""
# Short variables are named as they are in the paper
m = label_1_count
n = predictions_sorted_transposed.shape[1] - m
positive_examples = predictions_sorted_transposed[:, :m]
negative_examples = predictions_sorted_transposed[:, m:]
k = predictions_sorted_transposed.shape[0]
tx = np.empty([k, m], dtype=np.float)
ty = np.empty([k, n], dtype=np.float)
tz = np.empty([k, m + n], dtype=np.float)
for r in range(k):
tx[r, :] = compute_midrank_weight(positive_examples[r, :], sample_weight[:m])
ty[r, :] = compute_midrank_weight(negative_examples[r, :], sample_weight[m:])
tz[r, :] = compute_midrank_weight(predictions_sorted_transposed[r, :], sample_weight)
total_positive_weights = sample_weight[:m].sum()
total_negative_weights = sample_weight[m:].sum()
pair_weights = np.dot(sample_weight[:m, np.newaxis], sample_weight[np.newaxis, m:])
total_pair_weights = pair_weights.sum()
aucs = (sample_weight[:m]*(tz[:, :m] - tx)).sum(axis=1) / total_pair_weights
v01 = (tz[:, :m] - tx[:, :]) / total_negative_weights
v10 = 1. - (tz[:, m:] - ty[:, :]) / total_positive_weights
sx = np.cov(v01)
sy = np.cov(v10)
delongcov = sx / m + sy / n
return aucs, delongcov
def fastDeLong_no_weights(predictions_sorted_transposed, label_1_count):
"""
The fast version of DeLong's method for computing the covariance of
unadjusted AUC.
Args:
predictions_sorted_transposed: a 2D numpy.array[n_classifiers, n_examples]
sorted such as the examples with label "1" are first
Returns:
(AUC value, DeLong covariance)
Reference:
@article{sun2014fast,
title={Fast Implementation of DeLong's Algorithm for
Comparing the Areas Under Correlated Receiver Oerating
Characteristic Curves},
author={Xu Sun and Weichao Xu},
journal={IEEE Signal Processing Letters},
volume={21},
number={11},
pages={1389--1393},
year={2014},
publisher={IEEE}
}
"""
# Short variables are named as they are in the paper
m = label_1_count
n = predictions_sorted_transposed.shape[1] - m
positive_examples = predictions_sorted_transposed[:, :m]
negative_examples = predictions_sorted_transposed[:, m:]
k = predictions_sorted_transposed.shape[0]
tx = np.empty([k, m], dtype=np.float)
ty = np.empty([k, n], dtype=np.float)
tz = np.empty([k, m + n], dtype=np.float)
for r in range(k):
tx[r, :] = compute_midrank(positive_examples[r, :])
ty[r, :] = compute_midrank(negative_examples[r, :])
tz[r, :] = compute_midrank(predictions_sorted_transposed[r, :])
aucs = tz[:, :m].sum(axis=1) / m / n - float(m + 1.0) / 2.0 / n
v01 = (tz[:, :m] - tx[:, :]) / n
v10 = 1.0 - (tz[:, m:] - ty[:, :]) / m
sx = np.cov(v01)
sy = np.cov(v10)
delongcov = sx / m + sy / n
return aucs, delongcov
def calc_pvalue(aucs, sigma):
"""Computes log(10) of p-values.
Args:
aucs: 1D array of AUCs
sigma: AUC DeLong covariances
Returns:
log10(pvalue)
"""
l = np.array([[1, -1]])
z = np.abs(np.diff(aucs)) / (np.sqrt(np.dot(np.dot(l, sigma), l.T)) + 1e-8)
pvalue = 2 * (1 - scipy.stats.norm.cdf(np.abs(z)))
# print(10**(np.log10(2) + scipy.stats.norm.logsf(z, loc=0, scale=1) / np.log(10)))
return pvalue
def compute_ground_truth_statistics(ground_truth, sample_weight=None):
assert np.array_equal(np.unique(ground_truth), [0, 1])
order = (-ground_truth).argsort()
label_1_count = int(ground_truth.sum())
if sample_weight is None:
ordered_sample_weight = None
else:
ordered_sample_weight = sample_weight[order]
return order, label_1_count, ordered_sample_weight
def delong_roc_variance(ground_truth, predictions):
"""
Computes ROC AUC variance for a single set of predictions
Args:
ground_truth: np.array of 0 and 1
predictions: np.array of floats of the probability of being class 1
"""
sample_weight = None
order, label_1_count, ordered_sample_weight = compute_ground_truth_statistics(
ground_truth, sample_weight)
predictions_sorted_transposed = predictions[np.newaxis, order]
aucs, delongcov = fastDeLong(predictions_sorted_transposed, label_1_count)
assert len(aucs) == 1, "There is a bug in the code, please forward this to the developers"
return aucs[0], delongcov
def delong_roc_test(ground_truth, predictions_one, predictions_two):
"""
Computes log(p-value) for hypothesis that two ROC AUCs are different
Args:
ground_truth: np.array of 0 and 1
predictions_one: predictions of the first model,
np.array of floats of the probability of being class 1
predictions_two: predictions of the second model,
np.array of floats of the probability of being class 1
"""
sample_weight = None
order, label_1_count,ordered_sample_weight = compute_ground_truth_statistics(ground_truth)
predictions_sorted_transposed = np.vstack((predictions_one, predictions_two))[:, order]
aucs, delongcov = fastDeLong(predictions_sorted_transposed, label_1_count,sample_weight)
return calc_pvalue(aucs, delongcov)
def delong_roc_ci(y_true,y_pred):
aucs, auc_cov = delong_roc_variance(y_true, y_pred)
auc_std = np.sqrt(auc_cov)
lower_upper_q = np.abs(np.array([0, 1]) - (1 - alpha) / 2)
ci = stats.norm.ppf(
lower_upper_q,
loc=aucs,
scale=auc_std)
ci[ci > 1] = 1
return aucs,ci
#examples 具体用法
y_true= np.load('自己的数据路径')
y_pred_1 = np.load('自己的数据路径')
y_pred _2 = np.load('自己的数据路径')
alpha = .95
def delong_roc_ci(y_true,y_pred):
aucs, auc_cov = delong_roc_variance(y_true, y_pred)
auc_std = np.sqrt(auc_cov)
lower_upper_q = np.abs(np.array([0, 1]) - (1 - alpha) / 2)
ci = stats.norm.ppf(
lower_upper_q,
loc=aucs,
scale=auc_std)
ci[ci > 1] = 1
return aucs,ci
#pvalue
pvalue = delong_roc_test(y_true,y_pred_1,y_pred_2)
# aucs, auc_cov = delong_roc_variance(y_true, y_pred)
auc_1, auc_cov_1 = delong_roc_variance(y_true, y_pred_1)
auc_2, auc_cov_2 = delong_roc_variance(y_true, y_pred_2)
auc_std = np.sqrt(auc_cov_1)
lower_upper_q = np.abs(np.array([0, 1]) - (1 - alpha) / 2)
#
ci = stats.norm.ppf(
lower_upper_q,
loc=auc_1,
scale=auc_std)
ci[ci > 1] = 1
print('95% AUC CI:', ci)
print('AUC:', auc_1)
print('p_value:', pvalue)
