ArcGIS Flex API 拖拽Graphic

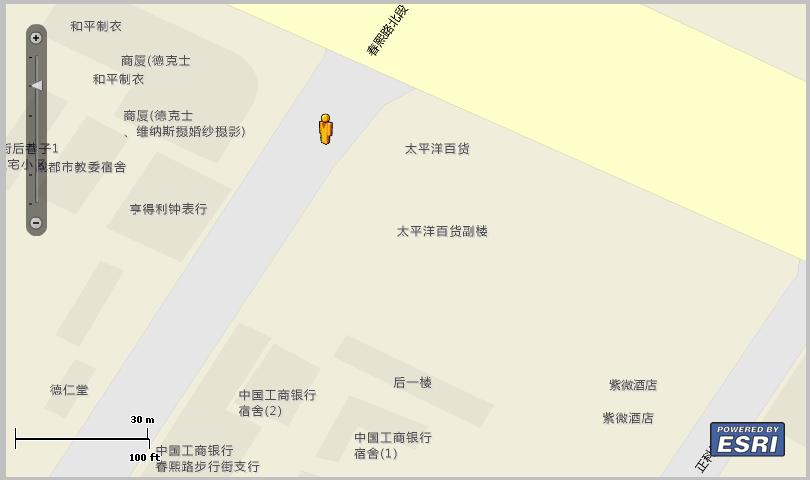

用了Google Street View的话,很熟悉那个人形,可以拖拽的,那么在 Flex API中怎么实现拖动某个Graphic呢?

如果用过ArcGIS Flex API中Drag Polygon查询例子的同行会知道,用这个例子修改一下就可以实现,但是,细心的同行可能会注意用Drage Polygon时,拖动Polygon会很卡,特别是鼠标移动太快时就会很卡。

不过,这个问题被解决了。


理解一下这段代码,你就会有收获。现在拖动Graphic时不会再卡,而且效率很高。

private function addListeners():void
            {
                panoGraphic.addEventListener(MouseEvent.MOUSE_UP,panoGraphicMouseUpEventHandler);
                myMap.addEventListener(MouseEvent.MOUSE_UP,mapMouseUpEventHandler);
                panoGraphic.addEventListener(MouseEvent.MOUSE_DOWN, panoGraphicMouseDownEventHandler);
            }

            public function panoGraphicMouseDownEventHandler(event:MouseEvent):void
            {
                try
                {
                    myMap.panEnabled = false;
                    panoGraphic.addEventListener(MouseEvent.MOUSE_MOVE, dragShapeEventHandler);
                    myMap.addEventListener(MouseEvent.MOUSE_MOVE, dragShapeEventHandler);

                }
                catch(err:Error)
                {
                }
            }

            //handle a mouseup event on the map
            public function panoGraphicMouseUpEventHandler(event:MouseEvent):void
            {
                try
                {
                    myMap.panEnabled = true;
                    panoGraphic.symbol = pano;
                    panoGraphic.removeEventListener(MouseEvent.MOUSE_MOVE, dragShapeEventHandler);
                    myMap.removeEventListener(MouseEvent.MOUSE_MOVE, dragShapeEventHandler);
                }

                catch(err:Error)
                {
                }
            }

            //as the polygon gets dragged, remove old Graphic children and create new Graphic
            public function dragShapeEventHandler(event:MouseEvent):void
            {
                myMap.panEnabled = false;
                var arr1:Array = new Array();                   //a temporary array
                var mapPointFromStage:MapPoint = myMap.toMapFromStage(event.stageX,event.stageY);

                panoGraphic.geometry = mapPointFromStage;
                panoGraphic.symbol = panoDrag;
            }


            public function mapMouseOverEventHandler(event:MouseEvent):void
            {
                try
                {
                    if(event.target.geometry.type == "esriGeometryPoint")
                    {
                        myMap.panEnabled = false;
                    }
                }
                catch(err:Error)
                {
                }
            }

            public function mapMouseUpEventHandler(event:MouseEvent):void
            {
                try
                {
                    panoGraphic.symbol = pano;
                    panoGraphic.removeEventListener(MouseEvent.MOUSE_MOVE, dragShapeEventHandler);
                }

                catch(err:Error)
                {
                }
            }
