RK3568 OpenHarmony V3.2 Beta5 开发之板级驱动适配(二)

前言

上回说到，如果是自己的主板，应该如何适配板级驱动，让OpenHarmony系统在自己的板子上跑起来呢？

1.OpenHarmony SDK驱动内核编译流程解析

(1)首先，rk3568平台的内核配置和预编译脚本在：device/board/hihope/rk3568/kernel/build_kernel.sh

简单地说，其核心思想是：基于linux-5.10的基础内核，打上rk3568平台的核心补丁kernel.patch后，就可以支持RK3568板级dts配置和基础驱动。然后拷贝内核源码到out目录进行编译。

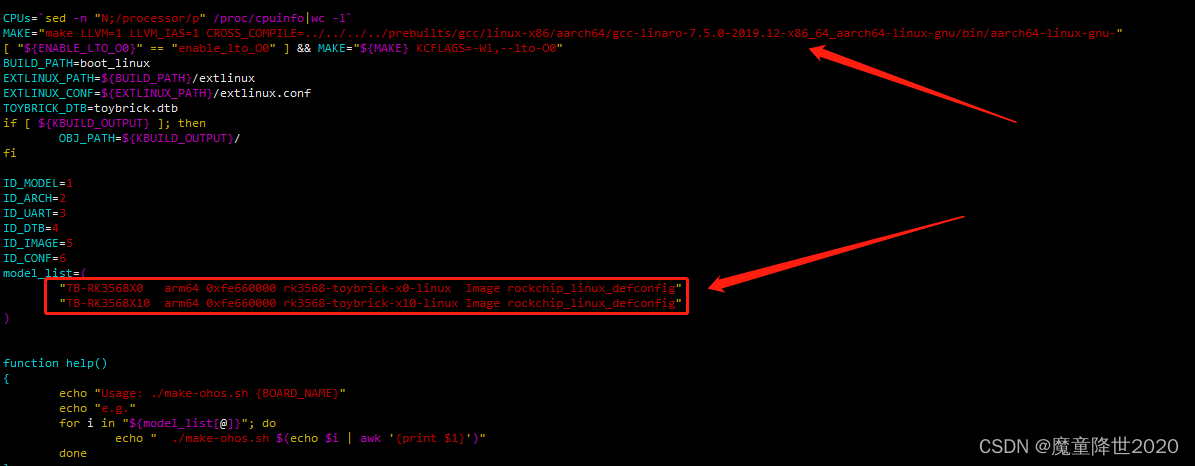

(2)内核的编译脚本在out/kernel/src_tmp/linux-5.10/make-ohos.sh 中
这里配置了编译工具链，指定的板级dts，config等(没错，这里就是我们需要找的地方)

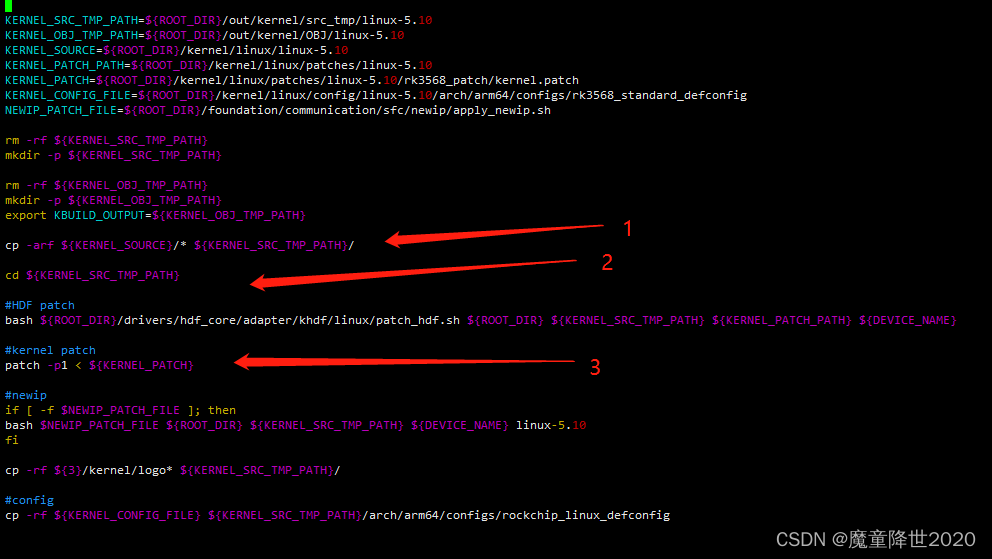

2.构建编译思路

(1)首先进入内核基础目录kernel/linux/linux-5.10 打上kernel.patch，这样我们就拥有了一份rk3568完整的内核代码

(2) 进入kernel/linux/linux-5.10/arch/arm64/boot/dts/rockchip目录，加入自己的板级dts和相关dtsi配置

(3)修改后生成新的核心补丁kernel.patch，新的kernel.patch替换掉kernel/linux/patches/linux-5.10/rk3568_patch/kernel.patch

这样完全编译出的固件，就对应我们自己的主板了。(当然，编译脚本要指定到对应的板级dts，下面会举例)

3.调试实战

(1)修改预编译脚本
device/board/hihope/rk3568/kernel/build_kernel.sh

diff --git a/rk3568/kernel/build_kernel.sh b/rk3568/kernel/build_kernel.sh
index 4bd1e65..6b0fdf4 100755
--- a/rk3568/kernel/build_kernel.sh
+++ b/rk3568/kernel/build_kernel.sh
@@ -72,7 +72,7 @@ do
                        ;;
        esac
 done
-eval $make_ohos_env ./make-ohos.sh TB-RK3568X0 $ramdisk_arg ${ENABLE_LTO_O0}
+eval $make_ohos_env ./make-ohos.sh NN-RK3568N10 $ramdisk_arg ${ENABLE_LTO_O0}

 mkdir -p ${2}

diff --git a/rk3568/kernel/logo.bmp b/rk3568/kernel/logo.bmp
index 980f44e..b4bc234 100755
Binary files a/rk3568/kernel/logo.bmp and b/rk3568/kernel/logo.bmp differ
diff --git a/rk3568/kernel/logo_kernel.bmp b/rk3568/kernel/logo_kernel.bmp
index f74ed84..2c7ecdf 100755
Binary files a/rk3568/kernel/logo_kernel.bmp and b/rk3568/kernel/logo_kernel.bmp differ

(2)修改内核编译脚本，添加自己的板级dts、dtsi文件
cd kernel/linux
进入内核源码目录：
先打一次rk3568默认补丁kernel.patch，操作如下：

cd linux-5.10/
patch -p1 < ../patches/linux-5.10/rk3568_patch/kernel.patch

make-ohos.sh修改如下：

 diff --git a/make-ohos.sh b/make-ohos.sh
 new file mode 100755
-index 000000000..4f6b72d23
+index 000000000..50fb79a39
 --- /dev/null
 +++ b/make-ohos.sh
-@@ -0,0 +1,135 @@
+@@ -0,0 +1,137 @@
 +#!/bin/bash
 +
 +set -e
@@ -1665131,7 +1665526,8 @@ index 000000000..4f6b72d23
 +BUILD_PATH=boot_linux
 +EXTLINUX_PATH=${BUILD_PATH}/extlinux
 +EXTLINUX_CONF=${EXTLINUX_PATH}/extlinux.conf
-+TOYBRICK_DTB=toybrick.dtb
++#TOYBRICK_DTB=toybrick.dtb
++NNEWN_DTB=rk3568-evb-nnewn.dtb
 +if [ ${KBUILD_OUTPUT} ]; then
 +      OBJ_PATH=${KBUILD_OUTPUT}/
 +fi
@@ -1665145,6 +1665541,7 @@ index 000000000..4f6b72d23
 +model_list=(
 +      "TB-RK3568X0   arm64 0xfe660000 rk3568-toybrick-x0-linux  Image rockchip_linux_defconfig"
 +      "TB-RK3568X10  arm64 0xfe660000 rk3568-toybrick-x10-linux Image rockchip_linux_defconfig"
++      "NN-RK3568N10  arm64 0xfe660000 rk3568-evb-nnewn Image rockchip_linux_defconfig"
 +)
 +
 +
@@ -1665166,7 +1665563,7 @@ index 000000000..4f6b72d23
 +
 +      echo "label rockchip-kernel-5.10" > ${EXTLINUX_CONF}
 +      echo "  kernel /extlinux/${image}" >> ${EXTLINUX_CONF}
-+      echo "  fdt /extlinux/${TOYBRICK_DTB}" >> ${EXTLINUX_CONF}
++      echo "  fdt /extlinux/${NNEWN_DTB}" >> ${EXTLINUX_CONF}
 +      cmdline="append earlycon=uart8250,mmio32,${uart} root=PARTUUID=614e0000-0000-4b53-8000-1d28000054a9 rw rootwait rootfstype=ext4"
 +      echo "  ${cmdline}" >> ${EXTLINUX_CONF}
 +}
@@ -1665234,7 +1665631,7 @@ index 000000000..4f6b72d23
 +      fi
 +      make_extlinux_conf ${dtb_path} ${uart} ${image}
 +      cp -f ${OBJ_PATH}arch/${arch}/boot/${image} ${EXTLINUX_PATH}/
-+      cp -f ${OBJ_PATH}${dtb_path}/${dtb}.dtb ${EXTLINUX_PATH}/${TOYBRICK_DTB}
++      cp -f ${OBJ_PATH}${dtb_path}/${dtb}.dtb ${EXTLINUX_PATH}/${NNEWN_DTB}
 +      cp -f logo*.bmp ${BUILD_PATH}/
 +      if [ "enable_ramdisk" != "${ramdisk_flag}" ]; then
 +              make_ext2_image

dts和dtsi文件自己添加到kernel/linux/linux-5.10/arch/arm64/boot/dts/rockchip/目录

(3)合并生成新补丁，迭代旧的kernel.patch
操作如下：

cd linux-5.10/
git add -A
git diff --cached > kernel.patch
cp kernel.patch ../patches/linux-5.10/rk3568_patch/
git reset --hard 9a1d8aa6829683f690336aaf2741c0b658964aeb

(4)编译验证
编译指令(由于我们默认已经将编译脚本指向了我们自己的dts，所以编译指令不变)
./build.sh --product-name rk3568 --ccache4

4.效果演示
