大数据ELK日志分析（ES配置内存有问题）

---

一、准备环境

10.8.156.134	es1
10.8.156.135	es2
10.8.156.136	es3

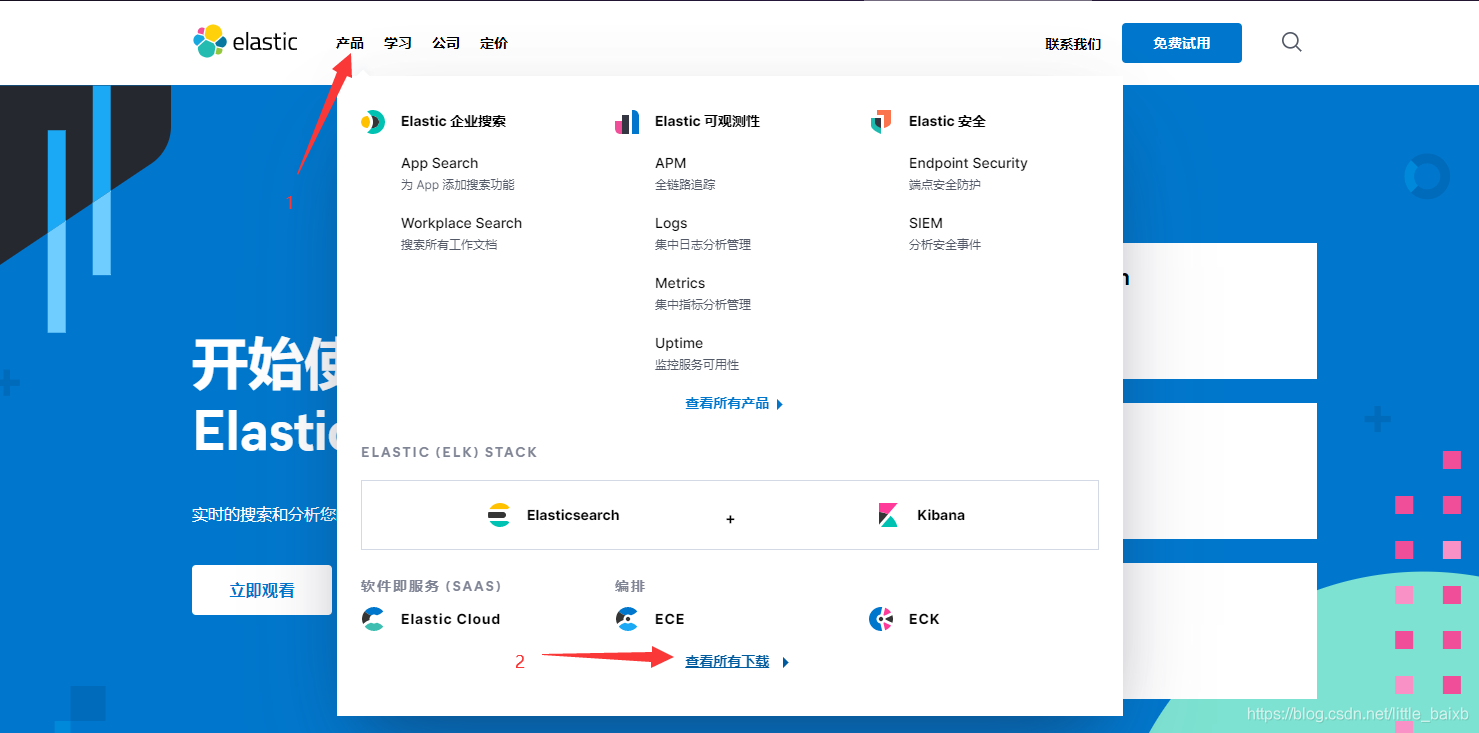

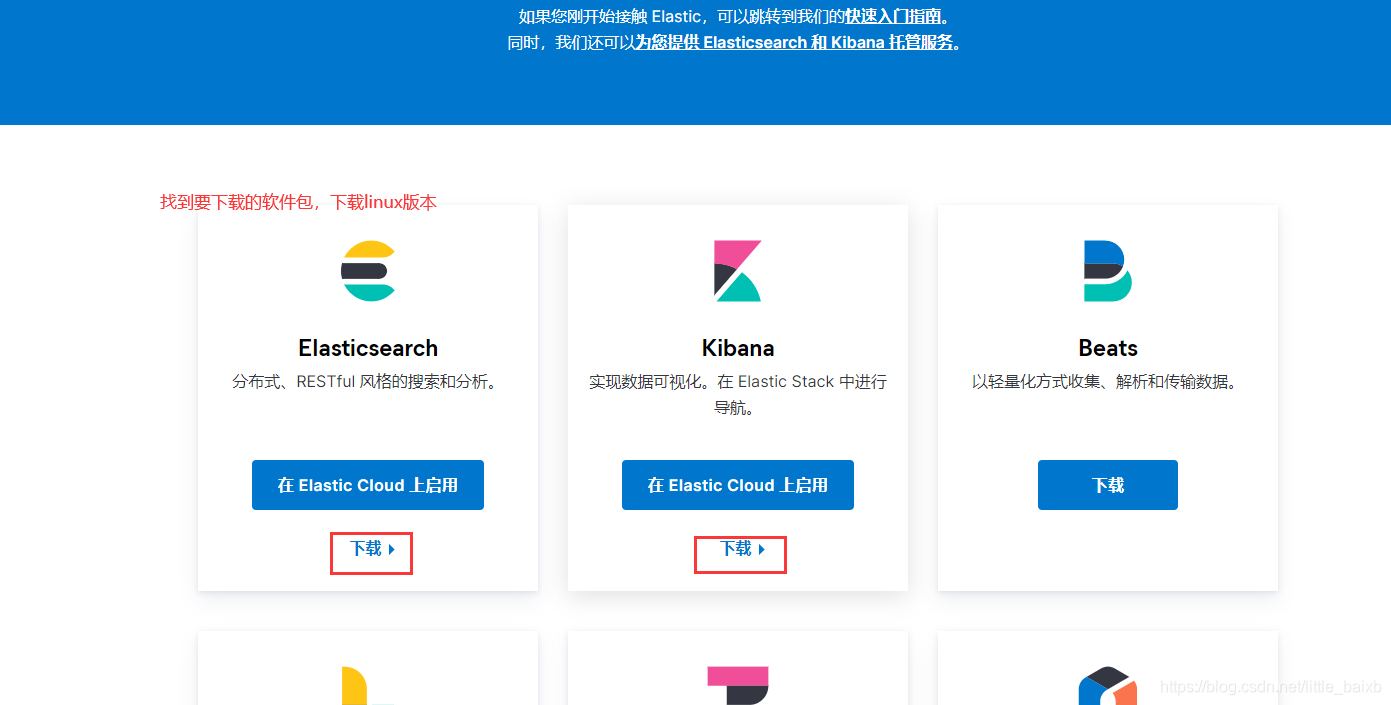

1、ELK下载包官网地址链接

---

2、jdk1.8部署

#三台机器都要配置jdk
[xiaobai@es1] tar xzf jdk-8u211-linux-x64.tar.gz -C /usr/local/
[xiaobai@es1] cd /usr/local/
[xiaobai@es1 local] mv jdk1.8.0_191/ java
[xiaobai@es1 local] echo '
JAVA_HOME=/usr/local/java
PATH=$JAVA_HOME/bin:$PATH
export JAVA_HOME PATH
' >>/etc/profile

[xiaobai@es1 local] source /etc/profile
[xiaobai@es1 local] java -version
java version "1.8.0_211"
Java(TM) SE Runtime Environment (build 1.8.0_211-b12)
Java HotSpot(TM) 64-Bit Server VM (build 25.211-b12, mixed mode)

二、Elasticsearch部署

#以下只在es1机器上操作
[xiaobai@es1] useradd elsearch
[xiaobai@es1] echo "123456" | passwd --stdin "elsearch"
[xiaobai@es1] tar xzf elasticsearch-7.8.0-linux-x86_64.tar.gz -C /usr/local/
[xiaobai@es1] cd /usr/local/elasticsearch-7.8.0/config/

[xiaobai@es1 config] ls
elasticsearch.yml  jvm.options.d      role_mapping.yml  users
jvm.options        log4j2.properties  roles.yml         users_roles

[xiaobai@es1 config] cp elasticsearch.yml elasticsearch.yml.bak

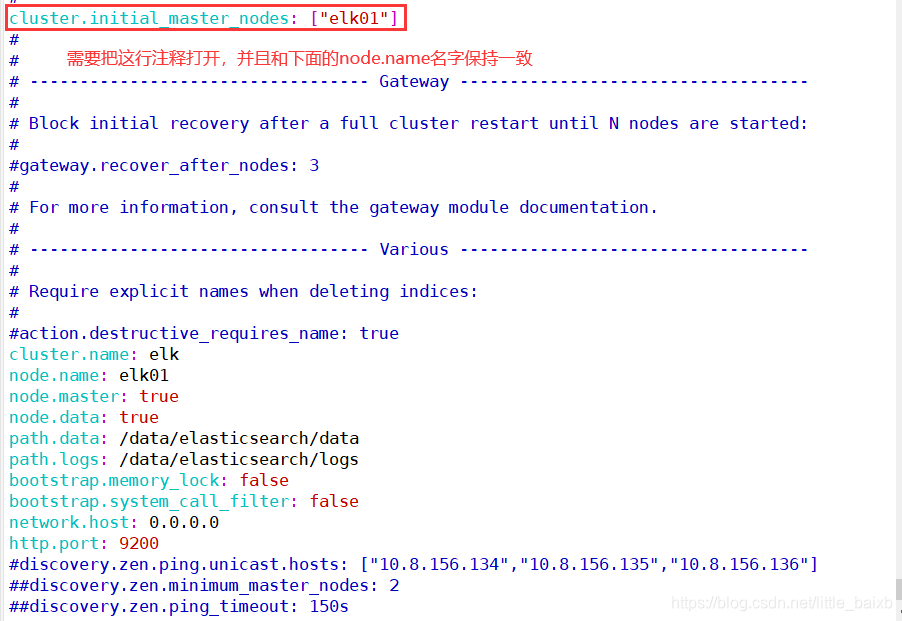

[xiaobai@es1 config] vim elasticsearch.yml
cluster.name: elk
node.name: elk01
node.master: true
node.data: true
path.data: /data/elasticsearch/data
path.logs: /data/elasticsearch/logs
bootstrap.memory_lock: false
bootstrap.system_call_filter: false
network.host: 0.0.0.0
http.port: 9200
#discovery.zen.ping.unicast.hosts: ["10.8.156.134","10.8.156.135","10.8.156.136"]
##discovery.zen.minimum_master_nodes: 2
##discovery.zen.ping_timeout: 150s
##discovery.zen.fd.ping_retries: 10
##client.transport.ping_timeout: 60s
http.cors.enabled: true
http.cors.allow-origin: "*"

cluster.name 集群名称，各节点配成相同的集群名称。
node.name 节点名称，各节点配置不同。
node.master 指示某个节点是否符合成为主节点的条件。
node.data 指示节点是否为数据节点。数据节点包含并管理索引的一部分。
path.data 数据存储目录。
path.logs 日志存储目录。
bootstrap.memory_lock 内存锁定，是否禁用交换。
bootstrap.system_call_filter 系统调用过滤器。
network.host 绑定节点IP。
http.port 端口。
discovery.zen.ping.unicast.hosts 提供其他 Elasticsearch 服务节点的单点广播发现功能。
discovery.zen.minimum_master_nodes 集群中可工作的具有Master节点资格的最小数量，官方的推荐值是(N/2)+1，其中N是具有master资格的节点的数量。
discovery.zen.ping_timeout 节点在发现过程中的等待时间。
discovery.zen.fd.ping_retries 节点发现重试次数。
http.cors.enabled 是否允许跨源 REST 请求，用于允许head插件访问ES。
http.cors.allow-origin 允许的源地址。

#设置jvm堆大小
[xiaobai@es1 config] vim jvm.options
-Xms4g   #将-Xms4g    ----修改成 -Xms2g
-Xmx4g   #将-Xmx4g    ----修改成 -Xmx2g

#默认的推荐设置为4G，也可以用下面的方法更改配置
[xiaobai@es1 config] sed -i 's/-Xms4g/-Xms2g/' jvm.options
[xiaobai@es1 config] sed -i 's/-Xmx4g/-Xmx2g/' jvm.options
#以上两种选一种
#确保堆内存最小值（Xms）与最大值（Xmx）的大小相同，防止程序在运行时改变堆内存大小。堆内存大小不要超过系统内存的50%

#创建es数据及日志存储目录
[xiaobai@es1 config] cd
[xiaobai@es1] mkdir -p /data/elasticsearch/data
[xiaobai@es1] mkdir -p /data/elasticsearch/logs
[xiaobai@es1] chown -R elsearch:elsearch /data/elasticsearch
[xiaobai@es1] chown -R elsearch:elsearch /usr/local/elasticsearch-7.8.0/

#增加最大文件打开数
[xiaobai@es1] echo "* - nofile 65536" >> /etc/security/limits.conf
#增加最大进程数
[xiaobai@es1] vim /etc/security/limits.conf
#在文件最后一行加入
* soft nofile 65536
* hard nofile 131072
* soft nproc 2048
* hard nproc 4096
#soft  xxx  : 代表警告的设定，可以超过这个设定值，但是超过后会有警告。
#hard  xxx  : 代表严格的设定，不允许超过这个设定的值。
#nofile : 是每个进程可以打开的文件数的限制
#nproc  : 是操作系统级别对每个用户创建的进程数的限制

#增加最大内存映射数
[xiaobai@es1] vim /etc/sysctl.conf
#在最后一行加入
vm.max_map_count=262144
vm.swappiness=0

[xiaobai@es1] sysctl -p
[xiaobai@es1] sysctl -w vm.max_map_count=262144

#如果启动报错
memory locking requested for elasticsearch process but memory is not locked.elasticsearch.yml.bootstrap.memory_lock : false
/etc/sysctl.conf
vm.swappiness=0
#错误
max file descriptors [4096] for elasticsearch process is too low, increase to at least [65536]
[xiaobai@es1] vim /etc/security/limits.conf
#在最后一行添加
* hard nofile 65536
* hard nofile 65536

#启动还会遇到另外一个问题
max virtual memory areas vm.max_map_count [65530] is too low, increase to at least [262144]
#这个比较简单，也不需要重启，直接执行
[xiaobai@es1] sysctl -w vm.max_map_count=262144
#意思是：elasticsearch用户拥有的内存权限太小了，至少需要262114。

[xiaobai@es1] su - elsearch
[elsearch@es1] cd /usr/local/elasticsearch-7.8.0/
[elsearch@es1 elasticsearch-7.8.0] nohup ./bin/elasticsearch &

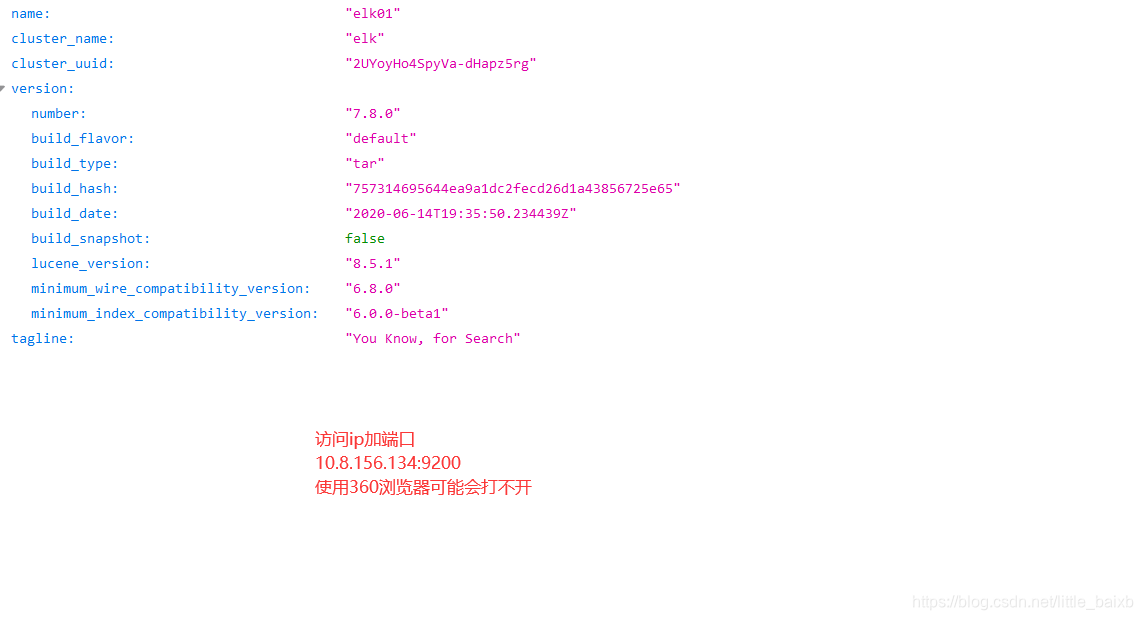

[elsearch@es1 elasticsearch-7.8.0] tail -f nohup.out

1、安装监控插件

本地node插件下载地址

#在es2机器上操作
#直接下载到服务器node插件方法
[xiaobai@es2] wget https://npm.taobao.org/mirrors/node/latest-v4.x/node-v4.4.7-linux-x64.tar.gz
[xiaobai@es2] ls
node-v4.4.7-linux-x64.tar.gz
[xiaobai@es2] tar xzf node-v4.4.7-linux-x64.tar.gz -C /usr/local/
[xiaobai@es2] vim /etc/profile
NODE_HOME=/usr/local/node-v4.4.7-linux-x64
PATH=$NODE_HOME/bin:$PATH
export NODE_HOME PATH
[xiaobai@es2] source /etc/profile
[xiaobai@es2] node --version
v4.4.7

#在es2机器上操作
#下载head插件
[xiaobai@es2] wget https://github.com/mobz/elasticsearch-head/archive/master.zip
[xiaobai@es2] cp master.zip /usr/local/
[xiaobai@es2] yum -y install unzip
[xiaobai@es2] cd /usr/local/
[xiaobai@es2 local] unzip  master.zip

#在es2机器上操作
#安装grunt
[xiaobai@es2 local] cd elasticsearch-head-master/
[xiaobai@es2 elasticsearch-head-master] npm install -g grunt-cli
[xiaobai@es2 elasticsearch-head-master] grunt --version
grunt-cli v1.3.2

#在es2机器上操作

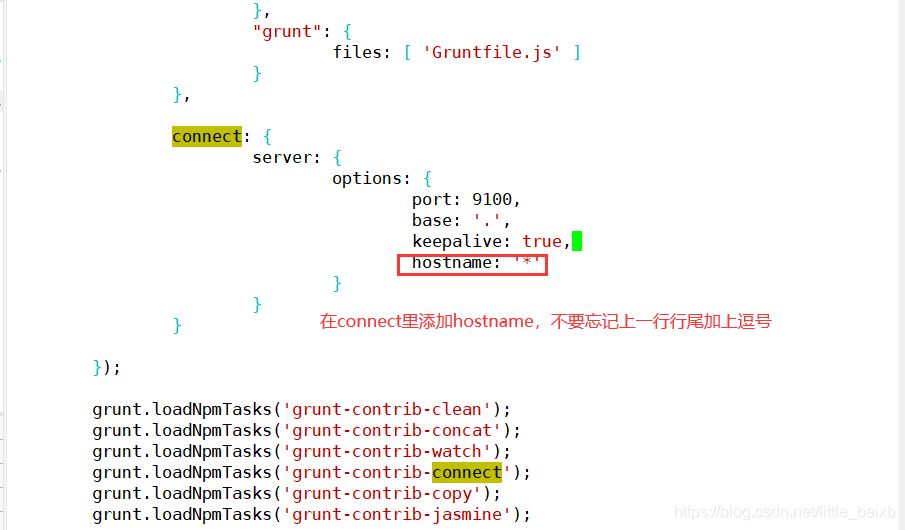

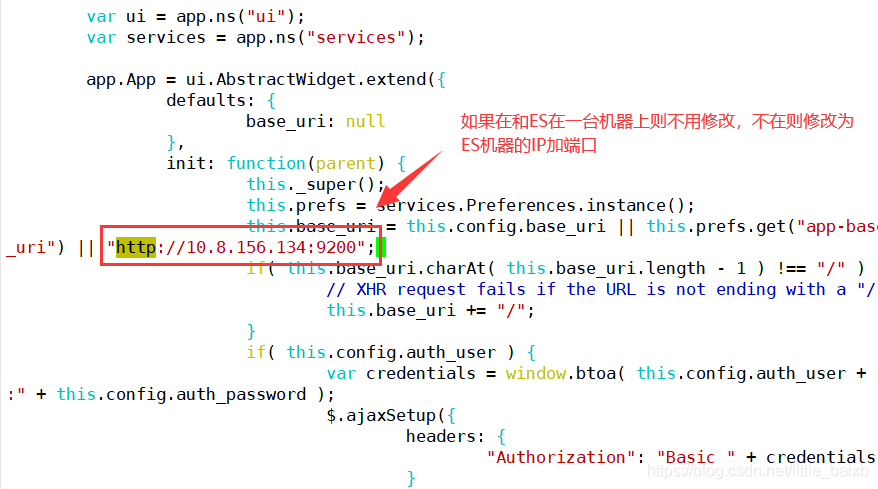

#修改head源码
[xiaobai@es2 elasticsearch-head-master] vim /usr/local/elasticsearch-head-master/Gruntfile.js

[xiaobai@es2 elasticsearch-head-master] vim /usr/local/elasticsearch-head-master/_site/app.js

#下载head必要的文件
[xiaobai@es2] wget https://github.com/Medium/phantomjs/releases/download/v2.1.1/phantomjs-2.1.1-linux-x86_64.tar.bz2
[xiaobai@es2] yum -y install bzip2
[xiaobai@es2] tar xjf phantomjs-2.1.1-linux-x86_64.tar.bz2 -C /tmp/

2、启动head

#在es2机器上操作
[xiaobai@es2] cd /usr/local/elasticsearch-head-master/
[xiaobai@es2 elasticsearch-head-master] npm config set registry https://registry.npm.taobao.org
[xiaobai@es2 elasticsearch-head-master] npm install phantomjs-prebuilt@2.1.16 --ignore-scripts
[xiaobai@es2 elasticsearch-head-master] nohup grunt server &
[xiaobai@es2 elasticsearch-head-master] tail -f nohup.out

三、Kibana部署

#开头文章有kibana的下载包地址
#在es2机器上操作
[xiaobai@es2] tar xzf kibana-7.8.0-linux-x86_64.tar.gz -C /usr/local/
[xiaobai@es2] cd /usr/local/kibana-7.8.0-linux-x86_64/config/

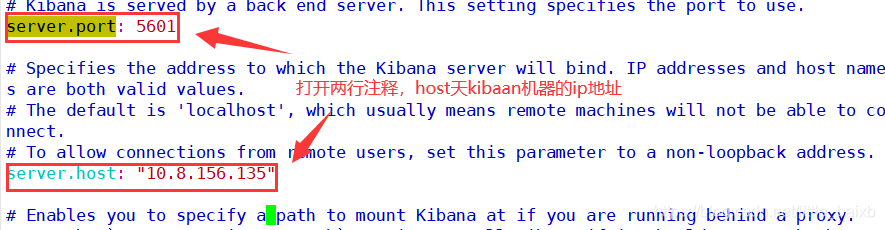

[xiaobai@es2 config] vim kibana.yml

---

server.port kibana 服务端口，默认5601
server.host kibana 主机IP地址，默认localhost

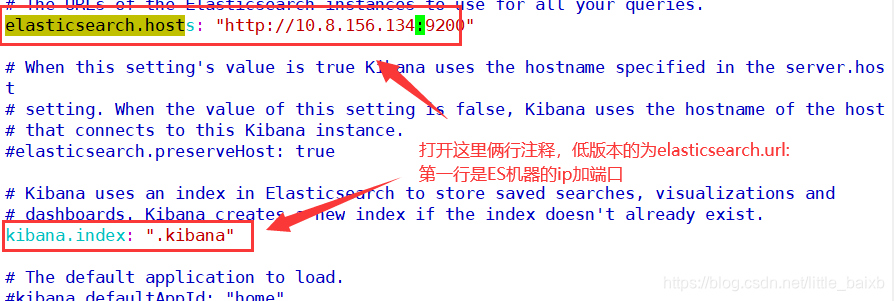

elasticsearch.hosts 用来做查询的ES节点的hosts，默认http://localhost:9200
kibana.index kibana在Elasticsearch中使用索引来存储保存searches，visualizations和dashboards。默认.kibana

1、启动kibana

#启动kibana
[xiaobai@es2 config] cd ../bin
[xiaobai@es2 bin] nohup ./kibana --allow-root &   #--allow-root，允许root用户启动
#[2] 8884
#[root@es2 bin]# nohup: ignoring input and appending output to ‘nohup.out’
[xiaobai@es2 bin] netstat -tnlp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 0.0.0.0:22              0.0.0.0:*               LISTEN      7081/sshd
tcp        0      0 127.0.0.1:25            0.0.0.0:*               LISTEN      7204/master
tcp        0      0 10.8.156.135:5601       0.0.0.0:*               LISTEN      8824/./bin/../node/
tcp6       0      0 :::9100                 :::*                    LISTEN      8042/grunt
tcp6       0      0 :::22                   :::*                    LISTEN      7081/sshd
tcp6       0      0 ::1:25                  :::*                    LISTEN      7204/master

#nginx反向代理
[xiaobai@es2 bin] cd
[xiaobai@es2] rpm -ivh http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm
[xiaobai@es2] yum -y install nginx
[xiaobai@es2] cd /etc/nginx/conf.d/
[xiaobai@es2 conf.d] cp default.conf nginx.conf.bak
[xiaobai@es2 conf.d] mv default.conf nginx.conf
[xiaobai@es2 conf.d] vim nginx.conf
server {
        listen       80;
        server_name  10.8.156.135;

        #charset koi8-r;

        # access_log  /var/log/nginx/host.access.log  main;
        # access_log off;

        location / {
            proxy_pass http://10.8.156.135:5601;
            proxy_set_header Host $host:5601;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header Via "nginx";
        }

        location /status {
            stub_status on;   #开启网站监控状态
            access_log /var/log/nginx/kibana_status.log;   #监控日志
            auth_basic "NginxStatus";
        }

        location /head/ {
            proxy_pass http://10.8.156.135:9100;
            proxy_set_header Host $host:9100;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header Via "nginx";
        }
}

[xiaobai@es2 conf.d] cd ..
[xiaobai@es2 nginx] vim /etc/nginx/nginx.conf

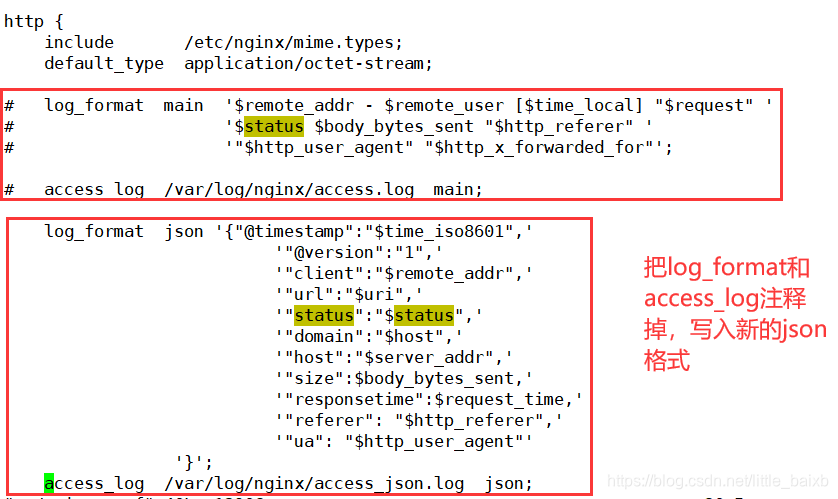

#将原来的log_format注释掉，添加json格式的配置信息
    log_format  json '{"@timestamp":"$time_iso8601",'
                           '"@version":"1",'
                           '"client":"$remote_addr",'
                           '"url":"$uri",'
                           '"status":"$status",'
                           '"domain":"$host",'
                           '"host":"$server_addr",'
                           '"size":$body_bytes_sent,'
                           '"responsetime":$request_time,'
                           '"referer": "$http_referer",'
                           '"ua": "$http_user_agent"'
                 '}';
    access_log  /var/log/nginx/access_json.log  json;

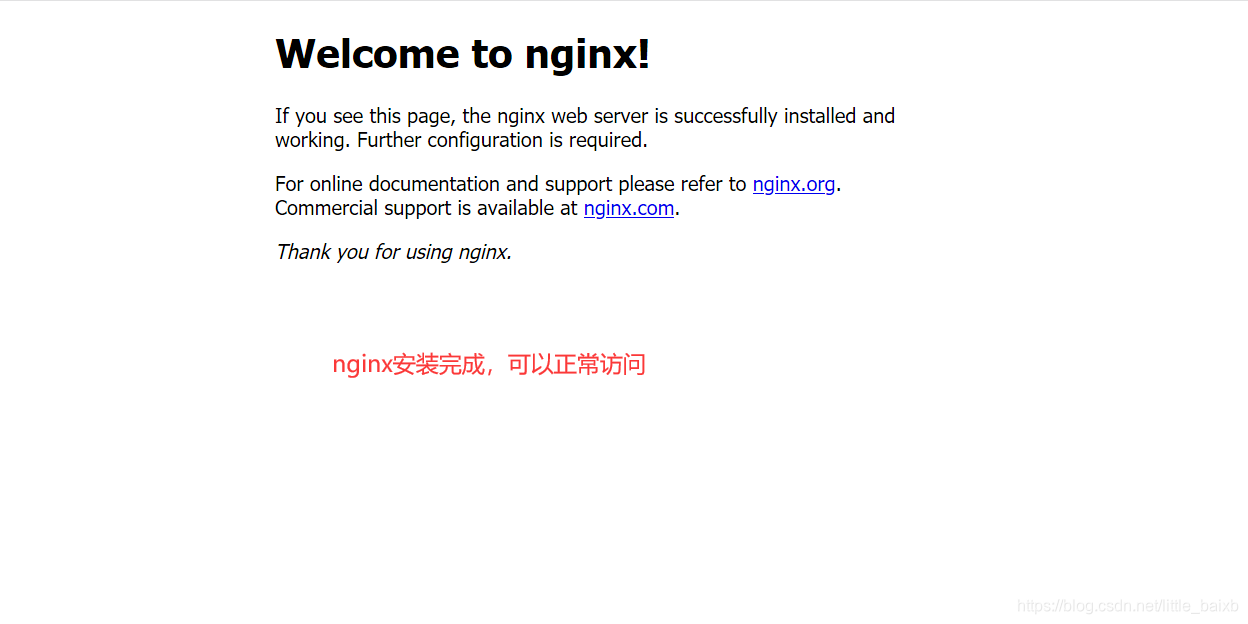

#启动nginx
[xiaobai@es2 nginx] systemctl start nginx
[xiaobai@es2 nginx] systemctl enable nginx

四、Logstash部署

#文章开头有logstash下载包的链接
#在es3机器上操作
[xiaobai@es3] tar xzf logstash-7.8.0.tar.gz -C /usr/local/

#安装nginx,用于模拟生产环境中的服务，收集nginx日志
[xiaobai@es3] rpm -ivh http://nginx.org/packages/centos/7/noarch/RPMS/nginx-release-centos-7-0.el7.ngx.noarch.rpm
[xiaobai@es3] yum -y install nginx
[xiaobai@es3] vim /etc/nginx/nginx.conf
#同上，将原来的日志格式注释掉定义成json格式
    log_format  json '{"@timestamp":"$time_iso8601",'
                           '"@version":"1",'
                           '"client":"$remote_addr",'
                           '"url":"$uri",'
                           '"status":"$status",'
                           '"domain":"$host",'
                           '"host":"$server_addr",'
                           '"size":$body_bytes_sent,'
                           '"responsetime":$request_time,'
                           '"referer": "$http_referer",'
                           '"ua": "$http_user_agent"'
    '}';
    access_log  /var/log/nginx/access_json.log  json;

[xiaobai@es3] systemctl start nginx
[xiaobai@es3] systemctl enable nginx

[xiaobai@es3] mkdir -p /usr/local/logstash-7.8.0/etc/conf.d
[xiaobai@es3] cd /usr/local/logstash-7.8.0/etc/conf.d/
[xiaobai@es3 conf.d] vim input.conf
input {   #让logstash可以读取特定的事件源。

    file {   #从文件读取

    path => ["/var/log/nginx/access_json.log"]        #要输入的文件路径
#   code => "json"   #定义编码，用什么格式输入和输出，由于日志就是json格式，这里不用再写

        type => "shopweb"   #定义一个类型，通用选项. 用于激活过滤器
    }
}

[xiaobai@es3 conf.d] vim output.conf
output {   #输出插件，将事件发送到特定目标
    elasticsearch {   #输出到es机器
    hosts => ["10.8.156.134:9200"]   #指定es服务的ip加端口
    index => ["%{type}-%{+YYYY.MM.dd}"]   #引用input中的type名称，定义输出的格式
    }
}

1、启动logstash

[xiaobai@es3 conf.d] cd ../..
[xiaobai@es3 logstash-7.8.0] nohup bin/logstash -f etc/conf.d/  --config.reload.automatic &
[xiaobai@es3 logstash-7.8.0] tail -f nohup.out

---

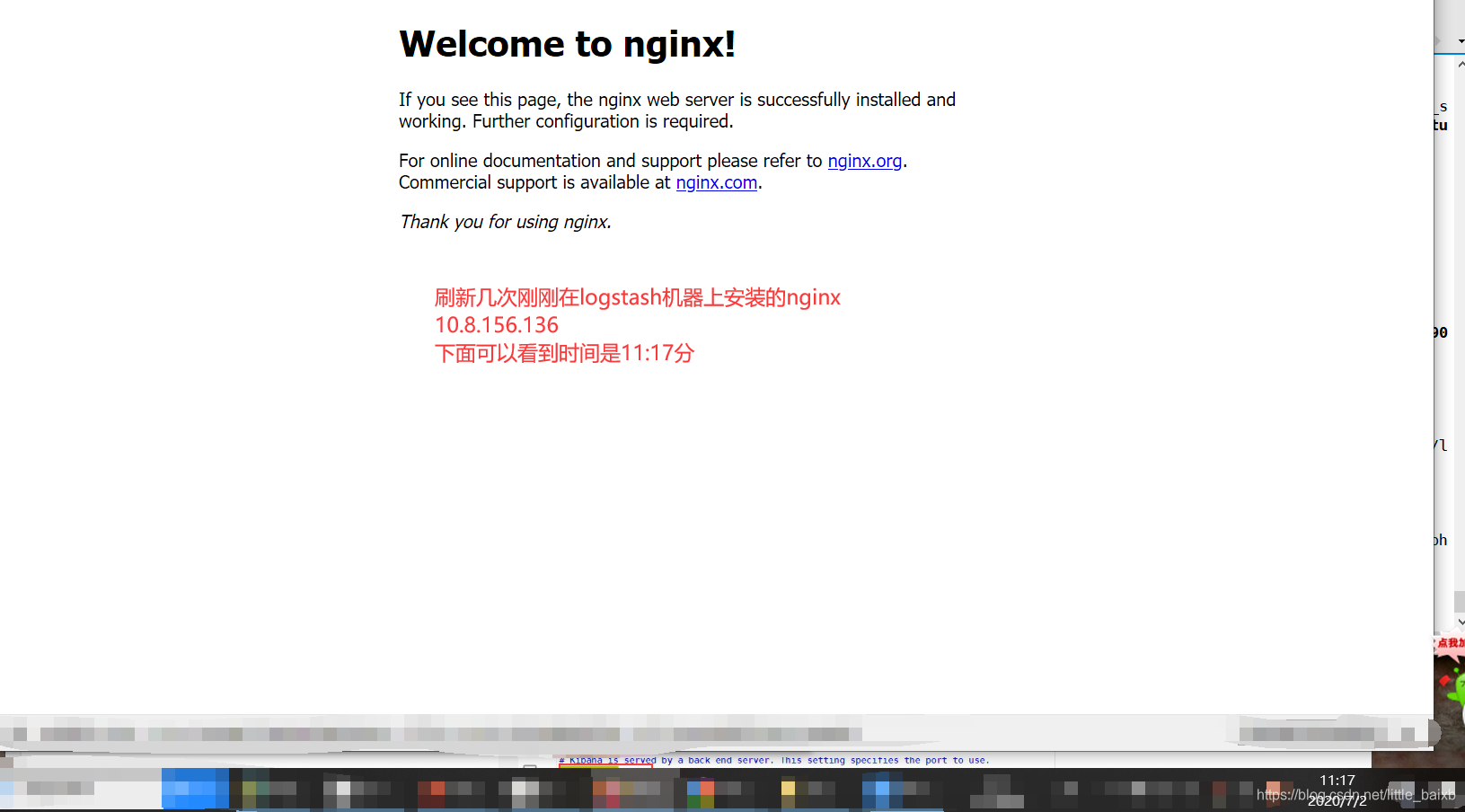

五、测试使用

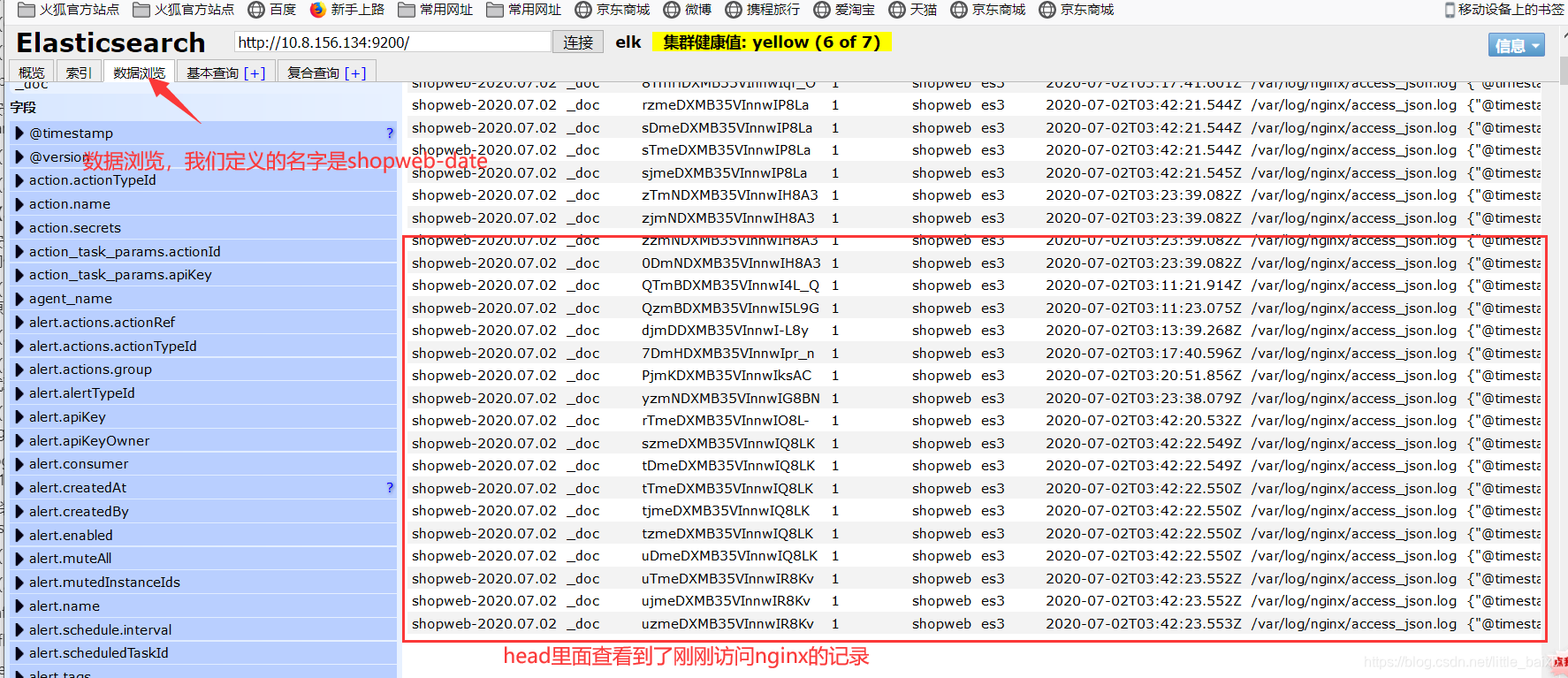

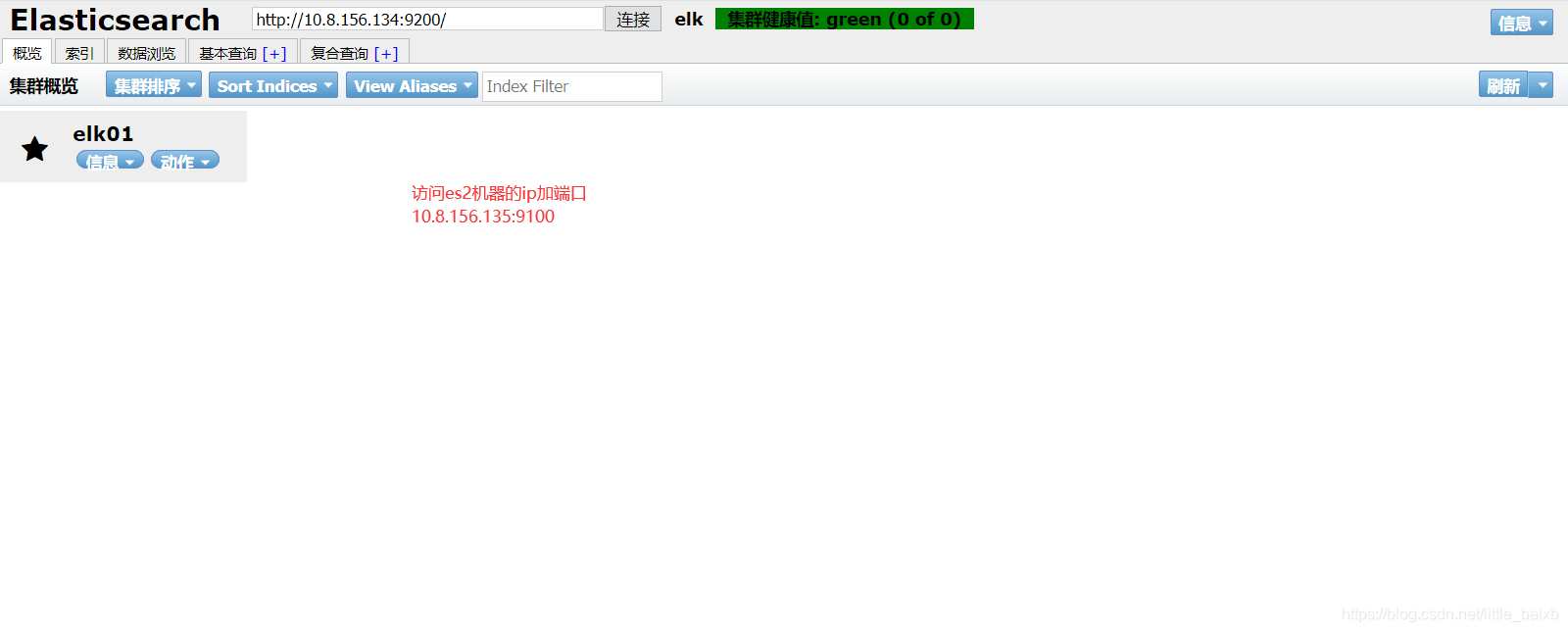

1、head上查看

---

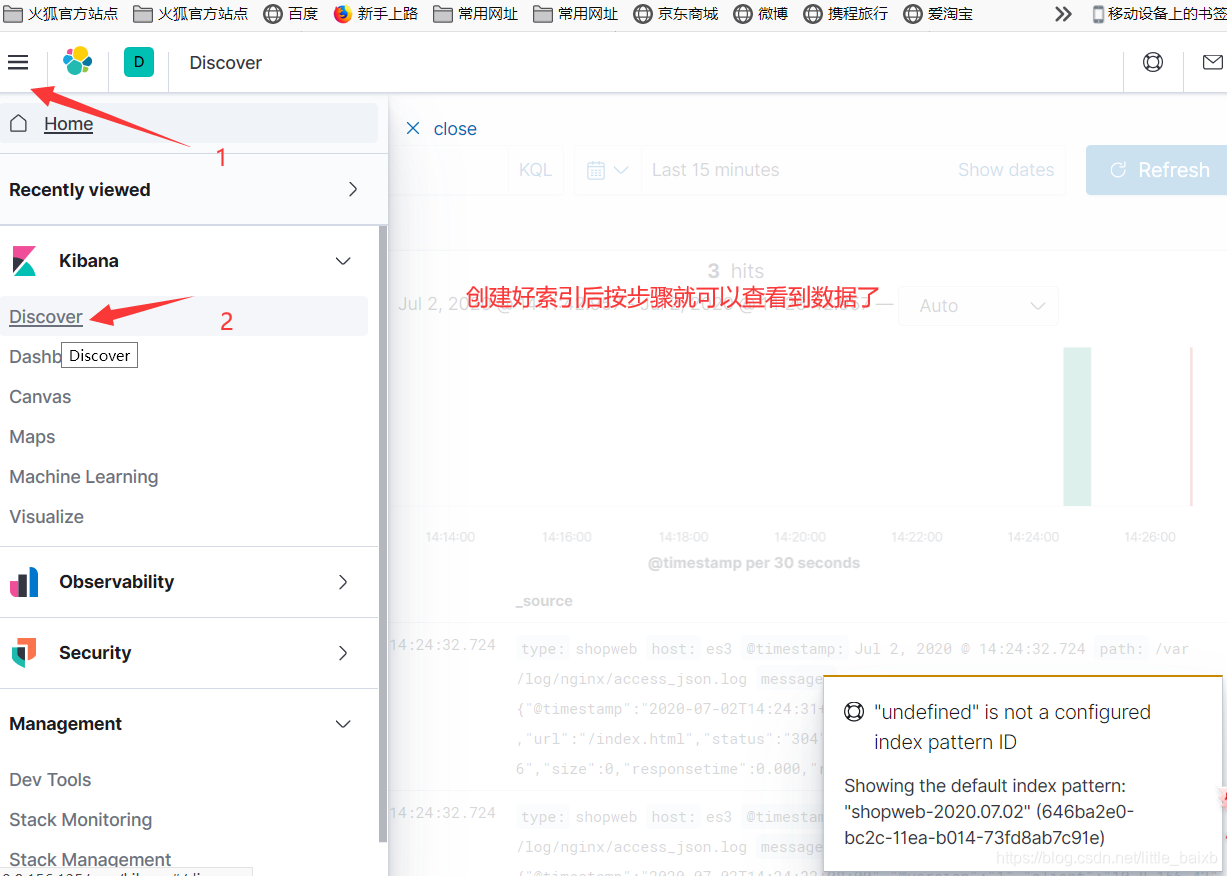

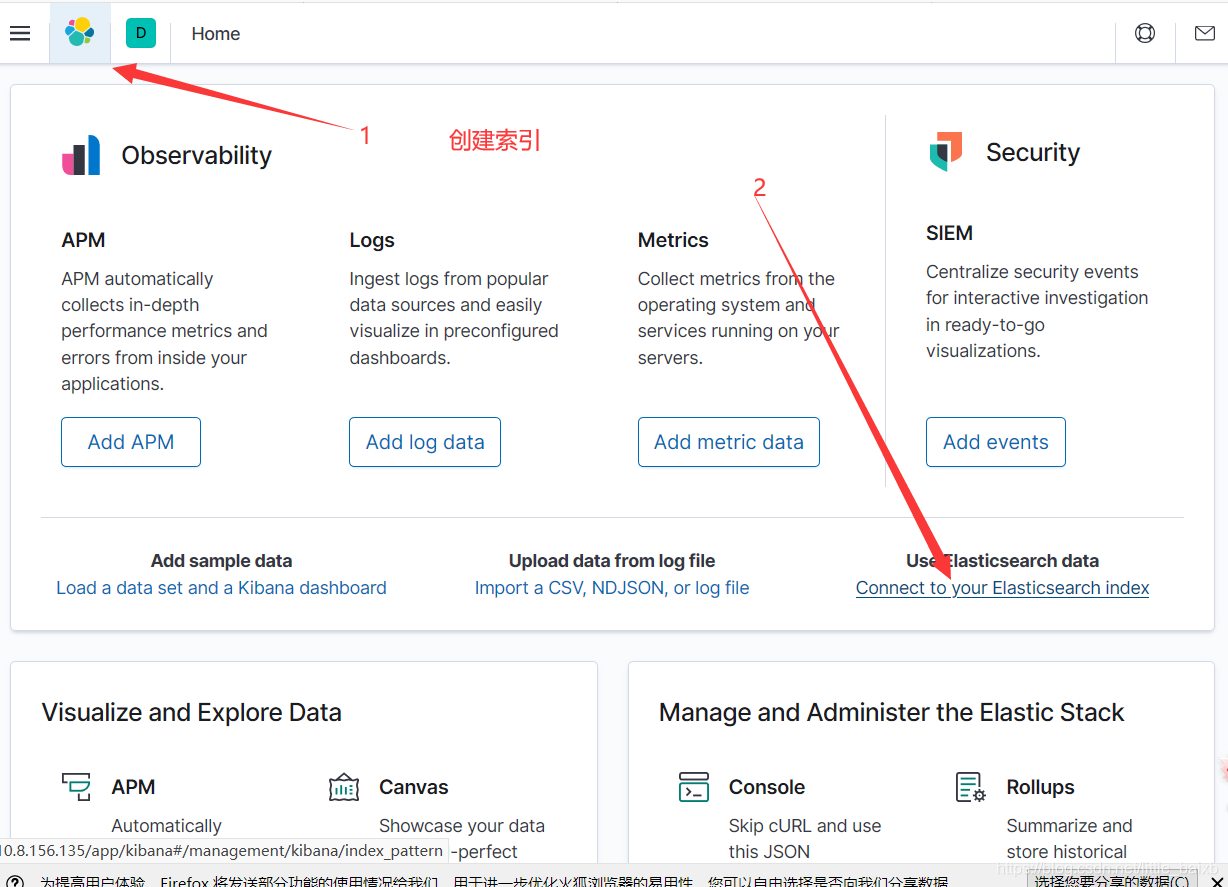

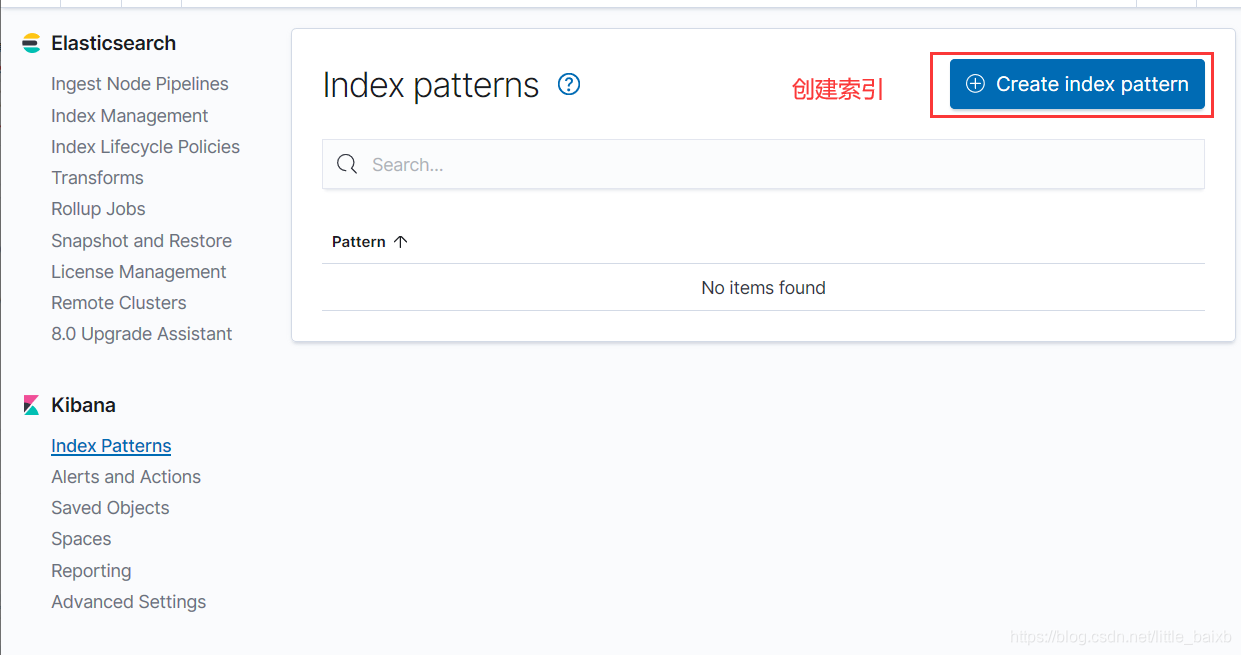

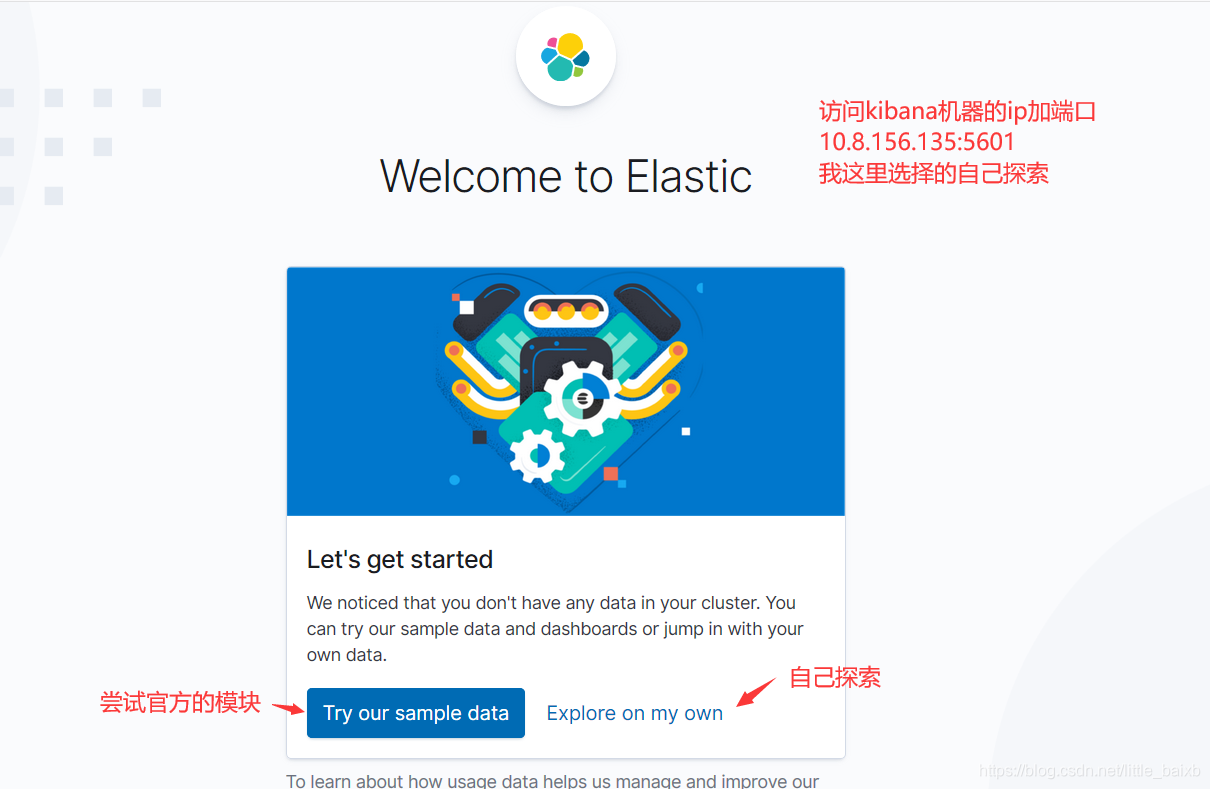

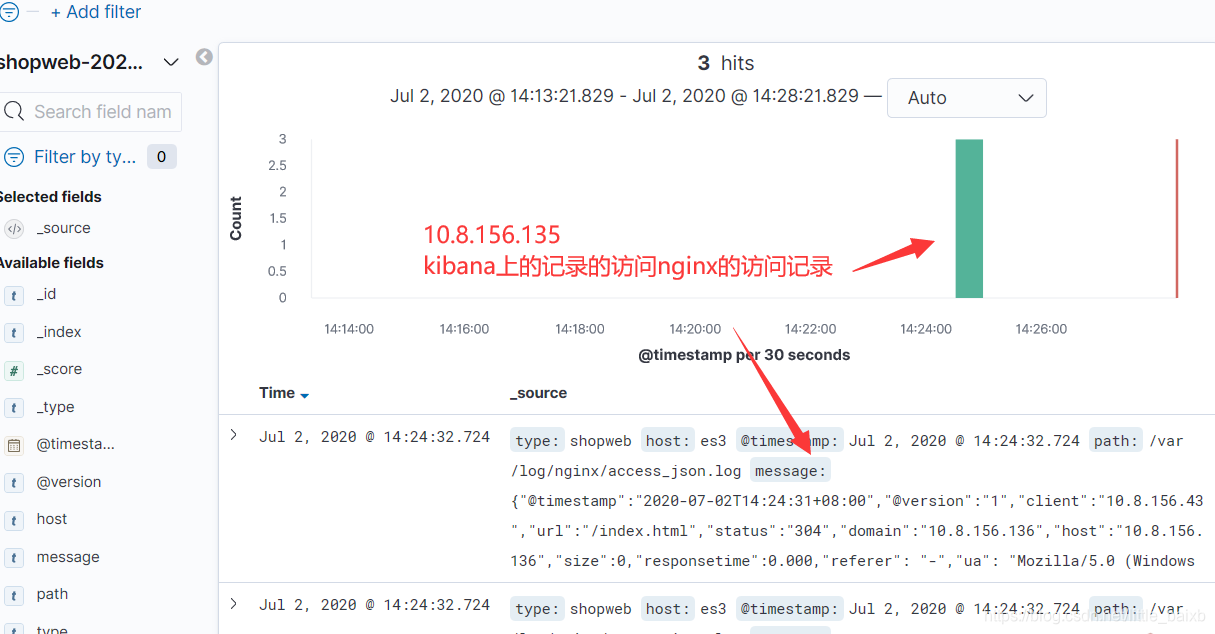

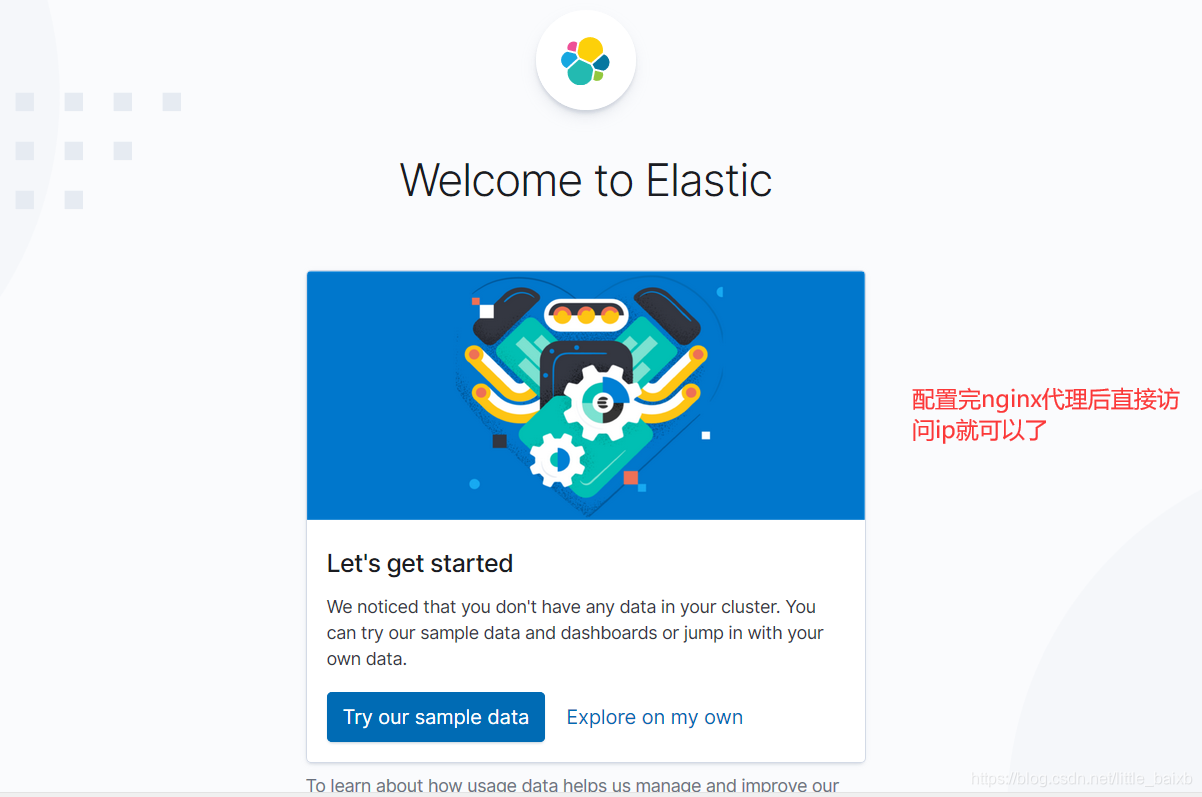

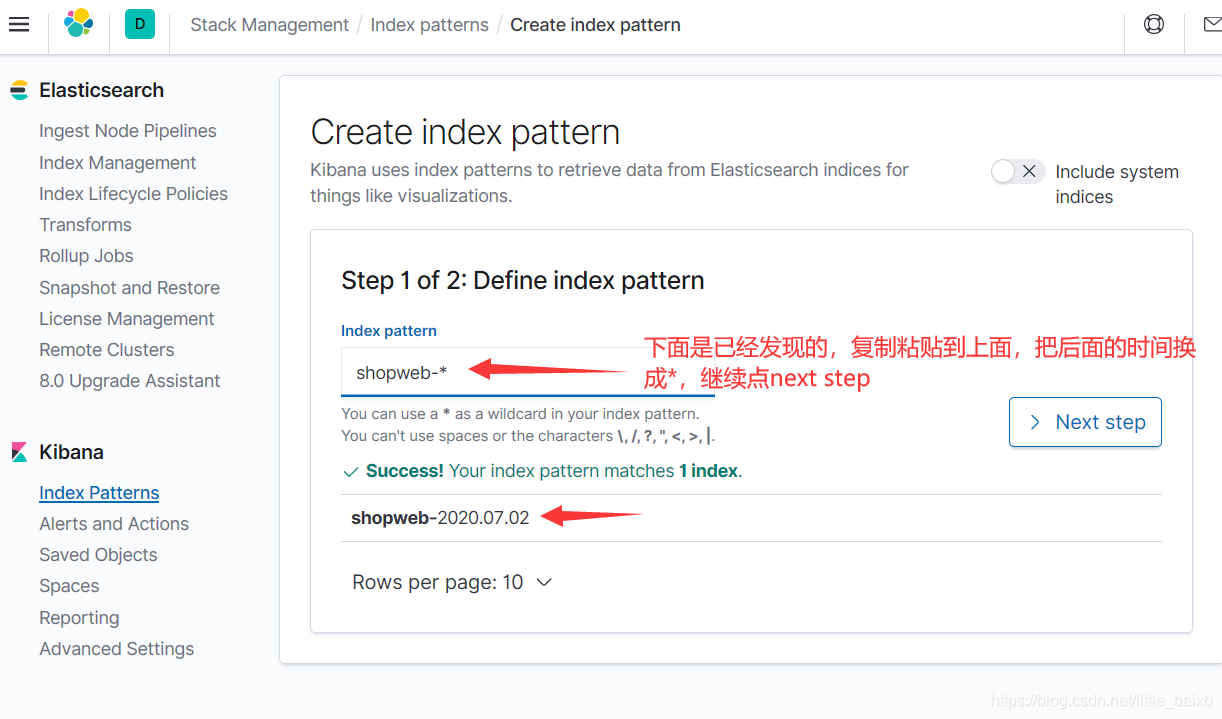

2、kibana上查看

---

---

---

---

---
