本文详细介绍了如何使用信号量和共享内存进行进程间通信，包括信号量的创建、操作和销毁，以及共享内存的创建、挂载和销毁过程。通过示例代码展示了如何在父子进程中利用信号量和共享内存实现数据交换。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1. 信号量函数的介绍

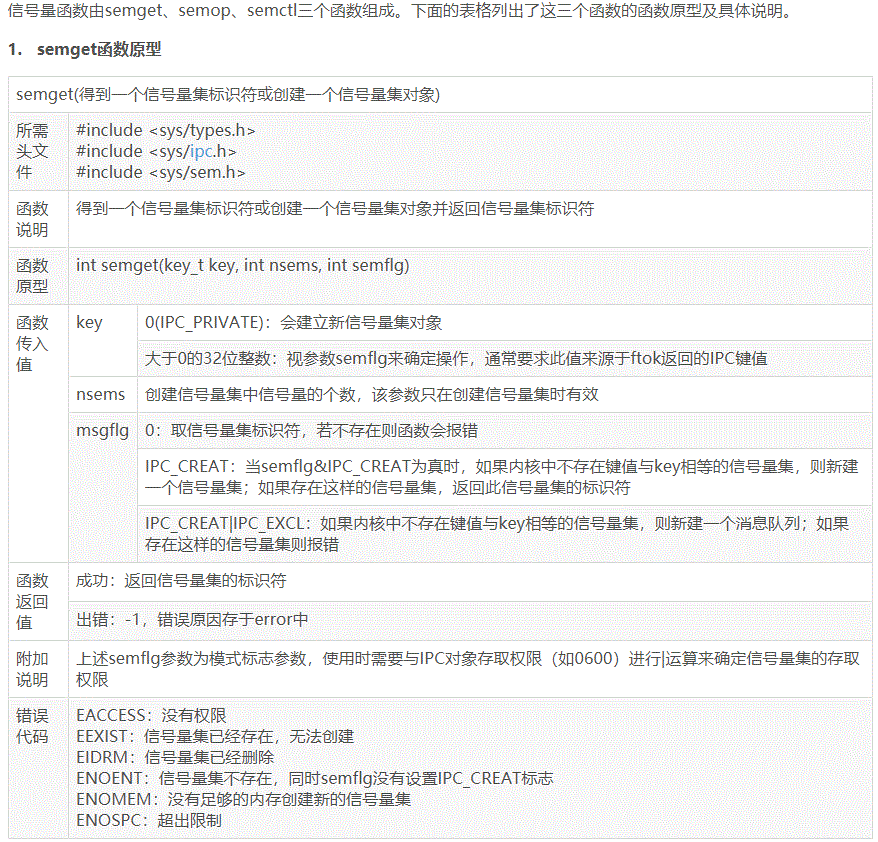

在这里插入图片描述
如果用semget创建了一个新的信号量集对象时，则semid_ds结构成员变量的值设置如下：

    sem_otime设置为0。

    sem_ctime设置为当前时间。

    msg_qbytes设成系统的限制值。

    sem_nsems设置为nsems参数的数值。

    semflg的读写权限写入sem_perm.mode中。

    sem_perm结构的uid和cuid成员被设置成当前进程的有效用户ID，gid和cuid成员被设置成当前进程的有效组ID。

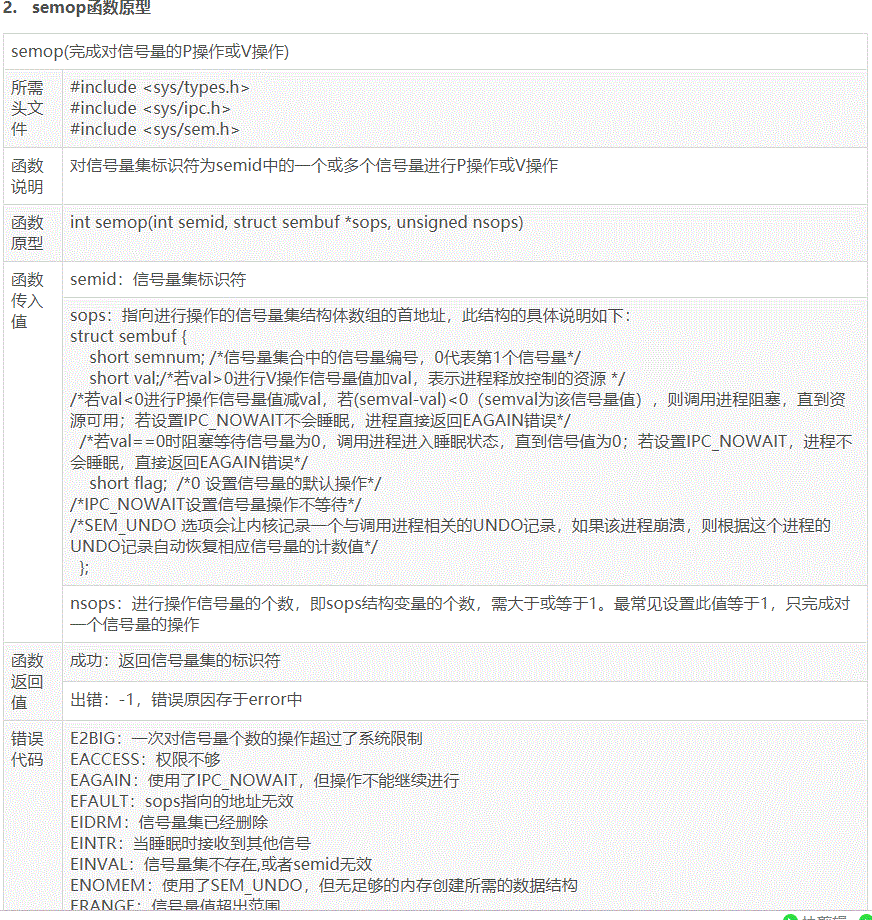

在这里插入图片描述
sops为指向sembuf数组，定义所要进行的操作序列。下面是信号量操作举例。

struct sembuf sem_get={0,-1,IPC_NOWAIT}; /将信号量对象中序号为0的信号量减1/

struct sembuf sem_get={0,1,IPC_NOWAIT}; /将信号量对象中序号为0的信号量加1/

struct sembuf sem_get={0,0,0}; /进程被阻塞，直到对应的信号量值为0/

flag一般为0，若flag包含IPC_NOWAIT，则该操作为非阻塞操作。若flag包含SEM_UNDO，则当进程退出的时候会还原该进程的信号量操作，这个标志在某些情况下是很有用的，比如某进程做了P操作得到资源，但还没来得及做V操作时就异常退出了，此时，其他进程就只能都阻塞在P操作上，于是造成了死锁。若采取SEM_UNDO标志，就可以避免因为进程异常退出而造成的死锁。

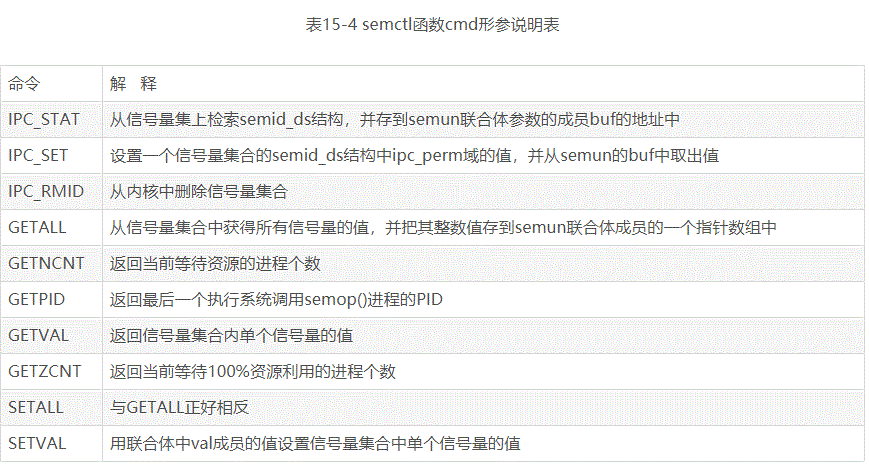

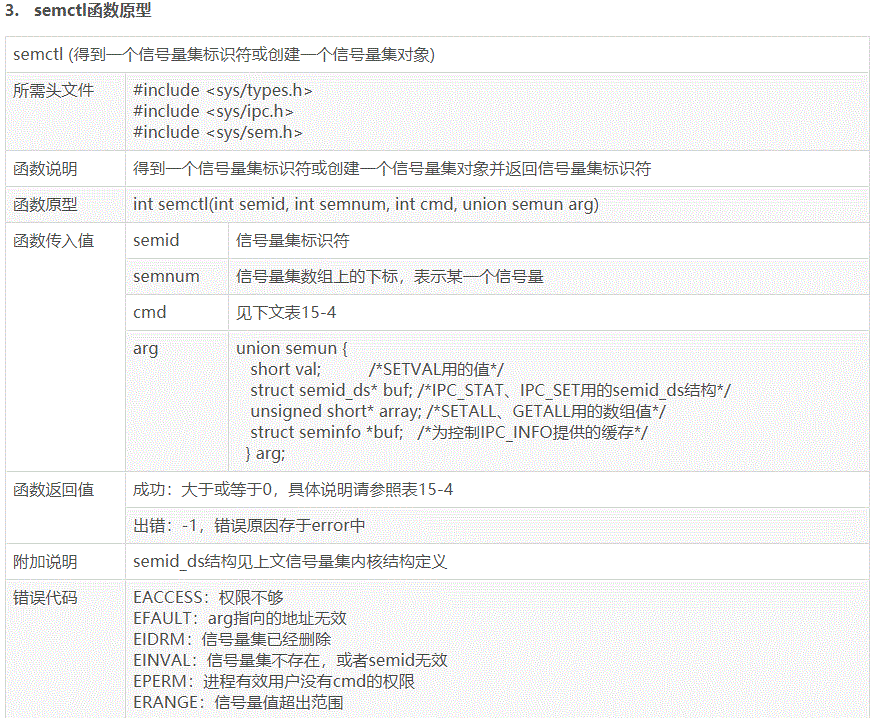

在这里插入图片描述

参考网址：https://blog.youkuaiyun.com/guoping16/article/details/6584043

2. 示例代码

新建semaphore.h文件

#ifndef __SEM_H__
#define __SEM_H__

#include<stdio.h>
#include<stdlib.h>
#include<sys/ipc.h>
#include<sys/sem.h>
#include<sys/types.h>

#define PATHNAME "./"
#define PROJ_ID 0x666

union semun
{
    int val; //单个信号的值
    struct semid_ds *buf;
    unsigned short *array;
    struct seminfo *__buf;
};


int create_sem_set(int nsem);

int get_sem_set(int nsem);

int init_sem_set(int sem_set_id, int which_sem);

int sem_p(int sem_set_id, int which_sem);

int sem_v(int sem_set_id, int which_sem);

int destroy_sem_set(int sem_set_id);

#endif

新建semaphore.c文件

#include "semaphore.h"


static int sem_set(int nsem, int semflag)
{
    key_t key = ftok(PATHNAME, PROJ_ID);
    if (key < 0)
    {
        perror("ftok failure");
        exit(-1);
    }
    int sem_set_id = semget(key, nsem, semflag);
    if (sem_set_id < 0)
    {
        perror("semget failure");
        exit(-1);
    }
    return sem_set_id;
}


int create_sem_set(int nsem)
{
    if (nsem <= 0)
    {
        perror("nsem <= 0");
        exit(-1);
    }
    return sem_set(nsem, IPC_CREAT | IPC_EXCL | 0666);
}

int get_sem_set(int nsem)
{
    if (nsem <= 0)
    {
        perror("nsem <= 0");
        exit(-1);
    }
    return sem_set(nsem, IPC_CREAT);
}

int init_sem_set(int sem_set_id, int which_sem)
{
    union semun my_semun;
    my_semun.val = 1;//semun中val的值去设置信号集（sem_set）中单个sem的值
    int ret = semctl(sem_set_id, which_sem, SETVAL, my_semun);
    if (ret == -1)
    {
        perror("semctl error");
        exit(-1);
    }
    return 0;
}

static int sem_operatons(int sem_set_id, int which_sem, int op)
{
    struct sembuf sb;
    //sembuf is as follows:

    //unsigned short sem_num
    //short sem_op
    //short sem_flg

    sb.sem_num = which_sem;
    sb.sem_op = op;
    sb.sem_flg = SEM_UNDO;
    return semop(sem_set_id, &sb, 1);
}

int sem_p(int sem_set_id, int which_sem)
{
    return sem_operatons(sem_set_id, which_sem, -1);
}

int sem_v(int sem_set_id, int which_sem)
{
    return sem_operatons(sem_set_id, which_sem, +1);
}

int destroy_sem_set(int sem_set_id)
{
   int ret = semctl(sem_set_id, 0, IPC_RMID, NULL);
   if (ret == -1)
   {
       perror("semctl failure");
       exit(-1);
   }

   return ret;
}

新建shm.h文件

#ifndef __SHM__
#define __SHM__

#include<stdlib.h>
#include<stdio.h>
#include<sys/ipc.h>
#include<sys/shm.h>
#include<sys/types.h>


#define PATHNAME "./"
#define PROJ_ID 0x666



int create_shm(int sz);

int get_shm(int sz);

void* malloc_addr(int shm_id);

int free_addr(const void* addr);

int destroy_shm(int shm_id);


#endif

新建shm.c文件

#include"shm.h"

static int shm(int sz, int flag)
{
    key_t key = ftok(PATHNAME, PROJ_ID);
    if (key == -1)
    {
        perror("ftok failure");
        exit(-1);
    }

    int shm_id = shmget(key, sz, flag);
    if (shm_id < 0)
    {
        perror("shmget failure");
        exit(-1);
    }
    return shm_id;
}

int create_shm(int sz)
{
    return shm(sz, IPC_CREAT | IPC_EXCL | 0666);
}

int get_shm(int sz)
{
    return shm(sz, IPC_CREAT);
}

void* malloc_addr(int shm_id)
{
    return shmat(shm_id, NULL, 0);
}

int free_addr(const void* addr)
{
    return shmdt(addr);
}

int destroy_shm(int shm_id)
{
   return shmctl(shm_id, IPC_RMID, NULL);
}

新建test.c文件

#include"shm.h"
#include<unistd.h>
#include<string.h>
#include<sys/wait.h>
#include"semaphore.h"
typedef struct cPicInfo{
	int size;
	char state;
}cPicInfo;

typedef struct cPicBuf{
	char *picbuf;
	int *picbuf_size;
	char *picbuf_state; //0 :not use 1: will using 2: is using
}cPicBuf;

#define SHM_SIZE 		(4096 + sizeof(cPicInfo))
#define PICBUF_NUM		(10)

cPicBuf* getfreebuf_frome_mem(char *sharebuf, int perpic_size)
{
	int i;
	cPicBuf picbuf[PICBUF_NUM];
	char *psharebuf = sharebuf + 1;
	for( i = 0; i <PICBUF_NUM; i++){
		picbuf[i].picbuf = psharebuf + i * SHM_SIZE;
		picbuf[i].picbuf_size = (int *)(picbuf[i].picbuf + ( SHM_SIZE - sizeof(cPicInfo)));
		picbuf[i].picbuf_state = (char *)(picbuf[i].picbuf_size) + sizeof(int);

		if(*picbuf[i].picbuf_state == 0){
			*picbuf[i].picbuf_state = 2;
			break;
		}
	}
	printf("get free i:%d\n",i);
	return i < PICBUF_NUM ?  &picbuf[i] : NULL;
}

cPicBuf* getcolbuf_frome_mem(char *sharebuf, int perpic_size)
{
	int i;
	cPicBuf picbuf[PICBUF_NUM];
	char *psharebuf = sharebuf + 1;
	for( i = 0; i <PICBUF_NUM; i++){
		picbuf[i].picbuf = psharebuf + i * SHM_SIZE;
		picbuf[i].picbuf_size = (int *)(picbuf[i].picbuf + ( SHM_SIZE - sizeof(cPicInfo)));
		picbuf[i].picbuf_state = (char *)(picbuf[i].picbuf_size) + sizeof(int);

		if(*picbuf[i].picbuf_state == 2){
			*picbuf[i].picbuf_state = 3;
			break;
		}
	}
	printf("get col i:%d\n",i);
	return i < PICBUF_NUM ?  &picbuf[i] : NULL;
}

int main()
{
	int ret;
   //创建信号量并初始化
    int sem_set_id = create_sem_set(2);
    init_sem_set(sem_set_id, 0);
	init_sem_set(sem_set_id, 1);
    //创建共享内存
    int shm_id = create_shm(SHM_SIZE * PICBUF_NUM + 1);

    //创建子进程
    pid_t pid = fork();
    if (pid < 0)
    {
        perror("fork failure");
        exit(-1);
    }
    else if (pid == 0) //子进程
    {
        char* buf = (char*)malloc_addr(shm_id);
        int count = 0;
		cPicBuf* freebuf;

		buf[0] = 1;
		while(1)
		{
			//if(buf[0] == 1){    int ret = semctl(sem_set_id, which_sem, SETVAL, my_semun);
			if( 1 == (ret =semctl(sem_set_id, 1, GETVAL, NULL))){
				printf("zi ret: %d\n", ret);
;				count++;
				sem_p(sem_set_id, 0);
				freebuf = getfreebuf_frome_mem(buf, SHM_SIZE);
				if(freebuf != NULL)
					*freebuf->picbuf_size = count;
				buf[0] = 2;
				sem_v(sem_set_id, 0);
				sem_p(sem_set_id, 1);
			}
			if(count == 10)
				break;
		}
		free_addr(buf);

    }
    else //父进程
    {
        char* buf = (char*)malloc_addr(shm_id);
        //usleep(500000);//让子进程先P操作
		cPicBuf* colbuf;
		int count1 = 0;
		while(1)
		{
			//if(buf[0] == 2){
			if( 0 == (ret = semctl(sem_set_id, 1, GETVAL, NULL))){
				printf("fu ret: %d\n", ret);
				count1++;
				sem_p(sem_set_id, 0);
				colbuf = getcolbuf_frome_mem(buf, SHM_SIZE);
				if(colbuf != NULL)
				{
					printf("picbuf_size :%d \n",*colbuf->picbuf_size);
				}
				buf[0] = 1;

				sem_v(sem_set_id, 0);
				sem_v(sem_set_id, 1);
			}
			if(count1 == 10)
				break;
		}

		free_addr(buf);
        destroy_shm(shm_id);
        destroy_sem_set(sem_set_id);
    }

    return 0;
}

新建Makefile文件

test:test.c semaphore.c shm.c
	gcc -o $@ $^
.PHONY:clean
clean:
	rm -f test
