httpclient连接池的测试报告(jmeter做并发测试工具)

下午，经理找我说Php的curl的在高峰期经常出现连接超时的情况，Java会不会呢，让用httpclient来做一下测试。我就作了两个对比测试。一个是httpclient没用连接池，一个有用连接池。使用spring boot做web服务，选择百度、bing用jmeter web请求测试。为什么选择这两个，因为这两个不容易报错，其他搜索引擎多请求几次就报错了。

spirng boot web的控制器代码如下

import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.io.IOException;
import java.util.Random;

@RestController
public class IndexController {

    private Logger logger = LoggerFactory.getLogger(this.getClass());
    private static String URLARRAY[] = {"https://www.baidu.com/s?wd=%s", "https://cn.bing.com/search?q=%s"};

    @RequestMapping("/")
    public String index(@RequestParam(value = "name", defaultValue = "helloworld") String name) throws IOException {
        int i = new Random().nextInt(URLARRAY.length);
        String url = URLARRAY[i];
        url = String.format(url, name);
        logger.debug("调用URL是{}", url);
        try {
            String value = HttpClientUtils.get(url);
        } catch (Exception ex) {
            logger.error("出错了", ex);
            throw ex;
        }
        return "成功了" + url;
    }
}

这个核心调用的是HttpClientUtils.get(url)来请求web。

首先贴上没有使用连接池的的httpClinetUtils代码

public class HttpClientUtils {

    private static Logger logger = LoggerFactory.getLogger(HttpClientUtils.class);
    private static RequestConfig REQUESTCONFIG = RequestConfig.custom()
            .setSocketTimeout(1000)
            .setConnectTimeout(1000)
            .setConnectionRequestTimeout(1000)
            .build();

    public static String get(String url) throws IOException {
        CloseableHttpClient httpclient = HttpClientBuilder.create().setRetryHandler((exception, executionCount, context) -> {
            return false;
        }).setDefaultRequestConfig(REQUESTCONFIG).build();
        try {

            HttpGet httpget = new HttpGet(url);
            ResponseHandler<String> responseHandler = new ResponseHandler<String>() {
                @Override
                public String handleResponse(
                        final HttpResponse response) throws ClientProtocolException, IOException {
                    int status = response.getStatusLine().getStatusCode();
                    if (status >= 200 && status < 300) {
                        HttpEntity entity = response.getEntity();
                        return entity != null ? EntityUtils.toString(entity) : null;
                    } else {
                        logger.error("请求{},出现了错误{}", url, status);
                        return "出错了";
                        //throw new ClientProtocolException("Unexpected response status: " + status);
                    }
                }

            };
            String responseBody = httpclient.execute(httpget, responseHandler);
            return responseBody;
        } finally {
            httpclient.close();
        }
    }
}

可以看到没用连接池情况下，httpclient不能重复使用，使用完要及时关闭

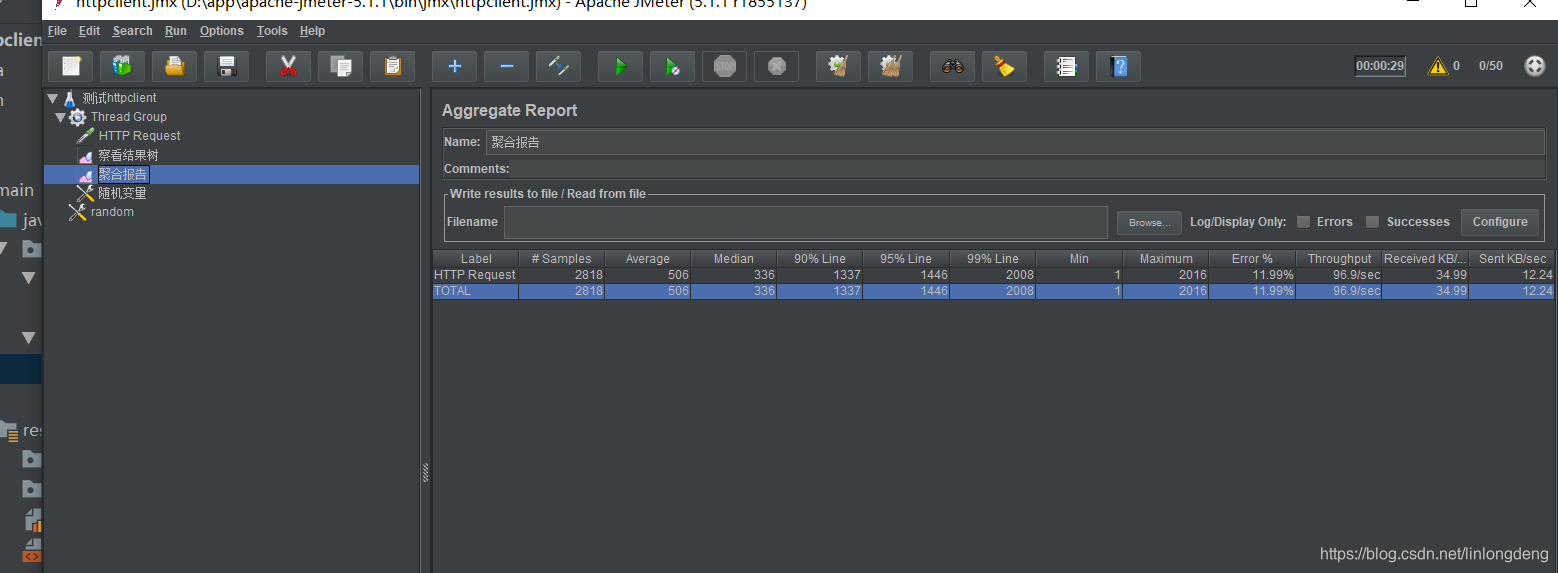

Jmete50个线程下测试结果

可以看到并发数才90，而且出错率达到了11%

使用连接池的httpClinetUtils代码

package com.example.testhttpclient.utils;

import org.apache.http.HttpEntity;
import org.apache.http.HttpHost;
import org.apache.http.HttpResponse;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.ResponseHandler;
import org.apache.http.client.config.RequestConfig;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.conn.routing.HttpRoute;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClientBuilder;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.impl.conn.PoolingHttpClientConnectionManager;
import org.apache.http.util.EntityUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

import java.io.IOException;
import java.util.Map;

public class HttpClientUtils {
    private static CloseableHttpClient HTTPCLIENT;
    private static Logger logger = LoggerFactory.getLogger(HttpClientUtils.class);
    private static RequestConfig REQUESTCONFIG = RequestConfig.custom()
            .setSocketTimeout(1000)
            .setConnectTimeout(1000)
            .setConnectionRequestTimeout(1000)
            .build();
    static PoolingHttpClientConnectionManager cm;

    static {
        PoolingHttpClientConnectionManager cm = new PoolingHttpClientConnectionManager();

        HTTPCLIENT = HttpClientBuilder.create().setRetryHandler((exception, executionCount, context) -> {
            return false;
        }).setDefaultRequestConfig(REQUESTCONFIG).setConnectionManager(cm).build();

    }


    public static String get(String url) throws IOException {
        try {

            HttpGet httpget = new HttpGet(url);
            ResponseHandler<String> responseHandler = new ResponseHandler<String>() {
                @Override
                public String handleResponse(
                        final HttpResponse response) throws ClientProtocolException, IOException {
                    int status = response.getStatusLine().getStatusCode();
                    if (status >= 200 && status < 300) {
                        HttpEntity entity = response.getEntity();
                        return entity != null ? EntityUtils.toString(entity) : null;
                    } else {
                        logger.error("请求{},出现了错误{}", url, status);
                        return "出错了";
                        //throw new ClientProtocolException("Unexpected response status: " + status);
                    }
                }

            };
            String responseBody = HTTPCLIENT.execute(httpget, responseHandler);
            return responseBody;
        } finally {

        }
    }
}

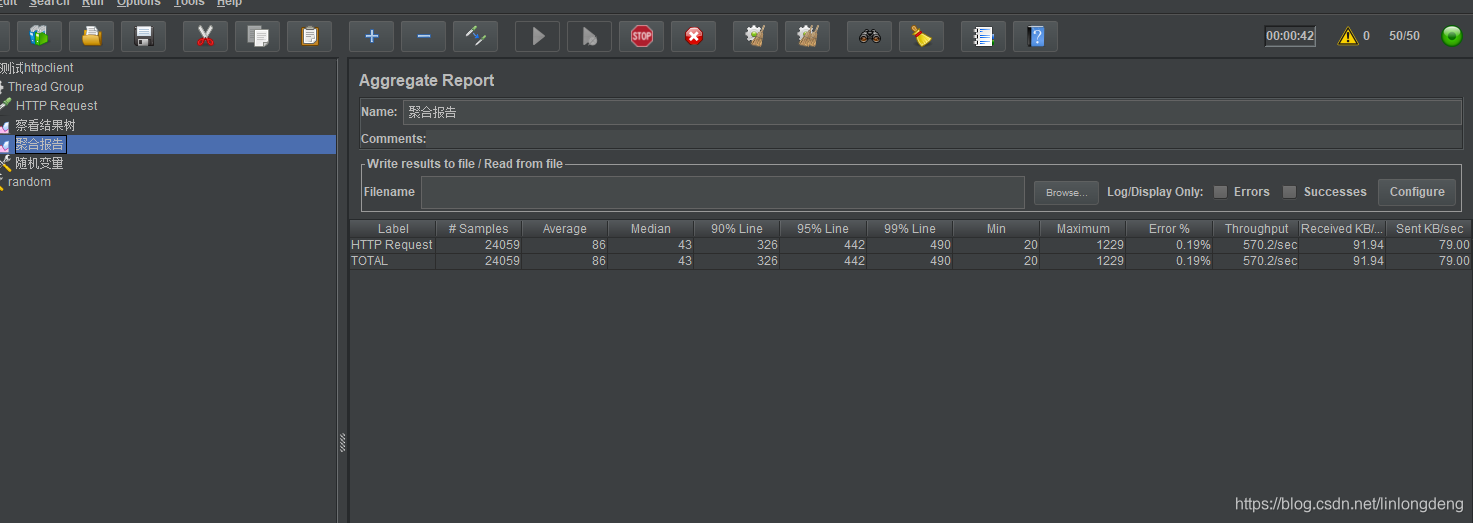

jmeter50个线程测试结果
