python 使用sphinx 快速生成说明文档

python 使用sphinx 快速生成说明文档

以Linux环境使用为例，没有linux环境的可以安装虚拟机

1.安装sphinx

pip3 install sphinx

2.文件结构

在项目的同级目录下创建doc文件夹，进入doc文件夹，运行如下指令：

sphinx-quickstart

接着要填写一些项目信息

ubuntu18@ubuntu18:~/weiquan/sphnix-demo/doc$ sphinx-quickstart
Welcome to the Sphinx 4.5.0 quickstart utility.

Please enter values for the following settings (just press Enter to
accept a default value, if one is given in brackets).

Selected root path: .

You have two options for placing the build directory for Sphinx output.
Either, you use a directory "_build" within the root path, or you separate
"source" and "build" directories within the root path.
> Separate source and build directories (y/n) [n]: y

The project name will occur in several places in the built documentation.
> Project name: myproject  // 输入项目名称
> Author name(s): bob	// 作者
> Project release []: 0.0.1	// 项目版本

If the documents are to be written in a language other than English,
you can select a language here by its language code. Sphinx will then
translate text that it generates into that language.

For a list of supported codes, see
https://www.sphinx-doc.org/en/master/usage/configuration.html#confval-language.
> Project language [en]:  // 生成文档的语言

Creating file /home/ubuntu18/weiquan/sphnix-demo/doc/source/conf.py.
Creating file /home/ubuntu18/weiquan/sphnix-demo/doc/source/index.rst.
Creating file /home/ubuntu18/weiquan/sphnix-demo/doc/Makefile.
Creating file /home/ubuntu18/weiquan/sphnix-demo/doc/make.bat.

Finished: An initial directory structure has been created.
...

3.修改配置文件

修改doc/source下的conf.py文件：

...
import os
import sys
sys.path.insert(0, os.path.abspath('../../myproject')) ## 项目相对conf.py的路径
...
# sphinx.ext.napoleon: 表示支持numpy和google风格的注释
extensions = ['sphinx.ext.autodoc','sphinx.ext.napoleon']
...

# google风格的代码注释
class MyProject:
	"""This is my project"""
	def is_in_position(self, data, id=0):
        """Judge whether in the position.

        Args:
            id: 1 - coords, 0 - angles
            data: A data list, angles or coords, length 6.

        Return:
            1 : True
            0 : False
            -1: Error
        """
        ...

4.生成html文档

在doc目录下执行命令生成html文档:

make html

生成的文档会保存在doc/build/html文件夹下

生成markdown文档

1.安装依赖

pip3 install sphinx-markdown-builder

2.修改配置文件

修改doc/source下的conf.py文件：

import sphinx_markdown_builder
...
# sphinx.ext.napoleon: 表示支持numpy和google风格的注释
extensions = ['sphinx.ext.autodoc','sphinx.ext.napoleon','sphinx_markdown_builder']
...
exclude_patterns = [
    'build/*'
]

3.生成markdown文档

执行指令

sphinx-apidoc -o source ../myproject

在doc目录下运行命令：

make markdown

生成的markdown文档保存在build/markdown下面

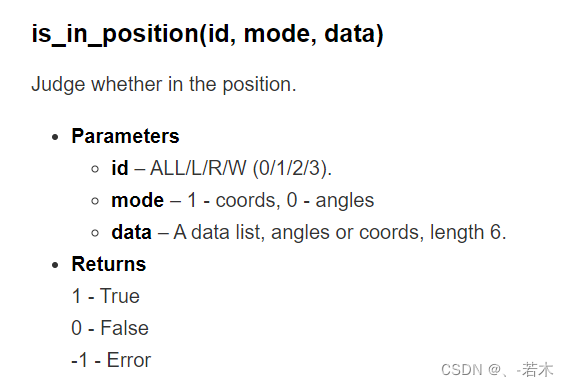

使用Google风格的注释生成的markdown文档：

在编写代码的过程中顺手写上代码注释，方便维护以及后续的说明文档的生成，一举两得。
