购物车（上）

原创 于 2018-11-22 19:03:51 发布 · 152 阅读 · 0 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。

本文详细介绍了如何使用MVP架构在Android应用中实现商品分类展示和购物车功能，包括接口调用、数据解析、界面布局及适配器设计等关键步骤。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

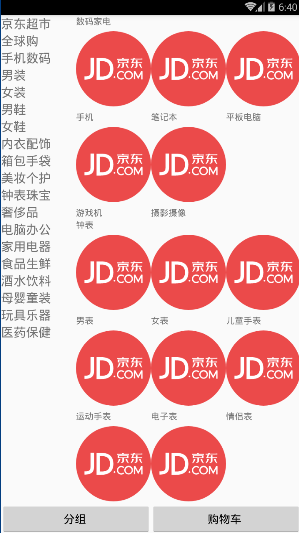

在这里插入图片描述

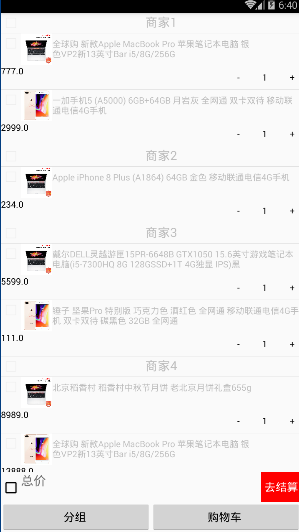

在这里插入图片描述)

UrlUtils（网址接口）

public interface UrlUtils {
    public String DataBesnUrl = "http://www.zhaoapi.cn/product/getCatagory";
    public String DataBesnUrl2 = "http://www.zhaoapi.cn/product/getProductCatagory?cid=";
    public String DataBesnUrl3 = "http://www.zhaoapi.cn/product/getCarts?uid=71";
}

MainActivity

public class MainActivity extends FragmentActivity implements View.OnClickListener{

    private ViewPager vp;
    private ArrayList<Fragment> list;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        initView();
        list = new ArrayList<>();
        list.add(new FenFragment());
        list.add(new ShopFragment());

        vp.setAdapter(new FragmentPagerAdapter(getSupportFragmentManager()) {
            @Override
            public Fragment getItem(int position) {
                return list.get(position);
            }

            @Override
            public int getCount() {
                return list.size();
            }
        });

    }

    private void initView() {
        vp = findViewById(R.id.vp);
        findViewById(R.id.btn_fen).setOnClickListener(this);
        findViewById(R.id.btn_shop).setOnClickListener(this);
    }

    @Override
    public void onClick(View view) {
        switch (view.getId()){
            case R.id.btn_fen:
                vp.setCurrentItem(0);
                break;
            case R.id.btn_shop:
                vp.setCurrentItem(1);
                break;
        }
    }
}

MainActivity布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <android.support.v4.view.ViewPager
        android:id="@+id/vp"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1"></android.support.v4.view.ViewPager>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

        <Button
            android:id="@+id/btn_fen"
            android:layout_weight="1"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="分组 " />

        <Button
            android:id="@+id/btn_shop"
            android:layout_weight="1"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="购物车 " />

    </LinearLayout>

</LinearLayout>

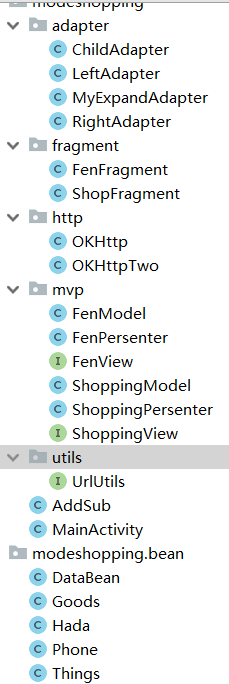

代码布局
在这里插入图片描述

Fragment
fenFragment

public class FenFragment extends android.support.v4.app.Fragment implements FenView{
    private RecyclerView recyclerViewLeft;
    private RecyclerView recyclerViewRight;
    private LeftAdapter leftAdapter;
    private RightAdapter rightAdapter;
    private FenPersenter fenPersenter;

    private String url = "http://www.zhaoapi.cn/product/getProductCatagory?cid=";
    int page=3;
    private String url2 = "";
    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = View.inflate(getContext(), R.layout.fragment_fen, null);
        recyclerViewLeft = view.findViewById(R.id.recyclerView_left);
        recyclerViewRight = view.findViewById(R.id.recyclerView_right);
        return view;
    }

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);

        fenPersenter = new FenPersenter(this);
        fenPersenter.show(UrlUtils.DataBesnUrl);


        url2 = url+page;
        fenPersenter.show(url2);
    }

    @Override
    public void onData(final List<DataBean> list) {
        getActivity().runOnUiThread(new Runnable() {
            @Override
            public void run() {
                StaggeredGridLayoutManager staggeredGridLayoutManager = new StaggeredGridLayoutManager(1, StaggeredGridLayoutManager.VERTICAL);
                recyclerViewLeft.setLayoutManager(staggeredGridLayoutManager);
                leftAdapter = new LeftAdapter(list,getActivity());
                recyclerViewLeft.setAdapter(leftAdapter);
                leftAdapter.setItemClick(new LeftAdapter.ItemClick() {
                    @Override
                    public void onItem(int data) {
                        url2 = url + data;
                        fenPersenter.show2(url2);
                    }
                });

            }
        });
    }

    @Override
    public void onData2(final List<Things.DataBean> list) {
        getActivity().runOnUiThread(new Runnable() {
            @Override
            public void run() {
                LinearLayoutManager linearLayoutManager = new LinearLayoutManager(getActivity());
                recyclerViewRight.setLayoutManager(linearLayoutManager);
                rightAdapter = new RightAdapter(list,getActivity());
                recyclerViewRight.setAdapter(rightAdapter);
               // rightAdapter.setDate(list);
            }
        });
    }
}

fenFragment布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerView_left"
        android:layout_weight="3"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></android.support.v7.widget.RecyclerView>

    <android.support.v7.widget.RecyclerView
        android:layout_weight="1"
        android:id="@+id/recyclerView_right"
        android:layout_width="match_parent"
        android:layout_height="match_parent"></android.support.v7.widget.RecyclerView>

</LinearLayout>

ShopFragment

public class ShopFragment extends android.support.v4.app.Fragment implements ShoppingView {
    private ExpandableListView expandableListView;
    private CheckBox ckQuan;
    private TextView tvSum;
    private Button btnJiesuan;
    private ShoppingPersenter shoppingPersenter;
    private MyExpandAdapter myExpandAdapter;

    @Nullable
    @Override
    public View onCreateView(LayoutInflater inflater, @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {
        View view = View.inflate(getContext(), R.layout.fragment_shop, null);
        expandableListView = view.findViewById(R.id.expandable_listView);
        expandableListView.setGroupIndicator(null);
        ckQuan = view.findViewById(R.id.ck_quan);
        tvSum = view.findViewById(R.id.tv_sum);
        btnJiesuan = view.findViewById(R.id.btn_jiesuan);

        shoppingPersenter = new ShoppingPersenter(this);
        shoppingPersenter.shop(UrlUtils.DataBesnUrl3);

        return view;
    }

    @Override
    public void onActivityCreated(@Nullable Bundle savedInstanceState) {
        super.onActivityCreated(savedInstanceState);

        //全选监听

        ckQuan.setOnCheckedChangeListener(new CompoundButton.OnCheckedChangeListener() {
            @Override
            public void onCheckedChanged(CompoundButton compoundButton, boolean b) {
                if(b){
                    setAll(1);
                    getTotal();
                }else{
                    setAll(0);
                    getTotal();
                }
            }
        });

    }

    private void setAll(int i) {
        int groupCount = myExpandAdapter.getGroupCount();
        for (int j = 0; j <groupCount ; j++) {
            Phone.DataBean group = (Phone.DataBean) myExpandAdapter.getGroup(j);
            List<Phone.DataBean.ListBean> itemlist = group.getList();
            for (int k = 0; k < itemlist.size() ; k++) {
                Phone.DataBean.ListBean listBean = itemlist.get(k);
                listBean.setSelected(i);
            }
        }
        myExpandAdapter.notifyDataSetChanged();
    }

    //计算价格
    private void getTotal() {
        double total = 0;
        int groupCount = myExpandAdapter.getGroupCount();
        for (int i = 0; i <groupCount ; i++) {
            Phone.DataBean item = (Phone.DataBean) myExpandAdapter.getGroup(i);
            List<Phone.DataBean.ListBean> list = item.getList();
            for (int j = 0; j <list.size() ; j++) {
                Phone.DataBean.ListBean listBean = list.get(j);
                boolean checked = listBean.isChecked();
                if (checked){
                    String price = listBean.getPrice();
                    double v = Double.parseDouble(price);
                    total += v * listBean.getNum();
                }
            }
        }
        tvSum.setText("合计："+total);

    }

    @Override
    public void onData(final List<Phone.DataBean> list) {
        getActivity().runOnUiThread(new Runnable() {
            @Override
            public void run() {
                myExpandAdapter = new MyExpandAdapter(getActivity().getApplicationContext(),list);
                expandableListView.setAdapter(myExpandAdapter);
                //默认全部展开
                for (int i = 0; i <myExpandAdapter.getGroupCount() ; i++) {
                    expandableListView.expandGroup(i);
                }
                initShopChartChange();
            }
        });
    }

    private void initShopChartChange() {
        expandableListView.setOnGroupClickListener(new ExpandableListView.OnGroupClickListener() {
            @Override
            public boolean onGroupClick(ExpandableListView expandableListView, View view, int i, long l) {
                Phone.DataBean group = (Phone.DataBean) myExpandAdapter.getGroup(i);
                group.setChecked(!group.isChecked());
                int c = 0;
                if(group.isChecked()){
                    c = 1;
                }
                List<Phone.DataBean.ListBean> list = group.getList();
                for (int j = 0; j <list.size() ; j++) {
                    Phone.DataBean.ListBean listBean = list.get(j);
                    listBean.setSelected(c);
                }
                getTotal();
                myExpandAdapter.notifyDataSetChanged();
                return true;
            }
        });

        expandableListView.setOnChildClickListener(new ExpandableListView.OnChildClickListener() {
            @Override
            public boolean onChildClick(ExpandableListView expandableListView, View view, int i, int i1, long l) {
                Phone.DataBean.ListBean listBean = (Phone.DataBean.ListBean) myExpandAdapter.getChild(i, i1);
                boolean checked = listBean.isChecked();
                if(checked){
                    listBean.setSelected(0);
                }else {
                    listBean.setSelected(1);
                }
                myExpandAdapter.notifyDataSetChanged();
                getTotal();
                return true;
            }
        });

        myExpandAdapter.setmOnNumChangedListener(new AddSub.OnNumChangedListener() {
            @Override
            public void onNumChange(View view, int curNum) {
                getTotal();
            }
        });

    }
}

shopFragment布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">


    <ExpandableListView
        android:id="@+id/expandable_listView"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1"></ExpandableListView>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

        <CheckBox
            android:id="@+id/ck_quan"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

        <TextView
            android:id="@+id/tv_sum"
            android:layout_weight="1"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:textSize="20dp"
            android:text="总价" />

        <Button
            android:id="@+id/btn_jiesuan"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:background="#f00"
            android:textColor="#fff"
            android:text="去结算"/>

    </LinearLayout>


</LinearLayout>

Http
okhttp

public class OKHttp {
    public void show(String url, final HttpCallBack httpCallBack){
        OkHttpClient okHttpClient = new OkHttpClient();
        Request request = new Request.Builder().url(url).get().build();
        Call call = okHttpClient.newCall(request);
        call.enqueue(new Callback() {
            @Override
            public void onFailure(Call call, IOException e) {

            }

            @Override
            public void onResponse(Call call, Response response) throws IOException {
                if(response.code() == 200){
                    ResponseBody body = response.body();
                    String string = body.string();
                    httpCallBack.setData(string);
                }
            }
        });
    }


    public interface HttpCallBack{
        void setData(String s);
        void getData(List<DataBean> list);
        void getData2(List<Things.DataBean> list);

    }
}

okhttp2

public class OKHttpTwo {
    public void shop(String url, final HttpCallBack httpCallBack){
        OkHttpClient okHttpClient = new OkHttpClient();
        Request request = new Request.Builder().url(url).get().build();
        Call call = okHttpClient.newCall(request);
        call.enqueue(new Callback() {
            @Override
            public void onFailure(Call call, IOException e) {

            }

            @Override
            public void onResponse(Call call, Response response) throws IOException {
                if(response.code() == 200){
                    ResponseBody body = response.body();
                    String string = body.string();
                    httpCallBack.setData(string);
                }
            }
        });
    }


    public interface HttpCallBack{
        void setData(String s);
        void getData(List<Phone.DataBean> list);
    }
}

MVP(第一个页面)
fenM

public class FenModel {
    public void show(String url, final OKHttp.HttpCallBack callBack){
        OKHttp okHttp = new OKHttp();
        okHttp.show(url, new OKHttp.HttpCallBack() {
            @Override
            public void setData(String s) {
                Gson gson = new Gson();

                Goods goods = gson.fromJson(s, Goods.class);
                List<DataBean> data = goods.getData();
                callBack.getData(data);
            }

            @Override
            public void getData(List<DataBean> list) {

            }

            @Override
            public void getData2(List<Things.DataBean> list) {

            }
        });
    }

    public void show2(String url, final OKHttp.HttpCallBack callBack){
        OKHttp okHttp = new OKHttp();
        okHttp.show(url, new OKHttp.HttpCallBack() {
            @Override
            public void setData(String s) {
                Gson gson = new Gson();
                Things things = gson.fromJson(s, Things.class);
                List<Things.DataBean> data2 = things.getData();
                callBack.getData2(data2);
            }

            @Override
            public void getData(List<DataBean> list) {

            }

            @Override
            public void getData2(List<Things.DataBean> list) {

            }
        });
    }
}

fenV

public interface FenView {
    void onData(List<DataBean> list);
    void onData2(List<Things.DataBean> list);
}

fenP

public class FenPersenter {
    private FenModel fenModel;
    private FenView fenView;

    public FenPersenter(FenView fenView) {
        this.fenView = fenView;
        fenModel = new FenModel();
    }

    public void show(String url){
        fenModel.show(url, new OKHttp.HttpCallBack() {
            @Override
            public void setData(String s) {

            }

            @Override
            public void getData(List<DataBean> list) {
               fenView.onData(list);
            }

            @Override
            public void getData2(List<Things.DataBean> list) {

            }
        });
    }

    public void show2(String url){
        fenModel.show2(url, new OKHttp.HttpCallBack() {
            @Override
            public void setData(String s) {

            }

            @Override
            public void getData(List<DataBean> list) {

            }

            @Override
            public void getData2(List<Things.DataBean> list) {
                fenView.onData2(list);
            }
        });
    }

}

Adapter
第一个页面的LeftAdapter

public class LeftAdapter extends RecyclerView.Adapter<LeftAdapter.MyViewHolder> {

    private List<DataBean> list;
    private Context context;

    public LeftAdapter(List<DataBean> list, Context context) {
        this.list = list;
        this.context = context;
    }

    @Override
    public MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(context).inflate(R.layout.item_left, parent, false);
        MyViewHolder myViewHolder = new MyViewHolder(view);
        return myViewHolder;
    }

    @Override
    public void onBindViewHolder(MyViewHolder holder, int position) {
        holder.tvLeft.setText(list.get(position).getName());
    }

    @Override
    public int getItemCount() {
        return list.size();
    }

    class MyViewHolder extends RecyclerView.ViewHolder{
        private TextView tvLeft;
        public MyViewHolder(View itemView) {
            super(itemView);
            tvLeft = itemView.findViewById(R.id.tv_left);
            tvLeft.setOnClickListener(new View.OnClickListener() {
                @Override
                public void onClick(View view) {
                    itemClick.onItem(getAdapterPosition());
                }
            });
        }
    }

    private ItemClick itemClick;
    public interface ItemClick{
        void onItem(int data);
    }

    public void setItemClick(ItemClick itemClick) {
        this.itemClick = itemClick;
    }
}

第一个页面的第一个适配器的布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">

    <TextView
        android:id="@+id/tv_left"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:textSize="20dp"/>

</LinearLayout>

第一个页面的第二个RightAdapter

public class RightAdapter extends RecyclerView.Adapter<RightAdapter.RightViewHolder> {

    private List<Things.DataBean> list;
    private Context context;

    public RightAdapter(List<Things.DataBean> list, Context context) {
        this.list = list;
        this.context = context;
    }

    @Override
    public RightViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(context).inflate(R.layout.item_right, parent, false);
        RightViewHolder rightViewHolder = new RightViewHolder(view);
        return rightViewHolder;
    }

    @Override
    public void onBindViewHolder(RightViewHolder holder, int position) {
        holder.tvRight.setText(list.get(position).getName());
        GridLayoutManager gridLayoutManager = new GridLayoutManager(context, 3, RecyclerView.VERTICAL, false);
        holder.recyclerViewChild.setLayoutManager(gridLayoutManager);
        ChildAdapter childAdapter = new ChildAdapter(list.get(position).getList(),context);
        holder.recyclerViewChild.setAdapter(childAdapter);
    }

    @Override
    public int getItemCount() {
        return list.size();
    }


    class RightViewHolder extends RecyclerView.ViewHolder{
        private TextView tvRight;
        private RecyclerView recyclerViewChild;
        public RightViewHolder(View itemView) {
            super(itemView);
            tvRight = itemView.findViewById(R.id.tv_right);
            recyclerViewChild = itemView.findViewById(R.id.recyclerView_child);
        }
    }
}

第一个页面的第二个适配器的布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:orientation="vertical">

    <TextView
        android:id="@+id/tv_right"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

    <android.support.v7.widget.RecyclerView
        android:id="@+id/recyclerView_child"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_weight="1"></android.support.v7.widget.RecyclerView>

</LinearLayout>

第一个适配器的第二个布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:descendantFocusability="blocksDescendants"
    android:orientation="vertical">

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">

        <CheckBox
            android:id="@+id/child_box"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content" />

        <ImageView
            android:id="@+id/child_image"
            android:layout_width="50dp"
            android:layout_height="50dp"
            android:src="@mipmap/ic_launcher" />

        <TextView
            android:id="@+id/child_text"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:text="hhh" />
    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:orientation="horizontal">
        <TextView
            android:id="@+id/child_text1"
            android:textColor="#000"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:layout_weight="1"/>
        <lqy.bwie.com.modeshopping.AddSub
            android:id="@+id/child_addsub"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:textColor="#000"
            android:layout_marginLeft="10dp" />
    </LinearLayout>

</LinearLayout>

第二个适配器的子ChildAdapter

public class ChildAdapter extends RecyclerView.Adapter<ChildAdapter.MyViewHolder> {

    private List<Things.DataBean.ListBean> list;
    private Context context;

    public ChildAdapter(List<Things.DataBean.ListBean> list, Context context) {
        this.list = list;
        this.context = context;
    }

    @Override
    public ChildAdapter.MyViewHolder onCreateViewHolder(ViewGroup parent, int viewType) {
        View view = LayoutInflater.from(context).inflate(R.layout.item_child, parent, false);
        MyViewHolder myViewHolder = new MyViewHolder(view);
        return myViewHolder;
    }

    @Override
    public void onBindViewHolder(ChildAdapter.MyViewHolder holder, int position) {
        Picasso.with(context).load(list.get(position).getIcon()).into(holder.imgChild);
        holder.tvChild.setText(list.get(position).getName());
    }

    @Override
    public int getItemCount() {
        return list.size() ;
    }

    class MyViewHolder extends RecyclerView.ViewHolder{
        private ImageView imgChild;
        private TextView tvChild;
        public MyViewHolder(View itemView) {
            super(itemView);
            imgChild = itemView.findViewById(R.id.img_child);
            tvChild = itemView.findViewById(R.id.tv_child);
        }
    }
}

子适配器的布局

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:orientation="vertical">

    <ImageView
        android:id="@+id/img_child"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content" />

    <TextView
        android:id="@+id/tv_child"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"/>

</LinearLayout>
lqyzxc
关注
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
