在Mycat中遇到'can't find table define in schema'错误，主要出现在RouterUtil的tryRouteForTables方法。当尝试通过别名查询时，Mycat无法正确解析表名，导致数据路由失败。错误详细信息显示在ServerConnection的日志警告中，指出表定义在指定的schema中不存在。问题根源在于RouterUtil类的tryRouteForTables方法中的表名字解析错误。解决方案是确保表配置正确，并在schema中定义。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Mycat之String msg = "can't find table define in schema "+ tableName + " schema:" + schema.getName();

错误位置如下：RouterUtil 类中的tryRouteForTables方法

1、正常情况可以查询数据

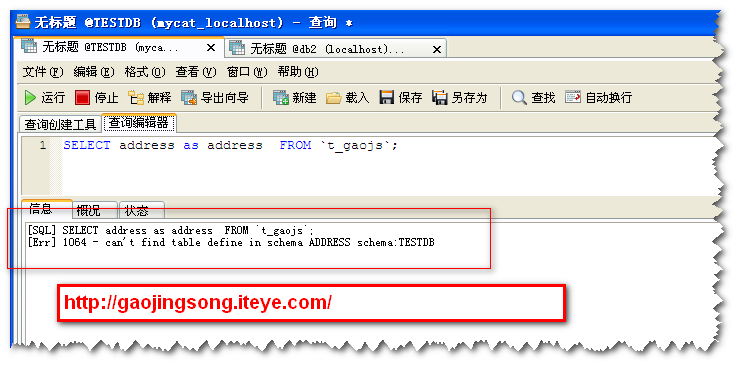

2、别名查询出现错误

Mycat 怎么就通过不了呢

2017-03-01 20:13:19,812 [WARN ][$_NIOREACTOR-2-RW] ServerConnection [id=4, schema=TESTDB, host=127.0.0.1, user=root,txIsolation=3, autocommit=true, schema=TESTDB]SELECT address as address FROM `t_gaojs` err:java.sql.SQLNonTransientException: can't find table define in schema ADDRESS schema:TESTDB java.sql.SQLNonTransientException: can't find table define in schema ADDRESS schema:TESTDB

at io.mycat.route.util.RouterUtil.tryRouteForTables(RouterUtil.java:1002)

at io.mycat.route.parser.druid.impl.DruidSelectParser.tryRoute(DruidSelectParser.java:412)

at io.mycat.route.parser.druid.impl.DruidSelectParser.changeSql(DruidSelectParser.java:287)

at io.mycat.route.parser.druid.impl.DefaultDruidParser.parser(DefaultDruidParser.java:67)

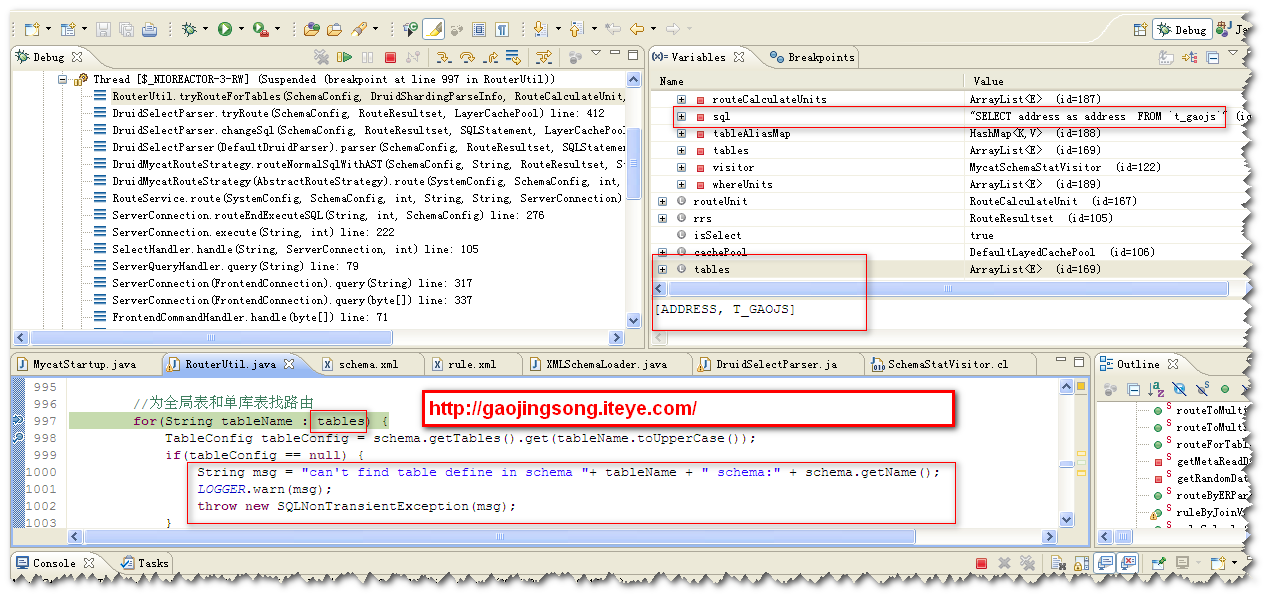

找到报错原因 ---》表名字解析错误

错误位置：

RouterUtil 类中的tryRouteForTables方法

/**

* 多表路由

public static RouteResultset tryRouteForTables(SchemaConfig schema, DruidShardingParseInfo ctx,

RouteCalculateUnit routeUnit, RouteResultset rrs, boolean isSelect,

LayerCachePool cachePool)

throws SQLNonTransientException {

List<String> tables = ctx.getTables();

if(schema.isNoSharding()||(tables.size() >= 1&&isNoSharding(schema,tables.get(0)))) {

return routeToSingleNode(rrs, schema.getDataNode(), ctx.getSql());

}

//只有一个表的

if(tables.size() == 1) {

return RouterUtil.tryRouteForOneTable(schema, ctx, routeUnit,

tables.get(0), rrs, isSelect, cachePool);

}

Set<String> retNodesSet = new HashSet<String>();

//每个表对应的路由映射

Map<String,Set<String>> tablesRouteMap = new HashMap<String,Set<String>>();

//分库解析信息不为空

Map<String, Map<String, Set<ColumnRoutePair>>> tablesAndConditions = routeUnit.getTablesAndConditions();

if(tablesAndConditions != null && tablesAndConditions.size() > 0) {

//为分库表找路由

RouterUtil.findRouteWithcConditionsForTables(schema, rrs, tablesAndConditions,

tablesRouteMap, ctx.getSql(), cachePool, isSelect);

if(rrs.isFinishedRoute()) {

return rrs;

}

//为全局表和单库表找路由

for(String tableName : tables) {

TableConfig tableConfig = schema.getTables().get(tableName.toUpperCase());

if(tableConfig == null) {

String msg = "can't find table define in schema "+ tableName + " schema:" + schema.getName();

LOGGER.warn(msg);

throw new SQLNonTransientException(msg);

}

if(tableConfig.isGlobalTable()) {//全局表

if(tablesRouteMap.get(tableName) == null) {

tablesRouteMap.put(tableName, new HashSet<String>());

}

tablesRouteMap.get(tableName).addAll(tableConfig.getDataNodes());

} else if(tablesRouteMap.get(tableName) == null) { //余下的表都是单库表

tablesRouteMap.put(tableName, new HashSet<String>());

tablesRouteMap.get(tableName).addAll(tableConfig.getDataNodes());

}

//此处省略如下代码

}
