本文介绍Aspose.Words这款强大的文档处理控件，可以在没有Microsoft Word的情况下进行文档创建、编辑和转换等工作。同时，文章还详细展示了如何使用ChartDataLabel自定义图表数据标签的显示方式。

Aspose.Words是一款先进的文档处理控件，在不使用Microsoft Words的情况下，它可以使用户在各个应用程序中执行各种文档处理任务，其中包括文档的生成、修改、渲染、打印，文档格式转换和邮件合并等文档处理。此外，Aspose.Words支持DOC，OOXML，RTF，HTML，OpenDocument, PDF, XPS, EPUB和其他格式。

使用ChartDataLabel你可以规定单个图表系列的数据标签的格式，像显现/隐藏图例、种类名字、SeriesName、值等等。

ChartDataLabelCollection dataLabelCollection = series0.DataLabels;
// Add data label to the first and second point of the first series.
ChartDataLabel chartDataLabel00 = dataLabelCollection.Add(0);
ChartDataLabel chartDataLabel01 = dataLabelCollection.Add(1);
// Set properties.
chartDataLabel00.ShowLegendKey = true;
// By default, when you add data labels to the data points in a pie chart, leader lines are displayed for data labels that are
// positioned far outside the end of data points. Leader lines create a visual connection between a data label and its
// corresponding data point.
chartDataLabel00.ShowLeaderLines = true;
chartDataLabel00.ShowCategoryName = false;
chartDataLabel00.ShowPercentage = false;
chartDataLabel00.ShowSeriesName = true;
chartDataLabel00.ShowValue = true;
chartDataLabel00.Separator = "/";
chartDataLabel01.ShowValue = true;

Dim dataLabelCollection As ChartDataLabelCollection = series0.DataLabels
' Add data label to the first and second point of the first series.
Dim chartDataLabel00 As ChartDataLabel = dataLabelCollection.Add(0)
Dim chartDataLabel01 As ChartDataLabel = dataLabelCollection.Add(1)
' Set properties.
chartDataLabel00.ShowLegendKey = True
' By default, when you add data labels to the data points in a pie chart, leader lines are displayed for data labels that are
' positioned far outside the end of data points. Leader lines create a visual connection between a data label and its
' corresponding data point.
chartDataLabel00.ShowLeaderLines = True
chartDataLabel00.ShowCategoryName = False
chartDataLabel00.ShowPercentage = False
chartDataLabel00.ShowSeriesName = True
chartDataLabel00.ShowValue = True
chartDataLabel00.Separator = "/"
chartDataLabel01.ShowValue = True

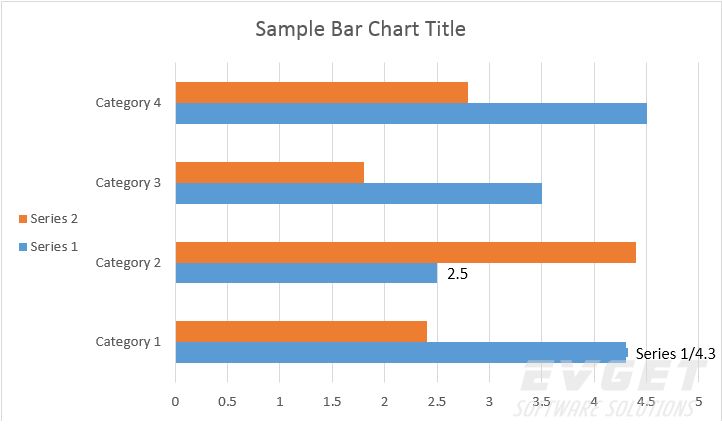

结果如下：
