nginx+lua(openresty)实现黑/白名单权限控制

原创已于 2022-01-19 09:42:07 修改 · 4.9k 阅读

6 ·

CC 4.0 BY-SA版权

文章标签：

#lua #nginx #openresty #权限控制

于 2022-01-18 17:22:39 首次发布

本文介绍使用OpenResty实现动态权限控制的方法，包括通过定时器定期获取黑名单数据，并利用Lua脚本进行权限验证。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

openresty在nginx基础上集成了很多功能，比如可以直接调用redis,mysql，http接口等服务，比较流行的网关kong就是通过openresty实现的。日常开发和运维离不开nginx，实现稍微复杂的功能：简单权限控制，灰度发布等就可以通过openresty实现。

本文通过openresty定时器定期请求http接口获取更新的黑名单数据，过滤用户并做进一步的判断（结合实际的业务需求）进行权限管控。话不多说，直接上nginx.conf代码如下。

user  root;
worker_processes  auto;
worker_cpu_affinity auto;

error_log  logs/error.log  error;
worker_rlimit_nofile 30000;
pid        logs/nginx.pid;
events {
    use epoll;
    worker_connections  65535;
}

http {
   #include       mime.types;
    default_type  application/octet-stream;
    sendfile    on;
    tcp_nopush  on;
    server_tokens off;
    underscores_in_headers on;
    keepalive_timeout  10;
    send_timeout 60;
    include /usr/local/nginx/conf/online/*.conf;
    #下面四行和lua相关，重点看一下
    lua_shared_dict portalCache 10m;#多进程共享内存变量
    lua_shared_dict commonCache 1m;
    init_by_lua_file /home/www/example/lua/api_init.lua;#初始化全局变量
    init_worker_by_lua_file /home/www/example/lua/api_timer.lua; #启动定时器定期调用接口
    upstream portalBackend {
        server xxx weight=3;
        server xxx weight=1;
    }
    upstream labelBackend {
        server xxx;
        server xxx;
    }
    upstream portalBackendOnQlikTicket {
       server xxx;
       server xxx;
    }
    upstream portalClient {
        server xxx;
        server xxx;
    }
    upstream portalAdmin {
        server xxx;
        server xxx;
    }
    upstream labelFrontend {
        server xxx;
        server xxx;
    }
    upstream bigScreen {
        server xxx;
        server xxx;
    }
    upstream mobile {
        server xxx;
        server xxx;
    }
    upstream portalMobile {
        server xxx;
        server xxx;
    }

    server {
        listen       80;
        server_name  localhost hportal-uat.hikvision.com.cn;

        #charset koi8-r;

        #access_log  logs/host.access.log  main;
        location / {
                proxy_pass http://portalClient;
                proxy_redirect    off;
                proxy_set_header  Host $host;
                proxy_set_header  X-real-ip $remote_addr;
                proxy_set_header  X-Forwarded-For $proxy_add_x_forwarded_for;

            add_header Access-Control-Allow-Origin *;
            add_header Access-Control-Allow-Methods 'GET, POST, PUT, DELETE, OPT                                                                             IONS';
            add_header Access-Control-Allow-Credentials 'true';
            add_header Access-Control-Allow-Headers 'DNT,X-Mx-ReqToken,Keep-Aliv                                                                             e,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Autho                                                                             rization,Origin,Accept';
        }
        location /ptclient {
                proxy_pass http://portalClient/ptclient;
                proxy_redirect    off;
                proxy_set_header  Host $host;
                proxy_set_header  X-real-ip $remote_addr;
                proxy_set_header  X-Forwarded-For $proxy_add_x_forwarded_for;
                    add_header Access-Control-Allow-Origin *;
            add_header Access-Control-Allow-Methods 'GET, POST, PUT, DELETE, OPT                                                                             IONS';
            add_header Access-Control-Allow-Credentials 'true';
            add_header Access-Control-Allow-Headers 'DNT,X-Mx-ReqToken,Keep-Aliv                                                                             e,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,Autho                                                                             rization,Origin,Accept';
        }
        location /ptadmin {
                proxy_pass http://portalAdmin/ptadmin;
                proxy_redirect    off;
                proxy_set_header  Host $host;
                proxy_set_header  X-real-ip $remote_addr;
                proxy_set_header  X-Forwarded-For $proxy_add_x_forwarded_for;
        }

        location /api/ {
         #...............error.log......notice
                rewrite_log on;
        #...............
                rewrite ^/api/(.*)$ /$1 break;
                proxy_pass http://portalBackend;
                proxy_http_version 1.1;
                proxy_redirect    off;
                proxy_set_header  Host $host;
                proxy_set_header Origin '';
                proxy_set_header  X-real-ip $remote_addr;
                proxy_set_header  X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "upgrade";
                add_header Access-Control-Allow-Origin *;
                add_header Access-Control-Allow-Methods 'GET, POST, PUT, DELETE,                                                                              OPTIONS';
                add_header Access-Control-Allow-Credentials 'true';
                add_header Access-Control-Allow-Headers 'DNT,X-Mx-ReqToken,Keep-                                                                             Alive,User-Agent,X-Requested-With,If-Modified-Since,Cache-Control,Content-Type,A                                                                             uthorization,Origin,Accept';
        }

	location /api/checkVmPermission {
            default_type text/html;
            access_by_lua_file /home/www/example/lua/api_access.lua;
        }

	location /api/test {
		content_by_lua_block {
			local portalCache = ngx.shared.portalCache;
			ngx.say(portalCache:get("userAccountList"))
		}
	}

        location @router{
            rewrite ^.*$ /index.html last;
        }
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   html;
        }
    }
}

#上述代码段中的接口只需要关注 /api/checkVmPermission和/api/test 即可。

api_init.lua代码如下所示：

json = require "cjson.safe"
http = require("resty.http")
interval = 60
portalCache = ngx.shared.portalCache
ipList = {"xxx.xxx.xxx.xxx","xxx.xxx.xxx.xxx"......}
portalCache:set("flag", true)
portalCache:set("ipList", json.encode(ipList))

api_timer.lua代码如下所示：

local function newClient()
	local httpC = http.new()
        return httpC
end
local handler = function (premature)
    local httpc = newClient()
    local resp,err = httpc:request_uri("http://10.10.10.10:8080", {
        method = "GET",
        path = "/xxx/xxx",
		--请求的校验字段
        headers = {
                ["VM_HEADER"] = "xxxxx"
        }
    })
	--array为类型table，需要序列化之后才能存入portalCache
    local array = json.decode(resp.body).data
    portalCache:set("userAccountList", json.encode(array))
end
--只有一个进程负责定时任务
if 0 == ngx.worker.id() then
    local ok, err = ngx.timer.every(interval, handler)
    if not ok then
       log(ERR, "failed to get userAccountList: ", err)
       return
    end
end

api_access.lua代码如下所示：

function account_is_include(value, tab)
    --string 转table
   local table = json.decode(tab)
   for k,v in ipairs(table) do
      if string.lower(v) == string.lower(value) then
           return true
       end
    end
    return false
end

function ip_is_include(value, tab)
   for k,v in ipairs(tab) do
      if string.find(value, v) ~= nil then
           return true
      end
   end
   return false
end

local function newClient()
        local httpC = http.new()
        return httpC
end
local handler = function (premature)
    local httpc = newClient()
    local resp,err = httpc:request_uri("http://xx.xx.xx.xx:xxxx", {
        method = "GET",
        path = "/xxx/xxx",
        headers = {
                ["VM_HEADER"] = "xxx"
        }
    })
    local array = json.encode(json.decode(resp.body).data)
    portalCache:set("userAccountList", array)
end
--nginx启动时先调用一次
if portalCache:get("flag") then
   portalCache:set("flag", false)
   handler()
end

check_userAccount = portalCache:get("userAccountList")
check_ip = json.decode(portalCache:get("ipList"))
if nil == check_userAccount or nil == check_ip then
   return ngx.exit(500)
end

local headers = ngx.req.get_headers()
local userAccount = headers["userAccount"]
if userAccount == nil then
   return ngx.exit(401)
end
if account_is_include(userAccount, check_userAccount) then
    local clientIP = headers["x-forwarded-for"]
    if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
      	 clientIP = headers["Proxy-Client-IP"]
    end
    if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
         clientIP = headers["WL-Proxy-Client-IP"]
    end
    if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
         clientIP = ngx.var.remote_addr
    end
        -- ...............IP......IP,..IP..','..
    if clientIP ~= nil and string.len(clientIP) >15  then
         local pos  = string.find(clientIP, ",", 1)
       	 clientIP = string.sub(clientIP,1,pos-1)
    end
    if clientIP == nil then
	return ngx.exit(500)
    end
    if ip_is_include(clientIP, check_ip) then
	return ngx.say(userAccount .. " " .. "Welcome to Hportal! (VM-IP:" .. clientIP ..")")
    else
        ngx.status = 403
        ngx.say("Error! Restricted permissions! Your IP is " .. clientIP .. ". Make sure your IP is within this range: " .. json.encode(check_ip))
    end
else
   ngx.say(userAccount .. " " .. "Welcome to Hportal!")
end

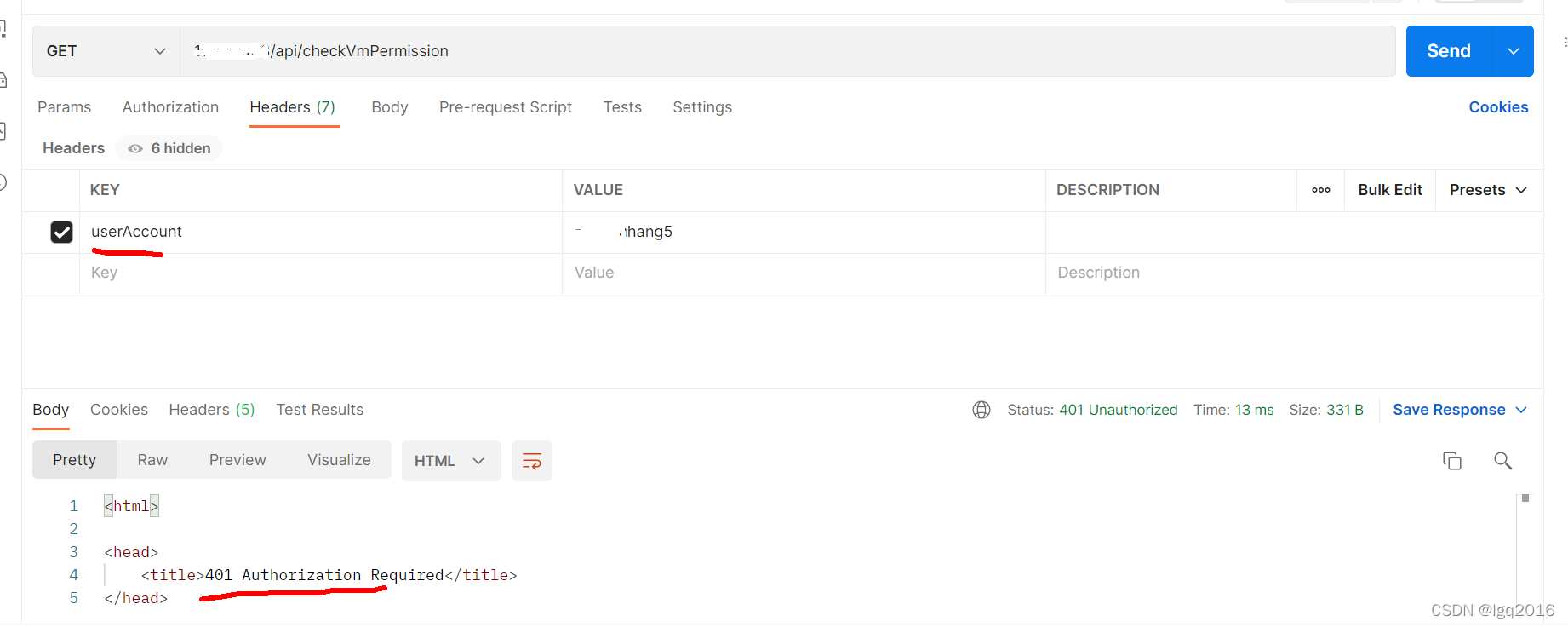

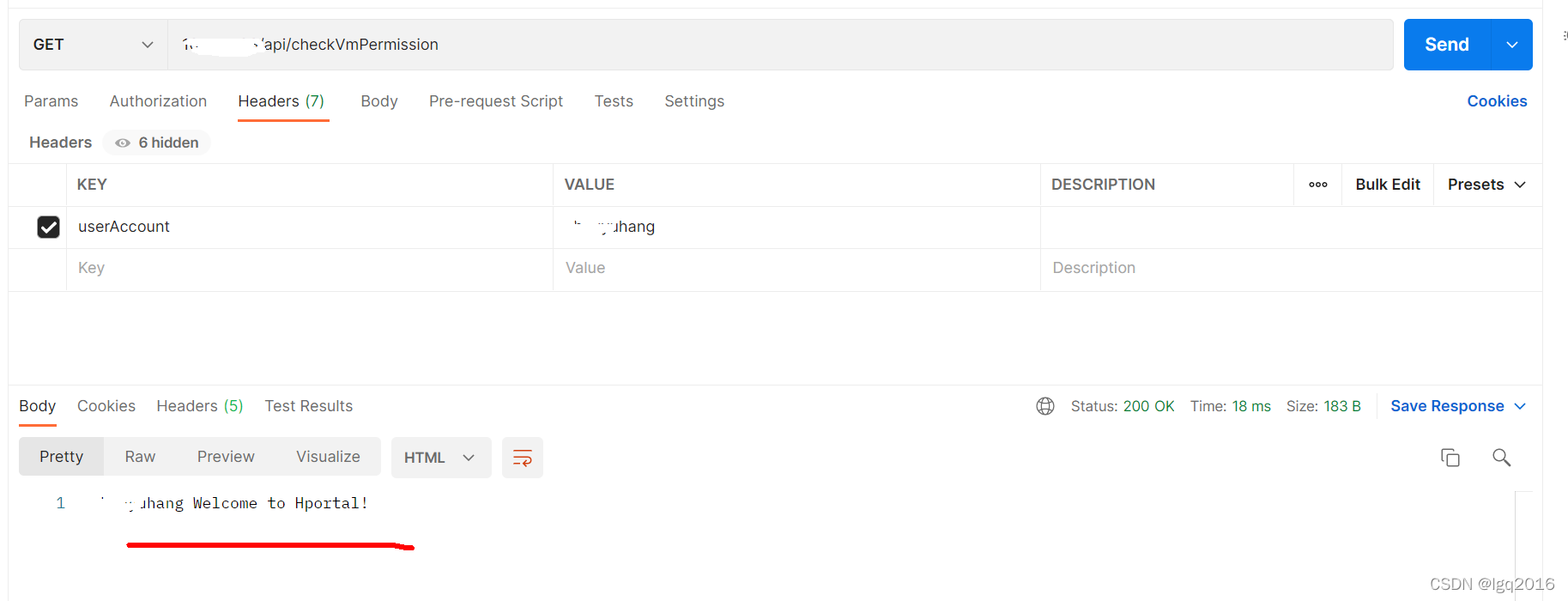

最后实现效果如下所示：

常见问题汇总：

1.init_worker_by_lua_file error: /usr/local/openresty/lualib/resty/http.lua:133: API disabled in the context of init_worker_by_lua*
stack traceback:
[C]: in function 'ngx_socket_tcp'
/usr/local/openresty/lualib/resty/http.lua:133: in function 'new'
/home/www/example/lua/api_timer.lua:6: in function 'newClient'
/home/www/example/lua/api_timer.lua:21: in function 'getUserAccountTask'
/home/www/example/lua/api_timer.lua:35: in main chunk

答：在init_worker_by_lua...中不能直接调报表http的函数，必须在定时器里面调用。

2.json.decode(resp.body).data （table类型）无法直接放入公共缓存变量的value中

答：set时需要将table转为string，get时再转为table。

3. 如何访问http接口

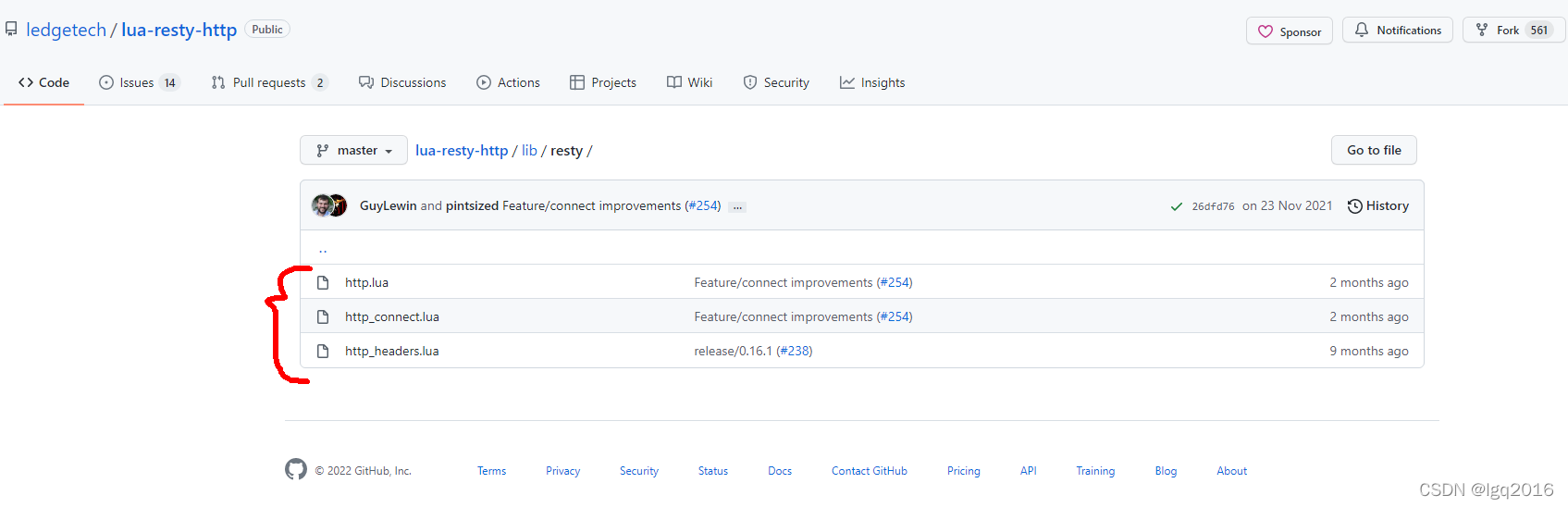

答：推荐使用httpc，openresty本身不支持，需要在/usr/local/openresty/lualib/resty目录下引入以下三个文件：https://github.com/ledgetech/lua-resty-http/tree/master/lib/resty

4.如何获取请求真实ip地址？（openresty(nginx)中使用lua脚本获取请求IP地址的代码 - 小勇DW3 - 博客园）

local headers=ngx.req.get_headers()
local clientIP = headers["x-forwarded-for"]
if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
      clientIP = headers["Proxy-Client-IP"]
end
if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
      clientIP = headers["WL-Proxy-Client-IP"]
end
if clientIP == nil or string.len(clientIP) == 0 or clientIP == "unknown" then
      clientIP = ngx.var.remote_addr
end
-- 对于通过多个代理的情况，第一个IP为客户端真实IP,多个IP按照','分割
if clientIP ~= nil and string.len(clientIP) >15  then
      local pos  = string.find(clientIP, ",", 1)
      clientIP = string.sub(clientIP,1,pos-1)
end
