  run on a yarn ensemble is straightforward,

  1.setup HADOOP_CONF_DIR

   u can use command export HADOOP_CONF_DIR=xx

   or add it to spark-env.sh

   2.

spark-submit  --master yarn --class org.apache.spark.examples.JavaWordCount --verbose --deploy-mode client ~/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar RELEASE 2

  u can goto yarn master ui to check the app info.

  also,if u wanna specify # of executors(containers?) ,just add this property in the command above

 --num-executors 2



--AppMaster logs.

hadoop    2758 13206  0 16:52 ?        00:00:00 /bin/bash -c /usr/local/jdk/jdk1.6.0_31/bin/java -server -Xmx512m -Djava.io.tmpdir=/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0029/container_1441038159113_0029_01_000001/tmp '-Dspark.eventLog.enabled=true' '-Dspark.externalBlockStore.folderName=spark-a5761a0d-2f87-4afc-b4eb-dbaf1fd86ef4' '-Dspark.executor.memory=2g' '-Dspark.jars=file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0.jar' '-Dspark.master.ui.port=7102' '-Dspark.ui.port=7108' '-Dspark.worker.ui.port=7105' '-Dspark.driver.appUIAddress=http://192.168.100.4:7108' '-Dspark.master=yarn-client' '-Dspark.driver.allowMultipleContexts=true' '-Dspark.driver.port=52394' '-Dspark.eventLog.dir=hdfs://hd02:8020/user/hadoop/spark-eventlog' '-Dspark.executor.id=driver' '-Dspark.executor.extraJavaOptions=-Xloggc:~/spark-executor.gc -XX:+UseCMSCompactAtFullCollection -XX:CMSFullGCsBeforeCompaction=2 -XX:CMSInitiatingOccupancyFraction=65 -XX:+UseCMSInitiatingOccupancyOnly -XX:PermSize=64m -XX:MaxPermSize=256m -XX:NewRatio=5 -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+PrintGCDateStamps -XX:+PrintGCDetails -XX:ParallelGCThreads=5' '-Dspark.executor.cores=2' '-Dspark.driver.host=192.168.100.4' '-Dspark.driver.memory=6g' '-Dspark.storage.memoryFraction=0.5' '-Dspark.app.name=JavaWordCount' '-Dspark.fileserver.uri=http://192.168.100.4:48227' '-Dspark.cores.max=50' -Dspark.yarn.app.container.log.dir=/usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0029/container_1441038159113_0029_01_000001 org.apache.spark.deploy.yarn.ExecutorLauncher --arg '192.168.100.4:52394' --executor-memory 2048m --executor-cores 2 --num-executors  2 1> /usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0029/container_1441038159113_0029_01_000001/stdout 2> /usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0029/container_1441038159113_0029_01_000001/stderr

hadoop    2763  2758 23 16:52 ?        00:00:06 /usr/local/jdk/jdk1.6.0_31/bin/java -server -Xmx512m -Djava.io.tmpdir=/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0029/container_1441038159113_0029_01_000001/tmp -Dspark.eventLog.enabled=true -Dspark.externalBlockStore.folderName=spark-a5761a0d-2f87-4afc-b4eb-dbaf1fd86ef4 -Dspark.executor.memory=2g -Dspark.jars=file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0.jar -Dspark.master.ui.port=7102 -Dspark.ui.port=7108 -Dspark.worker.ui.port=7105 -Dspark.driver.appUIAddress=http://192.168.100.4:7108 -Dspark.master=yarn-client -Dspark.driver.allowMultipleContexts=true -Dspark.driver.port=52394 -Dspark.eventLog.dir=hdfs://hd02:8020/user/hadoop/spark-eventlog -Dspark.executor.id=driver -Dspark.executor.extraJavaOptions=-Xloggc:~/spark-executor.gc -XX:+UseCMSCompactAtFullCollection -XX:CMSFullGCsBeforeCompaction=2 -XX:CMSInitiatingOccupancyFraction=65 -XX:+UseCMSInitiatingOccupancyOnly -XX:PermSize=64m -XX:MaxPermSize=256m -XX:NewRatio=5 -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+PrintGCDateStamps -XX:+PrintGCDetails -XX:ParallelGCThreads=5 -Dspark.executor.cores=2 -Dspark.driver.host=192.168.100.4 -Dspark.driver.memory=6g -Dspark.storage.memoryFraction=0.5 -Dspark.app.name=JavaWordCount -Dspark.fileserver.uri=http://192.168.100.4:48227 -Dspark.cores.max=50 -Dspark.yarn.app.container.log.dir=/usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0029/container_1441038159113_0029_01_000001 org.apache.spark.deploy.yarn.ExecutorLauncher --arg 192.168.100.4:52394 --executor-memory 2048m --executor-cores 2 --num-executors 2

  --task container logs

hadoop   10382  1055  0 17:20 ?        00:00:00 /bin/bash -c /usr/local/jdk/jdk1.6.0_31/bin/java -server -XX:OnOutOfMemoryError='kill %p' -Xms2048m -Xmx2048m '-Xloggc:~/spark-executor.gc' '-XX:+UseCMSCompactAtFullCollection' '-XX:CMSFullGCsBeforeCompaction=2' '-XX:CMSInitiatingOccupancyFraction=65' '-XX:+UseCMSInitiatingOccupancyOnly' '-XX:PermSize=64m' '-XX:MaxPermSize=256m' '-XX:NewRatio=5' '-XX:+UseParNewGC' '-XX:+UseConcMarkSweepGC' '-XX:+PrintGCDateStamps' '-XX:+PrintGCDetails' '-XX:ParallelGCThreads=5' -Djava.io.tmpdir=/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0031/container_1441038159113_0031_01_000003/tmp '-Dspark.master.ui.port=7102' '-Dspark.ui.port=7108' '-Dspark.worker.ui.port=7105' '-Dspark.driver.port=44382' -Dspark.yarn.app.container.log.dir=/usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0031/container_1441038159113_0031_01_000003 org.apache.spark.executor.CoarseGrainedExecutorBackend --driver-url akka.tcp://sparkDriver@192.168.100.4:44382/user/CoarseGrainedScheduler --executor-id 2 --hostname gzsw-13 --cores 2 --app-id application_1441038159113_0031 --user-class-path file:/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0031/container_1441038159113_0031_01_000003/__app__.jar 1> /usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0031/container_1441038159113_0031_01_000003/stdout 2> /usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0031/container_1441038159113_0031_01_000003/stderr
hadoop   10386 10382 99 17:20 ?        00:00:25 /usr/local/jdk/jdk1.6.0_31/bin/java -server -XX:OnOutOfMemoryError=kill %p -Xms2048m -Xmx2048m -Xloggc:~/spark-executor.gc -XX:+UseCMSCompactAtFullCollection -XX:CMSFullGCsBeforeCompaction=2 -XX:CMSInitiatingOccupancyFraction=65 -XX:+UseCMSInitiatingOccupancyOnly -XX:PermSize=64m -XX:MaxPermSize=256m -XX:NewRatio=5 -XX:+UseParNewGC -XX:+UseConcMarkSweepGC -XX:+PrintGCDateStamps -XX:+PrintGCDetails -XX:ParallelGCThreads=5 -Djava.io.tmpdir=/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0031/container_1441038159113_0031_01_000003/tmp -Dspark.master.ui.port=7102 -Dspark.ui.port=7108 -Dspark.worker.ui.port=7105 -Dspark.driver.port=44382 -Dspark.yarn.app.container.log.dir=/usr/local/hadoop/hadoop-2.5.2/logs/userlogs/application_1441038159113_0031/container_1441038159113_0031_01_000003 org.apache.spark.executor.CoarseGrainedExecutorBackend --driver-url akka.tcp://sparkDriver@192.168.100.4:44382/user/CoarseGrainedScheduler --executor-id 2 --hostname gzsw-13 --cores 2 --app-id application_1441038159113_0031 --user-class-path file:/usr/local/hadoop/data-2.5.1/tmp/nm-local-dir/usercache/hadoop/appcache/application_1441038159113_0031/container_1441038159113_0031_01_000003/__app__.jar

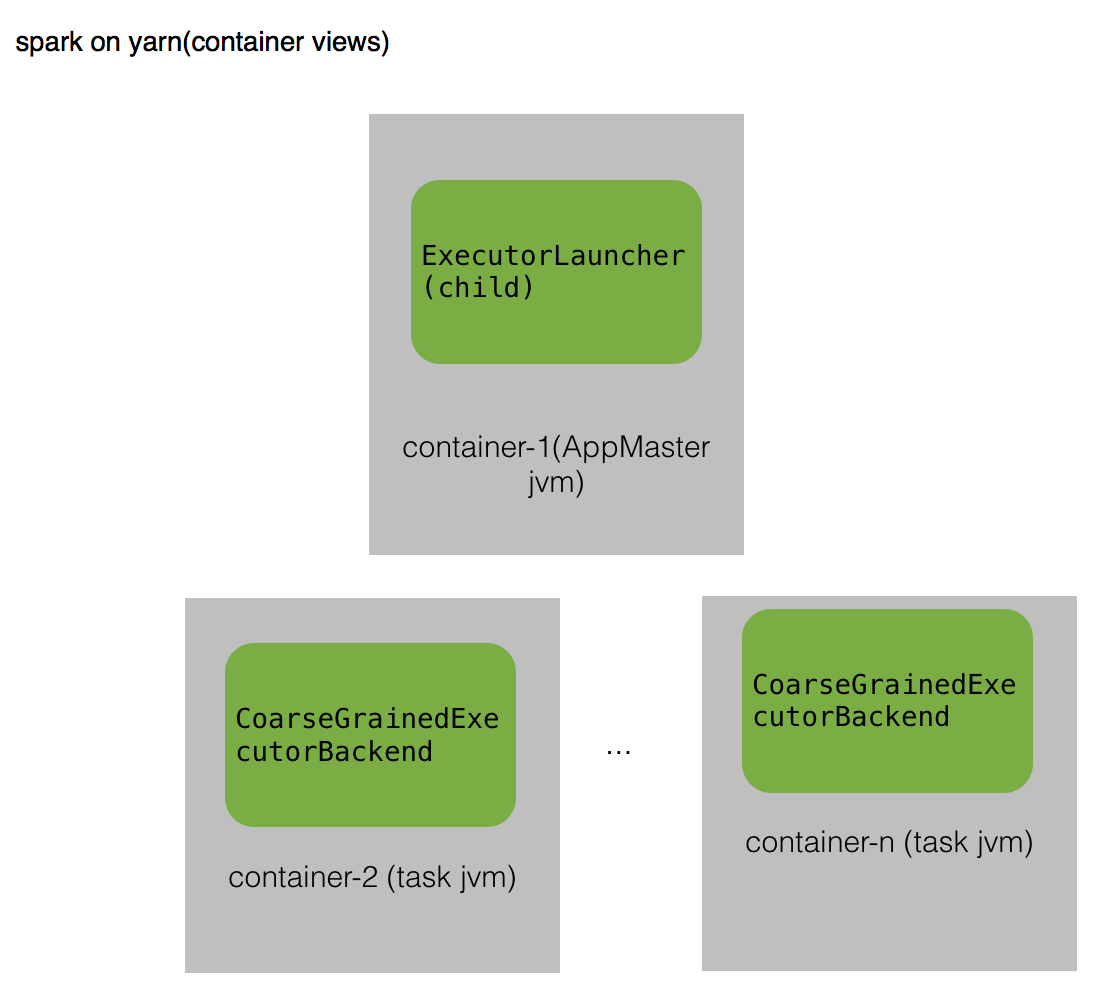

  corresponding figures:







   the logs from driver :(u will two tasks are run on host-05 on first stage; one for each of both host-05,06 for second stage)

hadoop@GZsw04:~/spark/spark-1.4.1-bin-hadoop2.4$ spark-submit  --master yarn --class org.apache.spark.examples.JavaWordCount --verbose --deploy-mode client ~/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar RELEASE 2
Using properties file: /home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/conf/spark-defaults.conf
Adding default property: spark.executor.extraJavaOptions=-Xloggc:/home/hadoop/spark-executor.gc -XX:+PrintGCDateStamps -XX:+PrintGCDetails
Adding default property: spark.eventLog.enabled=true
Adding default property: spark.ui.port=7106
Adding default property: spark.deploy.spreadOut=false
Adding default property: spark.worker.ui.port=7105
Adding default property: spark.master.ui.port=7102
Adding default property: spark.eventLog.dir=/home/hadoop/spark/spark-eventlog
Adding default property: spark.driver.allowMultipleContexts=true
Parsed arguments:
  master                  yarn
  deployMode              client
  executorMemory          null
  executorCores           null
  totalExecutorCores      null
  propertiesFile          /home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/conf/spark-defaults.conf
  driverMemory            1g
  driverCores             null
  driverExtraClassPath    null
  driverExtraLibraryPath  null
  driverExtraJavaOptions  null
  supervise               false
  queue                   null
  numExecutors            null
  files                   null
  pyFiles                 null
  archives                null
  mainClass               org.apache.spark.examples.JavaWordCount
  primaryResource         file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar
  name                    org.apache.spark.examples.JavaWordCount
  childArgs               [RELEASE 2]
  jars                    null
  packages                null
  repositories            null
  verbose                 true

Spark properties used, including those specified through
 --conf and those from the properties file /home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/conf/spark-defaults.conf:
  spark.eventLog.enabled -> true
  spark.driver.allowMultipleContexts -> true
  spark.ui.port -> 7106
  spark.executor.extraJavaOptions -> -Xloggc:/home/hadoop/spark-executor.gc -XX:+PrintGCDateStamps -XX:+PrintGCDetails
  spark.deploy.spreadOut -> false
  spark.eventLog.dir -> /home/hadoop/spark/spark-eventlog
  spark.worker.ui.port -> 7105
  spark.master.ui.port -> 7102


Main class:
org.apache.spark.examples.JavaWordCount
Arguments:
RELEASE
2
System properties:
spark.driver.memory -> 1g
spark.eventLog.enabled -> true
spark.driver.allowMultipleContexts -> true
SPARK_SUBMIT -> true
spark.ui.port -> 7106
spark.executor.extraJavaOptions -> -Xloggc:/home/hadoop/spark-executor.gc -XX:+PrintGCDateStamps -XX:+PrintGCDetails
spark.deploy.spreadOut -> false
spark.app.name -> org.apache.spark.examples.JavaWordCount
spark.jars -> file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar
spark.eventLog.dir -> /home/hadoop/spark/spark-eventlog
spark.master -> yarn-client
spark.worker.ui.port -> 7105
spark.master.ui.port -> 7102
Classpath elements:
file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar


15/11/25 16:46:55 INFO spark.SparkContext: Running Spark version 1.4.1
15/11/25 16:46:55 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
15/11/25 16:46:55 INFO spark.SecurityManager: Changing view acls to: hadoop
15/11/25 16:46:55 INFO spark.SecurityManager: Changing modify acls to: hadoop
15/11/25 16:46:55 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(hadoop); users with modify permissions: Set(hadoop)
15/11/25 16:46:56 INFO slf4j.Slf4jLogger: Slf4jLogger started
15/11/25 16:46:56 INFO Remoting: Starting remoting
15/11/25 16:46:56 INFO Remoting: Remoting started; listening on addresses :[akka.tcp://sparkDriver@192.168.100.4:45880]
15/11/25 16:46:56 INFO util.Utils: Successfully started service 'sparkDriver' on port 45880.
15/11/25 16:46:56 INFO spark.SparkEnv: Registering MapOutputTracker
15/11/25 16:46:56 INFO spark.SparkEnv: Registering BlockManagerMaster
15/11/25 16:46:56 INFO storage.DiskBlockManager: Created local directory at /tmp/spark-52cdfa49-3560-40bd-9540-107f059b5d95/blockmgr-a25e4dc5-b8e0-4877-ad63-b0e32880e187
15/11/25 16:46:56 INFO storage.MemoryStore: MemoryStore started with capacity 529.9 MB
15/11/25 16:46:57 INFO spark.HttpFileServer: HTTP File server directory is /tmp/spark-52cdfa49-3560-40bd-9540-107f059b5d95/httpd-8b586e36-69a3-46c1-880d-5f294a643833
15/11/25 16:46:57 INFO spark.HttpServer: Starting HTTP Server
15/11/25 16:46:57 INFO server.Server: jetty-8.y.z-SNAPSHOT
15/11/25 16:46:57 INFO server.AbstractConnector: Started SocketConnector@0.0.0.0:51033
15/11/25 16:46:57 INFO util.Utils: Successfully started service 'HTTP file server' on port 51033.
15/11/25 16:46:57 INFO spark.SparkEnv: Registering OutputCommitCoordinator
15/11/25 16:46:57 INFO server.Server: jetty-8.y.z-SNAPSHOT
15/11/25 16:46:57 INFO server.AbstractConnector: Started SelectChannelConnector@0.0.0.0:7106
15/11/25 16:46:57 INFO util.Utils: Successfully started service 'SparkUI' on port 7106.
15/11/25 16:46:57 INFO ui.SparkUI: Started SparkUI at http://192.168.100.4:7106
15/11/25 16:46:57 INFO spark.SparkContext: Added JAR file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-examples-1.4.1-hadoop2.4.0-my.jar at http://192.168.100.4:51033/jars/spark-examples-1.4.1-hadoop2.4.0-my.jar with timestamp 1448441217526
15/11/25 16:46:57 WARN cluster.YarnClientSchedulerBackend: NOTE: SPARK_WORKER_MEMORY is deprecated. Use SPARK_EXECUTOR_MEMORY or --executor-memory through spark-submit instead.
15/11/25 16:46:57 WARN cluster.YarnClientSchedulerBackend: NOTE: SPARK_WORKER_CORES is deprecated. Use SPARK_EXECUTOR_CORES or --executor-cores through spark-submit instead.
15/11/25 16:46:57 INFO client.RMProxy: Connecting to ResourceManager at hd02/192.168.100.4:8032
15/11/25 16:46:57 INFO yarn.Client: Requesting a new application from cluster with 10 NodeManagers
15/11/25 16:46:57 INFO yarn.Client: Verifying our application has not requested more than the maximum memory capability of the cluster (8192 MB per container)
15/11/25 16:46:57 INFO yarn.Client: Will allocate AM container, with 896 MB memory including 384 MB overhead
15/11/25 16:46:57 INFO yarn.Client: Setting up container launch context for our AM
15/11/25 16:46:57 INFO yarn.Client: Preparing resources for our AM container
15/11/25 16:46:58 INFO yarn.Client: Uploading resource file:/home/hadoop/spark/spark-1.4.1-bin-hadoop2.4/lib/spark-assembly-1.4.1-hadoop2.4.0.jar -> hdfs://mycluster/user/hadoop/.sparkStaging/application_1441038159113_0003/spark-assembly-1.4.1-hadoop2.4.0.jar
15/11/25 16:47:00 INFO yarn.Client: Uploading resource file:/tmp/spark-52cdfa49-3560-40bd-9540-107f059b5d95/__hadoop_conf__6446760494119929942.zip -> hdfs://mycluster/user/hadoop/.sparkStaging/application_1441038159113_0003/__hadoop_conf__6446760494119929942.zip
15/11/25 16:47:00 INFO yarn.Client: Setting up the launch environment for our AM container
15/11/25 16:47:00 INFO spark.SecurityManager: Changing view acls to: hadoop
15/11/25 16:47:00 INFO spark.SecurityManager: Changing modify acls to: hadoop
15/11/25 16:47:00 INFO spark.SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(hadoop); users with modify permissions: Set(hadoop)
15/11/25 16:47:00 INFO yarn.Client: Submitting application 3 to ResourceManager
15/11/25 16:47:00 INFO impl.YarnClientImpl: Submitted application application_1441038159113_0003
15/11/25 16:47:01 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:01 INFO yarn.Client:
	 client token: N/A
	 diagnostics: N/A
	 ApplicationMaster host: N/A
	 ApplicationMaster RPC port: -1
	 queue: default
	 start time: 1448441220409
	 final status: UNDEFINED
	 tracking URL: http://hd02:7104/proxy/application_1441038159113_0003/
	 user: hadoop
15/11/25 16:47:02 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:03 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:04 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:05 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:06 INFO yarn.Client: Application report for application_1441038159113_0003 (state: ACCEPTED)
15/11/25 16:47:06 INFO cluster.YarnSchedulerBackend$YarnSchedulerEndpoint: ApplicationMaster registered as AkkaRpcEndpointRef(Actor[akka.tcp://sparkYarnAM@192.168.100.14:46652/user/YarnAM#-1250321572])
15/11/25 16:47:06 INFO cluster.YarnClientSchedulerBackend: Add WebUI Filter. org.apache.hadoop.yarn.server.webproxy.amfilter.AmIpFilter, Map(PROXY_HOSTS -> hd02, PROXY_URI_BASES -> http://hd02:7104/proxy/application_1441038159113_0003), /proxy/application_1441038159113_0003
15/11/25 16:47:06 INFO ui.JettyUtils: Adding filter: org.apache.hadoop.yarn.server.webproxy.amfilter.AmIpFilter
15/11/25 16:47:07 INFO yarn.Client: Application report for application_1441038159113_0003 (state: RUNNING)
15/11/25 16:47:07 INFO yarn.Client:
	 client token: N/A
	 diagnostics: N/A
	 ApplicationMaster host: 192.168.100.14
	 ApplicationMaster RPC port: 0
	 queue: default
	 start time: 1448441220409
	 final status: UNDEFINED
	 tracking URL: http://hd02:7104/proxy/application_1441038159113_0003/
	 user: hadoop
15/11/25 16:47:07 INFO cluster.YarnClientSchedulerBackend: Application application_1441038159113_0003 has started running.
15/11/25 16:47:07 INFO util.Utils: Successfully started service 'org.apache.spark.network.netty.NettyBlockTransferService' on port 52047.
15/11/25 16:47:07 INFO netty.NettyBlockTransferService: Server created on 52047
15/11/25 16:47:07 INFO storage.BlockManagerMaster: Trying to register BlockManager
15/11/25 16:47:07 INFO storage.BlockManagerMasterEndpoint: Registering block manager 192.168.100.4:52047 with 529.9 MB RAM, BlockManagerId(driver, 192.168.100.4, 52047)
15/11/25 16:47:07 INFO storage.BlockManagerMaster: Registered BlockManager
15/11/25 16:47:07 INFO scheduler.EventLoggingListener: Logging events to file:/home/hadoop/spark/spark-eventlog/application_1441038159113_0003
15/11/25 16:47:17 INFO cluster.YarnClientSchedulerBackend: Registered executor: AkkaRpcEndpointRef(Actor[akka.tcp://sparkExecutor@gzsw-05:55796/user/Executor#-2059071929]) with ID 1
15/11/25 16:47:17 INFO storage.BlockManagerMasterEndpoint: Registering block manager gzsw-05:52897 with 2.1 GB RAM, BlockManagerId(1, gzsw-05, 52897)
15/11/25 16:47:17 INFO cluster.YarnClientSchedulerBackend: Registered executor: AkkaRpcEndpointRef(Actor[akka.tcp://sparkExecutor@gzsw-06:56733/user/Executor#261866940]) with ID 2
15/11/25 16:47:17 INFO cluster.YarnClientSchedulerBackend: SchedulerBackend is ready for scheduling beginning after reached minRegisteredResourcesRatio: 0.8
15/11/25 16:47:17 INFO storage.BlockManagerMasterEndpoint: Registering block manager gzsw-06:38994 with 2.1 GB RAM, BlockManagerId(2, gzsw-06, 38994)
15/11/25 16:47:17 INFO storage.MemoryStore: ensureFreeSpace(228640) called with curMem=0, maxMem=555684986
15/11/25 16:47:17 INFO storage.MemoryStore: Block broadcast_0 stored as values in memory (estimated size 223.3 KB, free 529.7 MB)
15/11/25 16:47:17 INFO storage.MemoryStore: ensureFreeSpace(18166) called with curMem=228640, maxMem=555684986
15/11/25 16:47:17 INFO storage.MemoryStore: Block broadcast_0_piece0 stored as bytes in memory (estimated size 17.7 KB, free 529.7 MB)
15/11/25 16:47:17 INFO storage.BlockManagerInfo: Added broadcast_0_piece0 in memory on 192.168.100.4:52047 (size: 17.7 KB, free: 529.9 MB)
15/11/25 16:47:17 INFO spark.SparkContext: Created broadcast 0 from textFile at JavaWordCount.java:49
15/11/25 16:47:17 INFO mapred.FileInputFormat: Total input paths to process : 1
15/11/25 16:47:17 INFO spark.SparkContext: Starting job: collect at JavaWordCount.java:72
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Registering RDD 3 (mapToPair at JavaWordCount.java:58)
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Got job 0 (collect at JavaWordCount.java:72) with 2 output partitions (allowLocal=false)
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Final stage: ResultStage 1(collect at JavaWordCount.java:72)
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Parents of final stage: List(ShuffleMapStage 0)
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Missing parents: List(ShuffleMapStage 0)
15/11/25 16:47:17 INFO scheduler.DAGScheduler: Submitting ShuffleMapStage 0 (MapPartitionsRDD[3] at mapToPair at JavaWordCount.java:58), which has no missing parents
15/11/25 16:47:18 INFO storage.MemoryStore: ensureFreeSpace(4736) called with curMem=246806, maxMem=555684986
15/11/25 16:47:18 INFO storage.MemoryStore: Block broadcast_1 stored as values in memory (estimated size 4.6 KB, free 529.7 MB)
15/11/25 16:47:18 INFO storage.MemoryStore: ensureFreeSpace(2644) called with curMem=251542, maxMem=555684986
15/11/25 16:47:18 INFO storage.MemoryStore: Block broadcast_1_piece0 stored as bytes in memory (estimated size 2.6 KB, free 529.7 MB)
15/11/25 16:47:18 INFO storage.BlockManagerInfo: Added broadcast_1_piece0 in memory on 192.168.100.4:52047 (size: 2.6 KB, free: 529.9 MB)
15/11/25 16:47:18 INFO spark.SparkContext: Created broadcast 1 from broadcast at DAGScheduler.scala:874
15/11/25 16:47:18 INFO scheduler.DAGScheduler: Submitting 2 missing tasks from ShuffleMapStage 0 (MapPartitionsRDD[3] at mapToPair at JavaWordCount.java:58)
15/11/25 16:47:18 INFO cluster.YarnScheduler: Adding task set 0.0 with 2 tasks
15/11/25 16:47:18 INFO scheduler.TaskSetManager: Starting task 0.0 in stage 0.0 (TID 0, gzsw-05, NODE_LOCAL, 1479 bytes)
15/11/25 16:47:18 INFO scheduler.TaskSetManager: Starting task 1.0 in stage 0.0 (TID 1, gzsw-05, NODE_LOCAL, 1479 bytes)
15/11/25 16:47:19 INFO storage.BlockManagerInfo: Added broadcast_1_piece0 in memory on gzsw-05:52897 (size: 2.6 KB, free: 2.1 GB)
15/11/25 16:47:19 INFO storage.BlockManagerInfo: Added broadcast_0_piece0 in memory on gzsw-05:52897 (size: 17.7 KB, free: 2.1 GB)
15/11/25 16:47:20 INFO scheduler.TaskSetManager: Finished task 1.0 in stage 0.0 (TID 1) in 2705 ms on gzsw-05 (1/2)
15/11/25 16:47:20 INFO scheduler.TaskSetManager: Finished task 0.0 in stage 0.0 (TID 0) in 2725 ms on gzsw-05 (2/2)
15/11/25 16:47:20 INFO cluster.YarnScheduler: Removed TaskSet 0.0, whose tasks have all completed, from pool
15/11/25 16:47:20 INFO scheduler.DAGScheduler: ShuffleMapStage 0 (mapToPair at JavaWordCount.java:58) finished in 2.733 s
15/11/25 16:47:20 INFO scheduler.DAGScheduler: looking for newly runnable stages
15/11/25 16:47:20 INFO scheduler.DAGScheduler: running: Set()
15/11/25 16:47:20 INFO scheduler.DAGScheduler: waiting: Set(ResultStage 1)
15/11/25 16:47:20 INFO scheduler.DAGScheduler: failed: Set()
15/11/25 16:47:20 INFO scheduler.DAGScheduler: Missing parents for ResultStage 1: List()
15/11/25 16:47:20 INFO scheduler.DAGScheduler: Submitting ResultStage 1 (ShuffledRDD[4] at reduceByKey at JavaWordCount.java:65), which is now runnable
15/11/25 16:47:20 INFO storage.MemoryStore: ensureFreeSpace(2408) called with curMem=254186, maxMem=555684986
15/11/25 16:47:20 INFO storage.MemoryStore: Block broadcast_2 stored as values in memory (estimated size 2.4 KB, free 529.7 MB)
15/11/25 16:47:20 INFO storage.MemoryStore: ensureFreeSpace(1459) called with curMem=256594, maxMem=555684986
15/11/25 16:47:20 INFO storage.MemoryStore: Block broadcast_2_piece0 stored as bytes in memory (estimated size 1459.0 B, free 529.7 MB)
15/11/25 16:47:20 INFO storage.BlockManagerInfo: Added broadcast_2_piece0 in memory on 192.168.100.4:52047 (size: 1459.0 B, free: 529.9 MB)
15/11/25 16:47:20 INFO spark.SparkContext: Created broadcast 2 from broadcast at DAGScheduler.scala:874
15/11/25 16:47:20 INFO scheduler.DAGScheduler: Submitting 2 missing tasks from ResultStage 1 (ShuffledRDD[4] at reduceByKey at JavaWordCount.java:65)
15/11/25 16:47:20 INFO cluster.YarnScheduler: Adding task set 1.0 with 2 tasks
15/11/25 16:47:20 INFO scheduler.TaskSetManager: Starting task 0.0 in stage 1.0 (TID 2, gzsw-06, PROCESS_LOCAL, 1246 bytes)
15/11/25 16:47:20 INFO scheduler.TaskSetManager: Starting task 1.0 in stage 1.0 (TID 3, gzsw-05, PROCESS_LOCAL, 1246 bytes)
15/11/25 16:47:20 INFO storage.BlockManagerInfo: Added broadcast_2_piece0 in memory on gzsw-05:52897 (size: 1459.0 B, free: 2.1 GB)
15/11/25 16:47:20 INFO spark.MapOutputTrackerMasterEndpoint: Asked to send map output locations for shuffle 0 to gzsw-05:55796
15/11/25 16:47:20 INFO spark.MapOutputTrackerMaster: Size of output statuses for shuffle 0 is 147 bytes
15/11/25 16:47:20 INFO scheduler.TaskSetManager: Finished task 1.0 in stage 1.0 (TID 3) in 98 ms on gzsw-05 (1/2)
15/11/25 16:47:22 INFO storage.BlockManagerInfo: Added broadcast_2_piece0 in memory on gzsw-06:38994 (size: 1459.0 B, free: 2.1 GB)
15/11/25 16:47:22 INFO spark.MapOutputTrackerMasterEndpoint: Asked to send map output locations for shuffle 0 to gzsw-06:56733
15/11/25 16:47:22 INFO scheduler.TaskSetManager: Finished task 0.0 in stage 1.0 (TID 2) in 1748 ms on gzsw-06 (2/2)
15/11/25 16:47:22 INFO scheduler.DAGScheduler: ResultStage 1 (collect at JavaWordCount.java:72) finished in 1.749 s
15/11/25 16:47:22 INFO cluster.YarnScheduler: Removed TaskSet 1.0, whose tasks have all completed, from pool
15/11/25 16:47:22 INFO scheduler.DAGScheduler: Job 0 finished: collect at JavaWordCount.java:72, took 4.603967 s
total items 14
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/metrics/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/stage/kill,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/api,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/static,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/executors/threadDump/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/executors/threadDump,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/executors/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/executors,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/environment/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/environment,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/storage/rdd/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/storage/rdd,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/storage/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/storage,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/pool/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/pool,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/stage/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/stage,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/stages,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/jobs/job/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/jobs/job,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/jobs/json,null}
15/11/25 16:47:22 INFO handler.ContextHandler: stopped o.s.j.s.ServletContextHandler{/jobs,null}
15/11/25 16:47:22 INFO ui.SparkUI: Stopped Spark web UI at http://192.168.100.4:7106
15/11/25 16:47:22 INFO scheduler.DAGScheduler: Stopping DAGScheduler
15/11/25 16:47:22 INFO cluster.YarnClientSchedulerBackend: Shutting down all executors
15/11/25 16:47:22 INFO cluster.YarnClientSchedulerBackend: Interrupting monitor thread
15/11/25 16:47:22 INFO cluster.YarnClientSchedulerBackend: Asking each executor to shut down
15/11/25 16:47:22 INFO cluster.YarnClientSchedulerBackend: Stopped
15/11/25 16:47:22 INFO spark.MapOutputTrackerMasterEndpoint: MapOutputTrackerMasterEndpoint stopped!
15/11/25 16:47:22 INFO util.Utils: path = /tmp/spark-52cdfa49-3560-40bd-9540-107f059b5d95/blockmgr-a25e4dc5-b8e0-4877-ad63-b0e32880e187, already present as root for deletion.
15/11/25 16:47:22 INFO storage.MemoryStore: MemoryStore cleared
15/11/25 16:47:22 INFO storage.BlockManager: BlockManager stopped
15/11/25 16:47:22 INFO storage.BlockManagerMaster: BlockManagerMaster stopped
15/11/25 16:47:22 INFO spark.SparkContext: Successfully stopped SparkContext
15/11/25 16:47:22 INFO scheduler.OutputCommitCoordinator$OutputCommitCoordinatorEndpoint: OutputCommitCoordinator stopped!
15/11/25 16:47:22 INFO util.Utils: Shutdown hook called
15/11/25 16:47:22 INFO remote.RemoteActorRefProvider$RemotingTerminator: Shutting down remote daemon.
15/11/25 16:47:22 INFO util.Utils: Deleting directory /tmp/spark-52cdfa49-3560-40bd-9540-107f059b5d95
15/11/25 16:47:22 INFO remote.RemoteActorRefProvider$RemotingTerminator: Remote daemon shut down; proceeding with flushing remote transports.



spark on yarn---{{PWD}}<CPS>{{PWD}}
xugen12的专栏
05-14 792
采用yarn-client提交job的时候，发现在application的日志中出现以下内容，一直以为 {{PWD}}&lt;CPS&gt;{{PWD}}出现错误，但是后来通过google发现这是正常的，在派发container的时候，会调用hadoop-yarn-nodemanager-jar包将{{,CPS和}}进行更改。SLF4J: Class path contains multiple ...
SparkUI任务启动参数介绍（148个参数）
qq_32118757的博客
02-16 2187
SparkUI中有很多任务启动参数，需要对参数有一个深入了解才能进一步调优，资源优化
Spark2.0.2源码分析——Application的注册启动(standalone 模式下)
myllxy
02-16 384
紧接 Spark2.0.2源码分析——TaskScheduler 启动 分析。 StandaloneSchedulerBackend 的 start 方法中，除了调用父类 CoarseGrainedSchedulerBackend 的 start 方法创建 DriverEndPoint 以外主要是创建 AppClient，AppClient 会向**Master** 注册 Application...
java %p_java – -XX：OnOutOfMemoryError =“kill -9％p”问题
weixin_39623750的博客
02-18 2532
尝试将-XX：OnOutOfMemoryError =“kill -9％p”命令传递到我的jvm参数中有一个问题。我正在使用Jetty7，并在start.ini文件中。在启动它给我以下错误。这是与jre /jre1.6.0_03l64Starting Jetty: STARTED Jetty Tue Apr 26 09:54:26 EDT 2011Unrecognized option: -9Co...
spark-sumit提交任务到yarn运行报OutofMemory内存溢出
会飞的鱼
08-08 1991
java.lang.OutOfMemoryError: Java heap space -XX:OnOutOfMemoryError=“kill %p” Executing /bin/sh -c “kill 54710”… yarn logs -applicationId application_1565223618995_0003 > log.log 用这个方法搜集该任务的日志，查看错误...
【spark】【在YARN上运行Spark】【Running Spark on YARN】
wq6qeg88的博客
02-17 1192
通常情况下，这并不重要，因为Spark在开始另一个阶段之前完成了一个阶段，唯一可能有影响的情况是在作业服务器类型的场景中，所以需要记住这一点。例如，当运行一个YARN集群，其中运行多个Spark版本的应用程序的混合工作负载时，这可能很有帮助，因为给定版本的shuffle服务并不总是与其他版本的Spark兼容。Spark发行版，由于它已经包含了内置的Hadoop运行时，默认情况下，当作业提交到Hadoop Yarn集群时，为了防止jar冲突，它不会将Yarn的classpath填充到Spark中。
spark-submit 主要参数详细说明及Standalone集群最佳实践
最新发布
日常学习与专研的记录
03-26 1588
部署提交应用到 spark 集群，可能会用到 `spark-submit` 工具，鉴于网上的博客质量残差不齐，且有很多完全是无效且错误的配置，没有搞明白诸如`--total-executor-cores` 、`--executor-cores`、`--num-executors`的关系和区别。因此有必要结合官网文档 [submitting-applications](https://spark.apache.org/docs/latest/submitting-applications.html) 详细记录
Spark任务提交至YARN运行的3种方式与Mapreduce提交任务的几种形式
xby18772963985的博客
01-06 2554
Spark作为新一代计算平台的闪亮明星，在我们的大数据平台中具有非常重要的作用，SQL查询、流计算和机器学习等场景都能见到它的身影，可以说平台应用的数据处理、计算和挖掘等场景都可以使用Spark进行开发。在默认的情况下，如果想向Spark提交计算任务，通常会使用Spark提供的Spark-Submit脚本来提交含有业务逻辑的jar文件程序。这种方式虽然简单，但有悖于服务化的设计理念，所以需要为Spark提供一套任务管理的RESTful服务。 在大数据平台中，Spark是以Spark on YARN的方式运行
Spark 应用程序部署工具spark-submit
SmartSi
02-16 6809
1. 简介Spark的bin目录中的spark-submit脚本用于启动集群上的应用程序。 可以通过统一的接口使用Spark所有支持的集群管理器，因此不必为每个集群管理器专门配置你的应用程序（It can use all of Spark’s supported cluster managers through a uniform interface so you don’t have to co......
大数据技术之(一) Spark-Core
痞子磊的博客
07-07 1250
第1章 Spark 概述 1.Spark是什么 Spark 是一种基于内存的快速、通用、可扩展的大数据分析计算引擎。 2.Spark and Hadoop 在之前的学习中，Hadoop 的 MapReduce 是大家广为熟知的计算框架，那为什么咱们还要学习新的计算框架 Spark 呢，这里就不得不提到Spark 和Hadoop 的关系。 首先从时间节点上来看: Hadoop 2006 年 1 月，Doug Cutting 加入Yahoo，领导Hadoop 的开发 2008 年 ..
Spark 异常汇总（持续更新）
weixin_30905133的博客
05-03 355
Only one SparkContext may be running in this JVM (see SPARK-2243). To ignore this error, set spark.driver.allowMultipleContexts = true. The currently running SparkContext was created at: org.apache...
spark开发中一些错误
热门推荐
Kevin.yang专栏
01-25 1万+
1. ERROR SparkContext: Error initializing SparkContext. com.typesafe.config.ConfigException$Missing: No configuration setting found for key 'akka.version' 具体错误信息如下： 产生错误的背景与环境描述： 我将项目打
【Spark】Spark 运行架构--YARN-Client
w1992wishes的博客
04-11 448
本篇结构： 运行流程图 运行步骤 运行启动类图 运行实现原理 运行作业调用图 一、运行流程图 二、运行步骤 启动运用程序，main 函数方法中会启动 SparkContext，在 SparkContext 启动过程，会构建 DAGScheduler，利用反射构建 YarnScheduler（TaskScheduler）和 YarnClientSchedulerBackend（Schedul...
SparkContext初始化时如何创建TaskScheduler、发送注册Application请求、Master进行注册、以及Executor进程的启动源码分析
yangshaojun1992的博客
03-19 472
一、创建TaskScheduler、然后发送注册Application请求 SparkContext.scala sparkContext初始化的时候创建TaskSchedule 这里主要分析 TaskScheduler对象如何创建， 如何向Master发送注册Application请求 接着Master收到请求后如何注册的整个过程。 step1：sparkCon...
Spark运行模式
从菜鸟到菜菜鸟
09-14 890
Spark运行模式简介 　　Spark运行模式列表（一定要熟悉！） 早就想写这章了，一直懒得动笔，不过还好，总算静下心来完成了。 刚接触Spark时，很希望能对它的运行方式有个直观的了解，而Spark同时支持多种运行模式，官网和书籍中对他们的区别所说不详，尤其是模式之间是否有关联、启动的JVM进程是否有区别、启动的JVM进程的作用是否都一样，等等这些都没有
重磅！Spark运行内幕 打通Spark系统运行内幕机制流程
大模型与Agent智能体
02-14 4412
Spark运行内幕 1、编写的一个WordCount的例子 【例】WordCount代码 1.       val conf = new SparkConf() //创建SparkConf对象 conf.setAppName("Wow,My First Spark App!") //设置应用程序的名称， conf.setMaster("local") // 程序在本地运行，但是以下的
spark问题与排查
08-23 6202
1、spark thriftserver报以下错误，其他诸如hive/sparksql等方式均正常 ERROR ActorSystemImpl: Uncaught fatal error from thread [sparkDriverActorSystem-akka.actor.default-dispatcher-379] shutting down ActorSystem [sparkDr
spark 2.1 on yarn -- container shell analysis
houzhizhen的专栏
05-24 1242
I set the following content in spark-defaults.confspark.serializer org.apache.spark.serializer.KryoSerializer spark.master yarn spark.executor.instances 2 spark.exec
Only one SparkContext should be running in this JVM (see SPARK-2243).The currently running SparkCont
大强博客
02-09 5194
错误信息： scala> import org.apache.spark._ import org.apache.spark._ scala> import org.apache.spark.streaming._ import org.apache.spark.streaming._ scala> val conf = new SparkConf().setMaster...
spark-sql on yarn 、spark-shell on yarn 详解
03-16
Spark SQL on Yarn 是在 Yarn 集群上运行 Spark SQL 的方式。它可以将 Spark SQL 作为 Yarn 上的应用程序来运行，并可以利用 Yarn 的资源管理和负载均衡功能。 Spark Shell on Yarn 是在 Yarn 集群上运行 Spark ...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
