Android GLES 球形折射

最新推荐文章于 2019-09-07 08:39:47 发布

原创最新推荐文章于 2019-09-07 08:39:47 发布 · 297 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#GLES2.0 #Shader

Shade 专栏收录该内容

3 篇文章

订阅专栏

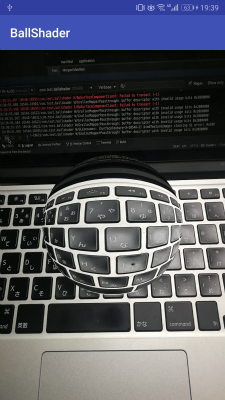

效果图

思路

利用内置的refract函数，因为要画的是球形，所以有球心和半径，利用distance函数计算距离，如果和球心的距离小于半径就利用refract函数实现折射，如果不是就显示原图。

Shader

顶点shader

attribute vec4 position;
attribute vec4 textureCoord;
varying vec4 textureCoordinate;

uniform mat4 cameraTransform;

void main() {
    textureCoordinate =  cameraTransform * textureCoord;
    gl_Position = position;
}

其中cameraTransform是使用Android Camera的时候系统会返回给我们的矩阵。

片段shader

#extension GL_OES_EGL_image_external : require
varying highp vec4 textureCoordinate;
uniform samplerExternalOES inputImageTexture;
uniform highp float u_radius;
uniform highp float u_refractiveIndex;
uniform highp float u_aspectRatio;
uniform highp vec2 u_center;
void main(){
    highp vec2 textureCoordinateToUse = textureCoordinate.xy;
    textureCoordinateToUse.y = textureCoordinateToUse.y * 2.0 - 1.0;
    textureCoordinateToUse.y = textureCoordinateToUse.y * u_aspectRatio;
    textureCoordinateToUse.y = (textureCoordinateToUse.y + 1.0 ) * 0.5;
    highp float distanceFromCenter = distance(u_center, textureCoordinateToUse);
    highp float distance1 = distanceFromCenter / u_radius;
    highp float normalizedDepth = u_radius * sqrt(1.0 - distance1 * distance1);
    highp vec3 sphereNormal = normalize(vec3(textureCoordinateToUse - u_center, normalizedDepth));
    highp vec3 refractedVector = refract(vec3(0.0, 0.0, -1.0), sphereNormal, u_refractiveIndex);
    if( distanceFromCenter > u_radius ) gl_FragColor = texture2D(inputImageTexture, textureCoordinate.xy);
    else {
    highp vec2 texCoord = vec2(-refractedVector.x, -refractedVector.y);
    texCoord = (texCoord + 1.0) * 0.5;
    gl_FragColor = texture2D(inputImageTexture, texCoord);
}

u_aspectRatio ：显示view宽高比 width/height
textureCoordinateToUse.y = textureCoordinateToUse.y * u_aspectRatio;
如果没有这一行代码，就会变成椭圆形
u_refractiveIndex：折射率 0.7
