一、前提

使用虚拟机版本 ： VMware workstation 15

提示：如需转载切记标记来源 优快云 ：Stein10010

详细说明见官网：Stein

1.1设置四节点

Controller: 两块网卡 Host-Only(提供租户API接口172.16.30.10)
			Host-Only (172.16.20.110) 2.5G内存 10G硬盘

Compute：一块网卡Host-Only (172.16.20.120) 5G内存 20G硬盘
		   实例虚拟机运行在计算节点 需分配足够多内存供虚机使用

Network-Node：两块网卡 NAT(设置浮动IP,172.16.10.10)
			  Host-Only(172.16.20.130) 512MB 内存 5G硬盘

Block-Storage: 一块网卡Host-Only (172.16.20.140) 512MB内存
				两块硬盘 /sda 5G    /sdb 100G

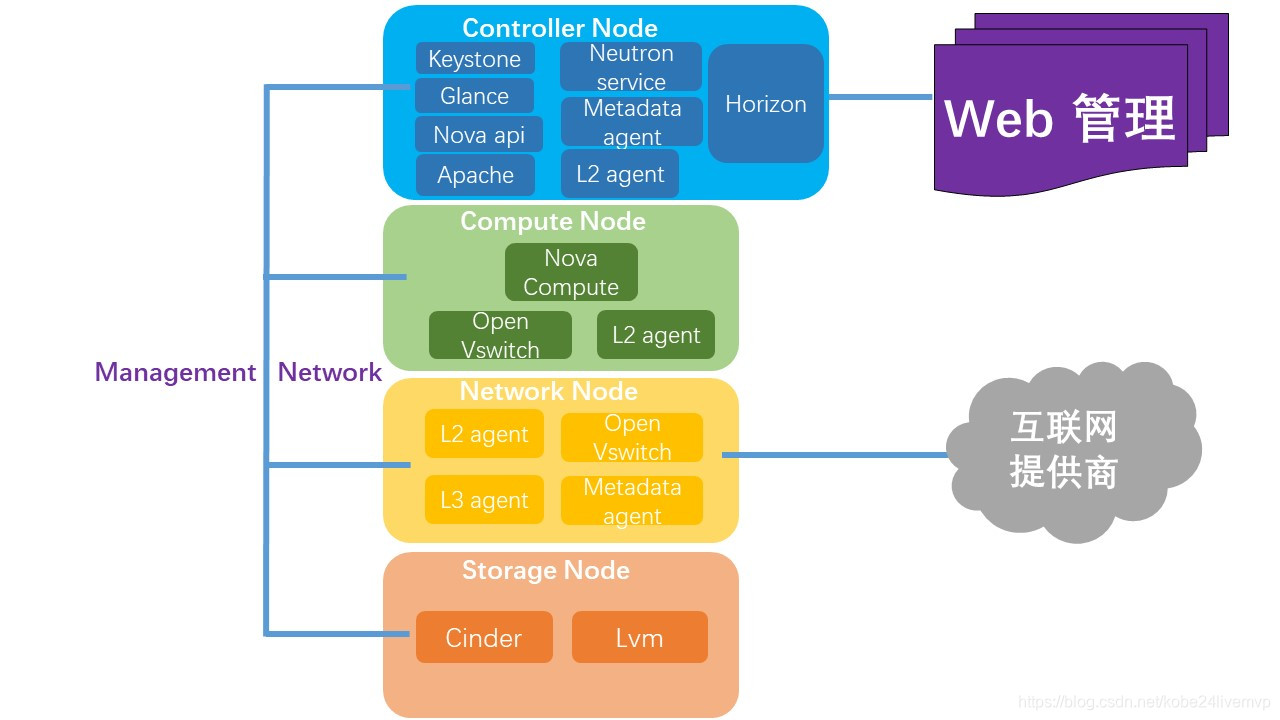

1.2网络平台架构

平台四大架构

1.3准备环境(所有节点)

为四台主机添加hosts解析文件，为每台机器设置主机名，关闭firewalld，sellinux，设置静态IP

1.3.1设置hosts

# cp /etc/hosts /etc/hosts.bak

# vi /etc/hosts
172.16.20.110 controller
172.16.20.120 compute
172.16.20.130 network-node
172.16.20.140 block-storage

1.3.2设置主机名

# hostnamectl set-hostname XXX

1.3.3关闭 firewalld

# systemctl stop firewalld
# systemctl disable firewalld

1.3.4关闭SELinux

# vi /etc/selinux/config
SELINUX=disabled
# reboot

1.3.5设置静态IP

# vi /etc/sysconfig/network-scripts/ifcfg-ens3X

1.3.6自定义yum源

# cp /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak
# curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo /Centos-7.repo

# vi /etc/yum.repos.d/openstack-stein.repo
[openstack-stein]
name=openstack-stein
baseurl=https://mirrors.aliyun.com/centos/7/cloud/x86_64/openstack-stein/
enabled=1
gpgcheck=0
[qemu-kvm]
name=qemu-kvm
baseurl= https://mirrors.aliyun.com/centos/7/virt/x86_64/kvm-common/
enabled=1
gpgcheck=0

1.3.7安装预装包

# yum install -y python-openstackclient openstack-selinux chrony

1.3.8 编写Openstack admin 许可(在controller节点使用)

# vi ~/admin-openrc.sh
export OS_AUTH_TYPE=password
export OS_USERNAME=admin
export OS_PASSWORD=123123
export OS_PROJECT_NAME=admin
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_DOMAIN_NAME=Default
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2

二、Controller节点

2.1需安装

Chrony(NTP，时间同步) mariadb(数据库) rabbitmq (Message queue消息队列)
Memcached(cache tokens，缓存令牌) Etcd(集群)
Keystone (认证服务Identity service) Glance (Image service 镜像服务)
Nova (Compute service 计算服务 nova-api, nova-conductor, nova-novncproxy, nova-scheduler, nova-console, openstack-nova-placement-api)
Neutron (Networking service 网络服务 neutron,neutron-ml2, neutronclientwhich)
Horizon (Dashborad web管理服务)

2.2配置网卡信息

2.2.1网卡一

# vi /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
DEVICE=ens33
ONBOOT=yes

IPADDR=172.16.20.110
NETMASK=255.255.255.0

2.2.2网卡二

# vi /etc/sysconfig/network-scripts/ifcfg-ens34
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens34
DEVICE=ens34
ONBOOT=yes
IPADDR=172.16.30.10
NETMASK=255.255.255.0
# systemctl restart network

2.3配置时间同步，chrony

# vi /etc/chrony.conf
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
server cn.ntp.org.cn iburst

allow 172.16.20.0/24
# systemctl enable chronyd.service
# systemctl start chronyd.service

2.4安装mariadb数据库

2.4.1安装包

# yum install mariadb mariadb-server python2-PyMySQL -y

2.4.2配置

# cp /etc/my.cnf.d/openstack.cnf /etc/my.cnf.d/openstack.cnf.bak
注：如不存在该文件则新建
# vi /etc/my.cnf.d/openstack.cnf
[mysqld]
bind-address = 172.16.20.110

default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8

2.4.3启动服务

# systemctl enable mariadb.service
# systemctl start mariadb.service

2.4.4运行安全权限脚本

# mysql_secure_installation
Set root password? [Y/n] y

New password: ## 此处为root用户密码，这里设为123123

Re-enter new password:

Remove anonymous users? [Y/n] y

Disallow root login remotely? [Y/n] n

Remove test database and access to it? [Y/n] y

Reload privilege tables now? [Y/n] y

2.5安装rabbitmq消息队列服务

2.5.1安装所需包

# yum install -y rabbitmq-server

2.5.2启动服务并加入开机启动

# systemctl enable rabbitmq-server.service
# systemctl start rabbitmq-server.service

2.5.3添加openstack用户，允许进行配置，写入和读取访问 openstack

# rabbitmqctl add_user openstack 123123(这里为队列认证密码 设为123123)
# rabbitmqctl set_permissions openstack ".*" ".*" ".*"

2.6安装Memcached缓存令牌

2.6.1安装所需包

# yum install memcached python-memcached -y

2.6.2配置

# cp /etc/sysconfig/memcached /etc/sysconfig/memcached.bak
# vi /etc/sysconfig/memcached
OPTIONS="-l 127.0.0.1,::1,controller"

2.6.3启动服务

# systemctl enable memcached.service
# systemctl start memcached.service

2.7安装 etcd 集群

2.7.1 安装所需包

# yum install etcd -y

2.7.2 配置

# cp /etc/etcd/etcd.conf /etc/etcd/etcd.conf.bak
# vi /etc/etcd/etcd.conf
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS=“http:// 172.16.20.110:2380”
ETCD_LISTEN_CLIENT_URLS=“http:// 172.16.20.110:2379,http://127.0.0.1:2379”
ETCD_NAME=“controller”
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS=“http:// 172.16.20.110:2380”
ETCD_ADVERTISE_CLIENT_URLS=“http:// 172.16.20.110:2379”
ETCD_INITIAL_CLUSTER=“controller=http:// 172.16.20.110:2380”
ETCD_INITIAL_CLUSTER_TOKEN=“etcd-cluster-01”
ETCD_INITIAL_CLUSTER_STATE=“new”

2.7.3启动服务

# systemctl enable etcd
# systemctl start etcd

2.7.4查看集群健康

# etcdctl cluster-health

2.8安装 Keystone

2.8.1安装Keytone数据库

# mysql -u root -p123123
MariaDB [(none)]> CREATE DATABASE keystone;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO ‘keystone’@‘localhost’
IDENTIFIED BY ‘123123’; //这里将Keystone访问数据库密码设置为123123
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone.* TO ‘keystone’@’%’
IDENTIFIED BY ‘123123’; //这里将Keystone访问数据库密码设置为123123
MariaDB [(none)]>exit

2.8.2安装所需包

# yum install openstack-keystone httpd mod_wsgi -y

2.8.3 配置

#cp /etc/keystone/keystone.conf /etc/keystone/keystone.conf.bak
#vi /etc/keystone/keystone.conf
[database]
connection = mysql+pymysql://keystone:123123@controller/keystone
//123123 数据库设置keystone的密码
[token]
provider = fernet

2.8.4填充Identity服务数据库

# su -s /bin/sh -c "keystone-manage db_sync" keystone

2.8.5 初始化Fernet密钥存储库

# keystone-manage fernet_setup --keystone-user keystone --keystone-group keystone
# keystone-manage credential_setup --keystone-user keystone --keystone-group keystone

2.8.6 引导身份服务

# keystone-manage bootstrap --bootstrap-password 123123\ --bootstrap-admin-url http://controller:5000/v3/ \ --bootstrap-internal-url http://controller:5000/v3/ \ --bootstrap-public-url http://controller:5000/v3/ \ --bootstrap-region-id RegionOne
// 123123为 admin-openrc.sh 中的admin密码

2.8.7 配置Apache HTTP服务器

# cp /etc/httpd/conf/httpd.conf /etc/httpd/conf/httpd.conf.bak
# vi /etc/httpd/conf/httpd.conf
ServerName controller

2.8.8创建链接

# ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/

2.8.9启动服务并加入开机启动

# systemctl enable httpd.service
# systemctl start httpd.service

2.8.10创建域，项目，用户和角色

# source admin-openrc.sh
# openstack domain create --description "An Example Domain" example
# openstack project create --domain default \ --description "Service Project" service
# openstack project create --domain default \ --description "Demo Project" myproject
# openstack user create --domain default \ --password-prompt myuser
# openstack role create myrole
# openstack role add --project myproject --user myuser myrole

2.9安装 glance

2.9.1 安装数据库

# mysql -u root -p123123
MariaDB [(none)]> CREATE DATABASE glance;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO ‘glance’@‘localhost’
IDENTIFIED BY ‘123123’; //这里将glance访问数据库密码设置为123123

MariaDB [(none)]> GRANT ALL PRIVILEGES ON glance.* TO ‘glance’@’%’
IDENTIFIED BY ‘123123’; //这里将glance访问数据库密码设置为123123
MariaDB [(none)]>exit

2.9.2创建服务凭据

# source admin-openrc.sh

2.9.2.1创建glance用户

# openstack user create --domain default --password-prompt glance
User Password:123123
Repeat User Password:123123

2.9.2.2将admin角色添加到glance用户和 service项目

# openstack role add --project service --user glance admin

2.9.2.3创建glance服务实体

# openstack service create --name glance \ --description "OpenStack Image" image

2.9.2.4创建Image服务API端点

# openstack endpoint create --region RegionOne \ image public http://controller:9292
# openstack endpoint create --region RegionOne \ image internal http://controller:9292
# openstack endpoint create --region RegionOne \ image admin http://controller:9292

2.9.3安装所需包

# yum install openstack-glance -y

2.9.4配置

# cp /etc/glance/glance-api.conf /etc/glance/glance-api.conf.bak
# vi /etc/glance/glance-api.conf
[database]
connection = mysql+pymysql://glance:123123@controller/glance
//123123 数据库设置glance的密码

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = 123123 //keystone设置glance的密码

[paste_deploy]
flavor = keystone

[glance_store]
stores = file,http
default_store = file
filesystem_store_datadir = /var/lib/glance/images/
# cp /etc/glance/glance-registry.conf /etc/glance/glance-registry.conf.bak
# vi /etc/glance/glance-registry.conf
[database]
connection = mysql+pymysql://glance:123123@controller/glance
//123123 数据库设置glance的密码

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = glance
password = 123123 //keystone设置glance的密码

[paste_deploy]
flavor = keystone

2.9.5填充Image服务数据库

# su -s /bin/sh -c "glance-manage db_sync" glance

2.9.6启动服务并加入开机启动

# systemctl enable openstack-glance-api.service \
openstack-glance-registry.service
# systemctl start openstack-glance-api.service \ openstack-glance-registry.service

2.9.7验证glance 镜像服务

# source admin-openrc.sh
# curl -O http://download.cirros-cloud.net/0.4.0/cirros-0.4.0-x86_64-disk.img
# openstack image create "cirros" \ --file cirros-0.4.0-x86_64-disk.img \ --disk-format qcow2 --container-format bare \ --public
# openstack image list

2.10安装 nova

2.10.1安装Nova数据库

# mysql -u root -p123123
MariaDB [(none)]> CREATE DATABASE nova_api;
MariaDB [(none)]> CREATE DATABASE nova;
MariaDB [(none)]> CREATE DATABASE nova_cell0;

MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO ‘nova’@‘localhost’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_api.* TO ‘nova’@’%’
IDENTIFIED BY ‘123123’;

MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO ‘nova’@‘localhost’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova.* TO ‘nova’@’%’
IDENTIFIED BY ‘123123’;

MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO ‘nova’@‘localhost’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON nova_cell0.* TO ‘nova’@’%’
IDENTIFIED BY ‘123123’;

MariaDB [(none)]>exit

2.10.2创建Compute服务凭据

# source admin-openrc.sh
# openstack user create --domain default --password-prompt nova
User Password:123123
Repeat User Password:123123
# openstack role add --project service --user nova admin
# openstack service create --name nova \ --description "OpenStack Compute" compute

2.10.3创建Compute API服务端点

# openstack endpoint create --region RegionOne \ compute public http://controller:8774/v2.1
# openstack endpoint create --region RegionOne \ compute internal http://controller:8774/v2.1
# openstack endpoint create --region RegionOne \ compute admin http://controller:8774/v2.1

2.10.4创建Placement服务凭据和服务端点

# openstack user create --domain default --password-prompt placement
User Password:123123
Repeat User Password:123123
# openstack role add --project service --user placement admin
# openstack service create --name placement \ --description "Placement API" placement
# openstack endpoint create --region RegionOne \ placement public http://controller:8778
# openstack endpoint create --region RegionOne \ placement internal http://controller:8778
# openstack endpoint create --region RegionOne \ placement admin http://controller:8778

2.10.5安装所需包

# yum install openstack-nova-api openstack-nova-conductor \ openstack-nova-novncproxy openstack-nova-scheduler \ openstack-nova-placement-api -y

2.10.6配置

# cp /etc/nova/nova.conf /etc/nova/nova.conf.bak
# vi /etc/nova/nova.conf
[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:123123@controller
my_ip = 172.16.20.110 //Compute节点管理网络IP
use_neutron = true
linuxnet_interface_driver = nova.network.linux_net.LinuxOVSInterfaceDriver
firewall_driver = nova.virt.firewall.NoopFirewallDriver

[api_database]
connection = mysql+pymysql://nova:123123@controller/nova_api

[database]
connection = mysql+pymysql://nova:123123@controller/nova

[api]
auth_strategy = keystone

[keystone_authtoken]
auth_url = http://controller:5000/v3
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = 123123 //controller nova连接keystone密码为123123

[vnc]
enabled = true
server_listen = $my_ip
server_proxyclient_address = $my_ip

[glance]
api_servers = http://controller:9292

[oslo_concurrency]
lock_path = /var/lib/nova/tmp

[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = 123123 //controller placement连接keystone密码为123123
# cp /etc/httpd/conf.d/00-nova-placement-api.conf /etc/httpd/conf.d/00-nova-placement-api.conf.bak
# vi /etc/httpd/conf.d/00-nova-placement-api.conf
<Directory /usr/bin>
= 2.4>
Require all granted

<IfVersion < 2.4>
Order allow,deny
Allow from all

2.10.7重启http服务

# systemctl restart httpd

2.10.8填充nova-api数据库

# su -s /bin/sh -c "nova-manage api_db sync" nova

2.10.9注册cell0数据库

# su -s /bin/sh -c "nova-manage cell_v2 map_cell0" nova

2.10.10创建cell1单元格

# su -s /bin/sh -c "nova-manage cell_v2 create_cell --name=cell1 --verbose" nova

2.10.11填充Nova数据库

# su -s /bin/sh -c "nova-manage db sync" nova

2.10.12验证nova cell0和cell1是否正确注册

# su -s /bin/sh -c "nova-manage cell_v2 list_cells" nova

2.10.13启动服务

# systemctl enable openstack-nova-api.service \ openstack-nova-scheduler.service \ openstack-nova-conductor.service openstack-nova-novncproxy.service
# systemctl start openstack-nova-api.service \ openstack-nova-scheduler.service \ openstack-nova-conductor.service openstack-nova-novncproxy.service

2.11安装Neutron

2.11.1配置IP转发：

2.11.1.1安装网桥模块

# modprobe bridge br_netfilter

2.11.1.2配置

# cp /etc/sysctl.conf /etc/sysctl.conf.bak
# vi /etc/sysctl.conf
net.ipv4.conf.all.rp_filter=0
net.ipv4.conf.default.rp_filter=0
net.bridge.bridge-nf-call-ip6tables = 1
net.bridge.bridge-nf-call-iptables = 1

2.11.1.3启动模块

# sysctl -p

2.11.2创建neutron数据库

# mysql -u root -p123123
MariaDB [(none)]> CREATE DATABASE neutron;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO ‘neutron’@‘localhost’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON neutron.* TO ‘neutron’@’%’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> exit

2.11.3创建neutron用户

# source admin-openrc.sh
# openstack user create --domain default --password-prompt neutron

2.11.4将admin角色添加到neutron用户

# openstack role add --project service --user neutron admin

2.11.5创建neutron服务实体

# openstack service create --name neutron \ --description "OpenStack Networking" network

2.11.6创建网络服务API端点

# openstack endpoint create --region RegionOne \ network public http://controller:9696
# openstack endpoint create --region RegionOne \ network internal http://controller:9696
# openstack endpoint create --region RegionOne \ network admin http://controller:9696

2.11.7安装所需包

# yum install openstack-neutron openstack-neutron-ml2 ebtables -y

2.11.8配置

2.11.8.1配置neutron.conf

# cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
# vi /etc/neutron/neutron.conf
[nova]
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = nova
password = 123123

[DEFAULT]
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = true
transport_url = rabbit://openstack:123123@controller
auth_strategy = keystone
notify_nova_on_port_status_changes = true
notify_nova_on_port_data_changes = true

[database]
connection = mysql+pymysql://neutron:123123@controller/neutron

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = 123123

[oslo_concurrency]
lock_path = /var/lib/neutron/tmp

2.11.8.2配置ML2

# cp /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugins/ml2/ml2_co nf.ini.bak
# vi /etc/neutron/plugins/ml2/ml2_conf.ini
[ml2]
type_drivers = flat,vlan,gre,vxlan
tenant_network_types = vxlan
mechanism_drivers = openvswitch,l2population
extension_drivers = port_security

[ml2_type_flat]
flat_networks = physnet

[ml2_type_vxlan]
vni_ranges = 1:1000

[securitygroup]
#enable_ipset = true
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptables
FirewallDriver
enable_security_group = True

2.11.8.3配置nova.conf

# vi /etc/nova/nova.conf
[neutron]
url = http://controller:9696
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = 123123 //neutron 连接nova 密码为123123
service_metadata_proxy = true
metadata_proxy_shared_secret = 123123

2.11.8.4配置metadata_agent

# cp /etc/neutron/metadata_agent.ini /etc/neutron/metadata_agent.ini.bak
# vi /etc/neutron/metadata_agent.ini
[DEFAULT]
nova_metadata_host = controller
metadata_proxy_shared_secret = 123123

2.11.9 ML2创建链接指向ML2插件配置文件

# ln -s /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugin.ini

2.11.10填充数据库

# su -s /bin/sh -c "neutron-db-manage --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/ml2_conf.ini upgrade head" neutron

2.11.10启动服务

# systemctl restart openstack-nova-api.service
# systemctl enable neutron-server.service neutron-metadata-agent.service
# systemctl start neutron-server.service neutron-metadata-agent.service

2.12安装Horizon

2.12.1安装所需包

# yum install openstack-dashboard -y

2.12.2配置

# cp /etc/openstack-dashboard/local_settings /etc/openstack-dashboard/local_settings.bak
# vi /etc/openstack-dashboard/local_settings
OPENSTACK_HOST = “controller”
ALLOWED_HOSTS = [’*’, ‘two.example.com’]

SESSION_ENGINE = ‘django.contrib.sessions.backends.cache’

CACHES = {
‘default’: {
‘BACKEND’: ‘django.core.cache.backends.memcached.MemcachedCache’,
‘LOCATION’: ‘controller:11211’,
}
}

OPENSTACK_KEYSTONE_URL = “http://%s:5000/v3” % OPENSTACK_HOST

OPENSTACK_KEYSTONE_MULTIDOMAIN_SUPPORT = True

OPENSTACK_API_VERSIONS = {
“identity”: 3,
“image”: 2,
“volume”: 2,
}

OPENSTACK_KEYSTONE_DEFAULT_DOMAIN = “Default”

OPENSTACK_KEYSTONE_DEFAULT_ROLE = “user”

TIME_ZONE = “TIME_ZONE”
# cp /etc/httpd/conf.d/openstack-dashboard.conf /etc/httpd/conf.d/openstack-dashboard.conf.bak

# vi /etc/httpd/conf.d/openstack-dashboard.conf
WSGIApplicationGroup %{GLOBAL}

2.12.3启动服务

# systemctl restart httpd.service memcached.service

2.13安装Cinder

2.13.1创建数据库

# mysql -u root -p123123
MariaDB [(none)]> CREATE DATABASE cinder;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO ‘cinder’@‘localhost’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON cinder.* TO ‘cinder’@’%’
IDENTIFIED BY ‘123123’;
MariaDB [(none)]>exit

2.13.2创建cinder用户

# source admin-openrc.sh
# openstack user create --domain default --password-prompt cinder

2.13.3将admin角色添加到cinder用户

# openstack role add --project service --user cinder admin

2.13.4创建cinderv2和cinderv3服务实体

# openstack service create --name cinderv2 \ --description "OpenStack Block Storage" volumev2

# openstack service create --name cinderv3 \ --description "OpenStack Block Storage" volumev3

2.13.5创建Block Storage服务API端点

# openstack endpoint create --region RegionOne \ volumev2 public http://controller:8776/v2/%\(project_id\)s

# openstack endpoint create --region RegionOne \ volumev2 internal http://controller:8776/v2/%\(project_id\)s

# openstack endpoint create --region RegionOne \ volumev2 admin http://controller:8776/v2/%\(project_id\)s

# openstack endpoint create --region RegionOne \ volumev3 public http://controller:8776/v3/%\(project_id\)s

# openstack endpoint create --region RegionOne \ volumev3 internal http://controller:8776/v3/%\(project_id\)s

# openstack endpoint create --region RegionOne \ volumev3 admin http://controller:8776/v3/%\(project_id\)s

2.13.6安装所需包

# yum install openstack-cinder -y

2.13.7配置

# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak
# vi /etc/cinder/cinder.conf
[DEFAULT]
transport_url = rabbit://openstack:123123@controller
auth_strategy = keystone
my_ip = 172.16.20.110 //Compute节点管理网络IP

[database]
connection = mysql+pymysql://cinder:123123@controller/cinder

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = 123123

[oslo_concurrency]
lock_path = /var/lib/cinder/tmp

# vi /etc/nova/nova.conf
[cinder]
os_region_name = RegionOne

2.13.8填充块存储数据库

# su -s /bin/sh -c "cinder-manage db sync" cinder

2.13.9启动服务

# systemctl restart openstack-nova-api.service
# systemctl enable openstack-cinder-api.service openstack-cinder-scheduler.service
# systemctl start openstack-cinder-api.service openstack-cinder-scheduler.service

三、Compute节点

3.1需安装

Chrony(NTP，时间同步) Nova (Compute service 计算服务 nova-compute)
Neutron (Networking service 网络服务 openvswitch,neutron-l2-agent)

3.2配置网卡信息

# vi /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
DEVICE=ens33
ONBOOT=yes

IPADDR=172.16.20.120
NETMASK=255.255.255.0
# systemctl restart network

3.3安装 nova

3.3.1安装所需包

# yum install openstack-nova-compute -y

3.3.2配置

# cp /etc/nova/nova.conf /etc/nova/nova.conf.bak
# vi /etc/nova/nova.conf
[DEFAULT]
enabled_apis = osapi_compute,metadata
transport_url = rabbit://openstack:123123@controller
//连接rabbit密码为123123
my_ip = 172.16.20.120
use_neutron = true
linuxnet_interface_driver = nova.network.linux_net.LinuxOVSInterfaceDriver
firewall_driver = nova.virt.firewall.NoopFirewallDriver

[api]
auth_strategy = keystone

[keystone_authtoken]
auth_url = http://controller:5000/v3
memcached_servers = controller:11211
auth_type = password
project_domain_name = Default
user_domain_name = Default
project_name = service
username = nova
password = 123123 //compute nova连接keystone密码为123123

[vnc]
enabled = true
server_listen = 0.0.0.0
server_proxyclient_address = $my_ip
novncproxy_base_url = http://172.16.30.10:6080/vnc_auto.html

[glance]
api_servers = http://controller:9292

[oslo_concurrency]
lock_path = /var/lib/nova/tmp

[placement]
region_name = RegionOne
project_domain_name = Default
project_name = service
auth_type = password
user_domain_name = Default
auth_url = http://controller:5000/v3
username = placement
password = 123123 //compute nova 连接placement密码为123123
3.3.3检查虚拟机是否支持虚拟化
# egrep -c '(vmx|svm)' /proc/cpuinfo

仅当结果为0时，开启二类虚拟化 使用qemu：
# vi /etc/nova/nova.conf
[libvirt]

virt_type = qemu

3.3.4启动服务

# systemctl enable libvirtd.service openstack-nova-compute.service
# systemctl start libvirtd.service openstack-nova-compute.service

3.3.5添加compute节点信息入controller节点 cell 数据库 (controller节点执行)

# source admin-openrc.sh
# openstack compute service list --service nova-compute

3.3.5.1发现conpute节点主机
# su -s /bin/sh -c "nova-manage cell_v2 discover_hosts --verbose" nova

每当添加一个新的compute节点到openstack网络都需要手动在controller节点执行 “# su -s /bin/sh -c “nova-manage cell_v2 discover_hosts --verbose” nova”
在nova.conf中加入一下语句可自动发现主机：
# vi /etc/nova/nova.conf
[scheduler]
discover_hosts_in_cells_interval = 300

3.4安装 neutron

3.4.1配置IP转发

# modprobe bridge br_netfilter
# cp /etc/sysctl.conf /etc/sysctl.conf.bak
# vi /etc/sysctl.conf
net.ipv4.conf.all.rp_filter=0
net.ipv4.conf.default.rp_filter=0
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
# sysctl -p

3.4.2安装相应包

# yum install openstack-neutron openstack-neutron-ml2 neutron-openvswitch-agent -y

3.4.3配置

3.4.3.1配置neutron.conf

# cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
# vi /etc/neutron/neutron.conf
[DEFAULT]
auth_strategy = keystone
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = True
transport_url = rabbit://openstack:123123@controller

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = 123123

[oslo_concurrency]
lock_path = /var/lib/neutron/tmp

3.4.3.2配置ML2插件

# cp /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugins/ml2/ ml2_conf.ini.bak
# vi /etc/neutron/plugins/ml2/ml2_conf.ini
[ml2]
type_drivers = flat,vlan,gre,vxlan
tenant_network_types = vxlan
mechanism_drivers = openvswitch,l2population
extension_drivers = port_security

[ml2_type_flat]
flat_networks = physnet

[ml2_type_vxlan]
vni_ranges = 1:1000

[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
enable_security_group = true

3.4.3.3配置openvswitch_agent

# cp /etc/neutron/plugins/ml2/openvswitch_agent.ini /etc/neutron/plug ins/ml2/openvswitch_agent.ini.bak
# vi /etc/neutron/plugins/ml2/openvswitch_agent.ini
[ovs]
local_ip = 172.16.20.120

[agent]
tunnel_types = vxlan
l2_population = True

[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIpt
ablesFirewallDriver
enable_security_group = True

3.4.3.4配置nova.conf

# vi /etc/nova/nova.conf
url = http://controller:9696
auth_url = http://controller:5000
auth_type = password
project_domain_name = default
user_domain_name = default
region_name = RegionOne
project_name = service
username = neutron
password = 123123

3.4.3.5启动服务

# systemctl enable openvswitch.service neutron-openvswitch-agent.service
# systemctl start openvswitch.service neutron-openvswitch-agent.service
# systemctl restart openstack-nova-compute.service

四、Network节点

4.1需安装

Chrony(NTP，时间同步) Neutron (Networking service 网络服务 openvswitch,neutron-l2-agent，neutron-l3-agent,metadata-agent)

4.2安装 neutron

4.2.1安装所需包

# yum install openstack-neutron openstack-neutron-ml2 neutron-openvswitch-agent -y

4.2.2配置IP转发

# modprobe bridge br_netfilter
# cp /etc/sysctl.conf /etc/sysctl.conf.bak
# vi /etc/sysctl.conf
net.ipv4.conf.all.rp_filter=0
net.ipv4.conf.default.rp_filter=0
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
# sysctl -p

4.2.3创建虚拟网桥

# ovs-vsctl add-br br-ex
# ovs-vsctl add-port br-ex ensxx
(用做NAT，浮动IP的网卡)

4.2.4配置网卡信息

4.2.4.1网卡一

# cp /etc/sysconfig/network-scripts/ifcfg-ens33 /etc/sysconfig/network-scripts/ifcfg-ens33.bak
# vi /etc/sysconfig/network-scripts/ifcfg-ens33 (用做NAT，浮动IP的网卡)
TYPE=OVSPort
BOOTPROTO=none
NAME=ens33
DEVICE=ens33
DEVICETYPE=ovs
OVS_BRIDGE=br-ex
ONBOOT=yes

4.2.4.2网卡二

# cp /etc/sysconfig/network-scripts/ifcfg-ens34 /etc/sysconfig/network-scripts/ifcfg-ens34
# vi /etc/sysconfig/network-scripts/ifcfg-ens33 (Host-Only网卡)
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=none
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=no
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens34
DEVICE=ens34
ONBOOT=yes
IPADDR=172.16.20.130
PREFIX=24

4.2.4.3网桥

创建网桥 br-ex 配置文件 ifcfg-br-ex：
# vi /etc/sysconfig/network-scripts/ifcfg-br-ex
TYPE=OVSBridge
BOOTPROTO=static
DEFROUTE=yes
PEERDNS=yes
PEERROUTES=yes
NAME=br-ex
DEVICE=br-ex
DEVICETYPE=ovs
ONBOOT=yes
IPADDR=172.16.10.10
NETMASK=255.255.255.0
GATEWAY=172.16.10.2
DNS1=172.16.10.2

4.2.5配置

4.2.5.1配置neutron.conf

# cp /etc/neutron/neutron.conf /etc/neutron/neutron.conf.bak
# vi /etc/neutron/neutron.conf
[DEFAULT]
auth_strategy = keystone
core_plugin = ml2
service_plugins = router
allow_overlapping_ips = True
transport_url = rabbit://openstack:123123@controller

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = neutron
password = 123123
[oslo_concurrency]

lock_path = /var/lib/neutron/tmp

4.2.5.2配置ML2插件

# cp /etc/neutron/plugins/ml2/ml2_conf.ini /etc/neutron/plugins/ml2/ml
2_conf.ini.bak
# vi /etc/neutron/plugins/ml2/ml2_conf.ini
[ml2]
type_drivers = flat,vlan,gre,vxlan
tenant_network_types = vxlan
mechanism_drivers = openvswitch,l2population
extension_drivers = port_security

[ml2_type_flat]
flat_networks = physnet

[ml2_type_vxlan]
vni_ranges = 1:1000

[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
enable_security_group = True
#enable_ipset = True

4.2.5.3配置ML3插件

# cp /etc/neutron/l3_agent.ini /etc/neutron/l3_agent.ini.bak
# vi /etc/neutron/l3_agent.ini
[DEFAULT]
interface_driver=neutron.agent.linux.interface.OVSInterfaceDriver
debug = false

4.2.5.4配置DHCP

# cp /etc/neutron/dhcp_agent.ini /etc/neutron/dhcp_agent.ini.bak
# vi /etc/neutron/dhcp_agent.ini
[DEFAULT]
interface_driver = neutron.agent.linux.interface.OVSInterfaceDriver
dhcp_driver = neutron.agent.linux.dhcp.Dnsmasq
enable_isolated_metadata = True

4.2.5.5配置openvswitch

# cp /etc/neutron/plugins/ml2/openvswitch_agent.ini /etc/neutron/pl
ugins/ml2/openvswitch_agent.ini.bak
# vi /etc/neutron/plugins/ml2/openvswitch_agent.ini
[ovs]
local_ip = 172.16.20.130
bridge_mappings = physnet:br-ex

[agent]
tunnel_types = vxlan
l2_population = True

[securitygroup]
firewall_driver = neutron.agent.linux.iptables_firewall.OVSHybridIptablesFirewallDriver
enable_security_group = True

4.2.5.6配置metadata

# cp /etc/neutron/metadata_agent.ini /etc/neutron/metadata_agent.ini.bak
# vi /etc/neutron/metadata_agent.ini
nova_metadata_host = controller
metadata_proxy_shared_secret = 123123

4.2.6启动服务

# systemctl enable openvswitch.service neutron-l3-agent.service neutron-dhcp-agent.service neutron-metadata-agent.service
neutron-ovs-cleanup.service
# systemctl start openvswitch.service neutron-l3-agent.service
neutron-dhcp-agent.service neutron-metadata-agent.service

4.2.7验证网络服务是否正常启动(在controller节点执行)

# source admin-openrc.sh
# openstack network agent list

五、Block-Storage节点

5.1需安装

Chrony(NTP，时间同步) Cinder(Block-Storage 块存储服务)

5.2配置网卡信息

# vi /etc/sysconfig/network-scripts/ifcfg-ens33
TYPE=Ethernet
PROXY_METHOD=none
BROWSER_ONLY=no
BOOTPROTO=static
DEFROUTE=yes
IPV4_FAILURE_FATAL=no
IPV6INIT=yes
IPV6_AUTOCONF=yes
IPV6_DEFROUTE=yes
IPV6_FAILURE_FATAL=no
IPV6_ADDR_GEN_MODE=stable-privacy
NAME=ens33
DEVICE=ens33
ONBOOT=yes

IPADDR=172.16.20.140
NETMASK=255.255.255.0
# systemctl restart network

5.3安装Cinder

5.3.1安装LVM服务

5.3.1.1安装所需包

# yum install lvm2 device-mapper-persistent-data -y

5.3.1.2启动服务

# systemctl enable lvm2-lvmetad.service
# systemctl start lvm2-lvmetad.service

5.3.1.3创建LVM卷

# pvcreate /dev/sdb
# vgcreate cinder-volumes /dev/sdb

# cp etc/lvm/lvm.conf etc/lvm/lvm.conf.bak
# vi etc/lvm/lvm.conf
devices {
…
filter = [ “a/sdb/”, “r/.*/”]

5.3.2安装cinder包

# yum install openstack-cinder targetcli python-keystone

5.3.3修改配置文件

# cp /etc/cinder/cinder.conf /etc/cinder/cinder.conf.bak
# vi /etc/cinder/cinder.conf
[DEFAULT]
transport_url = rabbit://openstack:123123@controller
auth_strategy = keystone
my_ip = 172.16.20.140
enabled_backends = lvm
glance_api_servers = http://controller:9292

[database]
connection = mysql+pymysql://cinder:123123@controller/cinder

[keystone_authtoken]
www_authenticate_uri = http://controller:5000
auth_url = http://controller:5000
memcached_servers = controller:11211
auth_type = password
project_domain_name = default
user_domain_name = default
project_name = service
username = cinder
password = 123123

[lvm]
volume_driver = cinder.volume.drivers.lvm.LVMVolumeDriver
volume_group = cinder-volumes
target_protocol = iscsi
target_helper = lioadm

[oslo_concurrency]
lock_path = /var/lib/cinder/tmp

5.3.4启动cinder服务并加入开机启动

# systemctl enable openstack-cinder-volume.service target.service
# systemctl start openstack-cinder-volume.service target.service

基于CentOS 7.6（1810）的OpenStackT版部署教程
云计算
02-18 4587
OpenStack环境部署 一、实验环境 基于Centos 7.6（1810）最小化安装，CPU双核双线程、CPU虚拟化开启 主机名 内存 硬盘 NAT网卡 VM1网卡 系统 CT 8 300+1024（CEPH块存储） 20.0.0.61 10.0.0.61 Centos7.6 C1 8 300+1024（CEPH块存储） 20.0.0.62 10.0.0.62 Centos7.6 C2 8 300+1024（CEPH块存储） 20.0.0.63 10.0.0.63 Centos7
Linux通过packstack一键安装OpenStack
To_own的博客
05-27 1579
Linux通过packstack一键安装OpenStack
Openstack 基于Centos 7 基础环境搭建
weixin_55800462的博客
02-24 1326
更换yum源 下载 wget 工具yum install -y wget 备份yum文件 mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo.bak 下载新的yum文件 wget -O /etc/yum.repos.d/CentOS-Base.repo https://repo.huaweicloud.com/repository/conf/CentOS-7-reg.repo 清除缓存 yum c
Packstack部署openstack【stein】
最新发布
qq_51343053的博客
05-28 729
来源 （本文修改软件源）
【教程】openstack all-in-one 方式安装stein版本教程
weixin_54628931的博客
03-24 2359
centos版本：centos-7-x86_64-minimal-2009 vm station版本：16 openstack版本：stein 虚拟机内存：4G或8G 虚拟机硬盘：50G以上 配置网卡 # vi /etc/sysconfig/network-scripts/ifcfg-ens33 IPADDR=192.168.100.101 GATEWAY=192.168.100.2 NETMASK=255.255.255.0 DNS1=8.8.8.8 DNS2=114.114.114.1.
OpenStack一键安装部署
user_from_future的博客
10-06 1217
返回目录 OpenStack脚本controlller端部署 ## 当前用户名判定： function UserJudgment() { read -p "当前的主机名为${HOSTNAME},是否修改(y/n):" echo -n "正在改名....." dop1=controller hostnamectl set-hostname ${dop1} bash } ## 基础配置： function BasicConfig() { systemctl disable --now
CentOS7一键安装openstack脚本
qq_74303140的博客
11-27 950
注意：有错误的话建议使用同款虚拟机，如果有快照再回到快照再次执行就好了，还有就是网络一定一定要正常，要不然也会有很多问题的。重启之后，建议保存一份快照，并且查看网络是否能使用，很重要很重要！刚配置好，无法使用sudo su - root,所以需要将用户加入sudoer组。我使用的是CentOS-7-x86_64-DVD-2009.iso镜像安装的。直接开启虚拟机就好了，最后使用root依次执行下面的两条命令。添加执行权限之后，使用root执行就好了。直接访问ip地址，然后输入账号密码就好了。
《OpenStack Stein版本基于Centos 7.6部署指南》
总的来说，本部署指南旨在提供一个基于Centos 7.6系统的OpenStack部署指导，涵盖了硬件、软件、网络、安装、配置和操作等方面的内容，希望能够帮助读者顺利部署和管理OpenStack环境，实现云计算的灵活部署和高效运行...
如何在华为鲲鹏平台上基于CentOS 7.6操作系统，使用自动化工具完成K8s集群、OpenStack Stein和Ceph集成的部署？请提供简要步骤。
11-01
1. **环境准备**：确保您的华为鲲鹏服务器已安装CentOS 7.6操作系统，并更新到最新版本，安装所有必要的依赖软件包。 2. **K8s集群部署**： - 使用自动化工具如Ansible或kubeadm进行K8s的集群部署。 - 配置必要的...
在华为鲲鹏平台上，如何通过自动化工具实现K8s集群、OpenStack Stein与Ceph集成的快速部署？
11-01
要在华为鲲鹏平台上基于CentOS 7.6操作系统实现K8s集群、OpenStack Stein与Ceph集成的快速部署，推荐使用华为提供的自动化工具，这将大幅简化部署过程并提升效率。具体步骤如下： 参考资源链接：[华为鲲鹏虚拟化...
OpenStack-Stein版本-单点架构部署教程
qq_34548852的博客
11-19 647
实验环境准备 网络规划及基础环境准备 初始化基础环境 配置网络 所有节点】：配置管理网卡IP（例如：eth0） # vi /etc/sysconfig/network-scripts/ifcfg-eth0 ----------------------------------------- TYPE=Ethernet BOOTPROTO=static NAME=eth0 DEVICE=eth0 ONBOOT=yes IPADDR=10.10.36.x NETMASK=255.25
centos7 openstack ocata安装
05-14
centos7 openstack ocata安装
Openstack安装过程中遇到的问题汇总
09-30
本文给大家分享的是作者在Centos7中安装openstack过程中出现的一些问题的汇总，以及解决的方法，有需要的小伙伴可以参考下
Centos7安装openstack教程
热门推荐
weixin_46413513的博客
03-18 1万+
最近上课用到了，可惜没报错，做个备忘，防止忘记 使用centos7最终版镜像 https://mirrors.aliyun.com/centos/7/isos/x86_64/CentOS-7-x86_64-DVD-2009.iso 配置看自己，2C以上4G以上，4G有可能报内存不足，这个看人，装好centos后 su - 切换到root用户，要加“-”，或者右上角，注销，重新使用root登录 右上角用图形化设置好IP地址、网关、DNS 修改网卡配置文件，协议静态，开机自启 ping外网
Centos7部署OpenStack全网最详细(2024版本)
hack_18520的博客
10-31 9733
地址为：192.168.（路由器网关地址当前位置的数字）.（0-255选一个没有被设备使用的数字）子网掩码为：255.255.255.0 也可以写成：24。以下步骤非常重要决定了部署OpenStack是否成功。到这里就结束了，如果对你有帮助请支持一下吧。需要修改四个文件，修改后请自行保存并退出。网关为：路由器背后写的网关。重启一下系统在登录即解决。需要等待30分钟左右。
Centos7搭建OpenStack+创建iaas云主机
weixin_48218106的博客
03-05 1万+
主要说明在控制节点和计算节点上，通过脚本的形式，安装OpenStack的iaas安装步骤和创建可运行的云主机。提供实施简单、可大规模扩展、丰富、标准统一的云计算管理平台。
CentOS7极简搭建OpenStack云平台
m0_74201024的博客
10-30 1907
本人是一名大三学生，第一次学习云平台，将搭建过程记录了下来，希望能够帮到大家。4.xshell7和xftp。
在centos7上安装openstack
阿啄debugIT
02-02 1751
安装环境： centos7 安装需求： openstack allinone 安装，因为只有一台服务器192.168.16.13。 只安装openstack必须使用的组件keystone， glacne，nova， neutron，dashboard 参照的链接为：https://www.cnblogs.com/elvi/p/7811528.html 安装步骤： 下载 https://w...
评论 2
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
