使用grpc-server-spring-boot-starter及nacos搭建grpc服务

Spring Cloud + Nacos搭建Grpc服务实战指南

原创已于 2022-07-28 10:23:50 修改 · 3.9k 阅读

10 ·

CC 4.0 BY-SA版权

文章标签：

#spring #java #spring boot #rpc #spring cloud

于 2022-05-07 07:30:00 首次发布

java 专栏收录该内容

3 篇文章

订阅专栏

本文详细介绍了如何在Spring Cloud环境中利用Nacos配置管理和服务注册，结合protobuf-maven-plugin编译生成的protobuf库，实现provider和consumer之间的gRPC通信。通过创建cloud-grpc-provider和cloud-grpc-consumer模块，配置application.yml，以及使用GrpcService和@GrpcClient，展示了从服务注册到消费者调用的完整流程。

在上一篇文章《java使用protobuf-maven-plugin的插件编译proto文件》中，我们使用protobuf-maven-plugin已经生成了grpc的调用的库，这篇文章我们将讲解使用SpringCloud及nacos搭建grpc服务。

具体的实现步骤：

1. 先在github下载一个nacos的release版本应用，下载地址。解压缩之后，进到nacos目录，执行如下指令启动nacos，这里我们测试，所以启动的是单机服务:

sh ./bin/startup.sh -m standalone

运行成功后在网页访问：http://localhost:8848/nacos，打开后进到nacos登录页面，使用默认账号/密码：nacos/nacos进行登录。

登录成功后，我们可以看到nacos提供了ConfigManagement和ServiceManagement，我们要看的是服务注册中心的ServiceManagement。

2. 我们在上一章lib的工程中，创建三个module，分别为cloud-grpc-provider9090和cloud-grpc-provider9091和cloud-grpc-consumer10020。前两个提供服务的grpc的provider的服务端，后面一个consumer为grpc的消费端。项目结构如下：

3. 在父工程的POM文件中添加如下包依赖

 <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <java.version>1.8</java.version>
        <jackson.version>2.11.1</jackson.version>
        <protobuf.plugin.version>0.6.1</protobuf.plugin.version>
        <spring.boot.version>2.3.9.RELEASE</spring.boot.version>
        <springcloud.version>Hoxton.SR9</springcloud.version>
        <springcloud.alibaba.version>2.1.0.RELEASE</springcloud.alibaba.version>
        <protobuf.version>3.14.0</protobuf.version>
        <grpc.java.version>1.35.0</grpc.java.version>
        <!--grpc.starter.version>2.11.0.RELEASE</grpc.starter.version-->
        <grpc.starter.version>2.13.1.RELEASE</grpc.starter.version>
    </properties>

    <dependencyManagement>
        <dependencies>
<!--            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>-->
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${springcloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${springcloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>

            <!-- jackson-xml -->
            <dependency>
                <groupId>com.fasterxml.jackson.dataformat</groupId>
                <artifactId>jackson-dataformat-xml</artifactId>
                <version>${jackson.version}</version>
            </dependency>

            <!-- grpc -->
            <dependency>
                <groupId>net.devh</groupId>
                <artifactId>grpc-client-spring-boot-starter</artifactId>
                <version>${grpc.starter.version}</version>
            </dependency>

            <dependency>
                <groupId>net.devh</groupId>
                <artifactId>grpc-client-spring-boot-autoconfigure</artifactId>
                <version>${grpc.starter.version}</version>
            </dependency>

            <dependency>
                <groupId>net.devh</groupId>
                <artifactId>grpc-server-spring-boot-starter</artifactId>
                <version>${grpc.starter.version}</version>
            </dependency>

            <dependency>
                <groupId>net.devh</groupId>
                <artifactId>grpc-server-spring-boot-autoconfigure</artifactId>
                <version>${grpc.starter.version}</version>
            </dependency>


            <!-- proto -->
            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-protobuf</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-stub</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-netty-shaded</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-services</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-api</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-context</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>

            <dependency>
                <groupId>io.grpc</groupId>
                <artifactId>grpc-core</artifactId>
                <version>${grpc.java.version}</version>
            </dependency>
        </dependencies>

    </dependencyManagement>

这里我们使用的spring-boot版本与grpc-client-spring-boot-starter和grpc-server-spring-boot-starter使用的版本不同，所以后面我们需要在grpc的starter排除掉默认的spring-boot版本。同时grpc的相关一些库都使用统一的版本。

这里可以看到grpc底层使用的是netty实现的消息通讯

4. 配置application.yml文件

//provider的application.yml

server:
  port: 8081

grpc:
  server:
    port: 9091
    security:
      enabled: false

spring:
  application:
    name: cloud-grpc-provider
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848

# actuator management
management:
  endpoint:
    health:
      show-details: always
  endpoints:
    web:
      exposure:
        include: '*'

//consumer的application.yml

server:
  port: 10020

spring:
  application:
    name: cloud-grpc-comsumber
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848

grpc:
  client:
    cloud-grpc-provider:
      enableKeepAlive: true
      keepAliveWithoutCalls: true
      negotiationType: PLAINTEXT
    GLOBAL:
      security:
        client-auth-enabled: false

以上是provider和consumer的application.yml配置文件。这里我们使用的同一台机器进行测试，所以要注意不同的provider和consumer应用的server的端口和grpc的端口不要相同。
同时在provider和consumer，将grpc的security的enable开关关掉。consumer端要注意的是设置negotiationType的类型为PLAINTEXT

5. provider和consumer引入相应的包

provider的maven引入：

<dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
        </dependency>

        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-server-spring-boot-starter</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>cn.ckeen</groupId>
            <artifactId>cloud-grpc-lib</artifactId>
            <version>1.0-SNAPSHOT</version>
            <scope>compile</scope>
        </dependency>
    </dependencies>

consumer的maven引入：

 <dependencies>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-alibaba-nacos-discovery</artifactId>
        </dependency>

        <dependency>
            <groupId>net.devh</groupId>
            <artifactId>grpc-client-spring-boot-starter</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>cn.ckeen</groupId>
            <artifactId>cloud-grpc-lib</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

    </dependencies>

两个包都引入了lib包，作为客户端和服务端通讯协议。使用nacos作为注册中心，实现负载均衡。

6. provider的service编写

@GrpcService
public class GreeterService extends SimpleGrpc.SimpleImplBase {

    private static Logger log = LoggerFactory.getLogger(GreeterService.class);

    // 引入该参数是为了做负载均衡验证
    @Value("${grpc.server.port}")
    private String serverPort;

    @Override
    public void sayHello(HelloRequest request, StreamObserver<HelloReply> responseObserver) {
        String message = "server port:" + serverPort + ",Hello " + request.getName();
        final HelloReply.Builder replyBuilder = HelloReply.newBuilder().setMessage(message);
        responseObserver.onNext(replyBuilder.build());
        responseObserver.onCompleted();
        log.info("Returning " +message);

        responseObserver.onError(Status.INVALID_ARGUMENT.withDescription("测试出错").asException());
    }
}

首先使用GrpcService注解来标识服务，该服务继承自proto文件生成的grpc的SimpleGrpc.SimpleImplBase，同时实现了sayHello的方法，这里我们通过responseObserver将结果返回。

7. consumer的消费

consumer端比较简单，直接使用@GrpcClient的注解生成一个SimpleGrpc的Stub，然后进行调用即可

@Service
public class GreeterService {

    @GrpcClient("cloud-grpc-provider")
    private SimpleGrpc.SimpleBlockingStub simpleBlockingStub;

    public String greet(String name) {

        try {
            HelloReply response = simpleBlockingStub.sayHello(HelloRequest.newBuilder().setName(name).build());
            return response.getMessage();
        } catch (final StatusRuntimeException e) {
            return "FAILED with " + e.getStatus().getCode();
        }
    }

}

最终我们可以写一个controller来调用该服务进行测试，实现代码如下：

    @Resource
    private GreeterService greeterService;

    @GetMapping("greeter")
    public String greet(@RequestParam("name")String name){
        String result = greeterService.greet(name);
        return result;
    }

8. 测试验证

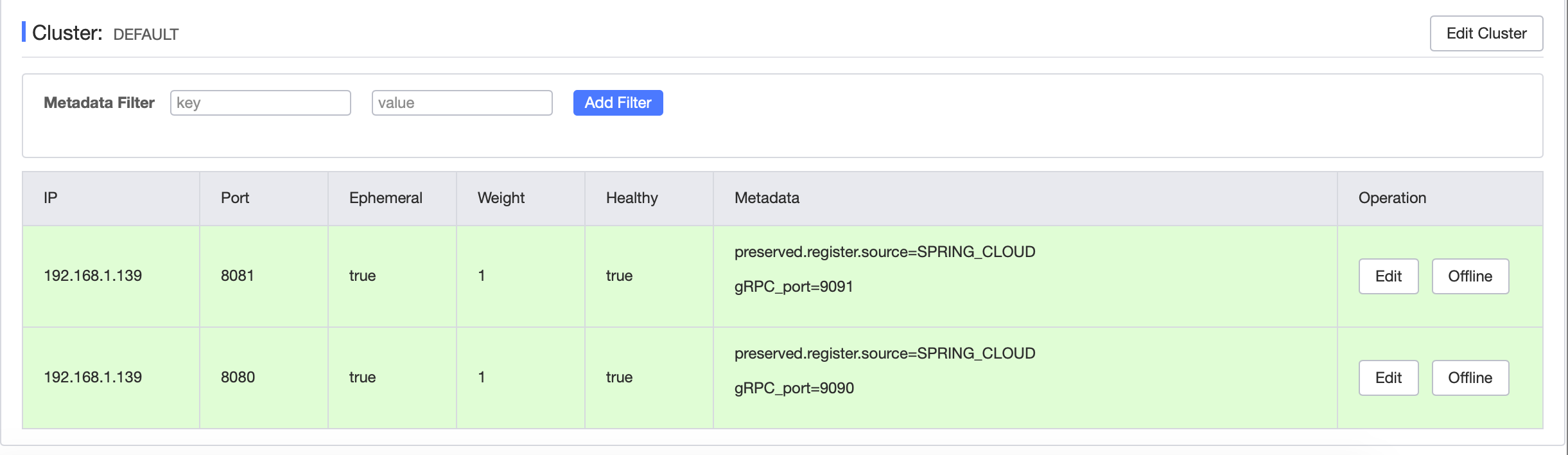

先启动两个provider，我们可以在nacos的service list看到两个provider的注册信息：
