基于MNIST设计神经网络识别手写数字（version 2 CNN结构）

基于MNIST设计神经网络识别手写数字（version 2 CNN结构）

       这是基于卷积神经网络设计的，他的结构是两个卷积层加上两个全连接层。用tf.train.AdamOptimizer()作为优化器进行优化。准确度比 version1.1（链接）要高。附上主要的代码。

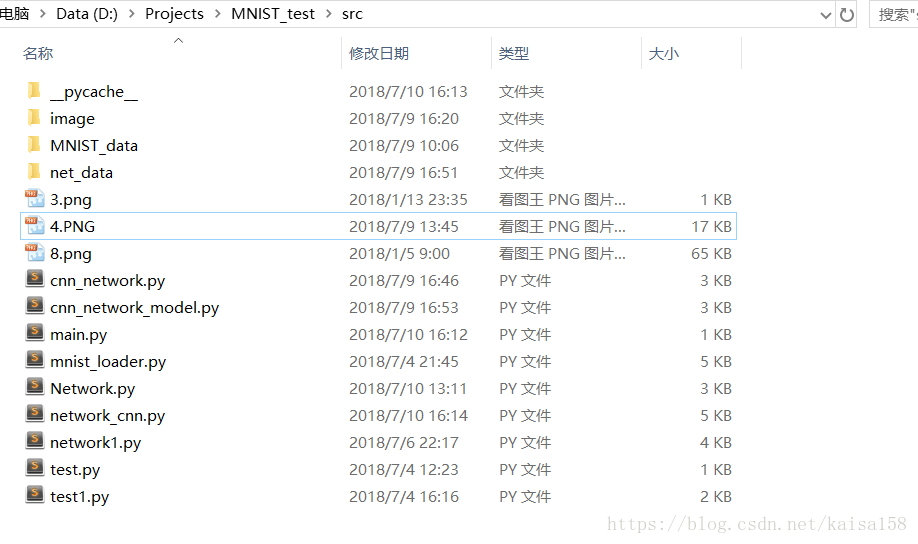

1.所有文件

2.主要代码

1）设计神经网络模块（network_cnn.py）

import random
import numpy as np
from PIL import Image, ImageFilter
import tensorflow as tf
import matplotlib.pyplot as plt

class Network(object):

	def add_layer(self, inputs, in_size, out_size, activation_function=None):
		Weights = tf.Variable(tf.random_normal([in_size, out_size]))
		biases = tf.Variable(tf.zeros([1, out_size]))
		Wx_plus_b = tf.matmul(inputs, Weights) + biases
		if activation_function is None:
			outputs = Wx_plus_b
		else:
			outputs = activation_function(Wx_plus_b)
		return outputs

	def weight_variable(self, shape):
		initial = tf.truncated_normal(shape, stddev=0.1)
		return tf.Variable(initial)

	def bias_variable(self, shape):
		initial = tf.constant(0.1, shape=shape)
		return initial

	def conv2d(self, x, W):
		return tf.nn.conv2d(x, W, strides=[1,1,1,1], padding='SAME')

	def max_pool_2_2(self, x):
		return tf.nn.max_pool(x, ksize=[1,2,2,1], strides=[1,2,2,1], padding='SAME')

	def compute_accurary(self, test_data):
		x1,y1 = test_data[0],test_data[1]
		print("x:{0},y:{1}".format(np.shape(x1), np.shape(y1)))

	def scanimage(self, image):
		#sess = tf.Session()
		predict = self.add_layer(image, 784, 10, activation_function=tf.nn.softmax)
		y_pre = sess.run(tf.argmax(predict, 0))
		result = sess.run(y_pre)
		return result

	def start(self, training_inputs, training_results, epochs, batch_size, testimage):
		print(np.shape(training_inputs))
		print(np.shape(training_results))
		xs = tf.placeholder(tf.float32, [None,784])
		ys = tf.placeholder(tf.float32, [None,10])
		keep_prob = tf.placeholder(tf.float32)
		x_image = tf.reshape(xs, [-1,28,28,1])

		# conv1 layer
		W_conv1 = self.weight_variable([5,5,1,32])
		b_conv1 = self.bias_variable([32])
		h_conv1 = tf.nn.relu(self.conv2d(x_image, W_conv1) + b_conv1) #28*28*32
		h_pool1 = self.max_pool_2_2(h_conv1) #14*14*32

		# conv2 layer
		W_conv2 = self.weight_variable([5,5,32,64])
		b_conv2 = self.bias_variable([64])
		h_conv2 = tf.nn.relu(self.conv2d(h_pool1, W_conv2) + b_conv2)
		h_pool2 = self.max_pool_2_2(h_conv2)

		# fc1 layer
		h_pool2_flat = tf.reshape(h_pool2, [-1,7*7*64])
		W_fc1 = self.weight_variable([7*7*64, 1024])
		b_fc1 = self.bias_variable([1024])
		h_fc1 = tf.nn.relu(tf.matmul(h_pool2_flat, W_fc1) + b_fc1)
		h_fc1_drop = tf.nn.dropout(h_fc1, keep_prob)

		# fc2
		W_fc2 = self.weight_variable([1024, 10])
		b_fc2 = self.bias_variable([10])
		predition = tf.nn.softmax(tf.matmul(h_fc1_drop, W_fc2) + b_fc2)

		# self.predition = self.add_layer(xs, 784, 10, activation_function=tf.nn.softmax)
		cross_entropy = tf.reduce_mean(-tf.reduce_sum(ys * tf.log(predition),reduction_indices=[1]))
		# train_step = tf.train.GradientDescentOptimizer(0.5).minimize(cross_entropy)
		train_step = tf.train.AdamOptimizer(1e-4).minimize(cross_entropy)

		sess = tf.Session()
		init = tf.global_variables_initializer()
		sess.run(init)
		# tpm2 = 0
		for j in range(epochs):

			j = j % 500
			if j % 50 == 0:
				print("epoch",(j % 50) + 1)
			mini_data = training_inputs[j*batch_size:(j+1)*batch_size]
			tmp0 = np.reshape(mini_data, [-1,784])

			mini_results = training_results[j*batch_size:(j+1)*batch_size]
			tmp1 = np.reshape(mini_results, [-1,10])

			sess.run(train_step, feed_dict={xs: tmp0, ys:tmp1, keep_prob:0.5})
		testimage0 = testimage.reshape([1,784])
		test_y = sess.run(predition, feed_dict={xs:testimage0, keep_prob:1})
		print(test_y)
		result = sess.run(tf.argmax(test_y, 1))
		return result

3.测试

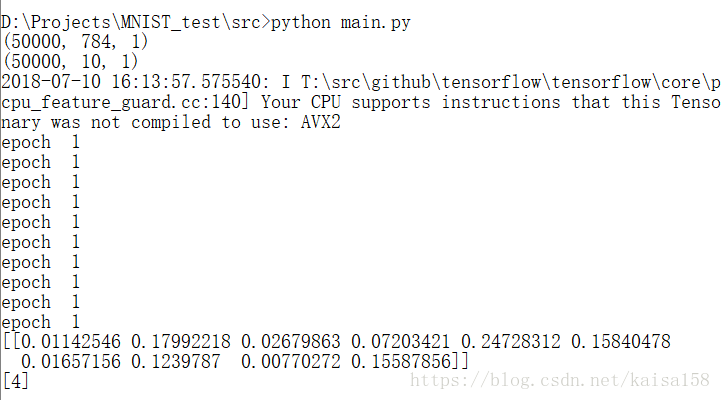

测试结果：

4.总结

     用CNN设计的神经网络，他的准确度大约为99%。CNN网络结构还有很多可以玩的，我会慢慢试。
