【十二】storm+hbase集成

最新推荐文章于 2025-03-22 20:29:32 发布

jy02268879

最新推荐文章于 2025-03-22 20:29:32 发布

阅读量1.2k

点赞数

本文链接：https://blog.youkuaiyun.com/jy02268879/article/details/80686302

版权

hbase 同时被 2 个专栏收录

16 篇文章

订阅专栏

storm

15 篇文章

订阅专栏

pom.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.imooc.bigdata</groupId>
    <artifactId>storm</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>

    <name>storm</name>
    <url>http://maven.apache.org</url>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <storm.version>1.1.1</storm.version>
        <hadoop.version>2.9.0</hadoop.version>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-core</artifactId>
            <version>${storm.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>log4j-over-slf4j</artifactId>
                </exclusion>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-api</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>commons-io</groupId>
            <artifactId>commons-io</artifactId>
            <version>2.4</version>
        </dependency>

        <dependency>
            <groupId>org.apache.storm</groupId>
            <artifactId>storm-hbase</artifactId>
            <version>${storm.version}</version>
            <exclusions>
                <exclusion>
                    <groupId>com.google.guava</groupId>
                    <artifactId>guava</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>16.0.1</version>
        </dependency>


        <dependency>
            <groupId>org.apache.curator</groupId>
            <artifactId>curator-client</artifactId>
            <version>2.12.0</version>
        </dependency>

    </dependencies>
</project>

代码

package com.imooc.bigdata.integration.hbase;

import org.apache.storm.Config;
import org.apache.storm.LocalCluster;
import org.apache.storm.hbase.bolt.HBaseBolt;
import org.apache.storm.hbase.bolt.mapper.SimpleHBaseMapper;
import org.apache.storm.spout.SpoutOutputCollector;
import org.apache.storm.task.OutputCollector;
import org.apache.storm.task.TopologyContext;
import org.apache.storm.topology.OutputFieldsDeclarer;
import org.apache.storm.topology.TopologyBuilder;
import org.apache.storm.topology.base.BaseRichBolt;
import org.apache.storm.topology.base.BaseRichSpout;
import org.apache.storm.tuple.Fields;
import org.apache.storm.tuple.Tuple;
import org.apache.storm.tuple.Values;
import org.apache.storm.utils.Utils;

import java.util.HashMap;
import java.util.Map;
import java.util.Random;

/**
 * 使用Storm完成词频统计功能
 */
public class LocalWordCountHBaseStormTopology {

    public static class DataSourceSpout extends BaseRichSpout {
        private SpoutOutputCollector collector;

        public void open(Map conf, TopologyContext context, SpoutOutputCollector collector) {
            this.collector = collector;
        }

        public static final String[] words = new String[]{"apple","orange","pineapple", "banana", "watermelon"};

        public void nextTuple() {
            Random random = new Random();
            String word = words[random.nextInt(words.length)];
            this.collector.emit(new Values(word));

            System.out.println("emit: " + word);

            Utils.sleep(1000);
        }

        public void declareOutputFields(OutputFieldsDeclarer declarer) {
            declarer.declare(new Fields("line"));
        }
    }


    /**
     * 对数据进行分割
     */
    public static class SplitBolt extends BaseRichBolt {

        private OutputCollector collector;

        public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
            this.collector = collector;
        }

        /**
         * 业务逻辑：
         */
        public void execute(Tuple input) {
            String word = input.getStringByField("line");
            this.collector.emit(new Values(word));

        }

        public void declareOutputFields(OutputFieldsDeclarer declarer) {
            declarer.declare(new Fields("word"));
        }
    }


    /**
     * 词频汇总Bolt
     */
    public static class CountBolt extends  BaseRichBolt {

        private OutputCollector collector;
        public void prepare(Map stormConf, TopologyContext context, OutputCollector collector) {
            this.collector = collector;
        }


        Map<String,Integer> map = new HashMap<String, Integer>();
        /**
         * 业务逻辑：
         * 1）获取每个单词
         * 2）对所有单词进行汇总
         * 3）输出
         */
        public void execute(Tuple input) {
            // 1）获取每个单词
            String word = input.getStringByField("word");
            Integer count = map.get(word);
            if(count == null) {
                count = 0;
            }

            count ++;

            // 2）对所有单词进行汇总
            map.put(word, count);

            // 3）输出
            this.collector.emit(new Values(word, map.get(word)));
        }

        public void declareOutputFields(OutputFieldsDeclarer declarer) {
            declarer.declare(new Fields("word", "count"));
        }
    }

    public static void main(String[] args) {

        Config config = new Config();

        Map<String, Object> hbaseConf = new HashMap<String, Object>();
        hbaseConf.put("hbase.rootdir","hdfs://hadoopcluster/hbase");
        hbaseConf.put("hbase.zookeeper.quorum", "node1:2181,node2:2181,node3:2181");
        config.put("hbase.conf",hbaseConf);

        // 通过TopologyBuilder根据Spout和Bolt构建Topology
        TopologyBuilder builder = new TopologyBuilder();
        builder.setSpout("DataSourceSpout", new DataSourceSpout());
        builder.setBolt("SplitBolt", new SplitBolt()).shuffleGrouping("DataSourceSpout");
        builder.setBolt("CountBolt", new CountBolt()).shuffleGrouping("SplitBolt");

        SimpleHBaseMapper mapper = new SimpleHBaseMapper()
                .withRowKeyField("word")
                .withColumnFields(new Fields("word"))
                .withCounterFields(new Fields("count"))
                .withColumnFamily("cf");

        HBaseBolt hbaseBolt = new HBaseBolt("wc", mapper)
                .withConfigKey("hbase.conf");//如果没有withConfigKey会报错
        builder.setBolt("HBaseBolt", hbaseBolt).shuffleGrouping("CountBolt");

        // 创建本地集群
        LocalCluster cluster = new LocalCluster();
        cluster.submitTopology("LocalWordCountHBaseStormTopology",
                config , builder.createTopology());

    }

}

启动zookeeper

启动hadoop

启动hbase

启动hbase shell

创建表

create 'wc','cf'

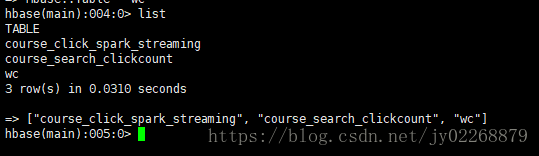

list

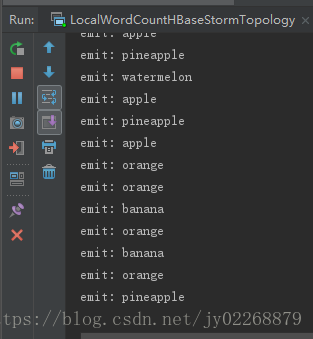

IDEA启动程序

报错这种NoSuchMethodError的错误，要么是调用的方法没引用，要么是引用冲突了。

经检查这里是属于引用冲突了，pom.xml中注释到hadoop-client的引用就好了。

java.lang.NoSuchMethodError: org.apache.hadoop.security.authentication.util.KerberosUtil.hasKerberosTicket(Ljavax/security/auth/Subject;)Z
	at org.apache.hadoop.security.UserGroupInformation.<init>(UserGroupInformation.java:666) ~[hadoop-common-2.9.0.jar:?]
	at org.apache.hadoop.security.UserGroupInformation.loginUserFromSubject(UserGroupInformation.java:861) ~[hadoop-common-2.9.0.jar:?]
	at org.apache.hadoop.security.UserGroupInformation.getLoginUser(UserGroupInformation.java:820) ~[hadoop-common-2.9.0.jar:?]
	at org.apache.hadoop.security.UserGroupInformation.getCurrentUser(UserGroupInformation.java:689) ~[hadoop-common-2.9.0.jar:?]
	at org.apache.hadoop.hbase.security.User$SecureHadoopUser.<init>(User.java:285) ~[hbase-common-1.1.0.jar:1.1.0]
	at org.apache.hadoop.hbase.security.User$SecureHadoopUser.<init>(User.java:281) ~[hbase-common-1.1.0.jar:1.1.0]
	at org.apache.hadoop.hbase.security.User.getCurrent(User.java:185) ~[hbase-common-1.1.0.jar:1.1.0]
	at org.apache.hadoop.hbase.security.UserProvider.getCurrent(UserProvider.java:88) ~[hbase-common-1.1.0.jar:1.1.0]
	at org.apache.storm.hbase.common.HBaseClient.<init>(HBaseClient.java:43) ~[storm-hbase-1.1.1.jar:1.1.1]
	at org.apache.storm.hbase.bolt.AbstractHBaseBolt.prepare(AbstractHBaseBolt.java:75) ~[storm-hbase-1.1.1.jar:1.1.1]
	at org.apache.storm.hbase.bolt.HBaseBolt.prepare(HBaseBolt.java:109) ~[storm-hbase-1.1.1.jar:1.1.1]
	at org.apache.storm.daemon.executor$fn__5030$fn__5043.invoke(executor.clj:793) ~[storm-core-1.1.1.jar:1.1.1]
	at org.apache.storm.util$async_loop$fn__557.invoke(util.clj:482) [storm-core-1.1.1.jar:1.1.1]
	at clojure.lang.AFn.run(AFn.java:22) [clojure-1.7.0.jar:?]
	at java.lang.Thread.run(Thread.java:745) [?:1.8.0_91]

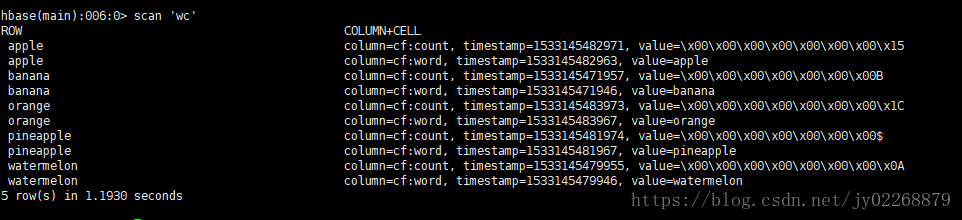

查看hbase
