Spark远程调试记录

实例代码

public class TextSearch {

    public static void main(String[] args) {
        JavaSparkContext sc = new JavaSparkContext();
        JavaRDD<String> textFile = sc.textFile("/home/spark_work/df.txt");
        JavaRDD<Row> rowRDD = textFile
                .map(RowFactory::create);
        List<StructField> fields = Arrays.asList(
                DataTypes.createStructField("line", DataTypes.StringType, true));
        StructType schema = DataTypes.createStructType(fields);
        SQLContext sqlContext = new SQLContext(sc);
        Dataset df = sqlContext.createDataFrame(rowRDD, schema);
        Dataset infos = df.filter(col("line").like("%INFO%"));
        long count = infos.count();
        System.out.println("########################Text Search########################");
        System.out.println(String.format("info count: %d", count));
        df.printSchema();
        System.out.println("########################Text Search########################");
    }
}

maven依赖

务必保证远程spark版本和本地依赖一致

    <dependencies>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.8</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>2.4.3</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.spark/spark-sql -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.12</artifactId>
            <version>2.4.3</version>
        </dependency>
    </dependencies>

代码打包

mvn clean package

上传jar包

将jar包上传到服务器上后，使用以下命令提交至spark执行，请根据自己的代码进行修改。

spark-submit --class com.bigdata.examples.TextSearch --master spark://ip:port --executor-memory 512M --driver-java-options "-Xdebug -Xrunjdwp:transport=dt_socket,server=y,suspend=y,address=5005" /home/spark_work/XXX.jar

其中ip和port是spark所在服务器的ip及spark配置的端口，address=5005表示在5005端口监听本机java代码

开始远程调试

启动Remote

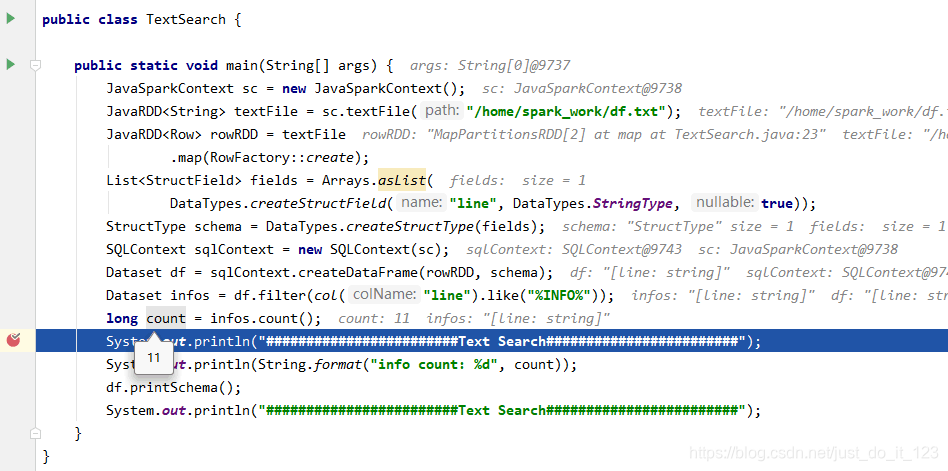

打断点调试
