STM32学习及调试笔记

对于STM32F103xxyy系列：
第一个x代表引脚数：T-36pin，C-48pin，R-64pin，V-100pin，Z-144pin；
第二个x代表Flash容量：6-32K，8-64K，B-128K，C-256K，D-384K，E-512K；
第一个y代表封装：H-BGA封装，T-LQFP封装，U-QFN封装；
第二个一代表工作稳定范围：6代表-40到85摄氏度，7代表-40到105摄氏度。

一、软件安装及显示修改
1.Keil5安装，及注册，文件

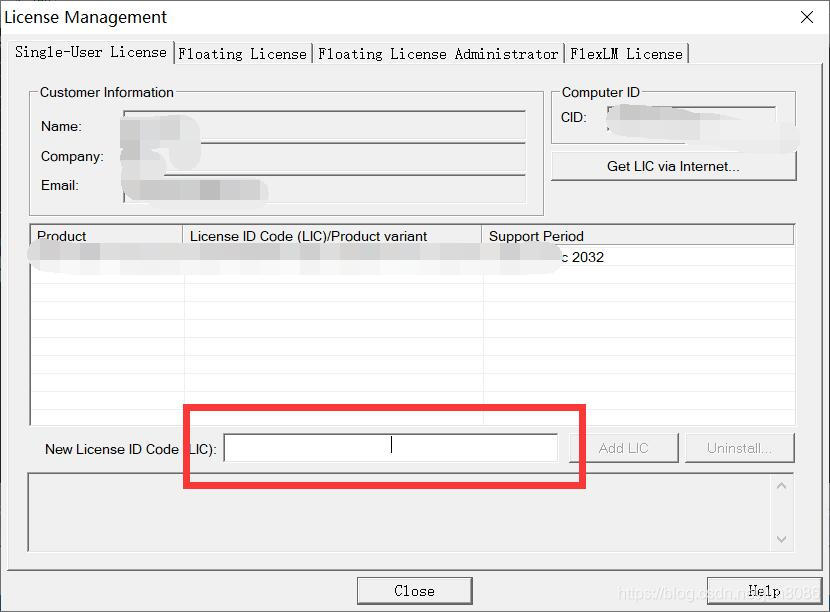

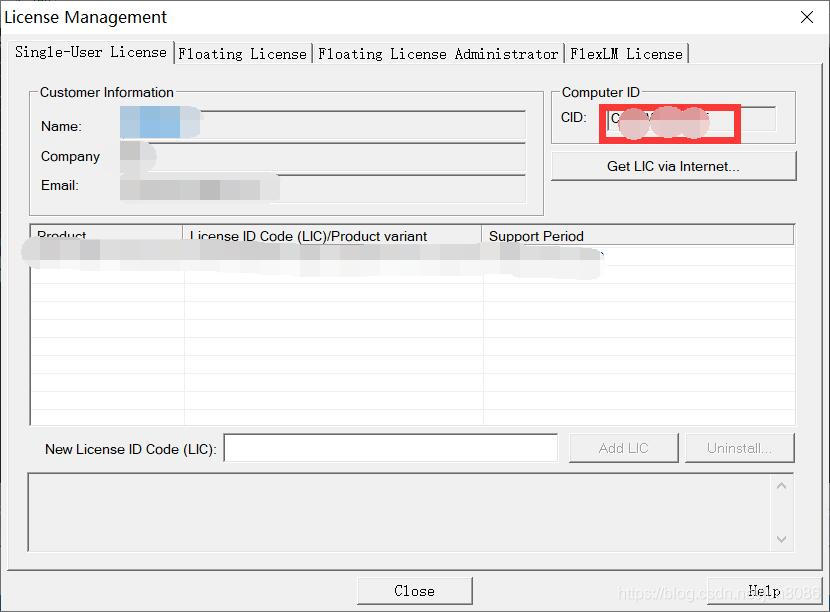

①点击安装 mdk518.exe，然后管理员启动，点file -> licence management，复制CID码

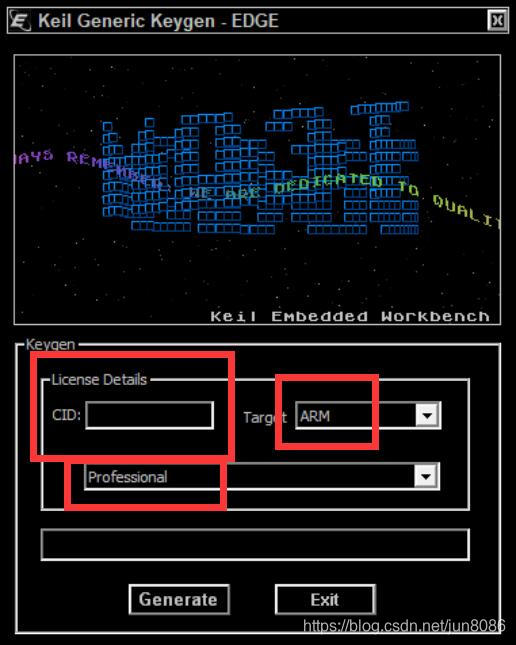

然后管理员启动keygen.exe，把CID复制到相应框里，选择ARM，Professional,最后点Generate,

复制生成的长串代码到下面框里点ADD。然后close,就成功了。

2.安装注册完成后安装stm32相关的pack包。（直接点击以.pack为后缀的文件）文件下载。
3.修改编辑界面颜色。右击桌面图标打开文件位置，把grobal.prop 文件复制进去，就OK了；grobal.prop下载；也可复制文章末尾的代码到一个空的txt文件内，把txt文件直接连后缀名改为grobal.prop,然后拖到程序根目录即可。`

预览是这样的

二、项目模板创建
1.项目根目录已下级目录文件解释；
App:存放自己写的一些驱动、库文件；
Libraries:存放官方的库，以及CMSIS固件库；
Obj:编译产生的文件，HEX等；
User: 存放main.c、stm32f10x_it.c

2.Keil项目树；
3.配置魔术棒；
4.配置j-link仿真器；
