Jenkins自动化部署

这里基于jenkins、gitee、ansible、bsdiff，mvn，springboot jar，md5sum讲解

大致流程是jenkins生成jar包，ansible进行二进制增量传输，最终检查checksum、部署、重启项目

准备：

所有centos服务器创建jenkins用户：

useradd -G jenkins jenkins

1、yum Jenkins安装、配置、启动：

yum install jenkins

service jenkins start/stop/restart

2、ansible安装、配置

yum install ansible

配置ansible ssh可信host、登入各从服务器的jenkins用户生成public key，保存到jenkins主机的~/.ssh/authorized_keys下，测试，保证可以用jenkins用户免密ssh

vi /etc/ansible/hosts

# add
[Self]
self ip

[Client]

child1 ip
child2 ip
child3 ip ansible_ssh_port=60000 # ssh use port 60000


vi /etc/ansible/ansible.cfg
# replace
remote_user=jenkins

3、安装jenkins插件

安装ansible plugin支持ansible配置，安装gitee plugin支持gitee的scm，在jenkins中配置好gitee，保证代码可以拉取，在全局工具配置中添加maven、ansible等工具，支持pipline使用这些命令，所有安装完成后重启jenkins。

4、创建jenkins pipline项目

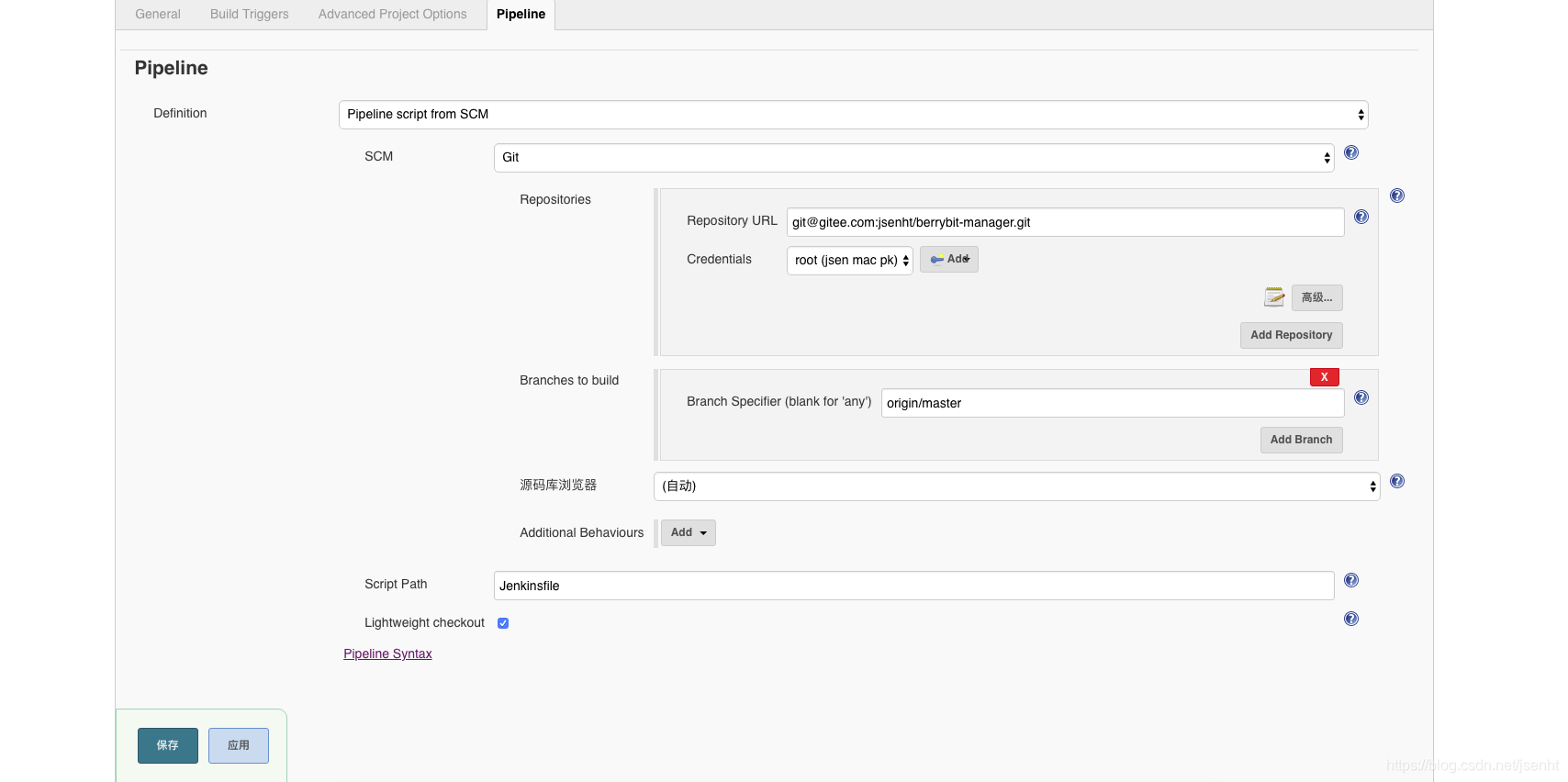

pipline的核心配置如下

这个配置如果正常就会fetch git repo，并自动执行该git项目下的Jenkinsfile文件，接下来看看jenkinsfile的编写

#!groovy

node {
    stage('checkout') {
        checkout([$class: 'GitSCM', branches: [[name: 'origin/develop']], doGenerateSubmoduleConfigurations: false, extensions: [[$class: 'CloneOption', depth: 0, noTags: false, reference: '', shallow: false, timeout: 60]], submoduleCfg: [], userRemoteConfigs: [[credentialsId: 'credentialsId', name: 'origin', refspec: '+refs/heads/*:refs/remotes/origin/*', url: 'git@gitaddress:/opt/repos/ishikang/jinan']]])
    }

    //定义mvn环境
    def mvnHome = tool 'MVN3'
    env.PATH = "${mvnHome}/bin:${env.PATH}"
    def ansibleHome = tool 'ANSIBLE-PLAYBOOK'
    env.PATH = "${ansibleHome}:${env.PATH}"

    def name = 'sssdfsd'
    def suffix = 'jar'
    def ansbileFile = 'ansible.yml'
    def devopsPath = "/devroot/devops/.build/"

    stage('enter project dir') {

        dir(name) {

            stage('package') {
                sh "mvn clean package"
            }

            stage('create diff and move') {
                dir('target') {
                    sh "mv *.${suffix} ${name}.${suffix}"
                    if(fileExists("${devopsPath}${name}.${suffix}")) {
                        // create patch
                        sh "${devopsPath}bsdiff ${devopsPath}${name}.${suffix} ${name}.${suffix} ${name}.${suffix}.patch"
                        sh "mv ${name}.${suffix}.patch ${devopsPath}"
                    }
                    sh "md5sum ${name}.${suffix} > ${name}.${suffix}.checksum"
                    sh "mv ${name}.${suffix} ${devopsPath}"
                    sh "mv ${name}.${suffix}.checksum ${devopsPath}"
                }
            }

            stage('deploy') {
                sh "ansible-playbook ${ansbileFile}"
            }

            stage('clean and send mail') {
                sh "mvn clean"

                emailext body: '''$PROJECT_NAME - Build # $BUILD_NUMBER - $BUILD_STATUS:

Check console output at $BUILD_URL to view the results.''', subject: '$PROJECT_NAME - Build # $BUILD_NUMBER - $BUILD_STATUS!', to: 'mailaddress@163.com'

            }

        }

    }




}

这是一个groovy文件，文件首先checkout一个项目，这个语法的导出可以在http://admin.berrybit.cn/job/berrybit-manager/pipeline-syntax/中找checkout找到配置方法并导出语句，这里定义的mvn和ansible是在jenkins中配置的，这里还用到了bsdiff命令，创建了一个一个差量包，用来降低更新包的大小，部署的代码在ansible-playbook ${ansbileFile}这一句，这个ansbileFile文件是在开头拉取的那个项目里的一个absible部署文件。接着看ansible的部署文件，这里的项目文件路径都不一样，只是例子。

- hosts: 106.75.49.211
  tasks:
  - name: judge a file or dir is exits
    shell: ls /devroot/devops/example.jar
    ignore_errors: True
    register: result

  - name: "ssh copy patch jar!"
    copy: src=/root/devops/.build/example.jar.patch dest=/devroot/devops/example.jar.patch mode=0700
    when: result|succeeded
  - name: "ssh copy jar checksum!"
    copy: src=/root/devops/.build/example.jar.checksum dest=/devroot/devops/example.jar.checksum mode=0400
    when: result is succeeded
  - name: patch the file
    command: ./bspatch example.jar example.jar example.jar.patch
    args:
      chdir: /devroot/devops
    when: result is succeeded
  - name: check target file is ok
    command: md5sum -c example.jar.checksum
    ignore_errors: True
    register: checksum
    args:
      chdir: /devroot/devops
    when: result is succeeded

  - name: "copy jar!"
    copy: src=/root/devops/.build/example.jar dest=/devroot/devops/example.jar mode=0700
    when: result is failed

  - name: "copy jar when checksum error!"
    copy: src=/root/devops/.build/example.jar dest=/devroot/devops/example.jar mode=0700
    when: checksum is failed

  - name: move to back
    command: mv /targetroot/example-target.jar /targetroot/example-target.jar.back

  - name: "replace jar!"
    command: \cp -rf /devroot/devops/example.jar  /targetroot/example-target.jar
  - name: restart jar
    command: ./springboot.sh restart example-target.jar
    args:
      chdir: /targetroot

这里是一些常规流程，包括判断文件是否存在、增量包的合并，checksum的检查等，总之，首先要保证最终的部署文件的checksum和编译出来的文件一样，springboot.sh是一个jar包部署脚本可以直接写nohup java -jar example-target.jar &，注意这里的nohup是一定要的，否则ansible执行结束后，这个启动的进程会被杀死。

到此一个基于jenkins的自动化部署的基本流程大致完成，还可以在jenkins配置gitee的webhook，进行触发部署。
