配置Pycharm，解决终端可运行，Pycharm报错：Process finished with exit code 134 (interrupted by signal 6: SIGABRT)

错误提示如下：

I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcublas.so.8.0 locally
I tensorflow/stream_executor/dso_loader.cc:126] Couldn't open CUDA library libcudnn.so.5. LD_LIBRARY_PATH:
I tensorflow/stream_executor/cuda/cuda_dnn.cc:3517] Unable to load cuDNN DSO
I tensorflow/stream_executor/dso_loader.cc:126] Couldn't open CUDA library libcufft.so.8.0. LD_LIBRARY_PATH:
I tensorflow/stream_executor/cuda/cuda_fft.cc:344] Unable to load cuFFT DSO.
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcuda.so.1 locally
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcurand.so.8.0 locally

Process finished with exit code 134 (interrupted by signal 6: SIGABRT)

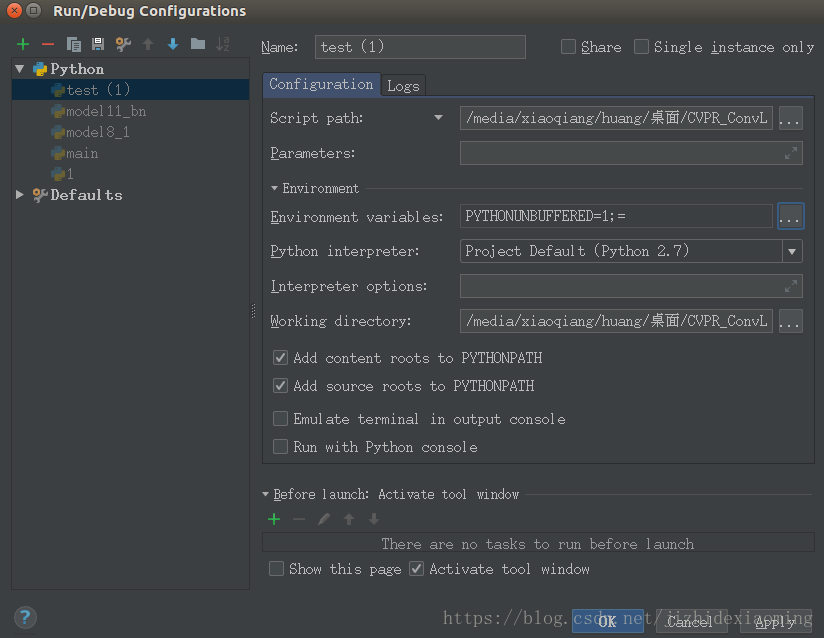

1）配置Pycharm过程：点击 > Run > Edit Configurations ，打开界面如下：

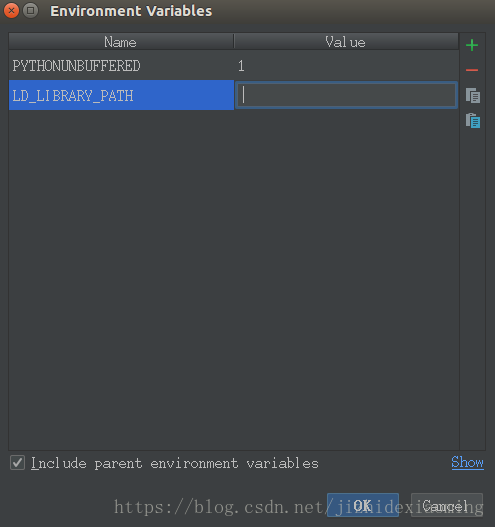

2）点击要运行的程序，如图，我的是蓝色区域的test(1)，手动配置Environment variables，添加LD_LIBRARY_PATH项，即可。具体步骤，点击右边三点，打开界面如下

3）再左边Name赋值为LD_LIBRARY_PATH，

右边Value赋值为：/usr/local/cuda/lib64:/usr/local/cuda/extras/CUPTI/lib64:;

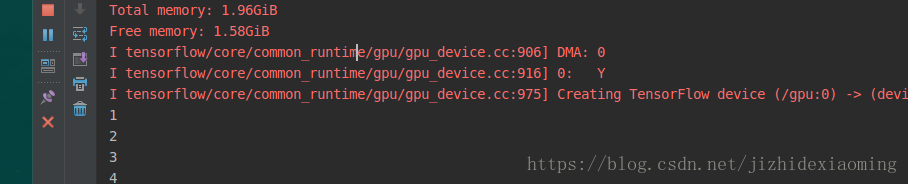

4）问题解决，并成功运行：

I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcublas.so.8.0 locally
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcudnn.so.5 locally
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcufft.so.8.0 locally
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcuda.so.1 locally
I tensorflow/stream_executor/dso_loader.cc:135] successfully opened CUDA library libcurand.so.8.0 locally
