SpringCloud H版系列1＜PaymentMain8001和OrderMain80＞

这里根据尚硅谷周阳老师的springcloud视频，整理的项目资料，持续更新中。

一、创建主maven项目springcloud2021

源码下载地址
spring-cloud-01

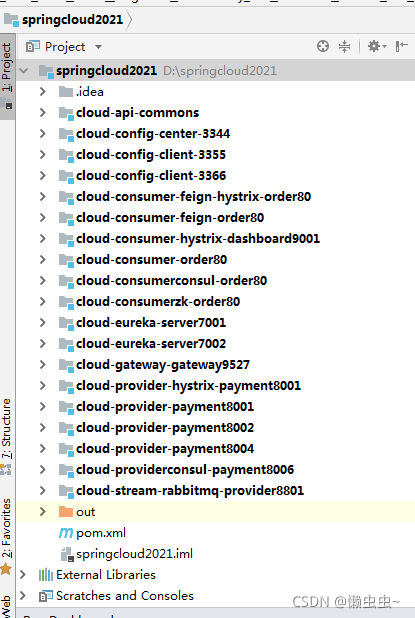

1 项目整体目录结构如下，持续更新中)

2 主pom.xml文件

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.atguigu.springcloud</groupId>
  <artifactId>springcloud2021</artifactId>
  <packaging>pom</packaging>
  <version>1.0-SNAPSHOT</version>

  <modules>
    <module>cloud-provider-payment8001</module>
    <module>cloud-consumer-order80</module>
    <module>cloud-api-commons</module>
    <module>cloud-eureka-server7001</module>
    <module>cloud-eureka-server7002</module>
    <module>cloud-provider-payment8002</module>
    <module>cloud-provider-payment8004</module>
    <module>cloud-consumerzk-order80</module>
    <module>cloud-providerconsul-payment8006</module>
    <module>cloud-providerconsul-payment8006</module>
    <module>cloud-providerconsul-payment8006</module>
    <module>cloud-consumerconsul-order80</module>
    <module>cloud-consumer-feign-order80</module>
    <module>cloud-provider-hystrix-payment8001</module>
    <module>cloud-consumer-feign-hystrix-order80</module>
    <module>cloud-consumer-hystrix-dashboard9001</module>
    <module>cloud-gateway-gateway9527</module>
    <module>cloud-config-center-3344</module>
    <module>cloud-config-client-3355</module>
      <module>cloud-config-client-3366</module>
      <module>cloud-stream-rabbitmq-provider8801</module>
  </modules>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <junit.version>4.12</junit.version>
    <log4j.version>1.2.17</log4j.version>
    <lombok.version>1.16.18</lombok.version>
    <mysql.version>5.1.47</mysql.version>
    <druid.version>1.1.16</druid.version>
    <mybatis.spring.boot.version>1.3.2</mybatis.spring.boot.version>
  </properties>

  <!-- 子模块继承之后，提供作用：锁定版本+子模块不用写groupId和version  -->
  <dependencyManagement>
    <dependencies>
      <!--  springboot 2.2.2    -->
      <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-dependencies</artifactId>
        <version>2.2.2.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--  springcloud cloud Hoxton.SR1   -->
      <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-dependencies</artifactId>
        <version>Hoxton.SR1</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <!--  springcloud cloud alibaba 2.1.0.RELEASE    -->
      <dependency>
        <groupId>com.alibaba.cloud</groupId>
        <artifactId>spring-cloud-alibaba-dependencies</artifactId>
        <version>2.1.0.RELEASE</version>
        <type>pom</type>
        <scope>import</scope>
      </dependency>
      <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>${mysql.version}</version>
      </dependency>
      <dependency>
        <groupId>com.alibaba</groupId>
        <artifactId>druid</artifactId>
        <version>${druid.version}</version>
      </dependency>
      <dependency>
        <groupId>org.mybatis.spring.boot</groupId>
        <artifactId>mybatis-spring-boot-starter</artifactId>
        <version>${mybatis.spring.boot.version}</version>
      </dependency>
      <dependency>
        <groupId>log4j</groupId>
        <artifactId>log4j</artifactId>
        <version>${log4j.version}</version>
      </dependency>
      <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>${junit.version}</version>
      </dependency>
      <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <version>${lombok.version}</version>
        <optional>true</optional>
      </dependency>
    </dependencies>
  </dependencyManagement>

  <build>
    <plugins>
      <plugin>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-maven-plugin</artifactId>
        <configuration>
          <fork>true</fork>
          <addResources>true</addResources>
        </configuration>
      </plugin>
    </plugins>
  </build>
</project>

3 创建数据库和表

用MySQL数据库名为test，表payment

CREATE DATABASE /*!32312 IF NOT EXISTS*/`test` /*!40100 DEFAULT CHARACTER SET utf8 COLLATE utf8_unicode_ci */;
​
USE `test`;
​
/*Table structure for table `payment` */
​
DROP TABLE IF EXISTS `payment`;
​
CREATE TABLE `payment` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT COMMENT 'ID',
  `serial` varchar(200) COLLATE utf8_unicode_ci DEFAULT NULL,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 COLLATE=utf8_unicode_ci;
​
/*Data for the table `payment` */
​
insert  into `payment`(`id`,`serial`) values (1,'007'),(2,'008'),(3,'009'),(4,'101');

二、支付微服务8001

新建PaymentMain8001模块

2.1 resource目录下新建 application.yml，配置pom.xml

server:
  port: 8001

spring:
  application:
    name: cloud-payment-service
  datasource:
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 1234

#将支付服务8001微服务发布到2台Eureka集群配置中
eureka:
  client:
    register-with-eureka: true   #是否将自己注册到注册中心,集群必须设置为true配合ribbon
    fetch-registry: true    #是否从服务端抓取已有的注册信息
    service-url:
      defaultZone: http://localhost:7001/eureka
      #defaultZone: http://localhost:7001/eureka,http://localhost:7002/eureka  #集群版
  instance:  #instance必须与client对齐
    instance-id: payment8001  #配置服务名
    prefer-ip-address: true  #访问路径可以显示IP
    lease-renewal-interval-in-seconds: 1  #向服务端发送心跳的时间间隔，单位为秒（默认是30秒），设置目的是加快频率
    lease-expiration-duration-in-seconds: 2 #收到最后一次心跳后等待时间上限，单位为秒（默认是90秒），超时将剔除

mybatis:
  mapper-locations: classpath:mapper/*.xml
  type-aliases-package: com.atguigu.springcloud.entities  #所有Entity别名类所在包

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2021</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-provider-payment8001</artifactId>
    <dependencies>
        <!-- 引入通用module项目内容 -->
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-zipkin</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.18</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.10</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <!--   引入eureka客户端     -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

    </dependencies>

</project>

2.2 新建启动类PaymentMain8001

package com.atguigu.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

@SpringBootApplication
@EnableEurekaClient
@EnableDiscoveryClient
public class PaymentMain8001 {
    /*Eureka自我保护机制
    *某时刻某一个微服务不可用，Eureka不会立即清理，依旧会对该微服务进行保存
    * 属于AP理论
    * */
    public static void main(String[] args) {
        SpringApplication.run(PaymentMain8001.class,args);
    }
}

2.3 Controller层PaymentController

package com.atguigu.springcloud.controller;

import com.atguigu.springcloud.entities.CommonResult;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;
import javax.annotation.Resource;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import java.util.List;

@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;
    @Value("${server.port}")
    private String serverPort;
    @Autowired
    private DiscoveryClient discoveryClient;

    @PostMapping(value="/payment/create")
    public CommonResult create(Payment payment){
        int result = paymentService.create(payment);
        log.info("插入结果:" + result);
        if (result > 0) {
            return new CommonResult(200, "插入成功,serverPort: " + serverPort, result);
        } else {
            return new CommonResult(444, "插入失败", null);
        }
    }

    @GetMapping(value="/payment/get/{id}")
    public CommonResult getPaymentById(@PathVariable("id") Long id){
         Payment paymentById =  paymentService.getPaymentById(id);
        log.info("查询结果:" + paymentById);
        if (paymentById != null) {
            return new CommonResult(200, "查询成功,serverPort: "+ serverPort, paymentById);
        } else {
            return new CommonResult(444, "没有对应记录，查询id:" + id, null);
        }
    }

    @GetMapping(value="/payment/discovery")
    public Object discovery(){
        List<String> services = discoveryClient.getServices();//获取服务列表清单
        for (String element: services ) {
            log.info("****element: " +element);
        }
        //根据微服务名称“CLOUD-PAYMENT-SERVICE”获取微服务信息
        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        for (ServiceInstance instance:instances) {
            log.info(instance.getServiceId()+"\t"+instance.getHost()+"\t"+instance.getPort()+"\t"+instance.getUri());
        }
        return this.discoveryClient;
    }

    @GetMapping("/payment/lb")
    public String getPaymentLB(){
        return serverPort;
    }

    //feign 超时测试
    @GetMapping("/payment/feign/timeout")
    public String paymentFeignTimeOut(){
        return serverPort;
    }
}

2.4 Dao层 PaymentDao

package com.atguigu.springcloud.dao;

import com.atguigu.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

@Mapper
public interface PaymentDao {
    public int create(Payment payment);//写操作

    public Payment getPaymentById(@Param("id") Long id);//读操作

}

2.5 resource目录下，新建PaymentMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.atguigu.springcloud.dao.PaymentDao">
    <!-- 主要是在主键是自增的情况下，添加成功后可以直接使用主键值，其中keyProperty的值是对象的属性值不是数据库表中的字段名-->
   <insert id="create" parameterType="Payment" useGeneratedKeys="true" keyProperty="id" >
       insert into payment(serial) values(#{serial});
   </insert>
    <!--实现字段一一映射 -->
    <resultMap id="BaseResultMap" type="com.atguigu.springcloud.entities.Payment">
        <id column="id" property="id" jdbcType="BIGINT"></id>
        <id column="serial" property="serial" jdbcType="VARCHAR"></id>
    </resultMap>

    <select id="getPaymentById" parameterType="long" resultMap="BaseResultMap">
        select * from payment where  id = #{id};
    </select>
</mapper>

在mybatis的配置文件中，有个叫keyProperty和useGeneratedKeys的属性。useGeneratedKeys 参数只针对 insert 语句生效，默认为 false。当设置为 true 时，表示如果插入的表以自增列为主键，则允许 JDBC 支持自动生成主键，并可将自动生成的主键返回。

具体用法：useGeneratedKeys=”true” keyProperty=”对应的主键的对象”。

2.6 Service层 接口PaymentService，实现类PaymentServiceImpl

PaymentService

package com.atguigu.springcloud.service;

import com.atguigu.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Param;

public interface PaymentService {
    public int create(Payment payment);//写操作

    public Payment getPaymentById(@Param("id") Long id);//读操作
}

PaymentServiceImpl

package com.atguigu.springcloud.service.impl;

import com.atguigu.springcloud.dao.PaymentDao;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.service.PaymentService;
import org.springframework.stereotype.Service;
import javax.annotation.Resource;

@Service
public class PaymentServiceImpl implements PaymentService {
    // @Resource属于Java原生注解，而@Autowired属于Spring注解
    @Resource
    private PaymentDao paymentDao;

    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }

    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }
}

2.7 测试

启动PaymentMain8001

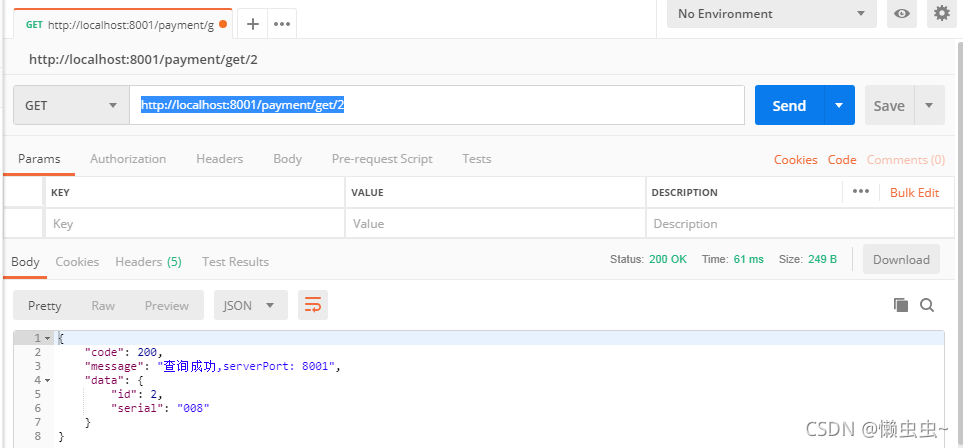

利用postman，执行查询操作http://localhost:8001/payment/get/2

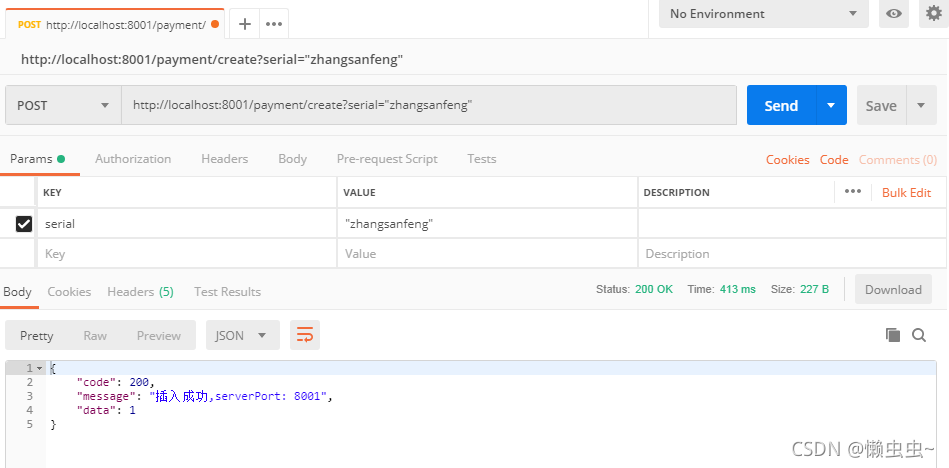

执行插入操作，结果如下

三、订单微服务80

新建cloud-consumer-order80项目

3.1 resource目录下新建 application.yml，配置pom.xml

application.yml

server:
  port: 80

spring:
  application:
    name: cloud-order-service

#将订单服务80微服务发布到2台Eureka集群配置中
eureka:
  client:
    register-with-eureka: true   #是否将自己注册到注册中心,集群必须设置为true配合ribbon
    fetch-registry: true    #是否从服务端抓取已有的注册信息
    service-url:
      defaultZone: http://localhost:7001/eureka  单机版
      #defaultZone: http://localhost:7001/eureka,http://localhost:7002/eureka #集群版

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2021</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-consumer-order80</artifactId>
    <dependencies>
        <dependency>
            <groupId>com.atguigu.springcloud</groupId>
            <artifactId>cloud-api-commons</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-actuator</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.18</version>
        </dependency>
        <!--   引入eureka客户端     -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
    </dependencies>
</project>

3.2 Controller层OrderController

package com.atguigu.springcloud.controller;

import com.atguigu.springcloud.entities.CommonResult;
import com.atguigu.springcloud.entities.Payment;
import com.atguigu.springcloud.lb.LoadBalance;
import com.atguigu.springcloud.lb.MyLB;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cloud.client.ServiceInstance;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
import javax.annotation.Resource;
import java.net.URI;
import java.util.List;

@RestController
@Slf4j
public class OrderController {

    @Autowired
    private LoadBalance loadBalance;

    @Autowired
    private DiscoveryClient discoveryClient;
    //public static final String PAYMENT_URL = "http://localhost:8001";
    public static final String PAYMENT_URL = "http://CLOUD-PAYMENT-SERVICE";//负载均衡

    @Resource
    private RestTemplate restTemplate;
    //使用方式(url,requestMap,responseBean.class)三个参数分别代表rest请求地址、请求参数、http响应转换成的对象类型
    //RestTemplate提供了多种便捷访问远程Http服务的方法，
    //是一种简单便捷的访问restful服务的模板类，是spring提供的用于访问Rest服务的客户端模板工具集。

    //getForObject返回响应体重数据转化成的对象，即json
    //getForEntity返回对象是ResponseEntity对象，包含了响应中的一些重要信息，比如响应头、响应状态码、响应体等

    @GetMapping("/consumer/payment/create")
    public CommonResult<Payment> create(Payment payment){
        return restTemplate.postForObject(PAYMENT_URL+"/payment/create",payment,CommonResult.class);
        //return restTemplate.postForEntity(PAYMENT_URL+"/payment/create",payment,CommonResult.class).getBody();
    }

    @GetMapping("/consumer/payment/get/{id}")
    public CommonResult<Payment> getPayment(@PathVariable("id") Long id){
        return restTemplate.getForObject(PAYMENT_URL+"/payment/get/"+id,CommonResult.class);
    }

    @GetMapping("/consumer/payment/getForEntity/{id}")
    public CommonResult<Payment> getPayment2(@PathVariable("id") Long id){
        ResponseEntity<CommonResult> entity = restTemplate.getForEntity(PAYMENT_URL+"/payment/get"+id,CommonResult.class);
        if (entity.getStatusCode().is2xxSuccessful()){//http请求编码2xx比如200
            return entity.getBody();
        }else{
            return new CommonResult<Payment>(444,"操作失败！");
        }
    }

    @GetMapping("/consumer/payment/lb")
    public String getPaymentLB(){
        List<ServiceInstance> instances = discoveryClient.getInstances("CLOUD-PAYMENT-SERVICE");
        if (instances == null || instances.size() <= 0) {
            return null;
        }
        ServiceInstance serviceInstance = loadBalance.instance(instances);
        URI uri = serviceInstance.getUri();

        return restTemplate.getForObject(uri + "/payment/lb", String.class);
    }
}

3.3 config层ApplicationContext

package com.atguigu.springcloud.config;

import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.client.RestTemplate;

@Configuration
public class ApplicationContext {
    //@Bean 代替了xml方式配置注入Spring
    @Bean
    //@LoadBalanced 手写负载均衡算法，则注释掉
    //开启负载均衡注解，轮询查询8001和8002的EurekaClient
    public RestTemplate getRestTemplate(){
        //RestTemplate提供了多种便捷访问远程http服务的方法
        //是一种简单便捷访问restful服务模板类，是Spring提供的用于访问Rest服务的客户端模板工具类
        return new RestTemplate();
    }
}

3.4 负载均衡以及手写负载均衡算法

LoadBalance

package com.atguigu.springcloud.lb;

import org.springframework.cloud.client.ServiceInstance;
import java.util.List;

public interface LoadBalance {
    //手写负载均衡算法接口
    ServiceInstance instance(List<ServiceInstance> serviceInstances);//把当前服务器实例存入List
}

MyLB

package com.atguigu.springcloud.lb;

import org.springframework.cloud.client.ServiceInstance;
import org.springframework.stereotype.Component;
import java.util.List;
import java.util.concurrent.atomic.AtomicInteger;

//手写负载均衡算法
@Component
public class MyLB implements LoadBalance {
    private AtomicInteger atomicInteger = new AtomicInteger(0);
    public final int getAndIncrement(){
        int current;
        int next;
        do{
            current = this.atomicInteger.get();
            next = current >= Integer.MAX_VALUE ? 0 : current+1;//当next下标大于MAX_VALUE时，清零，重写累加
        }while (!this.atomicInteger.compareAndSet(current,next));//如果当前值和预期值一致，则this.atomicInteger.compareAndSet(current,next)为true
                                                                    // !true则为false，跳出do while循环，打印出信息
        System.out.println("**********第几次访问，次数next："+next);
        return next;
    }

    //ribbon负载均衡算法原理：rest接口第几次请求数 % 服务器集群总数 = 实际调用服务器位置下标
    //每次重启后，rest接口计数从1开始
    @Override
    public ServiceInstance instance(List<ServiceInstance> serviceInstances) {
        int index = getAndIncrement()%serviceInstances.size();
        return serviceInstances.get(index);
    }
}

自定义负载均衡策略MySelfRule

package com.atguigu.myrule;

import com.netflix.loadbalancer.IRule;
import com.netflix.loadbalancer.RandomRule;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class MySelfRule {
    //ribbon默认负载均衡策略是：轮询，这里自定义修改，设置为另一个负载均衡策略：随机
    //通过多次访问http:80//localhost/consumer/payment/get/1，发现随机落在8001和8002服务器
    @Bean
    public IRule myRule(){
       return new RandomRule();//定义为随机
    }
}

测试(http类型默认端口80，可以省略)
先启动7001，再启动8001，最后启动80

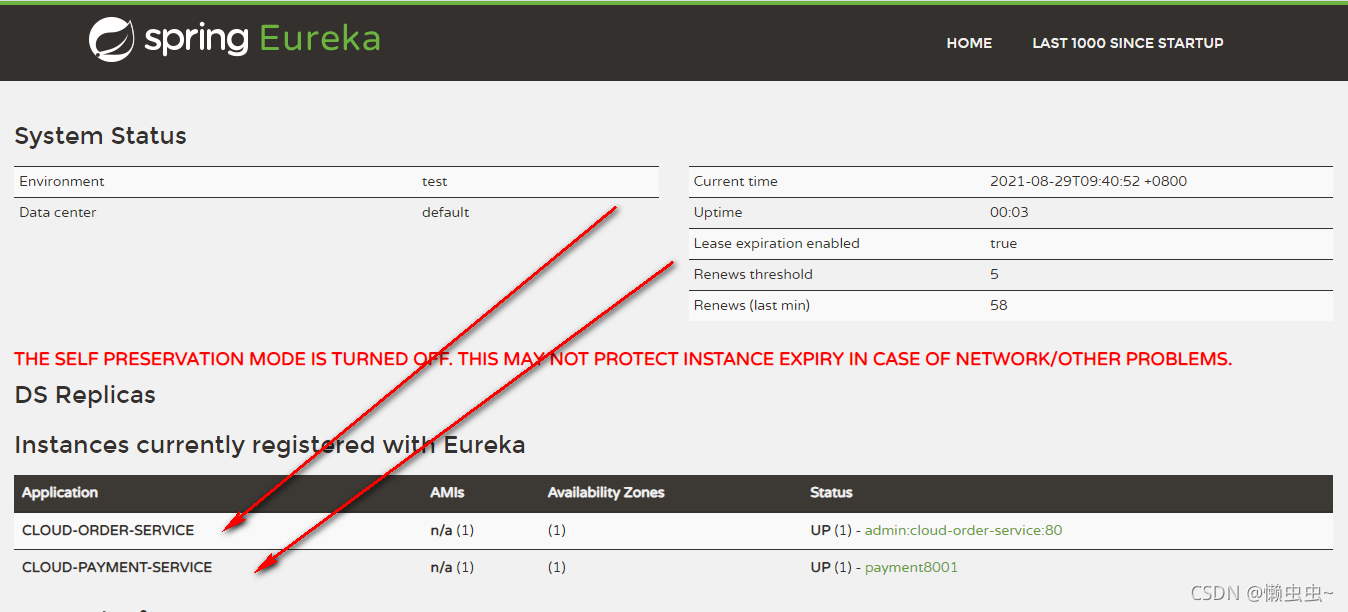

访问http://localhost:7001/可以看到eurake已经注册了8001和80

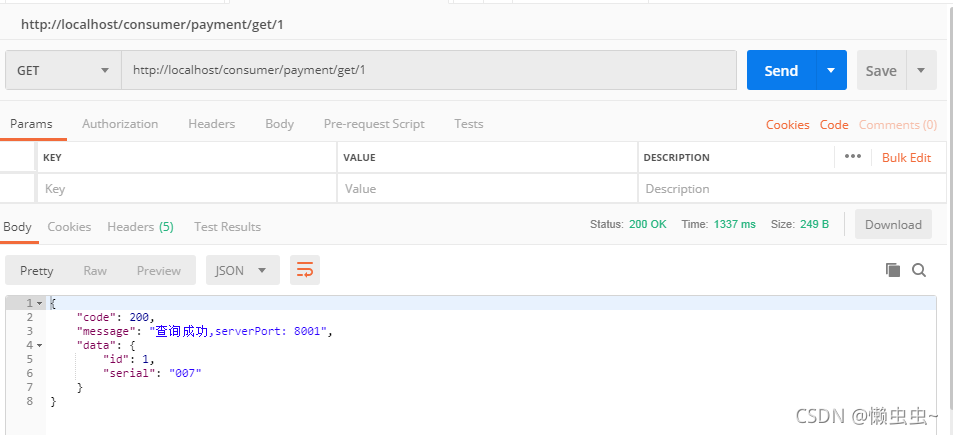

http://localhost/consumer/payment/get/1

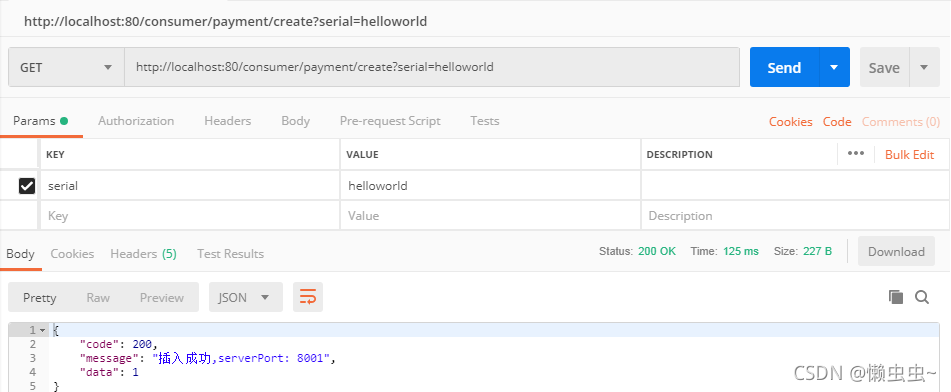

http://localhost:80/consumer/payment/create?serial=helloworld

3.5 配置rundashbroad

运用spring cloud框架基于spring boot构建微服务，一般需要启动多个应用程序，在idea开发工具中，多个同时启动的应用

需要在RunDashboard运行仪表盘中可以更好的管理，但有时候idea中的RunDashboard窗口没有显示出来，也找不到直接的开启按钮

idea中打开Run Dashboard的方法如下

view > Tool Windows > Run Dashboard

如果上述列表找不到Run Dashboard,则可以在工程目录下找到.idea文件夹下的workspace.xml，在其中相应位置加入以下代码（替换）即可：

<component name="RunDashboard">
<option name="configurationTypes">
  <set>
    <option value="SpringBootApplicationConfigurationType"/>
  </set>
</option>
<option name="ruleStates">
  <list>
    <RuleState>
      <option name="name" value="ConfigurationTypeDashboardGroupingRule"/>
    </RuleState>
    <RuleState>
      <option name="name" value="StatusDashboardGroupingRule"/>
    </RuleState>
  </list>
</option>
</component>

四、工程重构

将消费者和服者者的entities拷贝至新模块中，删除原来的entities包，clean、install cloud-api-commons 模块，在消费者、服务者pom.xml中分别引入依赖，测试运行。

4.1 新建模块 cloud-api-commons

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>springcloud2021</artifactId>
        <groupId>com.atguigu.springcloud</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>cloud-api-commons</artifactId>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <!--        当optional为true则说明该依赖禁止依赖传递    <optional>true</optional>-->
        </dependency>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.1.1</version>
        </dependency>
    </dependencies>
</project>

实体类
Payment

package com.atguigu.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Payment implements Serializable {
    private Long id;
    private String serial;
}

CommonResult

package com.atguigu.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.extern.slf4j.Slf4j;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult<T> {
    private Integer code;
    private String message;
    private T data;

    public CommonResult(Integer code, String message) {
        this(code, message, null);
    }
}
