若依配置Knife4j增强、集成MyBatis-Plus【代码分享】

最近闲来无事，借着ruoyi项目学习一下前端技术，但是这个swagger-ui实在丑的不堪入目，搜集了一些资料，终于解决了这个问题。

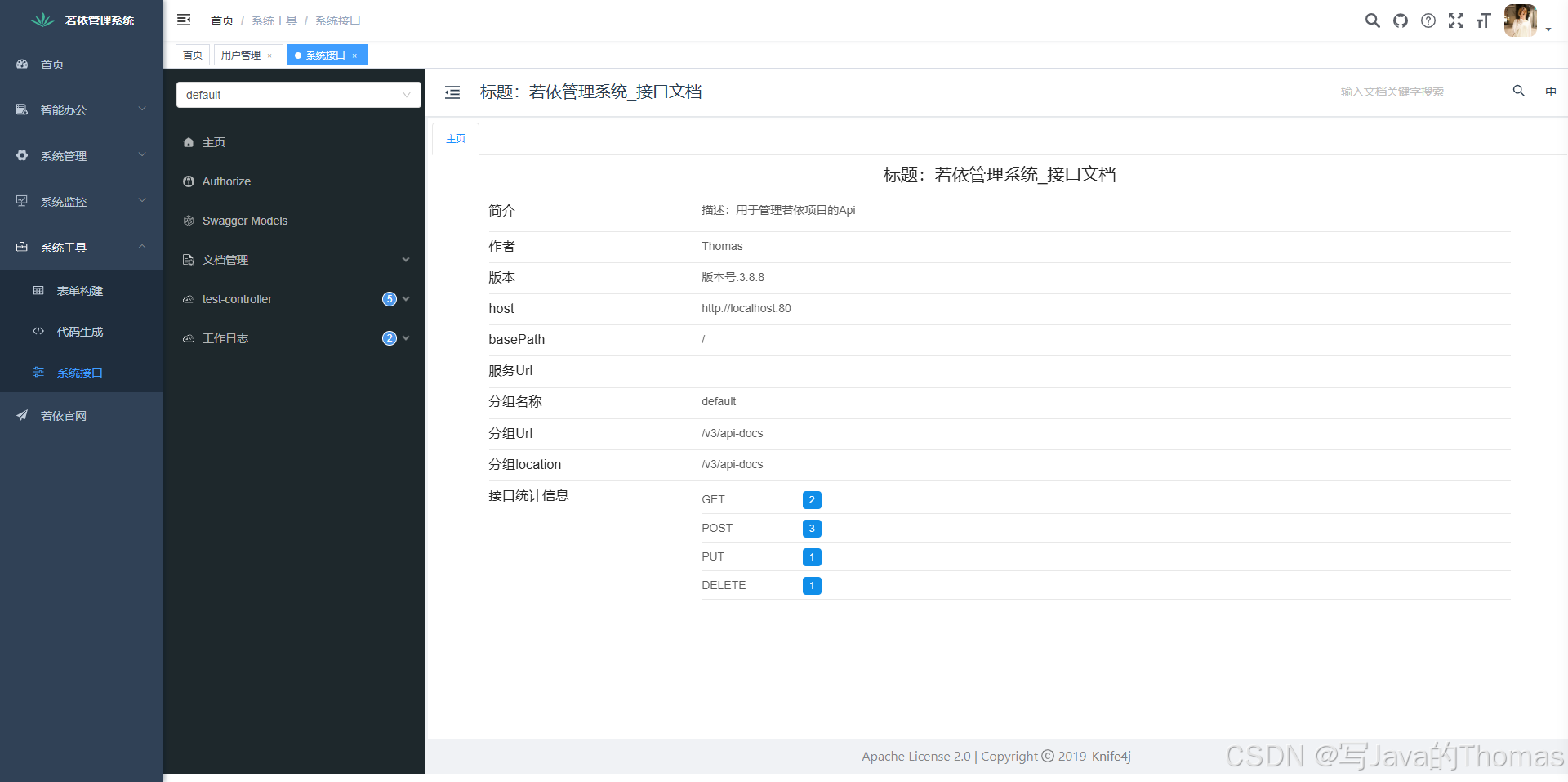

效果如下

1、Knife4j增强

1、pom文件添加依赖

在ruoyi-admin的pom文件中添加依赖

        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>3.0.3</version>
        </dependency>

2、修改前端代码

修改前端代码可将在ruoyi前端中的系统接口中访问到的swagger-ui改为增强后的swagger

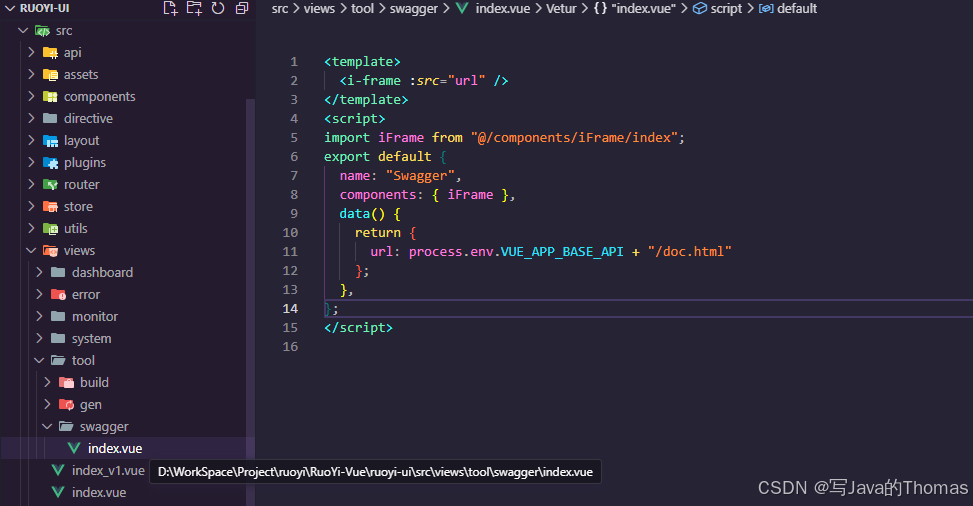

找到swagger包下的vue文件，下图已经修改

代码如下

url: process.env.VUE_APP_BASE_API + "/doc.html"

3、测试

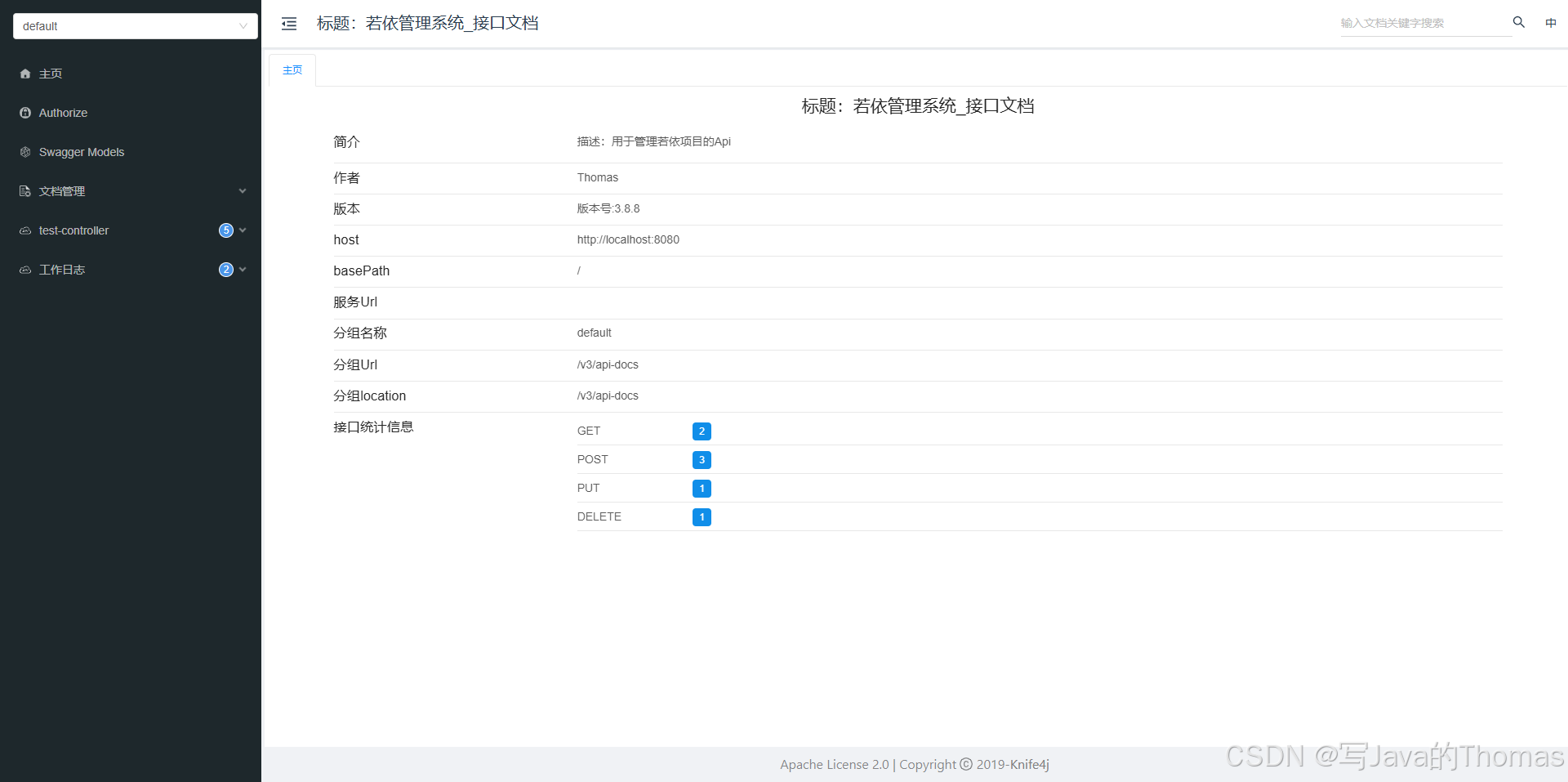

浏览器输入http://localhost:8080/doc.html#/home，这里输入自己后台项目运行的地址，效果如下

4、注解

• @Api: 用于类级别，描述API的标签和描述。

• @ApiOperation: 用于方法级别，描述一个HTTP操作。

• @ApiParam: 用于参数级别，描述请求参数。

• @ApiModel用于实体类描述

• @ApiModelProperty注解来描述每个字段的意义

@RestController
@RequestMapping("/system/log")
@Api(tags = "工作日志")
public class WorkLogController extends BaseController
{
    @Autowired
    private IWorkLogService workLogService;


    @PostMapping("/list")
    @ApiOperation(value = "获取工作日志列表")
    @PreAuthorize("@ss.hasPermi('system:log:list')")
    public AjaxResult getWorkLogList() {
        return AjaxResult.success(workLogService.list());
    }
}

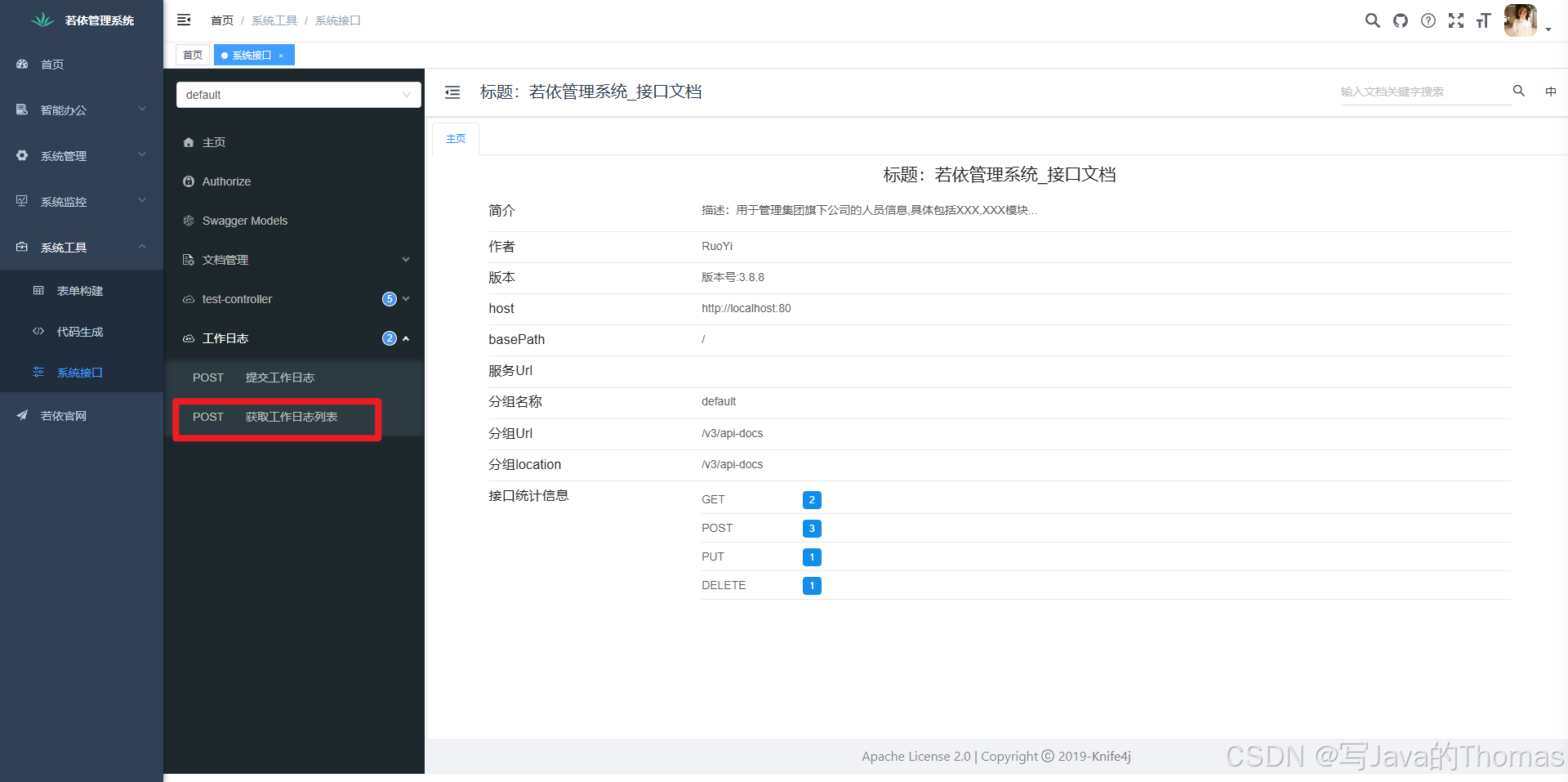

在swagger中效果

下面是一个dto类，实体类逻辑相同

@ApiModel(description = "工作日志")
public class WorkLogDTO implements Serializable {
    private static final long serialVersionUID = 1L;


    /** 接受人 */
    @Excel(name = "接受人")
    @ApiModelProperty("接受人")
    private String receiver;

    /** 工作总结 */
    @Excel(name = "工作总结")
    @ApiModelProperty("工作总结")
    private String workSummary;

    /** 日志类型：1-日报，2-周报，3-月报 */
    @Excel(name = "日志类型：1-日报，2-周报，3-月报")
    @ApiModelProperty("日志类型：1-日报，2-周报，3-月报")
    private Integer logType;
}

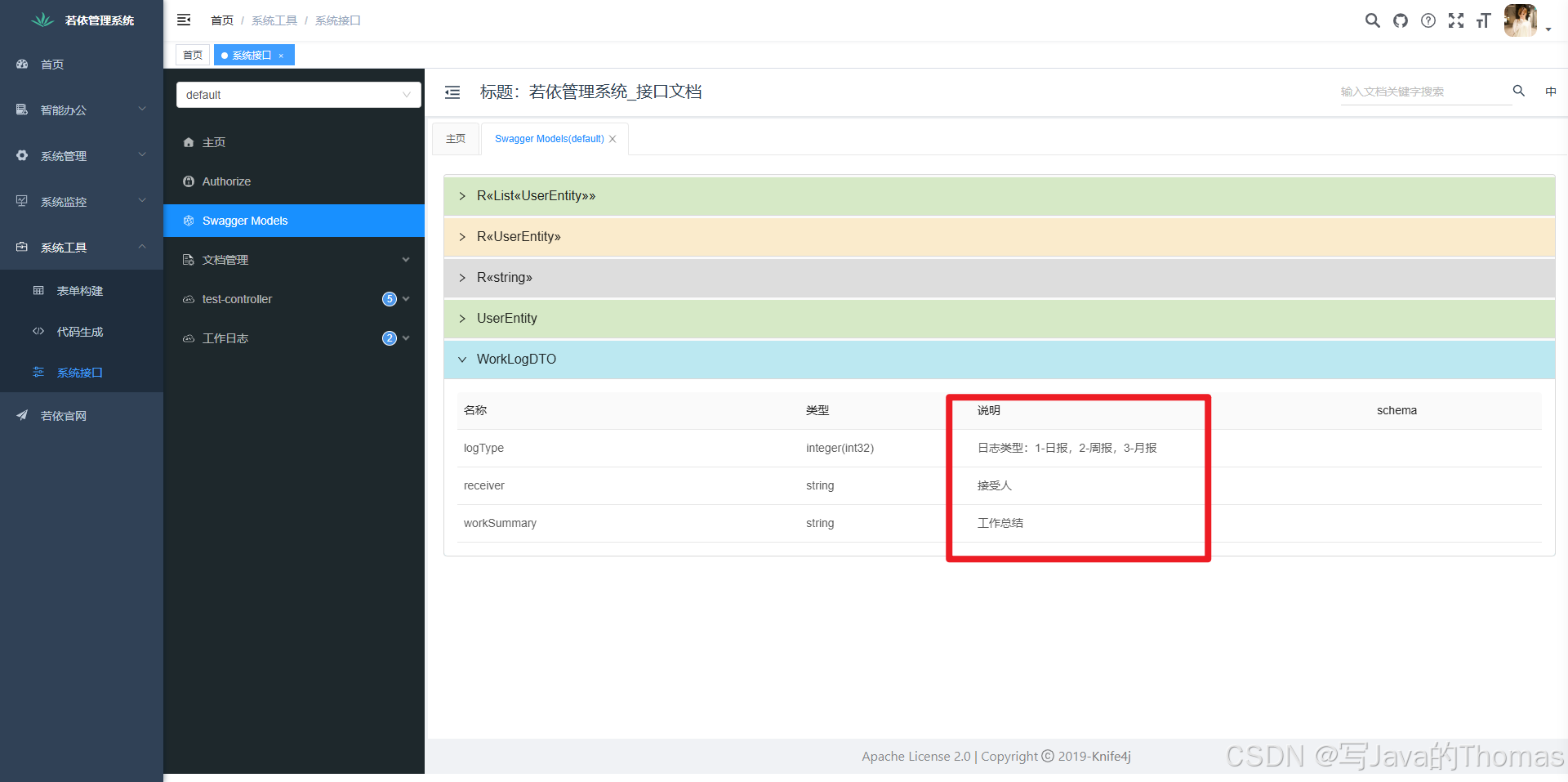

swagger中效果

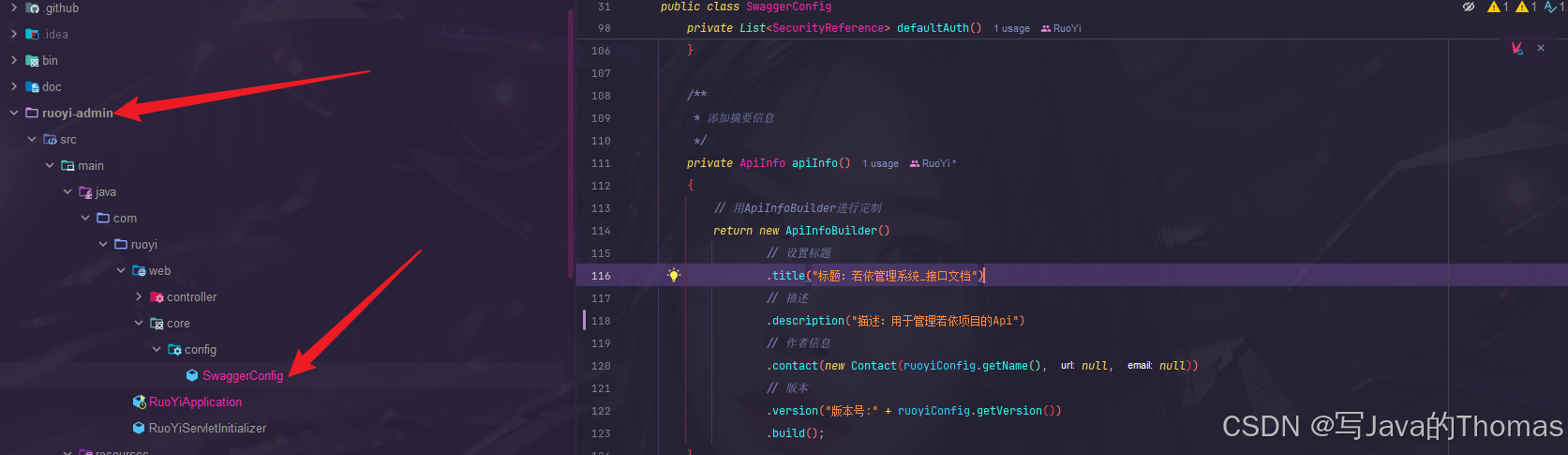

5、设置文档首页

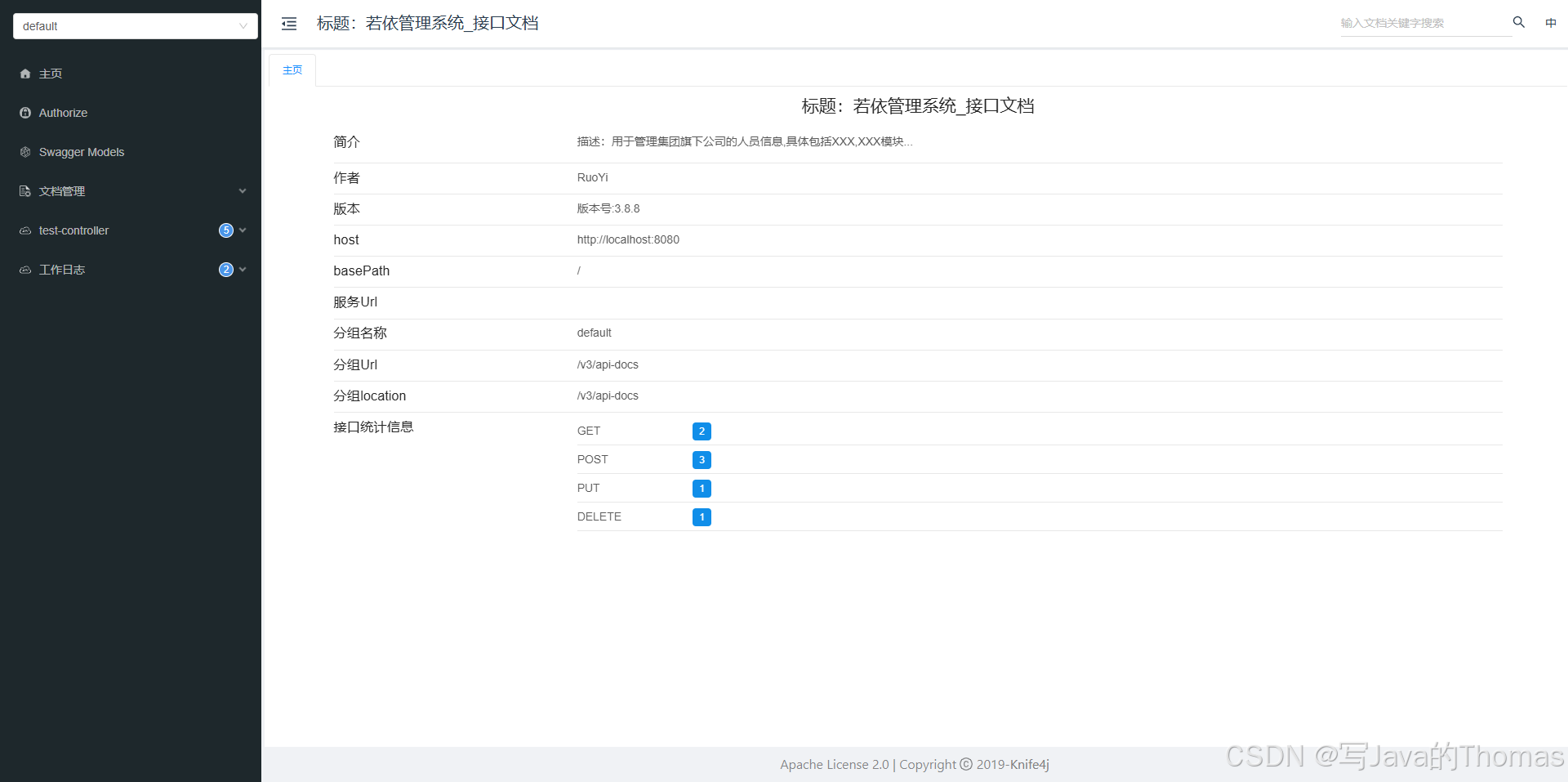

效果如下

2、集成MyBatis-Plus

1、pom文件添加依赖

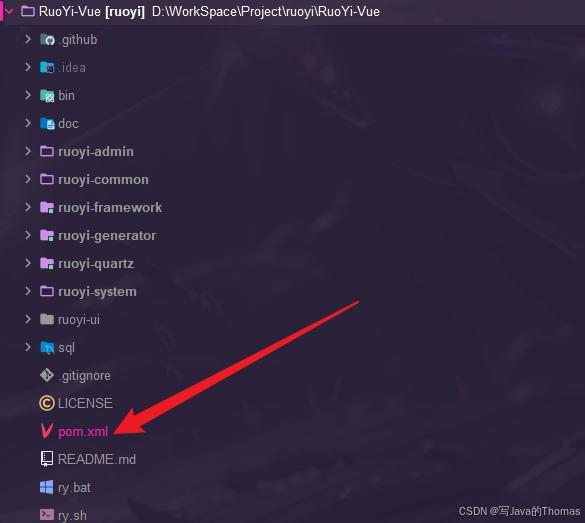

在pom父文件中，也就是最外层的pom.xml文件添加依赖

添加3.5以上的依赖，3.4版本的分页有问题

            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-boot-starter</artifactId>
                <version>3.5.2</version>
            </dependency>

            <dependency>
                <groupId>com.baomidou</groupId>
                <artifactId>mybatis-plus-extension</artifactId>
                <version>3.5.2</version>
                <scope>compile</scope>
            </dependency>

2、修改yml配置

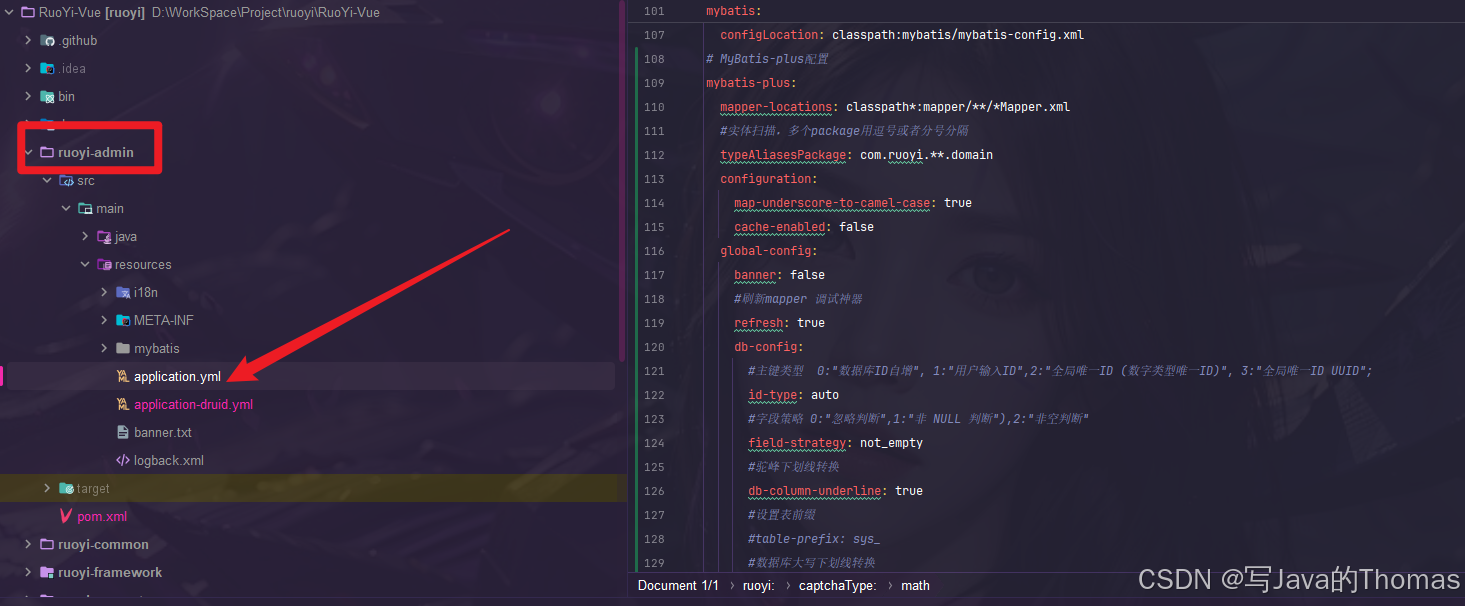

在ruoyi-admin的application.yml文件中添加mybatisplus的配置

配置文件如下

mybatis-plus:
  mapper-locations: classpath*:mapper/**/*Mapper.xml
  #实体扫描，多个package用逗号或者分号分隔
  typeAliasesPackage: com.ruoyi.**.domain
  configuration:
    map-underscore-to-camel-case: true
    cache-enabled: false
  global-config:
    banner: false
    #刷新mapper 调试神器
    refresh: true
    db-config:
      #主键类型  0:"数据库ID自增", 1:"用户输入ID",2:"全局唯一ID (数字类型唯一ID)", 3:"全局唯一ID UUID";
      id-type: auto
      #字段策略 0:"忽略判断",1:"非 NULL 判断"),2:"非空判断"
      field-strategy: not_empty
      #驼峰下划线转换
      db-column-underline: true
      #设置表前缀
      #table-prefix: sys_
      #数据库大写下划线转换
      #capital-mode: true
      #序列接口实现类配置
      #key-generator: com.baomidou.springboot.xxx
      #逻辑删除配置
      #      logic-delete-field: deleted  # 全局逻辑删除的实体字段名(since 3.3.0,配置后可以忽略不配置步骤2)
      #      logic-delete-value: 1
      #      logic-not-delete-value: 0
      #数据库类型
      db-type: mysql
    #自定义SQL注入器
    #sql-injector: com.baomidou.mybatisplus.mapper.LogicSqlInjector
    #自定义填充策略接口实现
    #meta-object-handler: com.baomidou.springboot.xxx

3、实现分页

创建配置类，放在framework中

package com.ruoyi.framework.config.properties;

import com.baomidou.mybatisplus.annotation.DbType;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import com.baomidou.mybatisplus.extension.plugins.inner.PaginationInnerInterceptor;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;


@Configuration
public class MyBatisPlusConfig {
    /**
     * 分页插件
     * @return
     */
    @Bean
    public MybatisPlusInterceptor mybatisPlusInterceptor() {
        MybatisPlusInterceptor interceptor = new MybatisPlusInterceptor();
        interceptor.addInnerInterceptor(new PaginationInnerInterceptor(DbType.MYSQL));
        return interceptor;
    }
}

4、修改MyBatisConfig

这里全局搜索MyBatisConfig类，将里面的 sqlSessionFactory 改成如下

实际上就是修改了一行代码，就用下面的省事，为啥要修改就不在这里说了

@Bean
    public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception
    {
        String typeAliasesPackage = env.getProperty("mybatis.typeAliasesPackage");
        String mapperLocations = env.getProperty("mybatis.mapperLocations");
        String configLocation = env.getProperty("mybatis.configLocation");
        typeAliasesPackage = setTypeAliasesPackage(typeAliasesPackage);
        VFS.addImplClass(SpringBootVFS.class);

//        final SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();
        final MybatisSqlSessionFactoryBean sessionFactory = new MybatisSqlSessionFactoryBean();

        sessionFactory.setDataSource(dataSource);
        sessionFactory.setTypeAliasesPackage(typeAliasesPackage);
        sessionFactory.setMapperLocations(resolveMapperLocations(StringUtils.split(mapperLocations, ",")));
        sessionFactory.setConfigLocation(new DefaultResourceLoader().getResource(configLocation));
        return sessionFactory.getObject();
    }

5、ruoyi代码生成

这里是使用若依生成代码时需要用到的配置，有需要可以进行修改

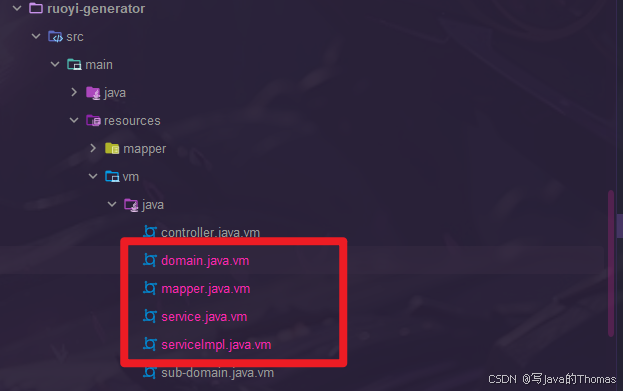

需要修改下面这四个文件

domain.java.vm  删除对实体的继承

package ${packageName}.domain;

#foreach ($import in $importList)
import ${import};
#end
import org.apache.commons.lang3.builder.ToStringBuilder;
import org.apache.commons.lang3.builder.ToStringStyle;
import com.ruoyi.common.annotation.Excel;
#if($table.crud || $table.sub)
import com.ruoyi.common.core.domain.BaseEntity;
#elseif($table.tree)
import com.ruoyi.common.core.domain.TreeEntity;
#end

/**
 * ${functionName}对象 ${tableName}
 *
 * @author ${author}
 * @date ${datetime}
 */
#if($table.crud || $table.sub)
#set($Entity="BaseEntity")
#elseif($table.tree)
#set($Entity="TreeEntity")
#end
public class ${ClassName}
{
    private static final long serialVersionUID = 1L;

#foreach ($column in $columns)
#if(!$table.isSuperColumn($column.javaField))
    /** $column.columnComment */
#if($column.list)
#set($parentheseIndex=$column.columnComment.indexOf("（"))
#if($parentheseIndex != -1)
#set($comment=$column.columnComment.substring(0, $parentheseIndex))
#else
#set($comment=$column.columnComment)
#end
#if($parentheseIndex != -1)
    @Excel(name = "${comment}", readConverterExp = "$column.readConverterExp()")
#elseif($column.javaType == 'Date')
    @JsonFormat(pattern = "yyyy-MM-dd")
    @Excel(name = "${comment}", width = 30, dateFormat = "yyyy-MM-dd")
#else
    @Excel(name = "${comment}")
#end
#end
    private $column.javaType $column.javaField;

#end
#end
#if($table.sub)
    /** $table.subTable.functionName信息 */
    private List<${subClassName}> ${subclassName}List;

#end
#foreach ($column in $columns)
#if(!$table.isSuperColumn($column.javaField))
#if($column.javaField.length() > 2 && $column.javaField.substring(1,2).matches("[A-Z]"))
#set($AttrName=$column.javaField)
#else
#set($AttrName=$column.javaField.substring(0,1).toUpperCase() + ${column.javaField.substring(1)})
#end
    public void set${AttrName}($column.javaType $column.javaField)
    {
        this.$column.javaField = $column.javaField;
    }

    public $column.javaType get${AttrName}()
    {
        return $column.javaField;
    }
#end
#end

#if($table.sub)
    public List<${subClassName}> get${subClassName}List()
    {
        return ${subclassName}List;
    }

    public void set${subClassName}List(List<${subClassName}> ${subclassName}List)
    {
        this.${subclassName}List = ${subclassName}List;
    }

#end
    @Override
    public String toString() {
        return new ToStringBuilder(this,ToStringStyle.MULTI_LINE_STYLE)
#foreach ($column in $columns)
#if($column.javaField.length() > 2 && $column.javaField.substring(1,2).matches("[A-Z]"))
#set($AttrName=$column.javaField)
#else
#set($AttrName=$column.javaField.substring(0,1).toUpperCase() + ${column.javaField.substring(1)})
#end
            .append("${column.javaField}", get${AttrName}())
#end
#if($table.sub)
            .append("${subclassName}List", get${subClassName}List())
#end
            .toString();
    }
}

mapper.java.vm  继承BaseMapper

package ${packageName}.mapper;

import java.util.List;
import ${packageName}.domain.${ClassName};
#if($table.sub)
import ${packageName}.domain.${subClassName};
#end

/**
 * ${functionName}Mapper接口
 *
 * @author ${author}
 * @date ${datetime}
 */
public interface ${ClassName}Mapper extends BaseMapper<${ClassName}>
{
    /**
     * 查询${functionName}
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return ${functionName}
     */
    public ${ClassName} select${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField});

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    public List<${ClassName}> select${ClassName}List(${ClassName} ${className});

    /**
     * 新增${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    public int insert${ClassName}(${ClassName} ${className});

    /**
     * 修改${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    public int update${ClassName}(${ClassName} ${className});

    /**
     * 删除${functionName}
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return 结果
     */
    public int delete${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField});

    /**
     * 批量删除${functionName}
     *
     * @param ${pkColumn.javaField}s 需要删除的数据主键集合
     * @return 结果
     */
    public int delete${ClassName}By${pkColumn.capJavaField}s(${pkColumn.javaType}[] ${pkColumn.javaField}s);
#if($table.sub)

    /**
     * 批量删除${subTable.functionName}
     *
     * @param ${pkColumn.javaField}s 需要删除的数据主键集合
     * @return 结果
     */
    public int delete${subClassName}By${subTableFkClassName}s(${pkColumn.javaType}[] ${pkColumn.javaField}s);

    /**
     * 批量新增${subTable.functionName}
     *
     * @param ${subclassName}List ${subTable.functionName}列表
     * @return 结果
     */
    public int batch${subClassName}(List<${subClassName}> ${subclassName}List);


    /**
     * 通过${functionName}主键删除${subTable.functionName}信息
     *
     * @param ${pkColumn.javaField} ${functionName}ID
     * @return 结果
     */
    public int delete${subClassName}By${subTableFkClassName}(${pkColumn.javaType} ${pkColumn.javaField});
#end
}

service.java.vm  继承IService

package ${packageName}.service;

import java.util.List;
import ${packageName}.domain.${ClassName};

/**
 * ${functionName}Service接口
 *
 * @author ${author}
 * @date ${datetime}
 */
public interface I${ClassName}Service extends IService<${ClassName}>
{
    /**
     * 查询${functionName}
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return ${functionName}
     */
    public ${ClassName} select${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField});

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}集合
     */
    public List<${ClassName}> select${ClassName}List(${ClassName} ${className});

    /**
     * 新增${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    public int insert${ClassName}(${ClassName} ${className});

    /**
     * 修改${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
    public int update${ClassName}(${ClassName} ${className});

    /**
     * 批量删除${functionName}
     *
     * @param ${pkColumn.javaField}s 需要删除的${functionName}主键集合
     * @return 结果
     */
    public int delete${ClassName}By${pkColumn.capJavaField}s(${pkColumn.javaType}[] ${pkColumn.javaField}s);

    /**
     * 删除${functionName}信息
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return 结果
     */
    public int delete${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField});
}

serviceImpl.java.vm 继承ServiceImpl

package ${packageName}.service.impl;

import java.util.List;
#foreach ($column in $columns)
#if($column.javaField == 'createTime' || $column.javaField == 'updateTime')
import com.ruoyi.common.utils.DateUtils;
#break
#end
#end
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
#if($table.sub)
import java.util.ArrayList;
import com.ruoyi.common.utils.StringUtils;
import org.springframework.transaction.annotation.Transactional;
import ${packageName}.domain.${subClassName};
#end
import ${packageName}.mapper.${ClassName}Mapper;
import ${packageName}.domain.${ClassName};
import ${packageName}.service.I${ClassName}Service;

/**
 * ${functionName}Service业务层处理
 *
 * @author ${author}
 * @date ${datetime}
 */
@Service
public class ${ClassName}ServiceImpl extends ServiceImpl<${ClassName}Mapper, ${ClassName}> implements I${ClassName}Service
{
    @Autowired
    private ${ClassName}Mapper ${className}Mapper;

    /**
     * 查询${functionName}
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return ${functionName}
     */
    @Override
    public ${ClassName} select${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField})
    {
        return ${className}Mapper.select${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaField});
    }

    /**
     * 查询${functionName}列表
     *
     * @param ${className} ${functionName}
     * @return ${functionName}
     */
    @Override
    public List<${ClassName}> select${ClassName}List(${ClassName} ${className})
    {
        return ${className}Mapper.select${ClassName}List(${className});
    }

    /**
     * 新增${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
#if($table.sub)
    @Transactional
#end
    @Override
    public int insert${ClassName}(${ClassName} ${className})
    {
#foreach ($column in $columns)
#if($column.javaField == 'createTime')
        ${className}.setCreateTime(DateUtils.getNowDate());
#end
#end
#if($table.sub)
        int rows = ${className}Mapper.insert${ClassName}(${className});
        insert${subClassName}(${className});
        return rows;
#else
        return ${className}Mapper.insert${ClassName}(${className});
#end
    }

    /**
     * 修改${functionName}
     *
     * @param ${className} ${functionName}
     * @return 结果
     */
#if($table.sub)
    @Transactional
#end
    @Override
    public int update${ClassName}(${ClassName} ${className})
    {
#foreach ($column in $columns)
#if($column.javaField == 'updateTime')
        ${className}.setUpdateTime(DateUtils.getNowDate());
#end
#end
#if($table.sub)
        ${className}Mapper.delete${subClassName}By${subTableFkClassName}(${className}.get${pkColumn.capJavaField}());
        insert${subClassName}(${className});
#end
        return ${className}Mapper.update${ClassName}(${className});
    }

    /**
     * 批量删除${functionName}
     *
     * @param ${pkColumn.javaField}s 需要删除的${functionName}主键
     * @return 结果
     */
#if($table.sub)
    @Transactional
#end
    @Override
    public int delete${ClassName}By${pkColumn.capJavaField}s(${pkColumn.javaType}[] ${pkColumn.javaField}s)
    {
#if($table.sub)
        ${className}Mapper.delete${subClassName}By${subTableFkClassName}s(${pkColumn.javaField}s);
#end
        return ${className}Mapper.delete${ClassName}By${pkColumn.capJavaField}s(${pkColumn.javaField}s);
    }

    /**
     * 删除${functionName}信息
     *
     * @param ${pkColumn.javaField} ${functionName}主键
     * @return 结果
     */
#if($table.sub)
    @Transactional
#end
    @Override
    public int delete${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaType} ${pkColumn.javaField})
    {
#if($table.sub)
        ${className}Mapper.delete${subClassName}By${subTableFkClassName}(${pkColumn.javaField});
#end
        return ${className}Mapper.delete${ClassName}By${pkColumn.capJavaField}(${pkColumn.javaField});
    }
#if($table.sub)

    /**
     * 新增${subTable.functionName}信息
     *
     * @param ${className} ${functionName}对象
     */
    public void insert${subClassName}(${ClassName} ${className})
    {
        List<${subClassName}> ${subclassName}List = ${className}.get${subClassName}List();
        ${pkColumn.javaType} ${pkColumn.javaField} = ${className}.get${pkColumn.capJavaField}();
        if (StringUtils.isNotNull(${subclassName}List))
        {
            List<${subClassName}> list = new ArrayList<${subClassName}>();
            for (${subClassName} ${subclassName} : ${subclassName}List)
            {
                ${subclassName}.set${subTableFkClassName}(${pkColumn.javaField});
                list.add(${subclassName});
            }
            if (list.size() > 0)
            {
                ${className}Mapper.batch${subClassName}(list);
            }
        }
    }
#end
}

至此配置已经全部完成，可以生成代码查看效果，文章如有错误，欢迎各路大神指点。

最后吐槽一下，若依交流群里面的某些人，端着前辈的架子说着嘲讽的话，您也配？玩你的狗去吧！！！
