kafka-demo

消息服务-stream-kafka

Spring Cloud Stream本质上就是整合了Spring Boot和Spring Integration，
实现了一套轻量级的消息驱动的微服务框架。通过使用Spring Cloud Stream，
可以有效地简化开发人员对消息中间件的使用复杂度，
让系统开发人员可以有更多的精力关注于核心业务逻辑的处理。

安装kafka

添加链接描述

创建消费者项目

springcloud-kafka-consumer

pom 文件如下:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>SpringCloud-demo</artifactId>
        <groupId>SpringCloud-demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>SpringCloud-demo</groupId>
    <artifactId>springcloud-stream-kafka</artifactId>
    <packaging>pom</packaging>
    <modules>
        <module>springcloud-kafka-provider</module>
        <module>springcloud-kafka-consumer</module>
    </modules>


    <dependencies>
        <!-- 消息队列kafka  -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-kafka</artifactId>
        </dependency>
        <!-- 服务发现客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <!-- spring-boot-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

    </dependencies>

</project>

创建输入接受通道

 public interface InputChannel {

    // test 通道协议字段
    String INPUT = "kd";
    @Input(InputChannel.INPUT)
    public  SubscribableChannel input();
}

创建消息监听类加粗样式

@EnableBinding(value = {InputChannel.class})
public class MyReceiver {

    @StreamListener(InputChannel.INPUT)
    public void messageListen(String message) {
        System.out.println("收到信息:" + message);
    }
}

消费者启动类

@SpringBootApplication
@EnableDiscoveryClient
public class KafkaConsumerRun {
    public static void main(String[] args) {
        SpringApplication.run(KafkaConsumerRun.class, args);
    }
}

启动消费者，监听生产者发送过来的消息

创建生成者项目

springcloud-kafka-provider

 pom 文件如下:

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>SpringCloud-demo</artifactId>
        <groupId>SpringCloud-demo</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>SpringCloud-demo</groupId>
    <artifactId>springcloud-stream-kafka</artifactId>
    <packaging>pom</packaging>
    <modules>
        <module>springcloud-kafka-provider</module>
        <module>springcloud-kafka-consumer</module>
    </modules>


    <dependencies>
        <!-- 消息队列kafka  -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-stream-kafka</artifactId>
        </dependency>
        <!-- 服务发现客户端 -->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>
        <!-- spring-boot-web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

    </dependencies>

</project>

配置application.yml

#将服务注册到注册中心
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:9000/eureka/
      #healthcheck:
      #enabled: true  #开启自定义健康检查
  instance:
    #eureka服务器在接收到最后一个心跳之后等待的时间，然后才能从列表中删除此实例 默认90s（开发环境)
    lease-expiration-duration-in-seconds: 10
    #eureka客户端需要向eureka服务器发送心跳的频率 默认30s （开发环境)
    lease-renewal-interval-in-seconds: 1
#配置服务名称及端口
server:
  port: 9014
spring:
  application:
    name: springcloud-provider
---
# provider 生产者
spring:
  cloud:
    stream:
      kafka:
        binder:
          brokers: 127.0.0.1:9092
          zkNodes: 127.0.0.1:2181
      bindings:
        # 通道协议字段
        kd:
          # 生产者和消费者要一样
          destination: topic-test
          # 传输格式
          #content-type: application/json

创建provider发送通道

public interface OutChannel {

    String OUTPUT = "kd";

    @Output(OutChannel.OUTPUT)
    MessageChannel output();
}

绑定发送通道

@EnableBinding(OutChannel.class)
public class KafkaSend {

    @Autowired
    private OutChannel outChannel;

    /*
    *  发送消息
    * */
    public void sendMessage(String msg) {
        try {
            outChannel.output().send(MessageBuilder.withPayload(msg).build());
        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

编写页面controller测试类

@RestController
public class SendController {

    @Autowired
    KafkaSend kafkaSend;

    @RequestMapping("/")
    public String  test (){
        kafkaSend.sendMessage("===================我是一条消息的小尾巴=========================");
        return "发送测试";
    }

}

生产者启动类

@SpringBootApplication
@EnableDiscoveryClient
public class KafkaProviderRun {
    public static void main(String[] args) {
        SpringApplication.run(KafkaProviderRun.class, args);
    }
}

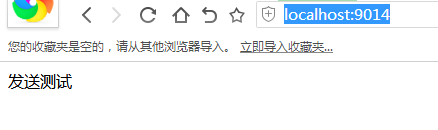

启动生产者,并测试

http://localhost:9014/

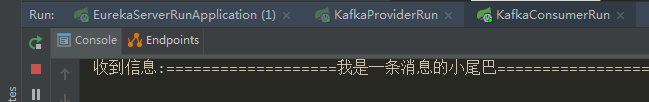

消费者监听到消息
