springBatch配置远程step

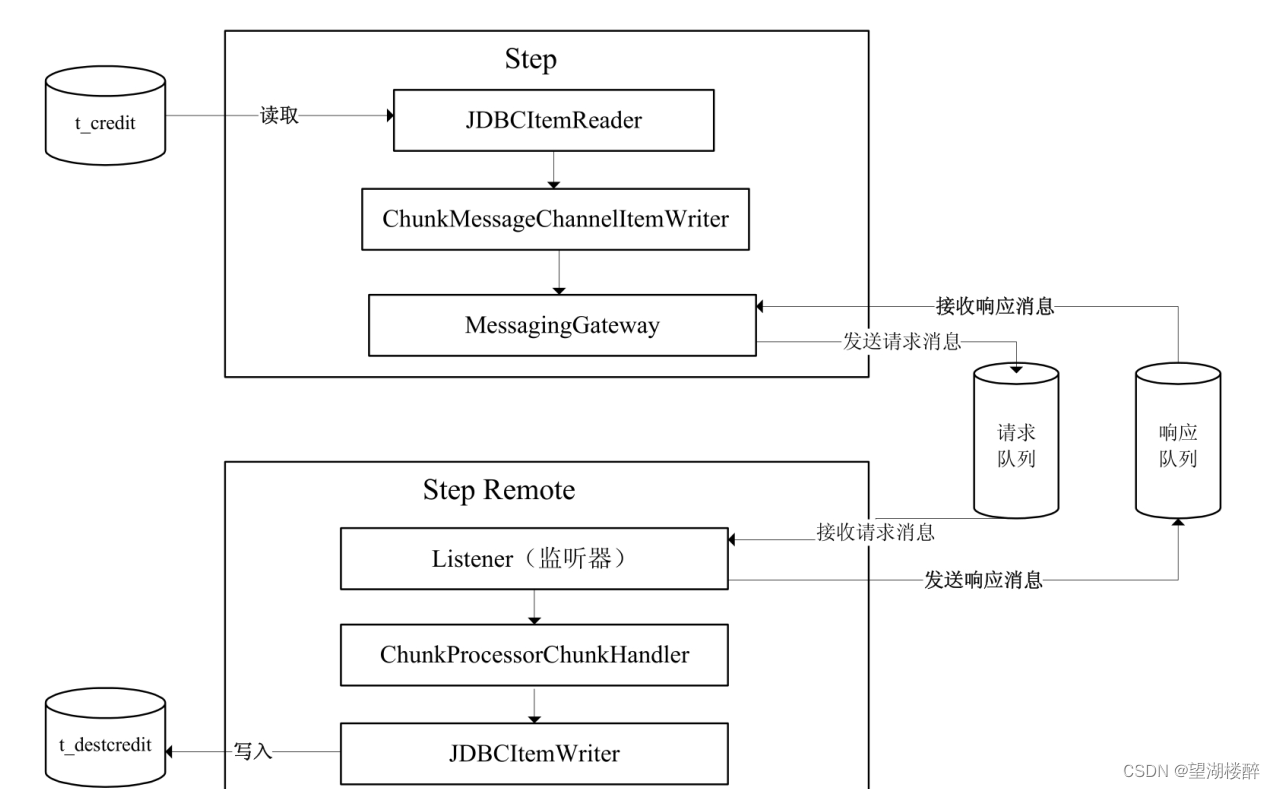

远程Step数据处理的示意图

消息队列和AMQ服务器的配置

	<!--定义消息网关 defaultChannel为默认发送的消息队列名称   -->
<bean:bean id="messagingGateway" class="org.springframework.integration.core.MessagingTemplate">
		<bean:property name="defaultChannel" ref="requests" />
		<bean:property name="receiveTimeout" value="1000" />
	</bean:bean>

	<!--定义requests的adapter-->
	<int-jms:outbound-channel-adapter connection-factory="connectionFactory" channel="requests"
		destination-name="requests" />
	<!--定义使用的channel requests 和 incoming -->
	<int:channel id="requests" />
	<int:channel id="incoming" />
	<!--定义消息转换器 从incoming获取消息，写消息到replies-->
	<int:transformer input-channel="incoming" output-channel="replies"
	    ref="headerExtractor" method="extract" />

	<!--定义响应的channel-->
	<int:channel id="replies" scope="thread">
		<int:queue /> <!--定义replies是一个队列标识-->
		<int:interceptors> <!--定义一个拦截器 把replies的信息发送到incoming队列上 -->
			<!--   MessageSourcePollerInterceptor-->
			<bean:bean id="pollerInterceptor"
			    class="org.springframework.batch.integration.chunk.MessageSourcePollerInterceptor">
				<bean:property name="messageSource"><!--replies-->
					<bean:bean class="org.springframework.integration.jms.JmsDestinationPollingSource">
						<bean:constructor-arg>
							<bean:bean class="org.springframework.jms.core.JmsTemplate">
								<bean:property name="connectionFactory" ref="connectionFactory" />
								<bean:property name="defaultDestinationName" value="replies" />
								<bean:property name="receiveTimeout" value="100" />
							</bean:bean>
						</bean:constructor-arg>
					</bean:bean>
				</bean:property>
				<bean:property name="channel" ref="incoming"/>
			</bean:bean>
		</int:interceptors>
	</int:channel>

    <!--jmsTemplate基本配置-->
	<bean:bean id="jmsTemplate" class="org.springframework.jms.core.JmsTemplate">
		<bean:property name="connectionFactory" ref="connectionFactory" />
		<bean:property name="receiveTimeout" value="100" />
		<bean:property name="sessionTransacted" value="true" />
	</bean:bean>

    <!--定义了jms服务器-->
	<amq:broker useJmx="false" persistent="false" schedulerSupport="false">
    	<amq:transportConnectors>
			<amq:transportConnector uri="tcp://localhost:61616"/>
		</amq:transportConnectors>
	</amq:broker>
	<amq:connectionFactory id="connectionFactory" brokerURL="tcp://localhost:61616"/>

配置本地的step（使用RemoteChunkHandlerFactoryBean）

<!-- 定义chunkWriter，chunkWriter负责将本地Step中读取数据通过messagingGateway发送到远程Step中，ChunkMessageChannelItemWriter是一个StepExecutionListener类型的拦截器-->
<bean:bean id="chunkWriter" scope="step"
	    class="org.springframework.batch.integration.chunk.ChunkMessageChannelItemWriter" >
		<bean:property name="messagingOperations" ref="messagingGateway" />
		<bean:property name="replyChannel" ref="replies" />
		<bean:property name="maxWaitTimeouts" value="10" />
	</bean:bean>

<!-- 定义chunkHandler，stepRemoteChunk 对应默认的 chunkProcessor-->
<bean:bean id="chunkHandler" 	    class="org.springframework.batch.integration.chunk.RemoteChunkHandlerFactoryBean">
		<bean:property name="chunkWriter" ref="chunkWriter" />
		<bean:property name="step" ref="stepRemoteChunk" />
</bean:bean>

配置本地的step（使用ChunkProcessorChunkHandler，仅chunkHandler部分）

	<bean:bean id="chunkHandler"
		class="org.springframework.batch.integration.chunk.ChunkProcessorChunkHandler">
		<bean:property name="chunkProcessor">
			<bean:bean class="org.springframework.batch.core.step.item.SimpleChunkProcessor">
				<bean:property name="itemWriter" ref="jdbcItemWriter"/>
				<bean:property name="itemProcessor">
					<bean:bean class="org.springframework.batch.item.support.PassThroughItemProcessor"/>
				</bean:property>
			</bean:bean>
		</bean:property>
	</bean:bean>

 配置远程step

 <!-- 设置监听器，监听队列requests，处理执行chunkHandler的handleChunk，结果返回到replies-->
 <jms:listener-container connection-factory="connectionFactory"
	    transaction-manager="transactionManager"
		acknowledge="transacted" concurrency="1">
		<jms:listener destination="requests" response-destination="replies"
		    ref="chunkHandler" method="handleChunk" />
	</jms:listener-container>


远程job配置

<!-- 配置和普通job没有区别  reader：jdbcItemPageReader writer：jdbcItemWriter-->
<job id="remoteChunkJob">
		<step id="stepRemoteChunk">
			<tasklet>
				<chunk reader="jdbcItemPageReader" writer="jdbcItemWriter" commit-interval="10" />
			</tasklet>
		</step>
	</job>

读取数据库配置

<!-- 从db分页读数据 -->
	<bean:bean id="jdbcItemPageReader" scope="step"
	    class="org.springframework.batch.item.database.JdbcPagingItemReader">
        <bean:property name="dataSource" ref="dataSource"/>
        <bean:property name="queryProvider" ref="refQueryProvider" />
    	<bean:property name="pageSize" value="2"/>
        <bean:property name="rowMapper" ref="custCreditRowMapper"/>
    </bean:bean>

     <bean:bean id="refQueryProvider" scope="step"
         class="org.springframework.batch.item.database.support.SqlPagingQueryProviderFactoryBean">
         <bean:property name="dataSource" ref="dataSource"/>
         <bean:property name="selectClause" value="select ID,ACCOUNTID,NAME,AMOUNT,DATE,ADDRESS"/>
         <bean:property name="fromClause" value="from t_credit"/>
         <bean:property name="whereClause" value="where ID between 1 and 15"/>
         <bean:property name="sortKey" value="ID"/>
      </bean:bean>

    <bean:bean id="custCreditRowMapper"
        class="com.juxtapose.example.ch11.partition.db.CreditBillRowMapper"/>


 写数据库配置

<bean:bean id="jdbcItemWriter"
        class="org.springframework.batch.item.database.JdbcBatchItemWriter">
        <bean:property name="dataSource" ref="dataSource"/>
        <bean:property name="sql" value="insert into t_destcredit (ID,ACCOUNTID,NAME,AMOUNT,DATE,ADDRESS) values (:id,:accountID,:name,:amount,:date,:address)"/>
        <bean:property name="itemSqlParameterSourceProvider">
            <bean:bean class="org.springframework.batch.item.database.BeanPropertyItemSqlParameterSourceProvider"/>
        </bean:property>
    </bean:bean>
