【iOS 开发】选择器控件 UIPickerView

iOS 选择器控件 UIPickerView

1. UIPickerView 使用

// 创建 UIPickerView
let pickerView = UIPickerView(frame: CGRect(x: 15, y: 900, width: 350, height: 150))

// 设置 UIPickerView 代理
pickerView.delegate = self

// 设置 UIPickerView 数据源
pickerView.dataSource = self

// 打印 UIPickerView 的组数
print("numberOfComponents: \(pickerView.numberOfComponents)")

// 打印 UIPickerView 的指定组的行数
print("numberOfRows: \(pickerView.numberOfRows(inComponent: 0))")

// 打印 UIPickerView 的指定组的行尺寸
print("rowSize: \(pickerView.rowSize(forComponent: 1))")

// 获取 UIPickerView 的指定组，指定行的自定义视图
// let view = pickerView.view(forRow: 1, forComponent: 0)

// 重新加载 UIPickerView 全部分组数据
pickerView.reloadAllComponents()

// 重新加载 UIPickerView 指定分组数据
pickerView.reloadComponent(1)

// 获取指定组选中的行
print("selectedRow: \(pickerView.selectedRow(inComponent: 1))")

// 主动选中 指定组的指定行，带动画效果
pickerView.selectRow(1, inComponent: 2, animated: true)

scrollView.addSubview(pickerView)

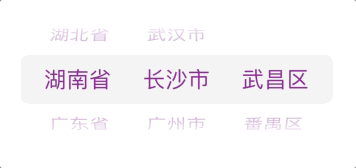

效果展示：

2. UIPickerView 设置数据

lazy var provine = ["湖北省", "湖南省", "广东省", "江苏省", "浙江省", "山东省"]
lazy var city =    ["武汉市", "长沙市", "广州市", "南京市", "杭州市", "济南市"]
lazy var area =    ["武昌区", "番禺区", "白云区", "荔湾区", "天河区", "越秀区"]

// 返回选择器每个分组的行数
func pickerView(_ pickerView: UIPickerView, numberOfRowsInComponent component: Int) -> Int {
    return provine.count
}

// 返回选择器分组数
func numberOfComponents(in pickerView: UIPickerView) -> Int {
    return 3
}

// 返回选择器每个分组中每行数据的标题
func pickerView(_ pickerView: UIPickerView, titleForRow row: Int, forComponent component: Int) -> String? {
    print("第\(component + 1)组，第\(row + 1)行")
    if (component == 0) {
        return provine[row]
    } else if (component == 1) {
        return city[row]
    } else {
        return area[row]
    }
}

// 设置可变字符串
func pickerView(_ pickerView: UIPickerView, attributedTitleForRow row: Int, forComponent component: Int) -> NSAttributedString? {
    var title: String
    if (component == 0) {
        title = provine[row]
    } else if (component == 1) {
        title = city[row]
    } else {
        title = area[row]
    }
    let attStr = NSMutableAttributedString(string: title)
    attStr.addAttributes([NSAttributedString.Key.foregroundColor: UIColor.purple], range: NSRange(location: 0, length: attStr.length))
    return attStr
}

// 设置 UIPickerView 每个组的宽度
func pickerView(_ pickerView: UIPickerView, widthForComponent component: Int) -> CGFloat {
    if (component == 0) {
        return 100
    } else if (component == 1) {
        return 100
    } else {
        return 100
    }
}

// 设置 UIPickerView 每组每行的高度
func pickerView(_ pickerView: UIPickerView, rowHeightForComponent component: Int) -> CGFloat {
    return 50
}

3. UIPickerView 监听选中事件

func pickerView(_ pickerView: UIPickerView, didSelectRow row: Int, inComponent component: Int) {
    print("选择了第\(component + 1)组，第\(row + 1)行")
}

4. UIPickerView 设置图片视图

func pickerView(_ pickerView: UIPickerView, viewForRow row: Int, forComponent component: Int, reusing view: UIView?) -> UIView {
      let view = UIImageView(image: UIImage(named: "demo"))
      view.frame = CGRect(x: 0, y: 0, width: 100, height: 30)
      return view
}

效果展示：

附 Github 源码：

ViewController.swift
