集群环境Sesson共享

搭建集群环境

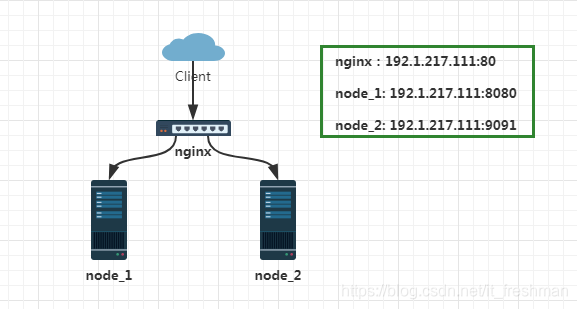

拓扑图

nginx环境搭建

下载安装nginx,安装nginx(略)

nginx配置
nginx配置参考：ngix配置

#user  nobody;
worker_processes  1;

#error_log  logs/error.log;
#error_log  logs/error.log  notice;
#error_log  logs/error.log  info;

#pid        logs/nginx.pid;


events {
    worker_connections  1024;
}


http {
    include       mime.types;
    default_type  application/octet-stream;


    #定义日志格式
    #log_format  main  '$remote_addr - $remote_user [$time_local] $request '
    #                  '"$status" $body_bytes_sent "$http_referer" '
    #                  '"$http_user_agent" "$http_x_forwarded_for"';

    #access_log  off;
    access_log  logs/access.log;

    client_header_timeout  3m;
    client_body_timeout    3m;
    send_timeout           3m;

    client_header_buffer_size    1k;
    large_client_header_buffers  4 4k;

    sendfile        on;
    tcp_nopush      on;
    tcp_nodelay     on;

    #fastcgi_intercept_errors on;

    error_page 404  /404.html;

    #keepalive_timeout  75 20;

    gzip                 on;
    gzip_min_length      1000;
    gzip_types           text/plain text/css application/x-javascript;

    #配置被代理的服务器
    upstream ds_web {
        #ip_hash;
        server 192.1.217.111:8080;
        server 192.1.217.111:9091;
    }

    server {
            #nginx监听80端口，请求该端口时转发到真实目标
            listen       80;
            #配置访问域名
            server_name  localhost;

            location /ds {
                #这里配置代理是指上面定义的两个被代理目标，ds_web名字必须一致
                proxy_pass http://ds_web;

                #proxy_redirect          off;
                #非80端口使用，目的是将代理服务器收到的用户的信息传到真实服务器上，我也不是很理解
                proxy_set_header        Host $host;
                proxy_set_header        X-Real-IP $remote_addr;
                proxy_set_header        X-Forwarded-For $proxy_add_x_forwarded_for;
                client_max_body_size    10m;
                client_body_buffer_size 128k;
                proxy_connect_timeout   15; ##单位是s
                proxy_send_timeout      15;
                proxy_read_timeout      15;
                proxy_buffer_size       4k;
                proxy_buffers           4 32k;
                proxy_busy_buffers_size 64k;
                proxy_temp_file_write_size 64k;
                add_header Access-Control-Allow-Origin *;
            }

            #此处定义500 502 503 504的错误页面
            error_page   500 502 503 504  /50x.html;
            #错误页面位置
            location = /50x.html {
            #root表示路径 html为nginx安装目录中的html文件夹
            #位于/usr/local/nginx/html/下
               root   html;
            }
    }
}

启动nginx

##windows
start nginx.exe

##linux
./nginx

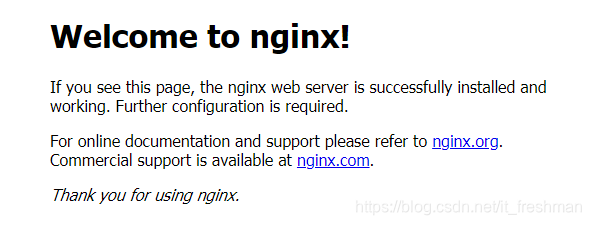

访问:localhost

服务节点

业务代码

@RestController
@RequestMapping("/user")
public class UserController {

	@RequestMapping(value = "/index")
	public String index(HttpServletRequest request ,HttpSession session) throws Exception{
		//客户端信息
		String clientInfo = IpAdrressUtil.getIpAdrress(request) + ":" +request.getRemotePort();

		//服务器信息
		String serverInfo = request.getLocalAddr()+ ":" +request.getLocalPort();

		return "客户端信息："+clientInfo+"<br/>"
				+"服务器信息："+serverInfo+"<br/>"
				+"session信息："+session.getId()+"<br/>";
	}

}

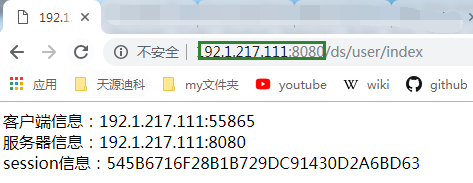

节点1

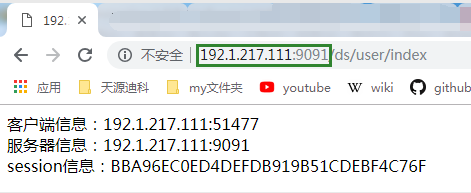

节点2

---

Session共享

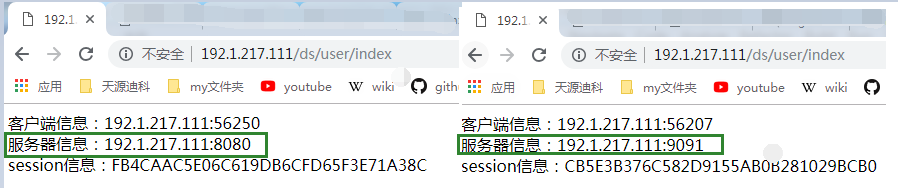

通过nginx的代理地址http://192.1.217.111/ds/user/index访问，发现sessionId在不停变化。

解决session共享常见的有三种方法：

	实现思路	优势	劣势
粘性Session	开启nginxip_hash策略，使得同一个用户的请求，转发给固定的一个节点处理。	简单，无侵入	当某一个节点重启、挂起，该节点上的session信息会丢失
Session复制	web容器通过配置，将Session复制同步至其他容器节点上	代码无侵入，不会丢失session	业内支持Session复制的web容器产品较少(tomat7.x) ,依赖web容器
Session共享	使用缓存管理Session,所有的节点都从缓冲中存取Session	不会丢失session,不依赖web容器	实现复杂，配置较麻烦

粘性Session

开启nginx的ip_hash即可。

  upstream ds_web {
       ip_hash;
       server 192.1.217.111:8080;
       server 192.1.217.111:9091;
   }

• 开启ip_hash之后，浏览器不停刷新请求，请求全部转发至同一节点。
• 关闭该节点，请求会跳转至另一节点，session信息变更(丢失)。

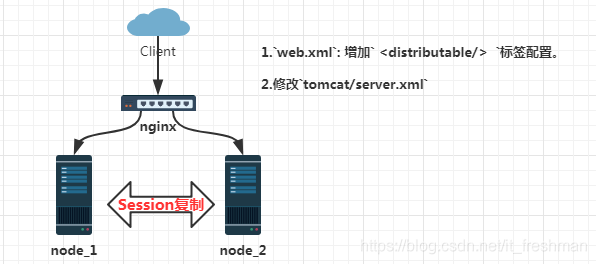

Session复制

参考：多个tomcat之间的session复制

<Cluster className="org.apache.catalina.ha.tcp.SimpleTcpCluster"
                 channelSendOptions="8">

          <Manager className="org.apache.catalina.ha.session.DeltaManager"
                   expireSessionsOnShutdown="false"
                   notifyListenersOnReplication="true"/>

          <Channel className="org.apache.catalina.tribes.group.GroupChannel">
            <Membership className="org.apache.catalina.tribes.membership.McastService"
                        address="228.0.0.4"
                        port="45564"
                        frequency="500"
                        dropTime="3000"/>
            <Receiver className="org.apache.catalina.tribes.transport.nio.NioReceiver"
                      address="auto"
                      port="4000"
                      autoBind="100"
                      selectorTimeout="5000"
                      maxThreads="6"/>

            <Sender className="org.apache.catalina.tribes.transport.ReplicationTransmitter">
              <Transport className="org.apache.catalina.tribes.transport.nio.PooledParallelSender"/>
            </Sender>
            <Interceptor className="org.apache.catalina.tribes.group.interceptors.TcpFailureDetector"/>
            <Interceptor className="org.apache.catalina.tribes.group.interceptors.MessageDispatch15Interceptor"/>
          </Channel>

          <Valve className="org.apache.catalina.ha.tcp.ReplicationValve"
                 filter=""/>
          <Valve className="org.apache.catalina.ha.session.JvmRouteBinderValve"/>

          <Deployer className="org.apache.catalina.ha.deploy.FarmWarDeployer"
                    tempDir="/tmp/war-temp/"
                    deployDir="/tmp/war-deploy/"
                    watchDir="/tmp/war-listen/"
                    watchEnabled="false"/>

          <ClusterListener className="org.apache.catalina.ha.session.JvmRouteSessionIDBinderListener"/>
          <ClusterListener className="org.apache.catalina.ha.session.ClusterSessionListener"/>
        </Cluster>

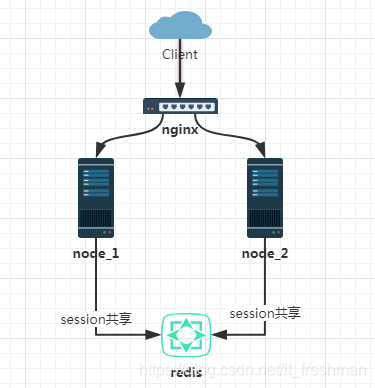

Session共享

SpringMVC

1. 增加maven依赖

<dependency>
	<groupId>org.springframework.session</groupId>
	<artifactId>spring-session-data-redis</artifactId>
	<version>1.2.1.RELEASE</version>
</dependency>
<dependency>
	<groupId>redis.clients</groupId>
	<artifactId>jedis</artifactId>
	<version>2.8.1</version>
</dependency>

2. 修改spring-mvc.xml配置

<!-- 里面配置了包含SpringSessionRepositoryFilter 在内的多个bean -->
<bean id="redisHttpSessionConfiguration"
class="org.springframework.session.data.redis.config.annotation.web.http.RedisHttpSessionConfiguration">
	<property name="maxInactiveIntervalInSeconds" value="600"/>
</bean>

<bean id="jedisPoolConfig" class="redis.clients.jedis.JedisPoolConfig">
	<property name="maxTotal" value="100" />
	<property name="maxIdle" value="10" />
</bean>

<bean id="jedisConnectionFactory"
class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory" destroy-method="destroy">
	<property name="hostName" value="${redis_hostname}"/>
	<property name="port" value="${redis_port}"/>
	<property name="password" value="${redis_pwd}" />
	<property name="timeout" value="3000"/>
	<property name="usePool" value="true"/>
	<property name="poolConfig" ref="jedisPoolConfig"/>
</bean>

3. web.xml增加拦截器

<filter>
	<!-- delegating 从spring容器中寻找springSessionRepositoryFilter bean-->
    <filter-name>springSessionRepositoryFilter</filter-name>
    <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
</filter>

<filter-mapping>
    <filter-name>springSessionRepositoryFilter</filter-name>
    <url-pattern>/*</url-pattern>
</filter-mapping>

SpringBoot 2.x
使用SpringBoot版本2.1.1.RELEASE.
1.添加maven依赖

        <dependency>
            <groupId>org.springframework.session</groupId>
            <artifactId>spring-session-data-redis</artifactId>
        </dependency>

        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
            <version>2.4.2</version>
        </dependency>

2.redis连接配置

spring:
  redis:
    host: s157
    port: 6379
    timeout: 10000
    database: 0
    lettuce:
      pool:
        max-active: 8
        # 连接池最大阻塞等待时间（使用负值表示没有限制） 默认 -1
        max-wait: -1
        # 连接池中的最小空闲连接 默认 0
        min-idle: 0

3. 业务代码配置

//1.开启EnableRedisHttpSession
@EnableRedisHttpSession(maxInactiveIntervalInSeconds= 1800)
public class RedisSessionConfig {
}

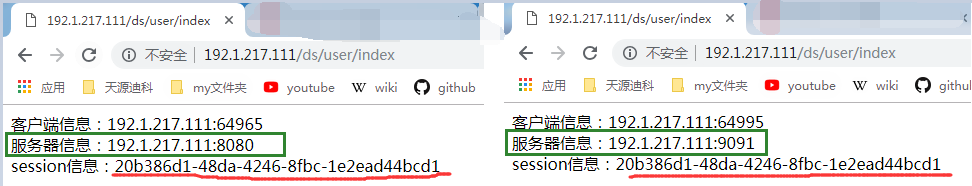

结果
