编程式事务控制相关对象

jdbc中：开启事务，提交事务，回滚事务

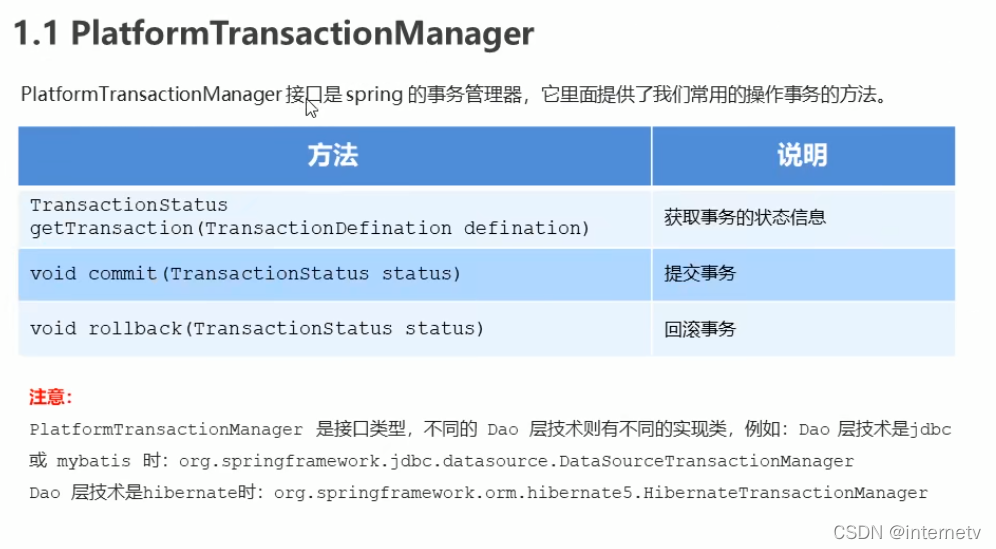

PlatformtTransactionManager接是 spring的事务管理器，它里面是供了我们常用的操作事务的方法

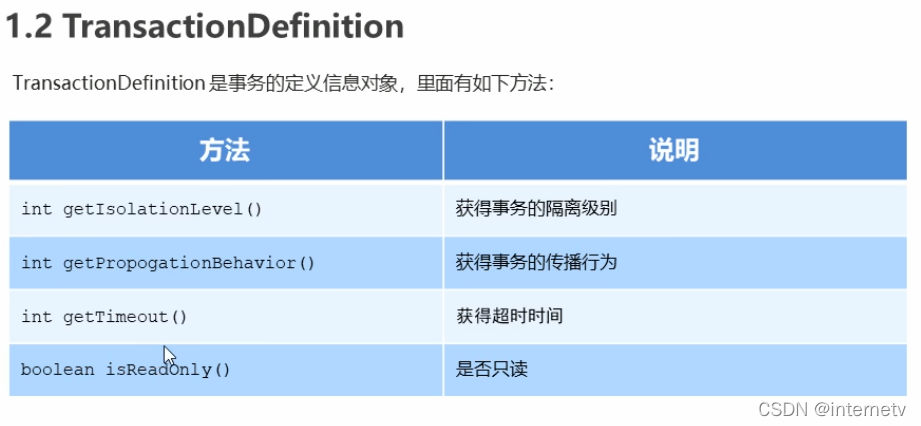

TransactionDefinition是事务的定义信息对象，里面有如下方法：

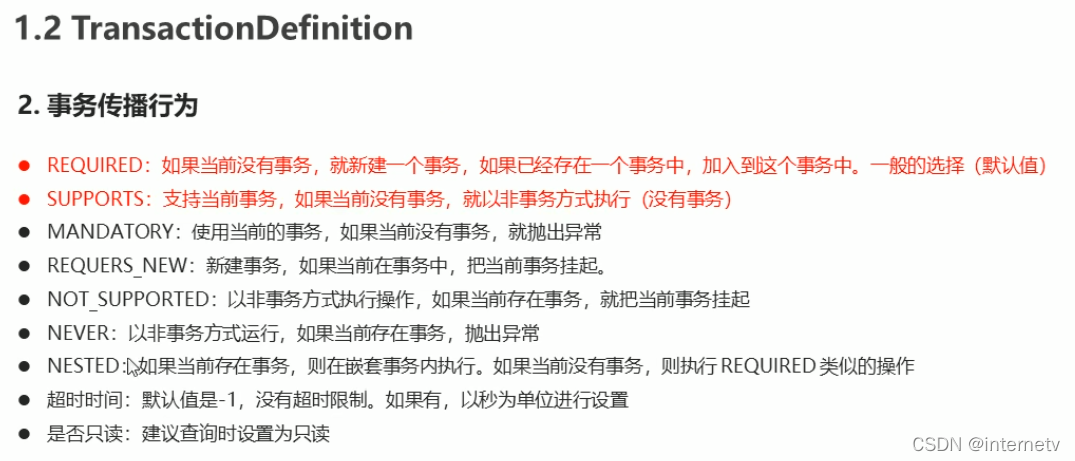

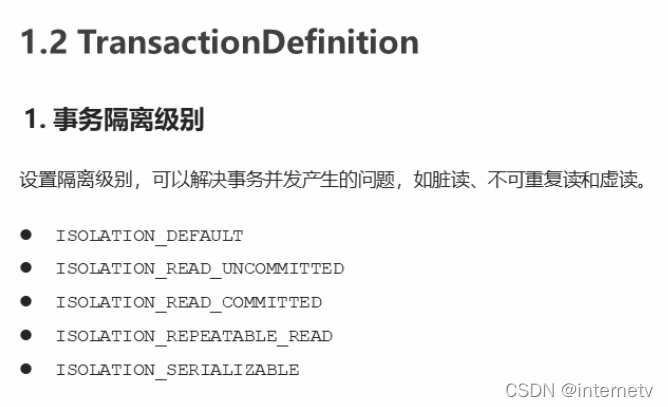

设置超时时间很必要记住TransactionDefinition

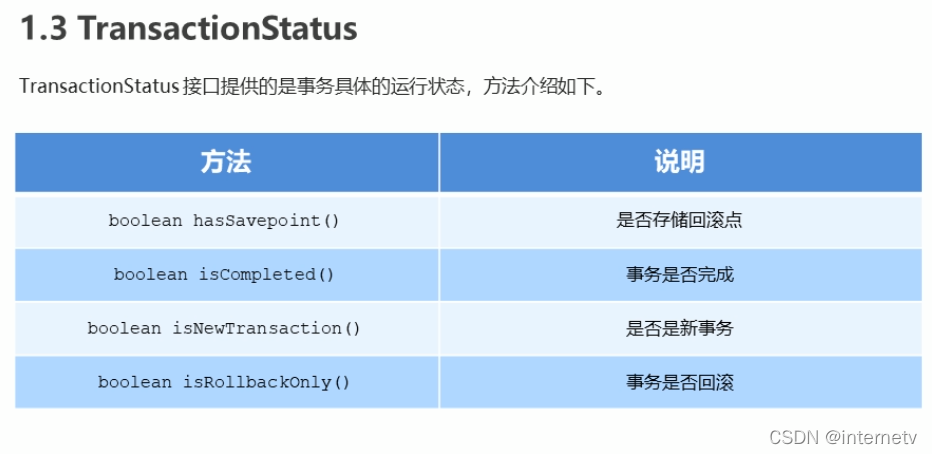

Transactionstatus接口提供的是事务具体的运行状态，方法介绍如下。

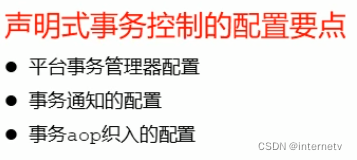

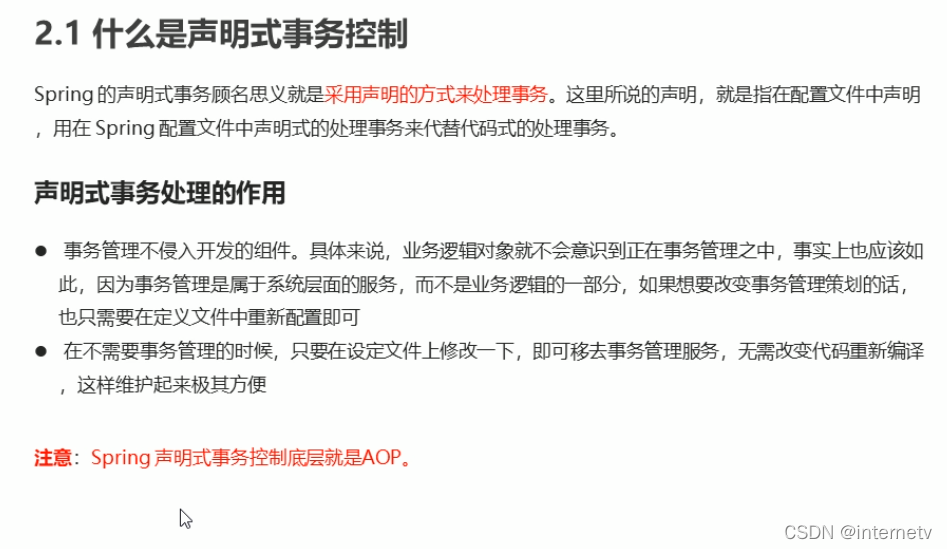

基于XML的声明式事务控制(用声明，配置的方式去控制事务)

AOP思想切点增强-事务增强

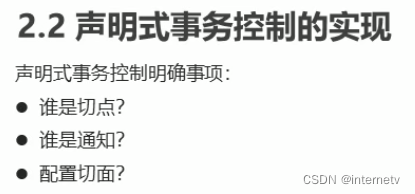

demo例程-转账业务-事务控制项目实战

谁是切点 - 业务方法 - 此处就是转账方法

谁是通知-事务增强

配置切面-

导包

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.itheima</groupId>
  <artifactId>itheima_spring_tx</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.aspectj</groupId>
            <artifactId>aspectjweaver</artifactId>
            <version>1.8.4</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.0.5.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>c3p0</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.1.1</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.32</version>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
    </dependencies>


</project>

xml方式的事务控制在controller层 service层和dao层的不需要做修改，主要是在applicationContext.xml文件中做出配置，声明对象是谁，配置事务管理器，设置增强事务的属性，配置事务的aop织入

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
">

    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="com.mysql.jdbc.Driver"/>
        <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/test"/>
        <property name="user" value="root"/>
        <property name="password" value="root"/>
    </bean>

    <bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <bean id="accountDao" class="com.itheima.dao.impl.AccountDaoImpl">
        <property name="jdbcTemplate" ref="jdbcTemplate"/>
    </bean>

    <!--声明目标对象是什么  内部的方法就是切点-->
    <bean id="accountService" class="com.itheima.service.impl.AccountServiceImpl">
        <property name="accountDao" ref="accountDao"/>
    </bean>

    <!--配置平台事务管理器 必须配 应该是不变的-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

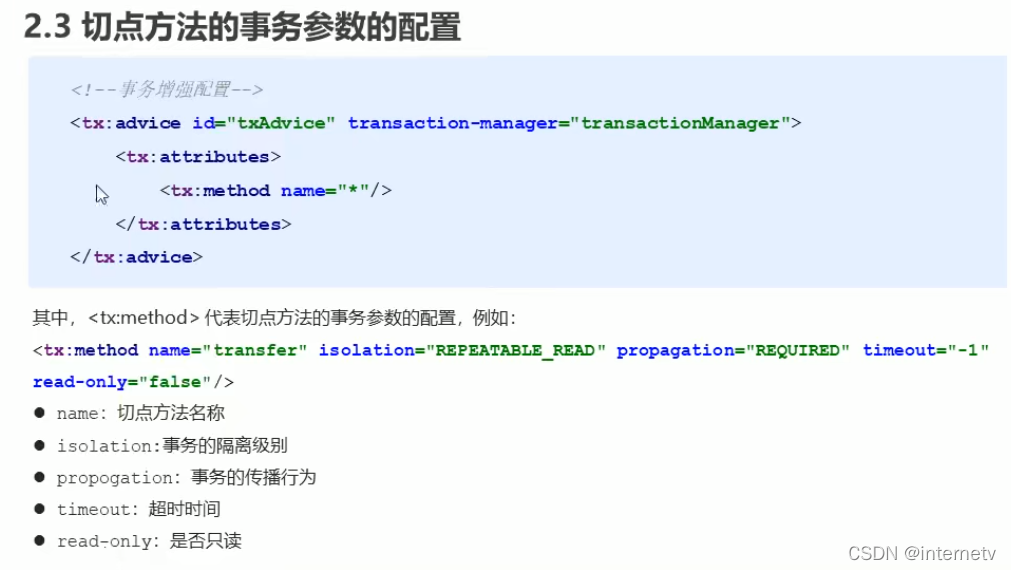

    <!--通知  事务的增强 transaction-manager事务管理 id是上边自定义的-->
    <tx:advice id="txAdvice" transaction-manager="transactionManager">
        <!--设置事务的属性信息的 tx代表事务 isolation代表隔离级别 propagation代表传播行为 read-only代表是否只读-->
        <tx:attributes>
            <tx:method name="transfer" isolation="REPEATABLE_READ" propagation="REQUIRED" read-only="false"/>
            <tx:method name="save" isolation="REPEATABLE_READ" propagation="REQUIRED" read-only="false"/>
            <tx:method name="findAll" isolation="REPEATABLE_READ" propagation="REQUIRED" read-only="true"/>
            <tx:method name="update*" isolation="REPEATABLE_READ" propagation="REQUIRED" read-only="true"/>
            <tx:method name="*"/>
        </tx:attributes>
    </tx:advice>

    <!--配置事务的aop织入 pointcut配置切点，一般是业务层 advice-ref通知引用 id是上边自定义的-->
    <aop:config>
        <aop:pointcut id="txPointcut" expression="execution(* com.itheima.service.impl.*.*(..))"/>
        <aop:advisor advice-ref="txAdvice" pointcut-ref="txPointcut"/>
    </aop:config>

</beans>

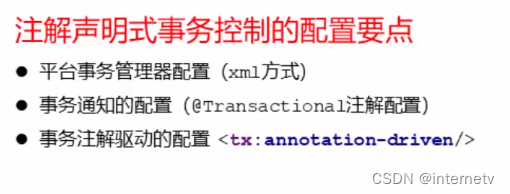

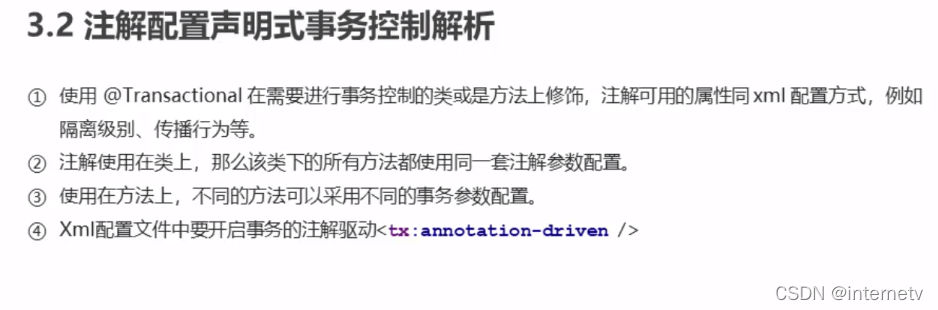

基于注解的声明式事务控制（把Bean用注解的方式进行配置）

需要组件扫描，一般是在service层进行注解声明控制

AccountServiceImpl

package com.itheima.service.impl;

import com.itheima.dao.AccountDao;
import com.itheima.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
import org.springframework.transaction.annotation.Isolation;
import org.springframework.transaction.annotation.Propagation;
import org.springframework.transaction.annotation.Transactional;

@Service("accountService")
@Transactional(isolation = Isolation.REPEATABLE_READ) //代表这一个类中都按照这个事务进行增强
public class AccountServiceImpl implements AccountService {

    @Autowired
    private AccountDao accountDao;

    @Transactional(isolation = Isolation.READ_COMMITTED,propagation = Propagation.REQUIRED)//存在两个则遵守就近原则
    public void transfer(String outMan, String inMan, double money) {
        accountDao.out(outMan,money);
        int i = 1/0;
        accountDao.in(inMan,money);
    }

    //@Transactional(isolation = Isolation.DEFAULT)
    public void xxx(){}
}

applicationContext.xml 重点要配置事务的注解驱动

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
       http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
       http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd
       http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
">

<!--组件扫描-->
<context:component-scan base-package="com.itheima"/>

<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
    <property name="driverClass" value="com.mysql.jdbc.Driver"/>
    <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/test"/>
    <property name="user" value="root"/>
    <property name="password" value="root"/>
</bean>

<bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
    <property name="dataSource" ref="dataSource"/>
</bean>

<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
</bean>


<!--事物的注解驱动-->
<tx:annotation-driven transaction-manager="transactionManager"/>

</beans>
