瑞萨RA4M2开发板练习-OLED显示时间

🌈个人主页：羽晨同学

💫个人格言:“成为自己未来的主人~”

开发板介绍

很荣幸收到瑞萨电子的RA4M2开发板，通过查看数据手册，可以知道，RA-Eco-RA4M2-100PIN-V1.0是一款基于100MHz Arm® Cortex®-M33内核架构的核心板，主控芯片R7FA4M2AD3CFP。 RA4M2 32 位微控制器 (MCU) 产品群使用支持 TrustZone 的高性能 Arm® Cortex®-M33 内核。 与片内的 Secure Crypto Engine (SCE) 配合使用，可实现安全芯片的功能。 RA4M2 采用高效的 40nm 工艺，由灵活配置软件包 (FSP) 这个开放且灵活的生态系统概念提供支持，FSP 基于 FREERTOS 构建，并能够进行扩展，以使用其他实时操作系统 (RTOS) 和中间件。 RA4M2 适用于物联网应用的需求， 如多样化的通信功能、面向未来应用的安全功能、大容量嵌入式 RAM 和较低的运行功耗（从闪存运行 CoreMark® 算法时功耗低至 81µA/MHz）。

环境搭建

环境搭建可以参考我上一篇关于瑞萨电子的文章，文章内容中讲述了相关的内容，或者可以参考其他人的文章，例如：https://bbs.elecfans.com/jishu_2487634_1_1.html

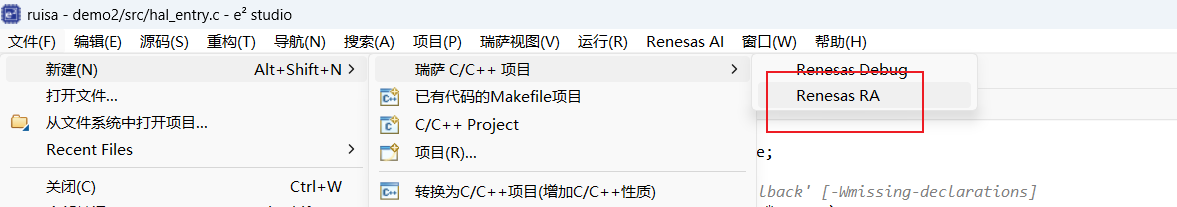

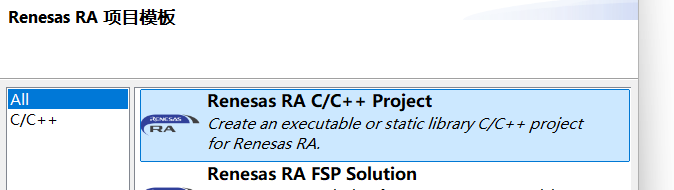

 接下来选择这个工程模版

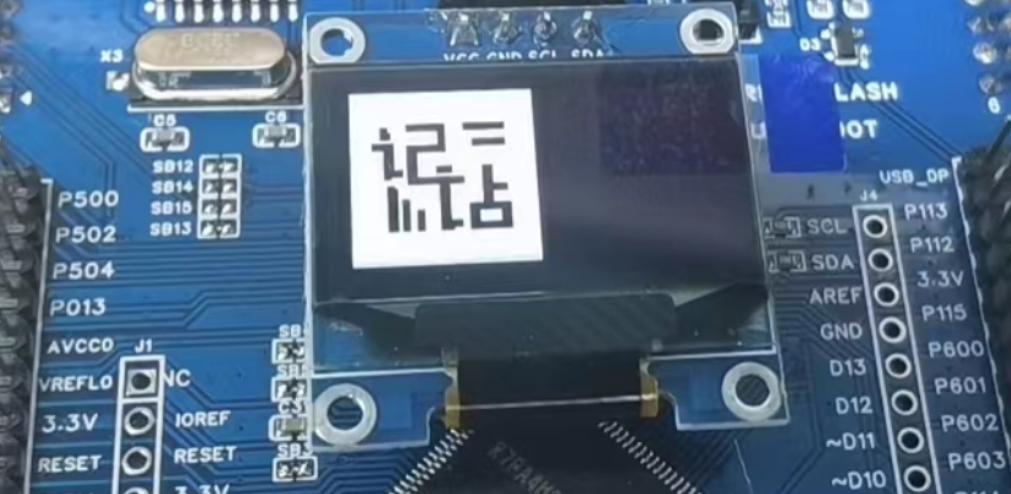

测试oled（参数）

我接下来的过程均使用的为e2Studio，本篇文章参考：记贴老师

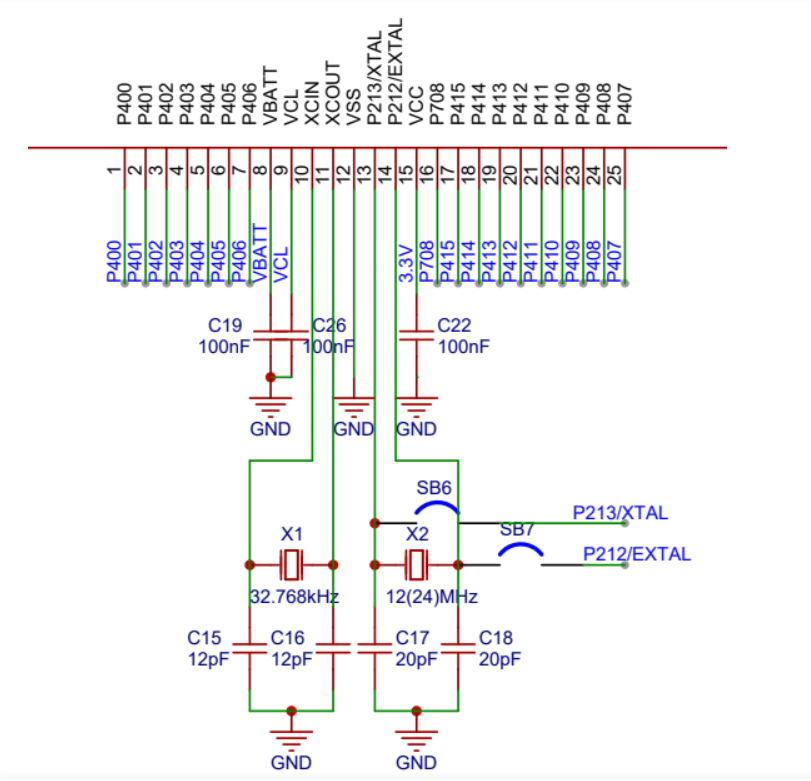

然后，我们将Vbat接到vcc上，记住，这一步一定要搞，否则时间是不会改变的。

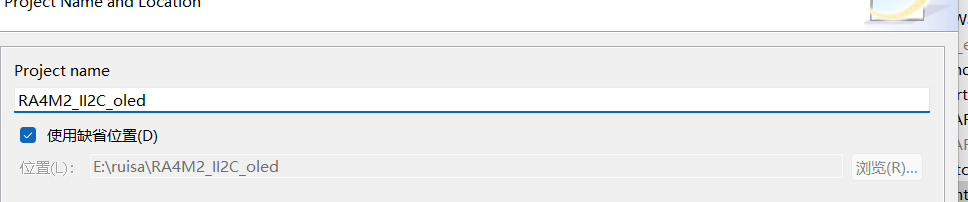

接下来选择保存位置

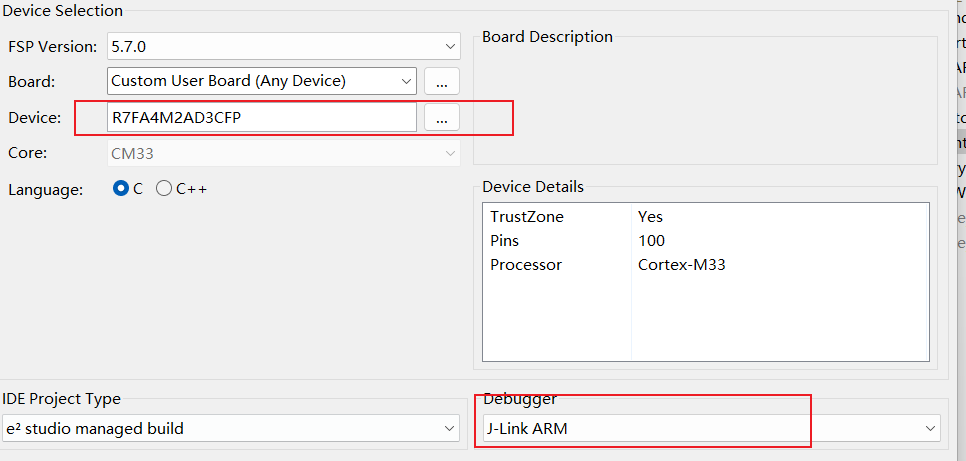

选择芯片型号和使用jlink进行调试

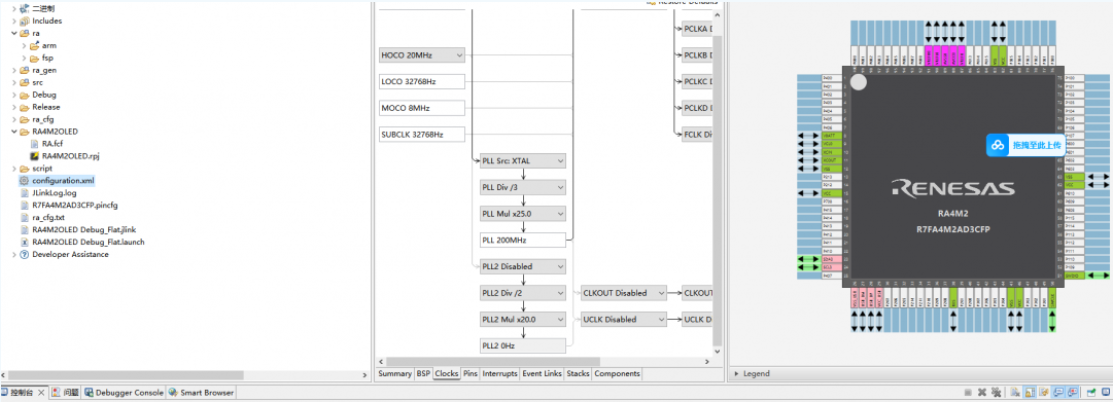

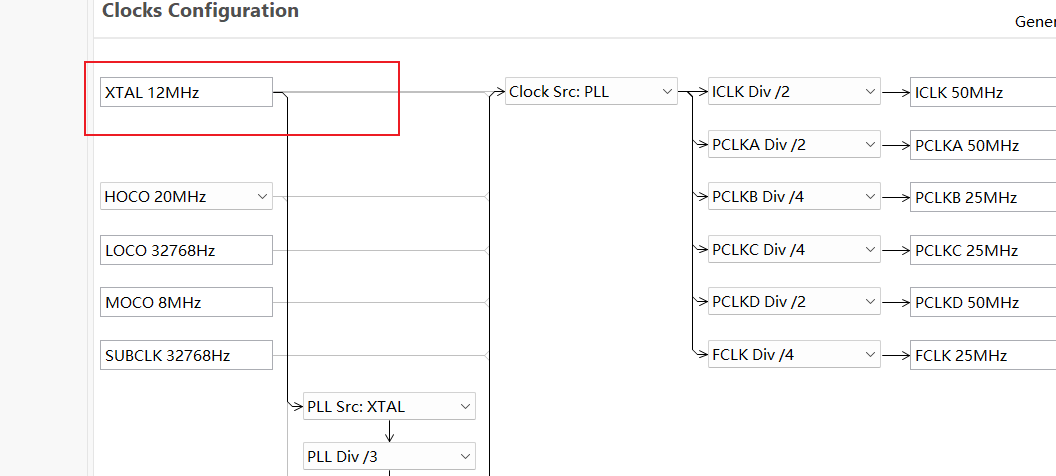

根据这个，我们来选择对应的晶振为12MHz

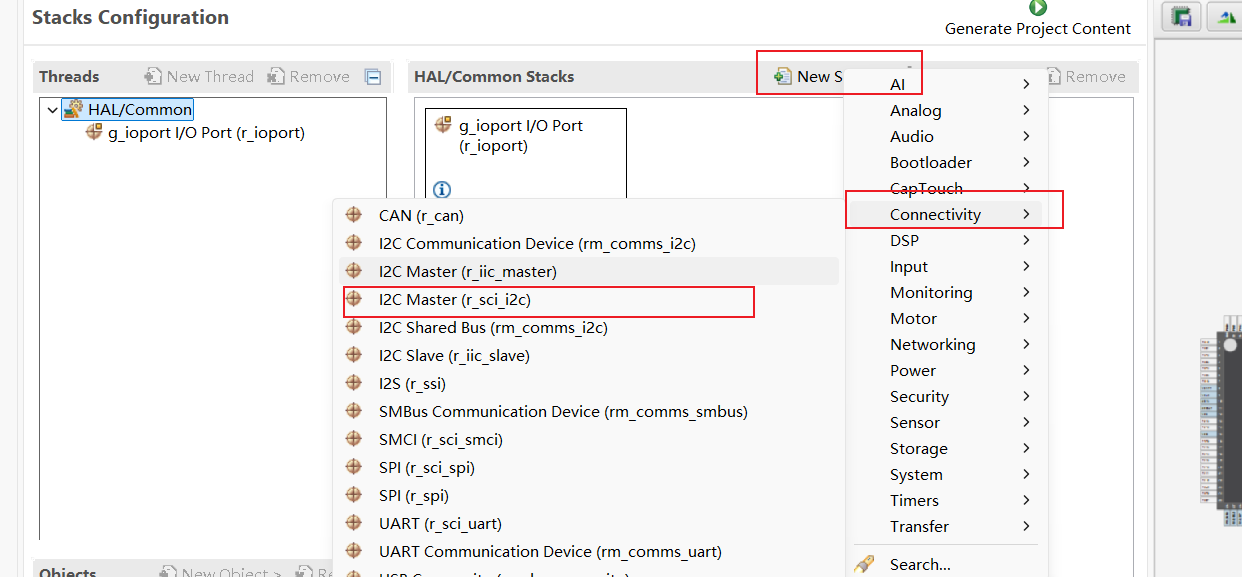

接下来，我们根据II2C的原理图进行配置

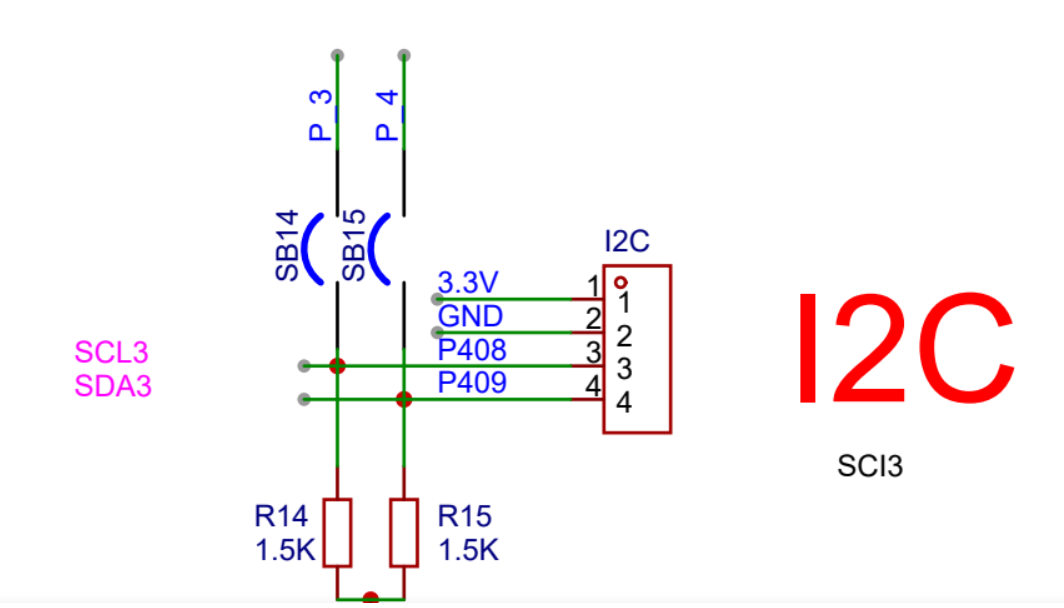

这个为I2C的引脚图，为P408和P409



接下来，我们将从机地址设置为0x3c，通道为I2C3，模式为快速模式

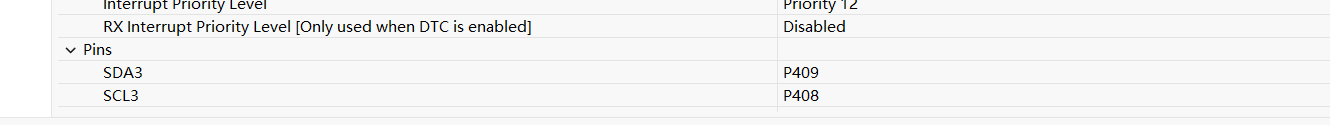

引脚设置为P409和P408

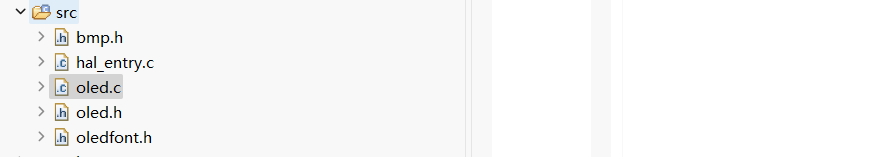

 接下来，我们添加对应的驱动头文件，分别为



然后，我们在hal_entry中添加显示

    /* Initialize the I2C module */
    err = R_SCI_I2C_Open(&g_i2c3_ctrl, &g_i2c3_cfg);
    /* Handle any errors. This function should be defined by the user. */
    assert(FSP_SUCCESS == err);

    OLED_Init();            //初始化OLED
    OLED_Clear()    ;
    OLED_ShowNum(0,2,2023,4,16);//显示ASCII字符的码值
    OLED_ShowCHinese(32,2,2);//中文字->年
    OLED_ShowNum(48,2,1,2,16);//显示ASCII字符的码值
    OLED_ShowCHinese(64,2,3);//中文字->月
    OLED_ShowNum(80,2,31,2,16);//显示ASCII字符的码值
    OLED_ShowCHinese(96,2,4);//中文字->日
    OLED_ShowString(0,4,"ZXY",12);
    OLED_ShowString(0,6,"RA4M2",16);

#include "oled.h"
#include "stdlib.h"
#include "oledfont.h"
#include "hal_data.h"
extern fsp_err_t err;
extern int  timeout_ms;
extern  i2c_master_event_t i2c_event ;
//OLED的显存
//存放格式如下.
//[0]0 1 2 3 ... 127
//[1]0 1 2 3 ... 127
//[2]0 1 2 3 ... 127
//[3]0 1 2 3 ... 127
//[4]0 1 2 3 ... 127
//[5]0 1 2 3 ... 127
//[6]0 1 2 3 ... 127
//[7]0 1 2 3 ... 127

/**********************************************
 IIC Write Command
**********************************************/
void Write_IIC_Command(unsigned char IIC_Command)
{

    uint8_t ii[2]={0x00,0x00};
    ii[1] = IIC_Command;



    err = R_SCI_I2C_Write(&g_i2c3_ctrl, ii, 0x02, true);
           assert(FSP_SUCCESS == err);
           /* Since there is nothing else to do, block until Callback triggers*/
           //while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms)
           while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms>0)
           {
               R_BSP_SoftwareDelay(100U, BSP_DELAY_UNITS_MICROSECONDS);
               timeout_ms--;
           }
           if (I2C_MASTER_EVENT_ABORTED == i2c_event)
           {
               __BKPT(0);
           }
           /* Read data back from the I2C slave */
           i2c_event = I2C_MASTER_EVENT_ABORTED;
           timeout_ms           = 100000;
}

/**********************************************
// IIC Write Data
**********************************************/
void Write_IIC_Data(unsigned char IIC_Data)
{


    uint8_t ii[2]={0x40,0x00};
    ii[0] = 0x40;
    ii[1] = IIC_Data;
    err = R_SCI_I2C_Write(&g_i2c3_ctrl, ii, 0x02, true);
           assert(FSP_SUCCESS == err);
           /* Since there is nothing else to do, block until Callback triggers*/
           //while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms)
           while ((I2C_MASTER_EVENT_TX_COMPLETE != i2c_event) && timeout_ms>0)
           {
               R_BSP_SoftwareDelay(100U, BSP_DELAY_UNITS_MICROSECONDS);
               timeout_ms--;
           }
           if (I2C_MASTER_EVENT_ABORTED == i2c_event)
           {
               __BKPT(0);
           }
           /* Read data back from the I2C slave */
           i2c_event = I2C_MASTER_EVENT_ABORTED;
           timeout_ms           = 100000;

}
void OLED_WR_Byte(unsigned dat,unsigned cmd)
{
    if(cmd)
            {

   Write_IIC_Data(dat);

        }
    else {
   Write_IIC_Command(dat);

    }


}


/********************************************
// fill_Picture
********************************************/
void fill_picture(unsigned char fill_Data)
{
    unsigned char m,n;
    for(m=0;m<8;m++)
    {
        OLED_WR_Byte(0xb0+m,0);     //page0-page1
        OLED_WR_Byte(0x00,0);       //low column start address
        OLED_WR_Byte(0x10,0);       //high column start address
        for(n=0;n<128;n++)
            {
                OLED_WR_Byte(fill_Data,1);
            }
    }
}


/***********************Delay****************************************/
void Delay_50ms(unsigned int Del_50ms)
{
    unsigned int m;
    for(;Del_50ms>0;Del_50ms--)
        for(m=6245;m>0;m--);
}

void Delay_1ms(unsigned int Del_1ms)
{
    unsigned char j;
    while(Del_1ms--)
    {
        for(j=0;j<123;j++);
    }
}

//坐标设置

    void OLED_Set_Pos(unsigned char x, unsigned char y)
{   OLED_WR_Byte(0xb0+y,OLED_CMD);
    OLED_WR_Byte(((x&0xf0)>>4)|0x10,OLED_CMD);
    OLED_WR_Byte((x&0x0f),OLED_CMD);
}
//开启OLED显示
void OLED_Display_On(void)
{
    OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
    OLED_WR_Byte(0X14,OLED_CMD);  //DCDC ON
    OLED_WR_Byte(0XAF,OLED_CMD);  //DISPLAY ON
}
//关闭OLED显示
void OLED_Display_Off(void)
{
    OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
    OLED_WR_Byte(0X10,OLED_CMD);  //DCDC OFF
    OLED_WR_Byte(0XAE,OLED_CMD);  //DISPLAY OFF
}
//清屏函数,清完屏,整个屏幕是黑色的!和没点亮一样!!!
void OLED_Clear(void)
{
    u8 i,n;
    for(i=0;i<8;i++)
    {
        OLED_WR_Byte (0xb0+i,OLED_CMD);    //设置页地址（0~7）
        OLED_WR_Byte (0x00,OLED_CMD);      //设置显示位置—列低地址
        OLED_WR_Byte (0x10,OLED_CMD);      //设置显示位置—列高地址
        for(n=0;n<128;n++)OLED_WR_Byte(0,OLED_DATA);
    } //更新显示
}
void OLED_On(void)
{
    u8 i,n;
    for(i=0;i<8;i++)
    {
        OLED_WR_Byte (0xb0+i,OLED_CMD);    //设置页地址（0~7）
        OLED_WR_Byte (0x00,OLED_CMD);      //设置显示位置—列低地址
        OLED_WR_Byte (0x10,OLED_CMD);      //设置显示位置—列高地址
        for(n=0;n<128;n++)OLED_WR_Byte(1,OLED_DATA);
    } //更新显示
}
//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//mode:0,反白显示;1,正常显示
//size:选择字体 16/12
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size)
{
    unsigned char c=0,i=0;
        c=chr-' ';//得到偏移后的值
        if(x>Max_Column-1){x=0;y=y+2;}
        if(Char_Size ==16)
            {
            OLED_Set_Pos(x,y);
            for(i=0;i<8;i++)
            OLED_WR_Byte(F8X16[c*16+i],OLED_DATA);
            OLED_Set_Pos(x,y+1);
            for(i=0;i<8;i++)
            OLED_WR_Byte(F8X16[c*16+i+8],OLED_DATA);
            }
            else {
                OLED_Set_Pos(x,y);
                for(i=0;i<6;i++)
                OLED_WR_Byte(F6x8[c][i],OLED_DATA);

            }
}
//m^n函数
u32 oled_pow(u8 m,u8 n)
{
    u32 result=1;
    while(n--)result*=m;
    return result;
}
//显示2个数字
//x,y :起点坐标
//len :数字的位数
//size:字体大小
//mode:模式   0,填充模式;1,叠加模式
//num:数值(0~4294967295);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size2)
{
    u8 t,temp;
    u8 enshow=0;
    for(t=0;t<len;t++)
    {
        temp=(num/oled_pow(10,len-t-1))%10;
        if(enshow==0&&t<(len-1))
        {
            if(temp==0)
            {
                OLED_ShowChar(x+(size2/2)*t,y,' ',size2);
                continue;
            }else enshow=1;

        }
        OLED_ShowChar(x+(size2/2)*t,y,temp+'0',size2);
    }
}
//显示一个字符号串
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 Char_Size)
{
    unsigned char j=0;
    while (chr[j]!='\0')
    {       OLED_ShowChar(x,y,chr[j],Char_Size);
            x+=8;
        if(x>120){x=0;y+=2;}
            j++;
    }
}
//显示汉字
void OLED_ShowCHinese(u8 x,u8 y,u8 no)
{
    u8 t,adder=0;
    OLED_Set_Pos(x,y);
    for(t=0;t<16;t++)
        {
                OLED_WR_Byte(Hzk[2*no][t],OLED_DATA);
                adder+=1;
     }
        OLED_Set_Pos(x,y+1);
    for(t=0;t<16;t++)
            {
                OLED_WR_Byte(Hzk[2*no+1][t],OLED_DATA);
                adder+=1;
      }
}
/***********功能描述：显示显示BMP图片128×64起始点坐标(x,y),x的范围0～127，y为页的范围0～7*****************/
void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[])
{
 unsigned int j=0;
 unsigned char x,y;

  if(y1%8==0) y=y1/8;
  else y=y1/8+1;
    for(y=y0;y<y1;y++)
    {
        OLED_Set_Pos(x0,y);
    for(x=x0;x<x1;x++)
        {
            OLED_WR_Byte(BMP[j++],OLED_DATA);
        }
    }
}

//初始化SSD1306
void OLED_Init(void)
{

//    GPIO_InitTypeDef  GPIO_InitStructure;
//
//
//    RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE);    //使能A端口时钟
//    GPIO_InitStructure.GPIO_Pin = GPIO_Pin_5|GPIO_Pin_7;
//    GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;         //推挽输出
//    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;//速度50MHz
//    GPIO_Init(GPIOA, &GPIO_InitStructure);    //初始化GPIOD3,6
//    GPIO_SetBits(GPIOA,GPIO_Pin_5|GPIO_Pin_7);


//delay_ms(800);


    /* Wait for minimum time required between transfers. */
    R_BSP_SoftwareDelay(800, BSP_DELAY_UNITS_MICROSECONDS);

OLED_WR_Byte(0xAE,OLED_CMD);//--display off
    OLED_WR_Byte(0x00,OLED_CMD);//---set low column address
    OLED_WR_Byte(0x10,OLED_CMD);//---set high column address
    OLED_WR_Byte(0x40,OLED_CMD);//--set start line address
    OLED_WR_Byte(0xB0,OLED_CMD);//--set page address
    OLED_WR_Byte(0x81,OLED_CMD); // contract control
    OLED_WR_Byte(0xFF,OLED_CMD);//--128
    OLED_WR_Byte(0xA1,OLED_CMD);//set segment remap
    OLED_WR_Byte(0xA6,OLED_CMD);//--normal / reverse
    OLED_WR_Byte(0xA8,OLED_CMD);//--set multiplex ratio(1 to 64)
    OLED_WR_Byte(0x3F,OLED_CMD);//--1/32 duty
    OLED_WR_Byte(0xC8,OLED_CMD);//Com scan direction
    OLED_WR_Byte(0xD3,OLED_CMD);//-set display offset
    OLED_WR_Byte(0x00,OLED_CMD);//

    OLED_WR_Byte(0xD5,OLED_CMD);//set osc division
    OLED_WR_Byte(0x80,OLED_CMD);//

    OLED_WR_Byte(0xD8,OLED_CMD);//set area color mode off
    OLED_WR_Byte(0x05,OLED_CMD);//

    OLED_WR_Byte(0xD9,OLED_CMD);//Set Pre-Charge Period
    OLED_WR_Byte(0xF1,OLED_CMD);//

    OLED_WR_Byte(0xDA,OLED_CMD);//set com pin configuartion
    OLED_WR_Byte(0x12,OLED_CMD);//

    OLED_WR_Byte(0xDB,OLED_CMD);//set Vcomh
    OLED_WR_Byte(0x30,OLED_CMD);//

    OLED_WR_Byte(0x8D,OLED_CMD);//set charge pump enable
    OLED_WR_Byte(0x14,OLED_CMD);//

    OLED_WR_Byte(0xAF,OLED_CMD);//--turn on oled panel
}



/*
 * oled.h
 *
 *  Created on: 2023年1月31日
 *      Author: a8456
 */

#ifndef OLED_H_
#define OLED_H_
#include "stdlib.h"


#define OLED_MODE 0

#define XLevelL     0x00
#define XLevelH     0x10
#define Max_Column  128
#define Max_Row     64
#define Brightness  0xFF
#define X_WIDTH     128
#define Y_WIDTH     64


#define OLED_CMD  0 //写命令
#define OLED_DATA 1 //写数据

typedef __uint8_t u8 ;
typedef __uint32_t u32 ;


//OLED控制用函数
void OLED_WR_Byte(unsigned dat,unsigned cmd);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Init(void);
void OLED_Clear(void);
void OLED_DrawPoint(u8 x,u8 y,u8 t);
void OLED_Fill(u8 x1,u8 y1,u8 x2,u8 y2,u8 dot);
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 Char_Size);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size);
void OLED_ShowString(u8 x,u8 y, u8 *p,u8 Char_Size);
void OLED_Set_Pos(unsigned char x, unsigned char y);
void OLED_ShowCHinese(u8 x,u8 y,u8 no);
void OLED_DrawBMP(unsigned char x0, unsigned char y0,unsigned char x1, unsigned char y1,unsigned char BMP[]);
void Delay_50ms(unsigned int Del_50ms);
void Delay_1ms(unsigned int Del_1ms);
void fill_picture(unsigned char fill_Data);
void Picture();
void IIC_Start();
void IIC_Stop();
void Write_IIC_Command(unsigned char IIC_Command);
void Write_IIC_Data(unsigned char IIC_Data);
void Write_IIC_Byte(unsigned char IIC_Byte);

void IIC_Wait_Ack();







#endif /* OLED_H_ */

/*
 * oledfont.h
 *
 *  Created on: 2023年1月31日
 *      Author: a8456
 */

#ifndef OLEDFONT_H_
#define OLEDFONT_H_

//常用ASCII表
//偏移量32
//ASCII字符集
//偏移量32
//大小:12*6
/************************************6*8的点阵************************************/
const unsigned char F6x8[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
/****************************************8*16的点阵************************************/
const unsigned char F8X16[]=
{
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
  0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
  0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
  0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
  0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
  0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
  0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
  0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
  0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
  0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
  0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
  0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
  0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
  0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
  0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
  0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
  0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
  0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
  0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
  0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
  0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
  0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
  0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
  0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
  0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
  0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
  0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
  0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
  0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
  0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
  0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
  0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
  0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
  0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
  0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
  0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
  0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
  0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
  0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
  0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
  0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
  0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
  0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
  0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
  0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
  0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
  0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
  0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
  0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
  0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
  0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
  0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
  0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
  0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
  0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
  0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
  0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
  0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
  0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
  0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
  0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
  0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
  0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
  0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
  0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
  0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
  0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
  0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
  0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
  0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
  0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
  0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
  0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
  0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
  0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
  0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
  0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
  0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
  0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
  0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
  0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
  0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
  0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
  0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};
char Hzk[][32]={

// 记(0) 帖(1) 年(2) 月(3) 日(4)

{0x40,0x40,0x42,0xCC,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0xFC,0x00,0x00,0x00},
{0x00,0x00,0x00,0x7F,0x20,0x10,0x00,0x3F,0x40,0x40,0x40,0x40,0x41,0x40,0x70,0x00},/*"记",0*/
/* (16 X 16 , 宋体 )*/

{0x00,0xF8,0x08,0xFF,0x08,0xF8,0x00,0x00,0x00,0x00,0xFF,0x10,0x10,0x10,0x10,0x00},
{0x00,0x0F,0x00,0xFF,0x08,0x0F,0x00,0xFF,0x41,0x41,0x41,0x41,0x41,0xFF,0x00,0x00},/*"帖",1*/
/* (16 X 16 , 宋体 )*/

{0x00,0x20,0x18,0xC7,0x44,0x44,0x44,0x44,0xFC,0x44,0x44,0x44,0x44,0x04,0x00,0x00},
{0x04,0x04,0x04,0x07,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"年",2*/
/* (16 X 16 , 宋体 )*/

{0x00,0x00,0x00,0xFE,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0x22,0xFE,0x00,0x00,0x00},
{0x80,0x40,0x30,0x0F,0x02,0x02,0x02,0x02,0x02,0x02,0x42,0x82,0x7F,0x00,0x00,0x00},/*"月",3*/
/* (16 X 16 , 宋体 )*/

{0x00,0x00,0x00,0xFE,0x82,0x82,0x82,0x82,0x82,0x82,0x82,0xFE,0x00,0x00,0x00,0x00},
{0x00,0x00,0x00,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x00,0x00,0x00,0x00},/*"日",4*/
/* (16 X 16 , 宋体 )*/


};




#endif /* OLEDFONT_H_ */

接下来，你就可以看到oled上的显示。

 好了，今天的内容就到这里，我们明天再见。
