1. Introduction

In this tutorial, we will learn how to use OpenGL with QT5.

We will be building a pyramid drawing system that will allow the user to dynamically control the xyz rotation with QSlider and with mouse.

After this tutorial, we will understand the basics of creating, moving, and coloring objects using OpenGL. But this tutorial is more focused on Qt and Creator IDE rather than the details of OpenGL implementation.

If we know both Qt and OpenGL, the essence of Qt OpenGL is two step learning process:

Getting OpenGL module from Qt.
Putting OpenGL aware canvas into QT UI

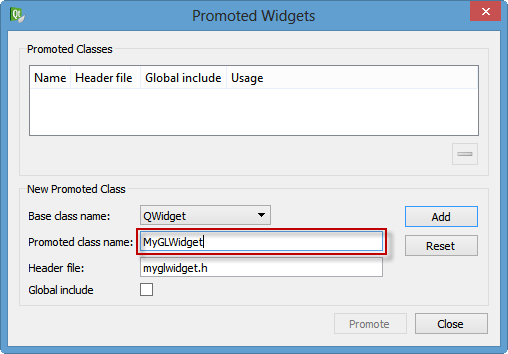

Note that the header file is automatically filled in for us, and click Add.

With the MyGLWidget class selected, click Promote.

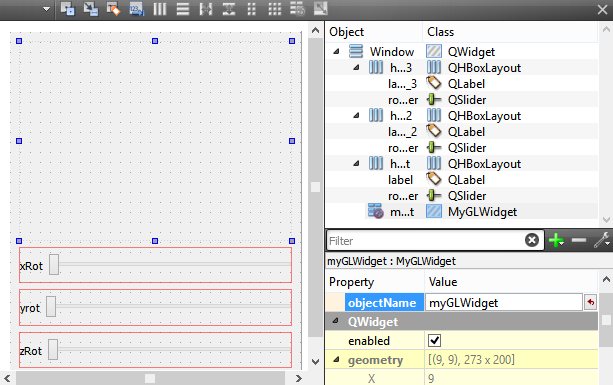

Let's rename this object to myGLWidget:

6. Adding Sliders and set the Layout

We want to control rotation with QSliders. Let's add them:

Name them: xRotSlider, yRotSlider, zRotSlider.

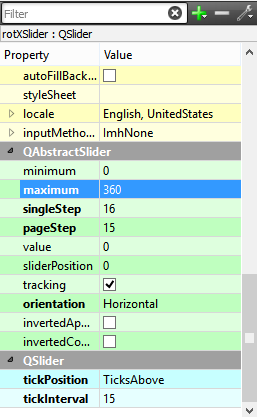

Set the range: minimum = 0 and maximum = 360, singleStep = 16, page step = 15, tickPosition = TickAbove, and tickinterval = 15.

Then, put all of the UI components into appropriate layouts as shown in the picture below.

7. Coding OpenGL Canvas, MyGLWidet

The three methods we will need to include are:

initializeGL() which will be called to initialize the GL Context.
resizeGL() which will be called when the widget is resized.
paintGL() which will be called when the OpenGL widget needs to be redrawn.

Declare all three as protected methods in the myglwidget.h header file:

protected:
void initializeGL();
void paintGL();
void resizeGL(int width, int height);

We'll also need to declare the private variables:

private:
    int xRot;
    int yRot;
    int zRot;

Note that the header file is automatically filled in for us, and click Add.

With the MyGLWidget class selected, click Promote.

Let's rename this object to myGLWidget:

6. Adding Sliders and set the Layout

We want to control rotation with QSliders. Let's add them:

Name them: xRotSlider, yRotSlider, zRotSlider.

Set the range: minimum = 0 and maximum = 360, singleStep = 16, page step = 15, tickPosition = TickAbove, and tickinterval = 15.

Then, put all of the UI components into appropriate layouts as shown in the picture below.

7. Coding OpenGL Canvas, MyGLWidet

The three methods we will need to include are:

initializeGL() which will be called to initialize the GL Context.
resizeGL() which will be called when the widget is resized.
paintGL() which will be called when the OpenGL widget needs to be redrawn.

Declare all three as protected methods in the myglwidget.h header file:

protected:
void initializeGL();
void paintGL();
void resizeGL(int width, int height);

We'll also need to declare the private variables:

private:
    int xRot;
    int yRot;
    int zRot;

8. Connecting Sliders to OpenGL Canvas

8.1 Rotation Slider

Here are slots for myglwidget.h:

public slots:
    // slots for xyz-rotation slider
    void setXRotation(int angle);
    void setYRotation(int angle);
    void setZRotation(int angle);

Our pyramid will rotate in two ways: (1)by the slider ui (2)by mouse.

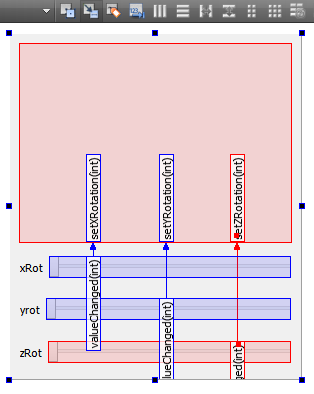

Now, let's make some connections between signals and slots.

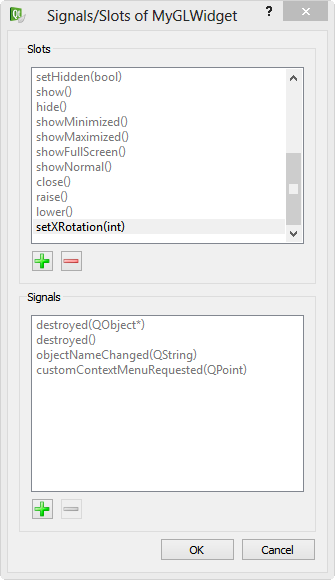

As shown in the picture above, we setup the slots for the sliders. Note that the slots such as setXRotation(int) is not in the slot list, and we need to add it to the list as shown in the following picture:

8.2 Rotation by Mouse Movements

Here are signals to emit when there is a rotation from mouse movement and should be placed for myglwidget.h:

signals:
    // signaling rotation from mouse movement
    void xRotationChanged(int angle);
    void yRotationChanged(int angle);
    void zRotationChanged(int angle);

9. Run Time

9.1 Screen Shot

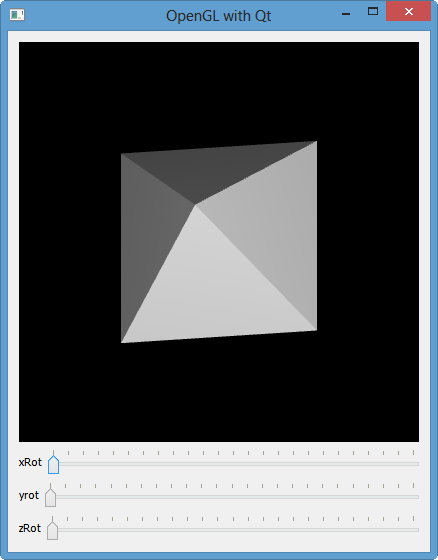

Here is the screen shot of a run.

9.2 Video

Here is the video shot of a run.

10. Source Code

Source file: MyOpenGL.zip

main.cpp:

// main.cpp
#include <QApplication>
#include <QDesktopWidget>

#include "window.h"

int main(int argc, char *argv[])
{
    QApplication app(argc, argv);
    Window window;
    window.resize(window.sizeHint());
    int desktopArea = QApplication::desktop()->width() *
                     QApplication::desktop()->height();
    int widgetArea = window.width() * window.height();

    window.setWindowTitle("OpenGL with Qt");

    if (((float)widgetArea / (float)desktopArea) < 0.75f)
        window.show();
    else
        window.showMaximized();
    return app.exec();
}

window.h:

// window.h

#ifndef WINDOW_H
#define WINDOW_H

#include <QWidget>
#include <QSlider>

namespace Ui {
class Window;
}

class Window : public QWidget
{
    Q_OBJECT

public:
    explicit Window(QWidget *parent = 0);
    ~Window();

protected:
    void keyPressEvent(QKeyEvent *event);

private:
    Ui::Window *ui;
};

#endif // WINDOW_H

window.cpp:

// window.cpp

#include <QtWidgets>
#include "window.h"
#include "ui_window.h"

#include "myglwidget.h"

Window::Window(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::Window)
{
    ui->setupUi(this);

    connect(ui->myGLWidget, SIGNAL(xRotationChanged(int)), ui->rotXSlider, SLOT(setValue(int)));
    connect(ui->myGLWidget, SIGNAL(yRotationChanged(int)), ui->rotYSlider, SLOT(setValue(int)));
    connect(ui->myGLWidget, SIGNAL(zRotationChanged(int)), ui->rotZSlider, SLOT(setValue(int)));
}

Window::~Window()
{
    delete ui;
}

void Window::keyPressEvent(QKeyEvent *e)
{
    if (e->key() == Qt::Key_Escape)
        close();
    else
        QWidget::keyPressEvent(e);
}

myglwidget.h:

// myglwidget.h

#ifndef MYGLWIDGET_H
#define MYGLWIDGET_H

#include <QGLWidget>

class MyGLWidget : public QGLWidget
{
    Q_OBJECT
public:
    explicit MyGLWidget(QWidget *parent = 0);
    ~MyGLWidget();
signals:

public slots:

protected:
    void initializeGL();
    void paintGL();
    void resizeGL(int width, int height);

    QSize minimumSizeHint() const;
    QSize sizeHint() const;
    void mousePressEvent(QMouseEvent *event);
    void mouseMoveEvent(QMouseEvent *event);

public slots:
    // slots for xyz-rotation slider
    void setXRotation(int angle);
    void setYRotation(int angle);
    void setZRotation(int angle);

signals:
    // signaling rotation from mouse movement
    void xRotationChanged(int angle);
    void yRotationChanged(int angle);
    void zRotationChanged(int angle);

private:
    void draw();

    int xRot;
    int yRot;
    int zRot;

    QPoint lastPos;
};

#endif // MYGLWIDGET_H

myglwidget.cpp:

// myglwidget.cpp

#include <QtWidgets>
#include <QtOpenGL>

#include "myglwidget.h"

MyGLWidget::MyGLWidget(QWidget *parent)
    : QGLWidget(QGLFormat(QGL::SampleBuffers), parent)
{
    xRot = 0;
    yRot = 0;
    zRot = 0;
}

MyGLWidget::~MyGLWidget()
{
}

QSize MyGLWidget::minimumSizeHint() const
{
    return QSize(50, 50);
}

QSize MyGLWidget::sizeHint() const
{
    return QSize(400, 400);
}

static void qNormalizeAngle(int &angle;)
{
    while (angle < 0)
        angle += 360 * 16;
    while (angle > 360)
        angle -= 360 * 16;
}

void MyGLWidget::setXRotation(int angle)
{
    qNormalizeAngle(angle);
    if (angle != xRot) {
        xRot = angle;
        emit xRotationChanged(angle);
        updateGL();
    }
}

void MyGLWidget::setYRotation(int angle)
{
    qNormalizeAngle(angle);
    if (angle != yRot) {
        yRot = angle;
        emit yRotationChanged(angle);
        updateGL();
    }
}

void MyGLWidget::setZRotation(int angle)
{
    qNormalizeAngle(angle);
    if (angle != zRot) {
        zRot = angle;
        emit zRotationChanged(angle);
        updateGL();
    }
}

void MyGLWidget::initializeGL()
{
    qglClearColor(Qt::black);

    glEnable(GL_DEPTH_TEST);
    glEnable(GL_CULL_FACE);
    glShadeModel(GL_SMOOTH);
    glEnable(GL_LIGHTING);
    glEnable(GL_LIGHT0);

    static GLfloat lightPosition[4] = { 0, 0, 10, 1.0 };
    glLightfv(GL_LIGHT0, GL_POSITION, lightPosition);
}

void MyGLWidget::paintGL()
{
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glLoadIdentity();
    glTranslatef(0.0, 0.0, -10.0);
    glRotatef(xRot / 16.0, 1.0, 0.0, 0.0);
    glRotatef(yRot / 16.0, 0.0, 1.0, 0.0);
    glRotatef(zRot / 16.0, 0.0, 0.0, 1.0);
    draw();
}

void MyGLWidget::resizeGL(int width, int height)
{
    int side = qMin(width, height);
    glViewport((width - side) / 2, (height - side) / 2, side, side);

    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
#ifdef QT_OPENGL_ES_1
    glOrthof(-2, +2, -2, +2, 1.0, 15.0);
#else
    glOrtho(-2, +2, -2, +2, 1.0, 15.0);
#endif
    glMatrixMode(GL_MODELVIEW);
}

void MyGLWidget::mousePressEvent(QMouseEvent *event)
{
    lastPos = event->pos();
}

void MyGLWidget::mouseMoveEvent(QMouseEvent *event)
{
    int dx = event->x() - lastPos.x();
    int dy = event->y() - lastPos.y();

    if (event->buttons() & Qt::LeftButton) {
        setXRotation(xRot + 8 * dy);
        setYRotation(yRot + 8 * dx);
    } else if (event->buttons() & Qt::RightButton) {
        setXRotation(xRot + 8 * dy);
        setZRotation(zRot + 8 * dx);
    }

    lastPos = event->pos();
}

void MyGLWidget::draw()
{
    qglColor(Qt::red);
    glBegin(GL_QUADS);
        glNormal3f(0,0,-1);
        glVertex3f(-1,-1,0);
        glVertex3f(-1,1,0);
        glVertex3f(1,1,0);
        glVertex3f(1,-1,0);

    glEnd();
    glBegin(GL_TRIANGLES);
        glNormal3f(0,-1,0.707);
        glVertex3f(-1,-1,0);
        glVertex3f(1,-1,0);
        glVertex3f(0,0,1.2);
    glEnd();
    glBegin(GL_TRIANGLES);
        glNormal3f(1,0, 0.707);
        glVertex3f(1,-1,0);
        glVertex3f(1,1,0);
        glVertex3f(0,0,1.2);
    glEnd();
    glBegin(GL_TRIANGLES);
        glNormal3f(0,1,0.707);
        glVertex3f(1,1,0);
        glVertex3f(-1,1,0);
        glVertex3f(0,0,1.2);
    glEnd();
    glBegin(GL_TRIANGLES);
        glNormal3f(-1,0,0.707);
        glVertex3f(-1,1,0);
        glVertex3f(-1,-1,0);
        glVertex3f(0,0,1.2);
    glEnd();
}
